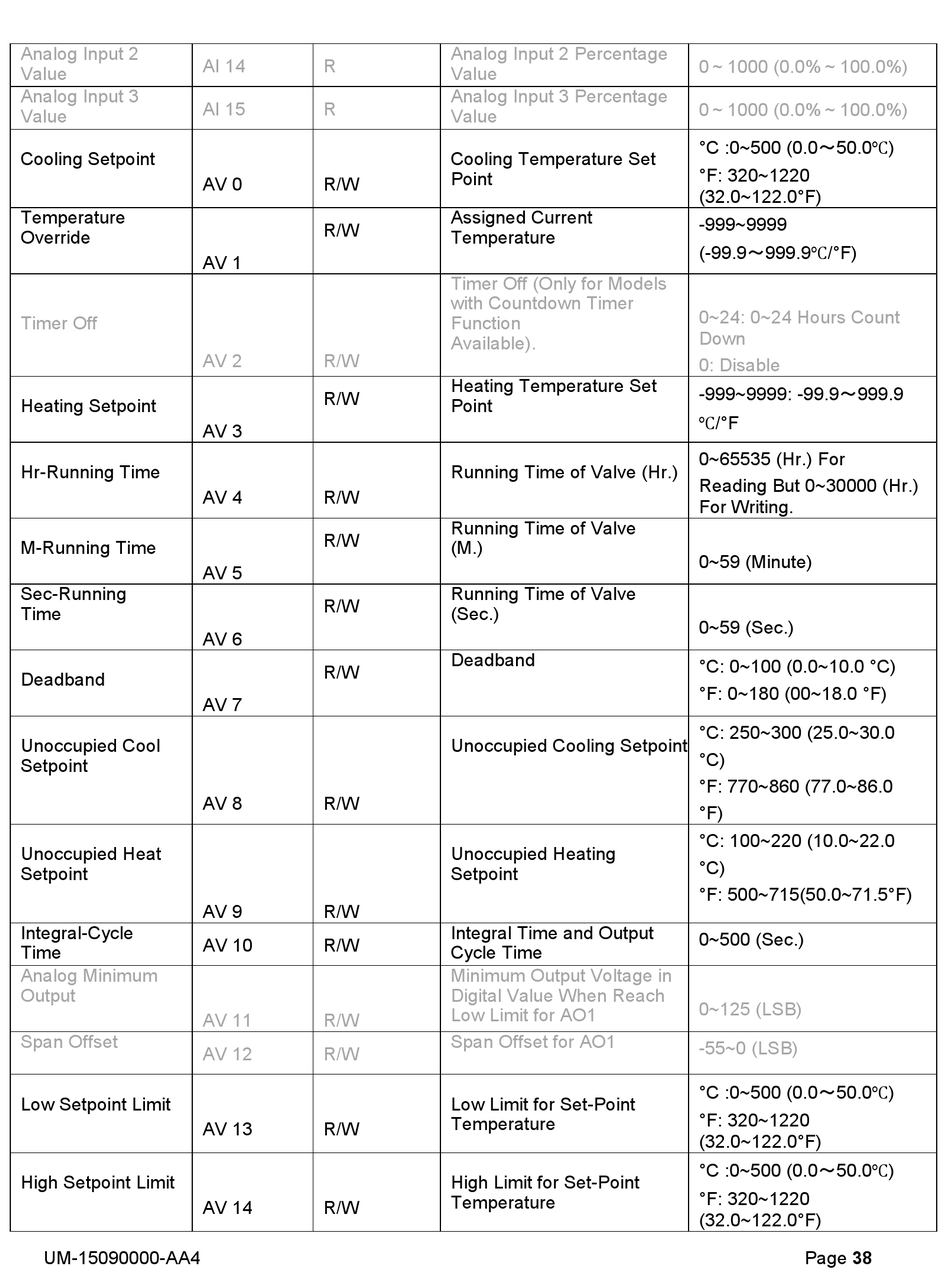

Contemporary Controls BAST-221C User Manual page 38

Analog Input 2
Value
Analog Input 3
Value
Cooling Setpoint
Temperature
Override
Timer Off
Heating Setpoint
Hr-Running Time
M-Running Time
Sec-Running
Time
Deadband
Unoccupied Cool
Setpoint
Unoccupied Heat
Setpoint
Integral-Cycle
Time
Analog Minimum
Output
Span Offset
Low Setpoint Limit
High Setpoint Limit
UM-15090000-AA4
AI 14 R
AI 15 R
AV 0 R/W
R/W
AV 1
AV 2 R/W
R/W
AV 3
AV 4 R/W
R/W
AV 5
R/W
AV 6
R/W
AV 7
AV 8 R/W
AV 9 R/W
AV 10 R/W
AV 11 R/W
AV 12 R/W
AV 13 R/W
AV 14 R/W
Analog Input 2 Percentage
Value
Analog Input 3 Percentage
Value
Cooling Temperature Set
Point
Assigned Current
Temperature
Timer Off (Only for Models
with Countdown Timer
Function
Available).
Heating Temperature Set
Point
Running Time of Valve (Hr.)
Running Time of Valve
(M.)
Running Time of Valve
(Sec.)
Deadband
Unoccupied Cooling Setpoint
Unoccupied Heating
Setpoint
Integral Time and Output
Cycle Time
Minimum Output Voltage in
Digital Value When Reach
Low Limit for AO1
Span Offset for AO1
Low Limit for Set-Point
Temperature
High Limit for Set-Point
Temperature
0～1000 (0.0%～100.0%)
0～1000 (0.0%～100.0%)
°C :0~500 (0.0～50.0℃)
°F: 320~1220
(32.0~122.0°F)
-999~9999
(-99.9～999.9℃/°F)
0~24: 0~24 Hours Count
Down
0: Disable
℃/°F
-999~9999: -99.9～999.9
0~65535 (Hr.) For
Reading But 0~30000 (Hr.)
For Writing.
0~59 (Minute)
0~59 (Sec.)
°C: 0~100 (0.0~10.0 °C)
°F: 0~180 (00~18.0 °F)
°C: 250~300 (25.0~30.0
°C)
°F: 770~860 (77.0~86.0
°F)
°C: 100~220 (10.0~22.0
°C)
°F: 500~715(50.0~71.5°F)
0~500 (Sec.)
0~125 (LSB)
-55~0 (LSB)
°C :0~500 (0.0～50.0℃)
°F: 320~1220
(32.0~122.0°F)
°C :0~500 (0.0～50.0℃)
°F: 320~1220
(32.0~122.0°F)
Page 38
