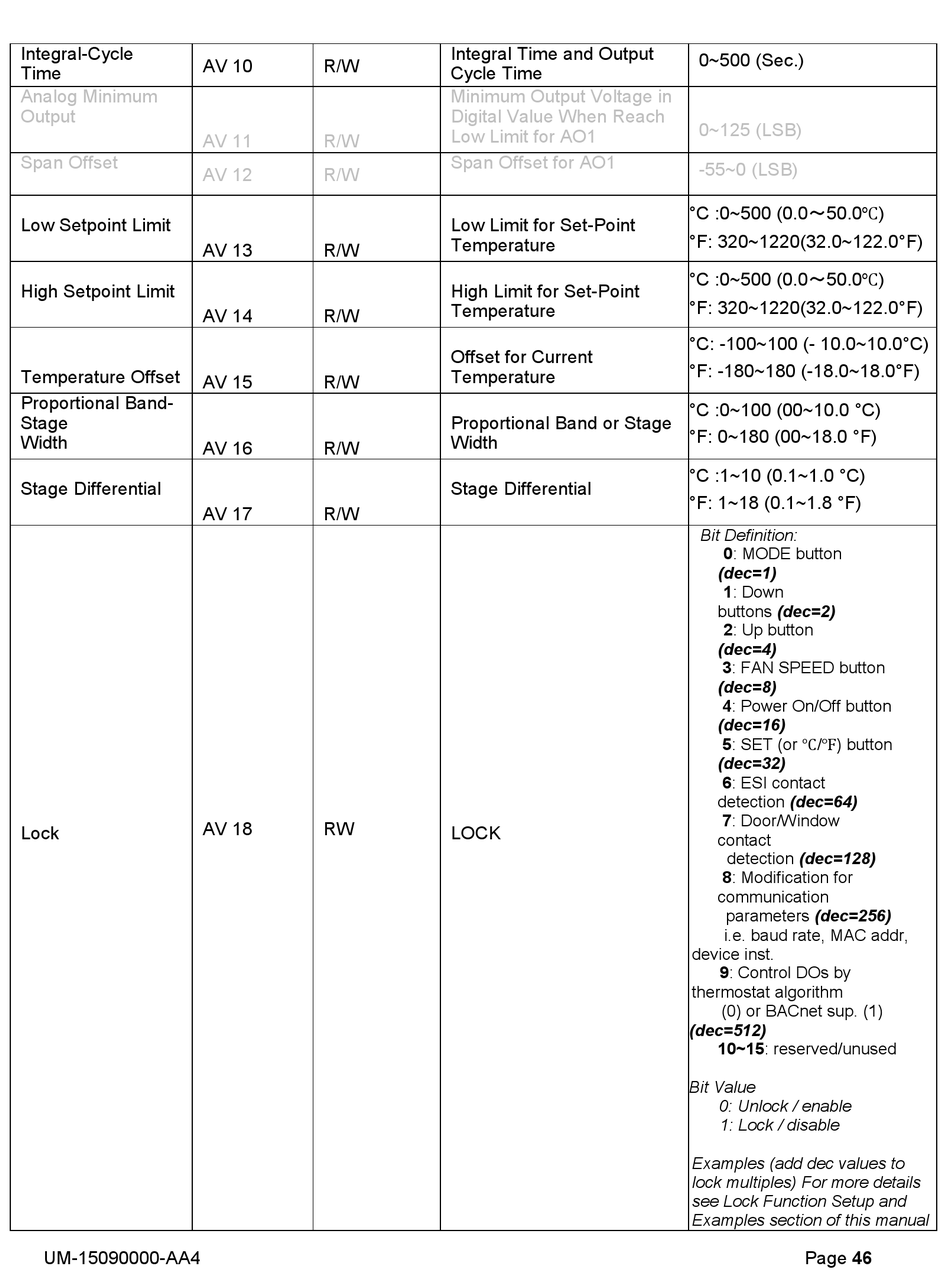

Contemporary Controls BAST-221C User Manual page 46

Integral-Cycle
Time
Analog Minimum
Output
Span Offset
Low Setpoint Limit
High Setpoint Limit
Temperature Offset
Proportional Band-
Stage
Width
Stage Differential
Lock
UM-15090000-AA4
AV 10 R/W
AV 11 R/W
AV 12 R/W
AV 13 R/W
AV 14 R/W
AV 15 R/W
AV 16 R/W
AV 17 R/W
AV 18 RW
Integral Time and Output
Cycle Time
Minimum Output Voltage in
Digital Value When Reach
Low Limit for AO1
Span Offset for AO1
Low Limit for Set-Point
Temperature
High Limit for Set-Point
Temperature
Offset for Current
Temperature
Proportional Band or Stage
Width
Stage Differential
LOCK
0~500 (Sec.)
0~125 (LSB)
-55~0 (LSB)
°C :0~500 (0.0～50.0℃)
°F: 320~1220(32.0~122.0°F)
°C :0~500 (0.0～50.0℃)
°F: 320~1220(32.0~122.0°F)
°C: -100~100 (- 10.0~10.0°C)
°F: -180~180 (-18.0~18.0°F)
°C :0~100 (00~10.0 °C)
°F: 0~180 (00~18.0 °F)
°C :1~10 (0.1~1.0 °C)
°F: 1~18 (0.1~1.8 °F)
Bit Definition:
0: MODE button
(dec=1)
1: Down
buttons (dec=2)
2: Up button
(dec=4)
3: FAN SPEED button
(dec=8)
4: Power On/Off button
5: SET (or ℃/℉) button
(dec=16)
(dec=32)
6: ESI contact
detection (dec=64)
7: Door/Window
contact
detection (dec=128)
8: Modification for
communication
parameters (dec=256)
i.e. baud rate, MAC addr,
device inst.
9: Control DOs by
thermostat algorithm
(0) or BACnet sup. (1)
(dec=512)
10~15: reserved/unused
Bit Value
0: Unlock / enable
1: Lock / disable
Examples (add dec values to
lock multiples) For more details
see Lock Function Setup and
Examples section of this manual
Page 46
