1
BOILER
INSTALLATION
1.1 INSTALLATION
RECOMMENDATIONS.
The INTEC 12-30 SYSTEM EXTERNAL boiler
has been designed uniquely for wall-installation,
for the heating of rooms for domestic use.
- installation (according to the legislation and
technical standards in force);
- maintenance operations (including those
scheduled, periodical, ordinary and special);
- removal (to the outdoors in a place suitable
for loading and transporting appliances and
components) as well as any replacement with
equivalent appliances and/or components.
The wall surface must be smooth, without any
protrusions or recesses enabling access to the
rear part. They are not designed to be installed
on plinths or floors (Fig. 1-1).
By var ying the type of installation the
classification of the boiler also varies, precisely:
- Type C boiler Uses concentric or Coaxial pipes
systems Hunt Heating supplies the correct flue
for this application.
On ly professiona l ly he at ing/plumbing
technicians are authorised to install Immergas
gas appliances.
Installation must be carried out according to
regulation standards AS/NZS 5601 or Local
Authority laws.
Installation of the INTEC 12-30 SYSTEM
EXTERNAL boiler when powered by Universal
LPG must also comply with the rules regarding
gases with a greater density and be installed
to meet all local and AS/NZS 5601 LAWS.
Before installing the appliance, ensure that it
is delivered in perfect condition; if in doubt,

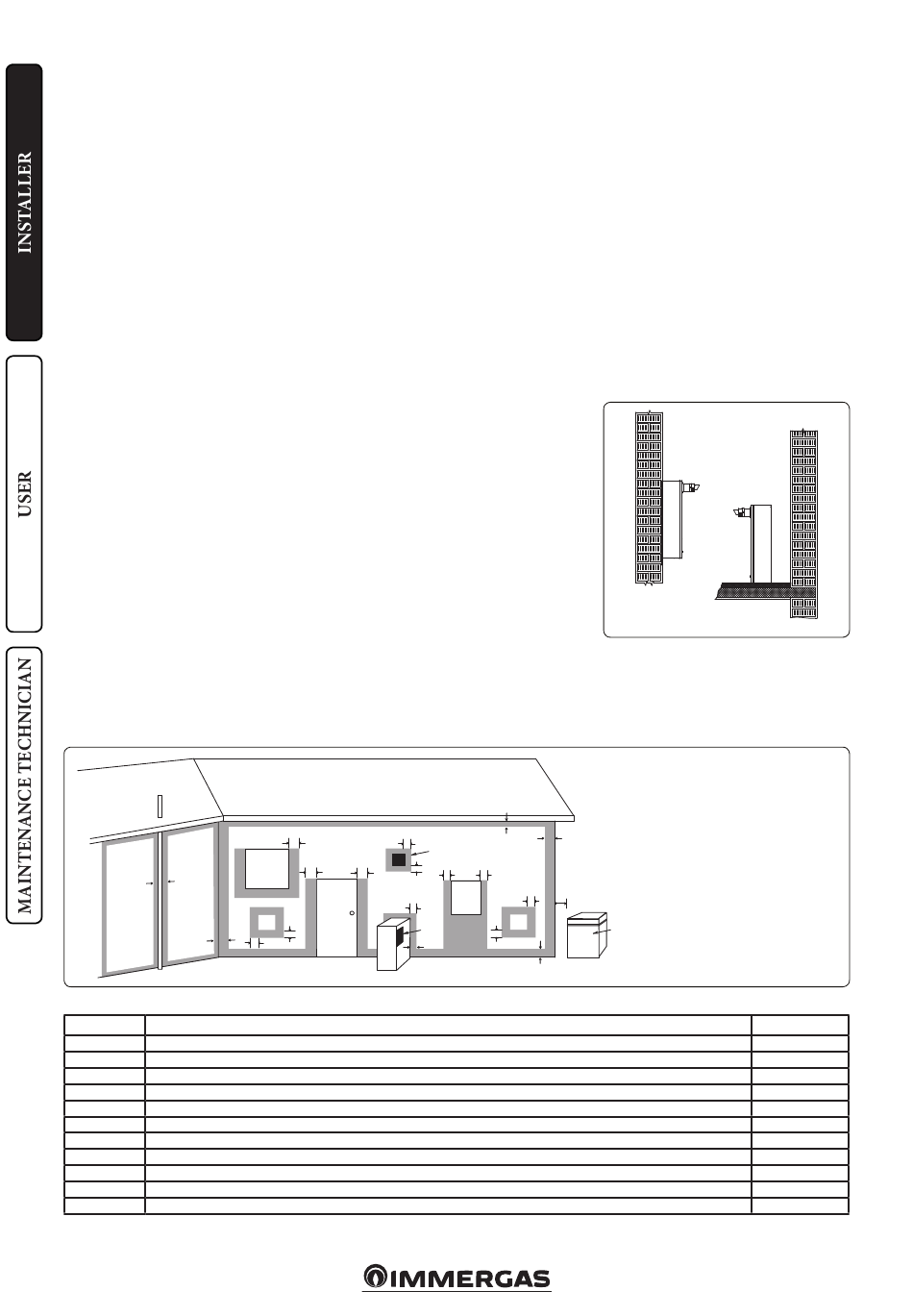

Flue terminal positions
Use as a guide only. Refer to AS/NZS 5601 or gas fitting rules for specific location.
f
c
Flue terminal positions. Shaded area indicates prohibited area
Ref. Item
Below eaves, balconies and other projections (Appliances over 50MJ/h)
a
b From the ground, above a balcony or other surface
From a return wall or external wall
c
From a gas meter
d
From an electricity meter or fusebox/breaker panel
e
From a drain pipe or soil pipe
f
Horizontally from any building structure or obstruction facing a flue terminal
g
From any other flue terminal, cowl or combustion air intake
h
j Horizontally from any opening window, door, non-mechanical air inlet or other opening into a building with the exception of sub-floor ventilation
From a mechanical air inlet including a spa blower
k
Vertically below an opening window, non-mechanical air inlet or any other opening into a building with the exception of sub-floor ventilation
n
• The location of the flue terminal must comply with the clea-
rances shown on this page.
contact the supplier immediately. Packing
materials (staples, nails, plastic bags, polystyrene
foam, etc.) constitute a hazard and must be kept
out of the reach of children. Leave adequate
space above the boiler for possible water and
flue removal connections. Keep all flammable
objects away from the appliance (paper, rags,
plastic, polystyrene, etc.). Do not place household
appliances underneath the boiler as they could
be damaged if the safety valve intervenes (if not
conveyed away by a draining funnel), or if there
are leaks from the connections; on the contrary,
the manufacturer cannot be held responsible for
any damage caused to the household appliances.
In the event of malfunctions, faults or incorrect
operation, turn the appliance off immediately and
contact a qualified technician (e.g. Hunt Heating
Service Dept which has specifically trained staff
and original spare parts). Do not attempt to
modify or repair the appliance alone.
Failure to comply with the above implies personal
responsibility and invalidates the warranty.
Installation Standards:
- Installations MUST comply with AS/NZS
5601 and Local laws. Use AS/NZS 5601 as
a guide for specific locations see below.
- Installation is prohibited on the vertical
projection of the cooking surface.
- Installation is also prohibited in places/
environments that constitute common parts
of office condominiums such as stairs, cellars,
entrance halls, attics, lofts, escape routes,
etc. if they are not located inside technical
compartments under the responsibility of
each individual building and only accessible
to the user (for the features of the technical
compartments, see the technical standards in
force).
h
j
W
h
j j
D
h
I
T
k
k
If you are unsure about clearances not indicated here, in general
refer to AS/NZS 5601 or your local autority.
a
c
T
e e
d
g
P
M
k
b
g
4
Attention: wall mounting of the boiler must
guarantee stable and efficient support for the
boiler.
Use the bracket supplied as standard, fixing it
with proper plugs according to the wall type. The
installer is responsible for the choose of the correct
plugs, according to the technical standard. Place
the supplied bracket, following the indications
reported on drawing 1-3 preferring the holes
indicated in the before mentioned draw.
N.B.: to fix the bracket we suggest to use
hexagon screw or countersunk screw for plug.
These boilers are used to heat water to below
boiling temperature in atmospheric pressure.
They must be attached to a heating system suit-
able for their capacity and voltage.
YES NO
1-1
D - Door
I - Mechanical air inlet
M - Gas meter
T - Flue Terminal
W - Window
T
Min. Clearance mm
• All measurements are the minimum clearances required.
• Terminals must be positioned so to aviod combustion products
entering the building.
1-2
300
300
300
1000
500
75
500
300
300
1000
500
