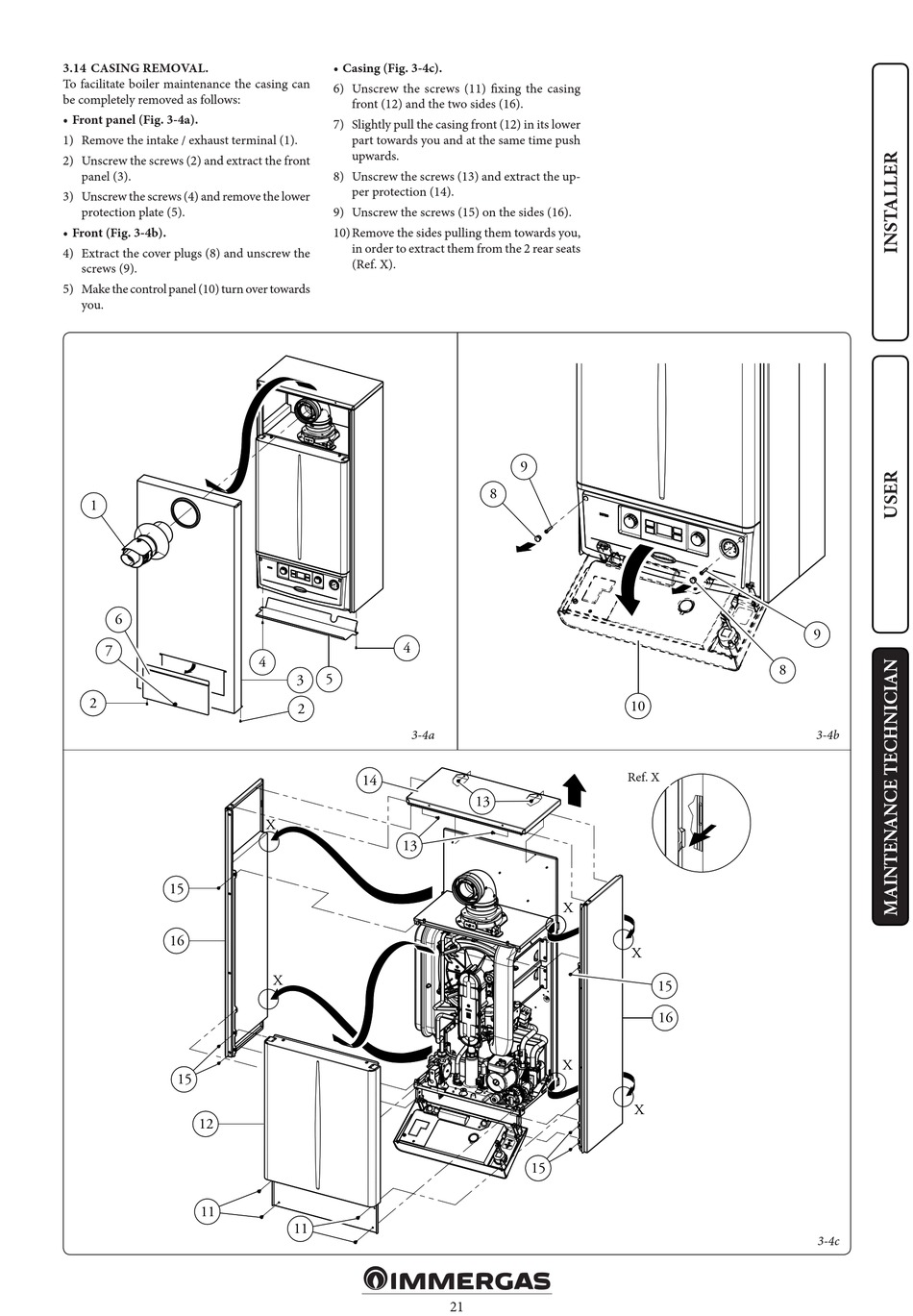

3.14 CASING REMOVAL.

To facilitate boiler maintenance the casing can
be completely removed as follows:
• Front panel (Fig. 3-4a).
1) Remove the intake / exhaust terminal (1).
2) Unscrew the screws (2) and extract the front
panel (3).
3) Unscrew the screws (4) and remove the lower
protection plate (5).
• Front (Fig. 3-4b).
4) Extract the cover plugs (8) and unscrew the
screws (9).
5) Make the control panel (10) turn over towards
you.
1
6
7
2
15
16
15
12
11
• Casing (Fig. 3-4c).
6) Unscrew the screws (11) fixing the casing
front (12) and the two sides (16).
7) Slightly pull the casing front (12) in its lower
part towards you and at the same time push
upwards.
8) Unscrew the screws (13) and extract the up-
per protection (14).
9) Unscrew the screws (15) on the sides (16).
10) Remove the sides pulling them towards you,
in order to extract them from the 2 rear seats
(Ref. X).
4
4
5
3
2
3-4a
14
X
13
X
11
9
8
13
X
X
15
21
8
10
Ref. X Rif. X
X
15
16
X
9
3-4b
3-4c
