INSTRUCTIONS FOR USE
AND MAINTENANCE.

2.1 CLEANING AND MAINTENANCE.

Attention: the boiler and heating systems must
undergo periodical maintenance, combustion
and energy efficiency checks in compliance with
AS/NZS 5601, by a qualified licensed operative.
this insure that optimal safety performance
and operation of the boiler remains unchanged
over time.
We recommend your appliance is serviced every
24 months (see Par. 3.16).

2.2 GENERAL WARNINGS.

Use of the boiler by unskilled persons or children
is strictly prohibited.
If temporary shutdown of the boiler is required,
proceed as follows:

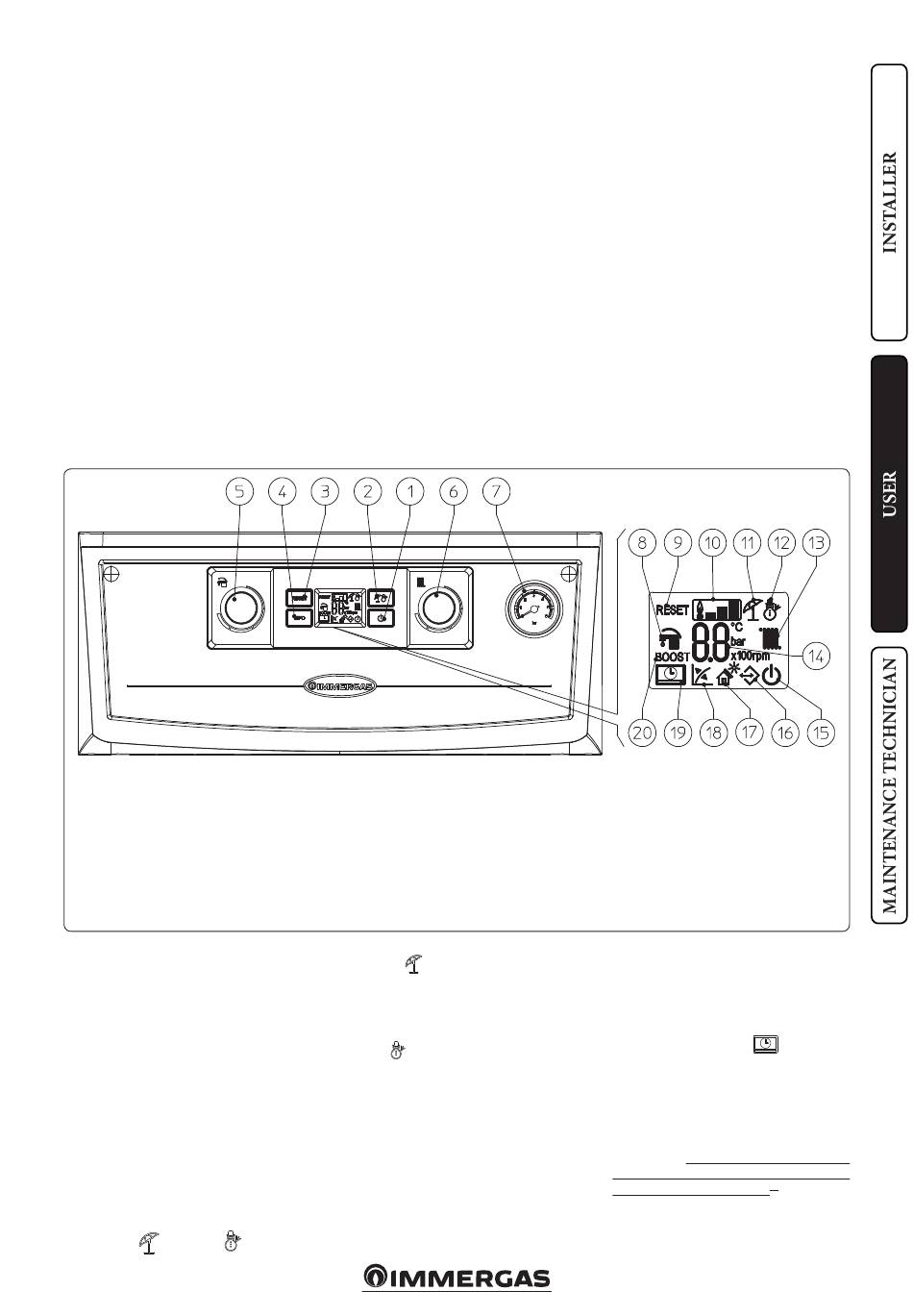

2.3 CONTROL PANEL.

2-1
Key:
1 - Off/Stand-by/On Button
2 - Summer/Winter Button
3 - Reset button
4 - Information buttons
5 - Domestic hot water temperatureselector
switch
6 - Central heating water temperature selector
switch
7 - Boiler manometer
To access the control panel, remove the protec-
tion panel (6) from the casing front by unscrew-
ing the bolt (7) and removing it as shown in
Fig. 3-4a.

2.4 USING THE BOILER.

Before ignition make sure the heating system
is filled with water and that the manometer (7)
indicates a pressure of 1 ÷ 1.2 bar (Fig. 2-1).
- Open the gas cock upstream from the boiler.
- Press the button (1) until the display switches
on. At this point, the boiler goes to the state
previous to switch-off.
- If the boiler is in stand-by, press the button (1)
again to activate it. If this is not the case, go to
the next point.
- Press button (2) in sequence and take the boiler
to summer ( ) or winter (
a) drain the heating system if anti-freeze is not
used;
b) shut-off all electrical, water and gas supplies.
In the case of work or maintenance to structures
located in the vicinity of ducting or devices for
flue extraction and relative accessories, switch off
the appliance and on completion of operations
ensure that a qualified licensed operative checks
efficiency of the ducting or other devices.
Never clean the appliance or connected parts
with easily flammable substances.
Never leave containers or flammable substances
in the same environment as the appliance.
• Attention: the use of components involving use
of electrical power requires some fundamental
rules to be observed:
- do not touch the appliance with wet or moist
parts of the body; do not touch it when
barefoot;
8 - DHW production phase functioning active
9 - Boiler in block does not require release via
"RESET" button
10 - Flame presence symbol and relative power
scale
11 - Functioning in summer mode
12 - Functioning in winter mode
13 - Room central heating active phase functio-
ning
• Summer (
functions only to produce the DHW, the
temperature is set via the selector (5) and the
relative temperature is shown on the display
via the indicator (14).
• Winter (
): in this mode the boiler functions
both for producing domestic hot water and
heating the environment. The temperature of
the DHW is always regulated via the selector
(5), the heating temperature is regulated via
selector (6) and the relative temperature is
shown on the display via the indicator (14).
From this moment the boiler functions
automatically. With no demand for heat (heating
or domestic hot water production) the boiler
goes to "standby" function, equivalent to the
boiler being powered without presence of flame.
) position.
14 - Temperature indicator, boiler info and
15 - Boiler in Stand-by mode
16 - Presence of external connected devices
17 - Solar function active
18 - Functioning with external temperature
19 - Boiler connected to remote control
20 - Not used on this model
): in this mode the boiler
11
- the appliance power cable must not be replaced
by the user;
- in the event of damage to the cable, switch
off the appliance and contact a qualified
technician;
- if the appliance is not to be used for a certain
period, disconnect the main power switch.
error codes
probe active (optional)
(optional)
Each time the burner ignites, the relative flame
present symbol is displayed (10) with relative
power scale.
• Operation with Comando Amico Remoto
remote control (CAR ) (Optional). If the
V2 V2
CAR is connected, the (
V2
appear on the display. The boiler regulation
parameters can be set via the CAR
panel and the reset button (3) remains active
on the boiler control panel, along with the
switch-off button (1) ("off " mode only) and the
display where the functioning state is shown
Important: if the boiler is put into "off "
mode, the "ERR>CM" connection error
symbol will appear on the CAR
V2
however powered constantly so as not to loose
memorised programs.
V2
) symbol will
control
V2
. The CAR is
V2
