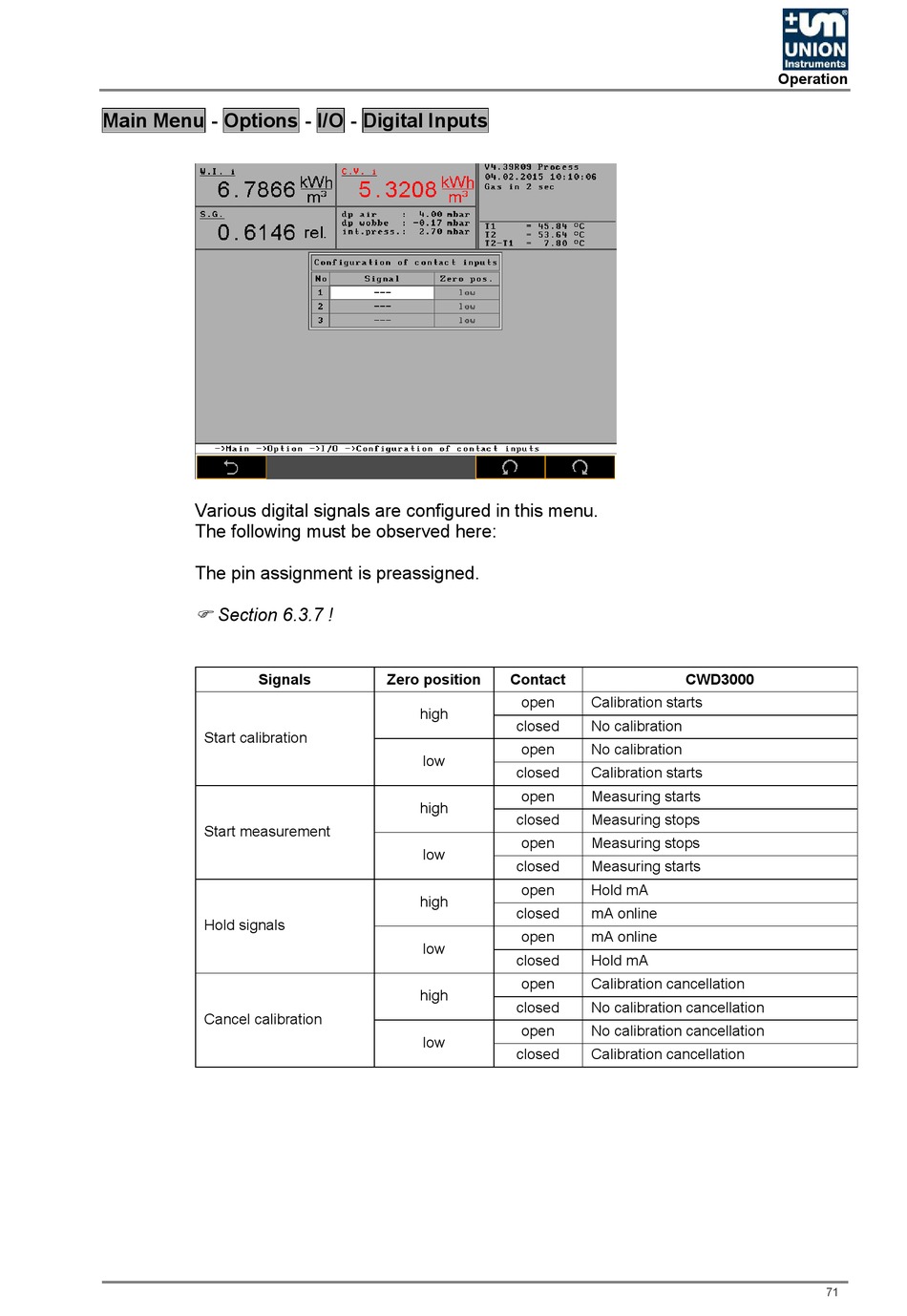

Main Menu - Options - I/O - Digital Inputs

Various digital signals are configured in this menu.
The following must be observed here:
The pin assignment is preassigned.
Section 6.3.7 !
Signals
Start calibration
Start measurement
Hold signals
Cancel calibration
Zero position
Contact
open
high
closed
open
low
closed
open
high
closed
open
low
closed
open
high
closed
open
low
closed
open
high
closed
open
low
closed
CWD3000
Calibration starts
No calibration
No calibration
Calibration starts
Measuring starts
Measuring stops
Measuring stops
Measuring starts
Hold mA
mA online
mA online
Hold mA
Calibration cancellation
No calibration cancellation
No calibration cancellation
Calibration cancellation
Operation
