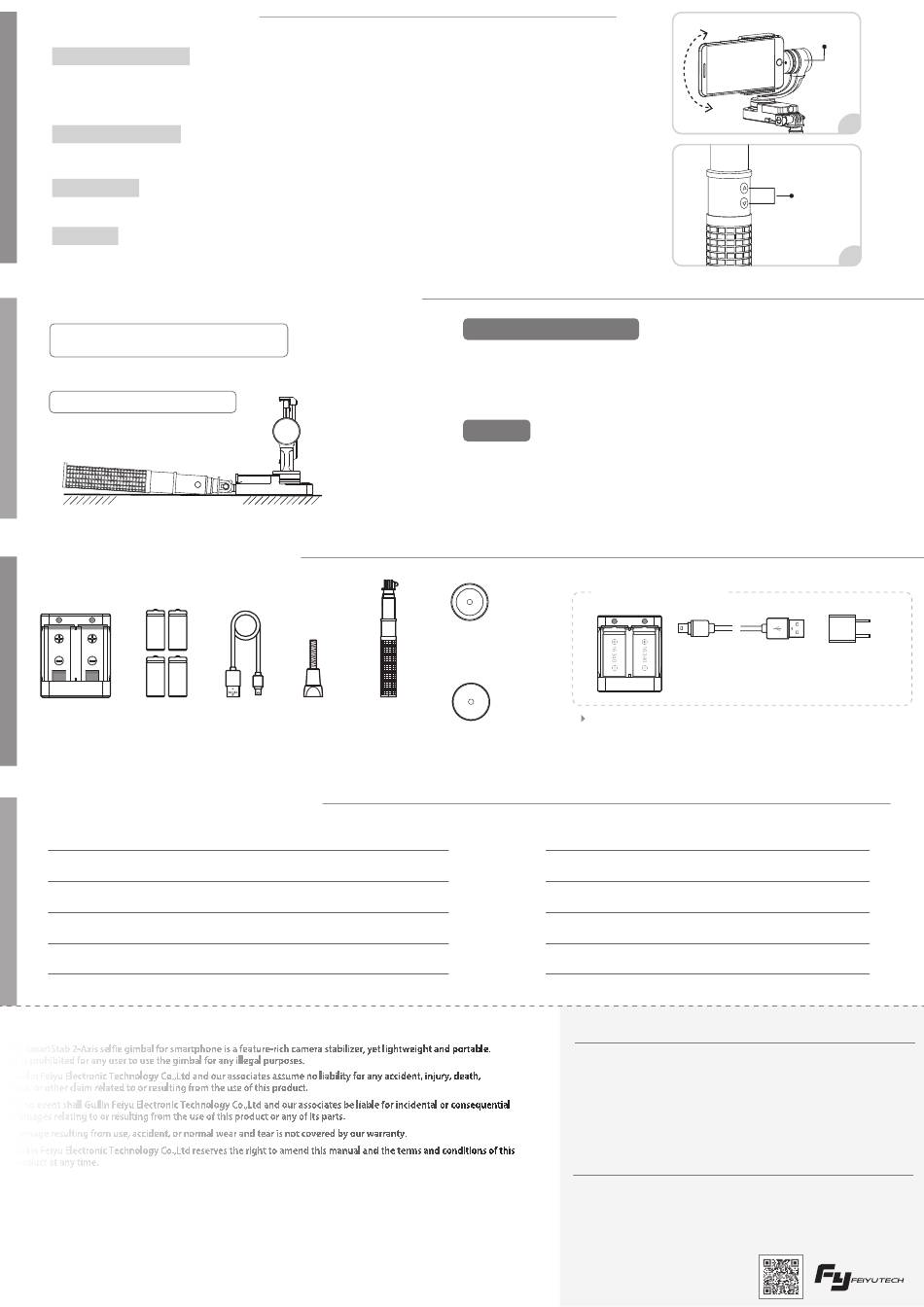

FeiYu Tech Smart Stab Manual page 2

Operation
3
Manual Pulling Locking
After the gimbal has been powered on for eight seconds, the Tilting angle can be adjusted manually in the
Lock Mode.
Adjust the Tilting angle to the desired position and wait for 0.5 second until the gimbal registers the new angle.
Extension bar Button
Connect the USB cable to the gimbal, the tilting of the gimbal can be controlled by the up and down button.
俯仰轴扳动锁定
稳定器启动8秒后即可使用扳动锁定功能，扳动俯仰轴到指定角度停留0.5秒即可锁定在当前角度。
延长杆按键
连接稳定器后，可通过上下按键控制稳定器俯仰轴。
Initialize The Gimbal
4
Smartstab needs to be initialized whenever the
following situations are observed after power on
The phone is not leveled with the horizontal surface.
当稳定器出现如下情况时需要初始化
在启动后手机与水平线有小角度偏差。
Motionless Flat Surface
静止平面
Accessories
5
Charger Input: DC 5V Rechargeable
Output: DC 4.2V
Battery
Type: 16340
输入: DC 5V
充电器 可充电池
型号：16340
输出: DC 4.2V
Parameters
6
Vertical Tilting Angle
Horizontal Panning Angle
Panning Increments
Overload Current Protection
Working Voltage
Weight
FY SmartStab 2-Axis selfie gimbal for smartphone is a feature-rich camera stabilizer, yet lightweight and portable.
It is prohibited for any user to use the gimbal for any illegal purposes.
Guilin Feiyu Electronic Technology Co.,Ltd and our associates assume no liability for any accident, injury, death,
loss, or other claim related to or resulting from the use of this product.
In no event shall Guilin Feiyu Electronic Technology Co.,Ltd and our associates be liable for incidental or consequential
damages relating to or resulting from the use of this product or any of its parts.
Damage resulting from use, accident, or normal wear and tear is not covered by our warranty.
Guilin Feiyu Electronic Technology Co.,Ltd reserves the right to amend this manual and the terms and conditions of this
product at any time.
飞宇 Smartstab 双轴手机自拍稳定器是一款优秀的轻量型手机摄影稳定器，体积小巧，兼容性高，应用广泛。
禁止任何用户的任何非法用途。用户将为购买和使用产品的一切行为负责。对于本产品，本公司不承担终端客户对本产品所有调试
和使用当中的风险和责任（包括直接、间接或者第三方的损失）。
我公司对于任何从非正常渠道获得或不明用途的产品，将不予任何服务。
由于产品固件程序的升级和更改，有可能造成本说明书中描述的功能有变动，升级固件前请仔细阅读升级说明，请配合使用对应的
说明书最新说明书可在官方网站：www.feiyu-tech.com 获取。 本公司保留一切解释权力。
操 作
稳定器初始化
配 件
USB Cable Short Screw
with control function
USB数据线 短杆手拧螺丝
带控制功能的延长杆
产品参数
320°
320°
3°/ s ~ 150°/ s
800 mA
6.0 V ~ 9.0 V
366g (Without Batteries & Phone)
D I S C L A I M E R
警 告 和 免 责 申 明
Initialization Instructions
1. Ensure gimbal is fully assembled and camera is installed properly.
2. Place the gimbal on a flat surface and keep it stationary.
3. Power on the Gimbal.
4. Wait for the gimbal to finish its initialization before resuming the use of the gimbal.
操作步骤
1. 稳定器组装完毕，正确安装相机
2. 稳定器按照正确的姿态放置在静止平面，如左图
3. 打开稳定器电源开关，等待稳定器正常启动
4. 待稳定器启动后，拾起稳定器即可正常工作
Weight：52 g
重量：52 g
Heavy Counter-Weight
重配重盖
Weight：6 g
重量：6 g
Extension bar
Light Counter-Weight
轻配重盖
3
Charging 充电
USB Cable
USB数据线
Connect the Mini-USB port of the USB cable with the charger, and the
USB port with 5V USB power adapter.
USB数据线的Mini-USB端连接充电器端口，另一USB端连接5V的USB接口
电源适配器。
俯仰角动作角度 320°
航向角动作角度 320°
航向随动速率 最小 3°/ s 最大 150°/ s
电机过载保护电流 800 mA
工作电压 最小 6.0 V 最大 9.0 V
重量 366g（不含电池和手机）
A T T E N T I O N
▲ Please assemble the gimbal in accordance to the diagram provided.
▲ Please charge the battery with the provided battery charger.
▲ Please install the camera securely before powering on the gimbal.
注 意 事 项
▲ 请按照安装示意图正确组装稳定器
▲ 可充电电池请使用标准充电器充电
▲ 稳定器组装完成后请务必安装上相机再上电启动稳定器
Tilting Axis
俯仰轴
1
Up and Down
Button
上下按键
2
5V USB
Power Adapter
（Not Included）
5V的USB接口
电源适配器（自备）
