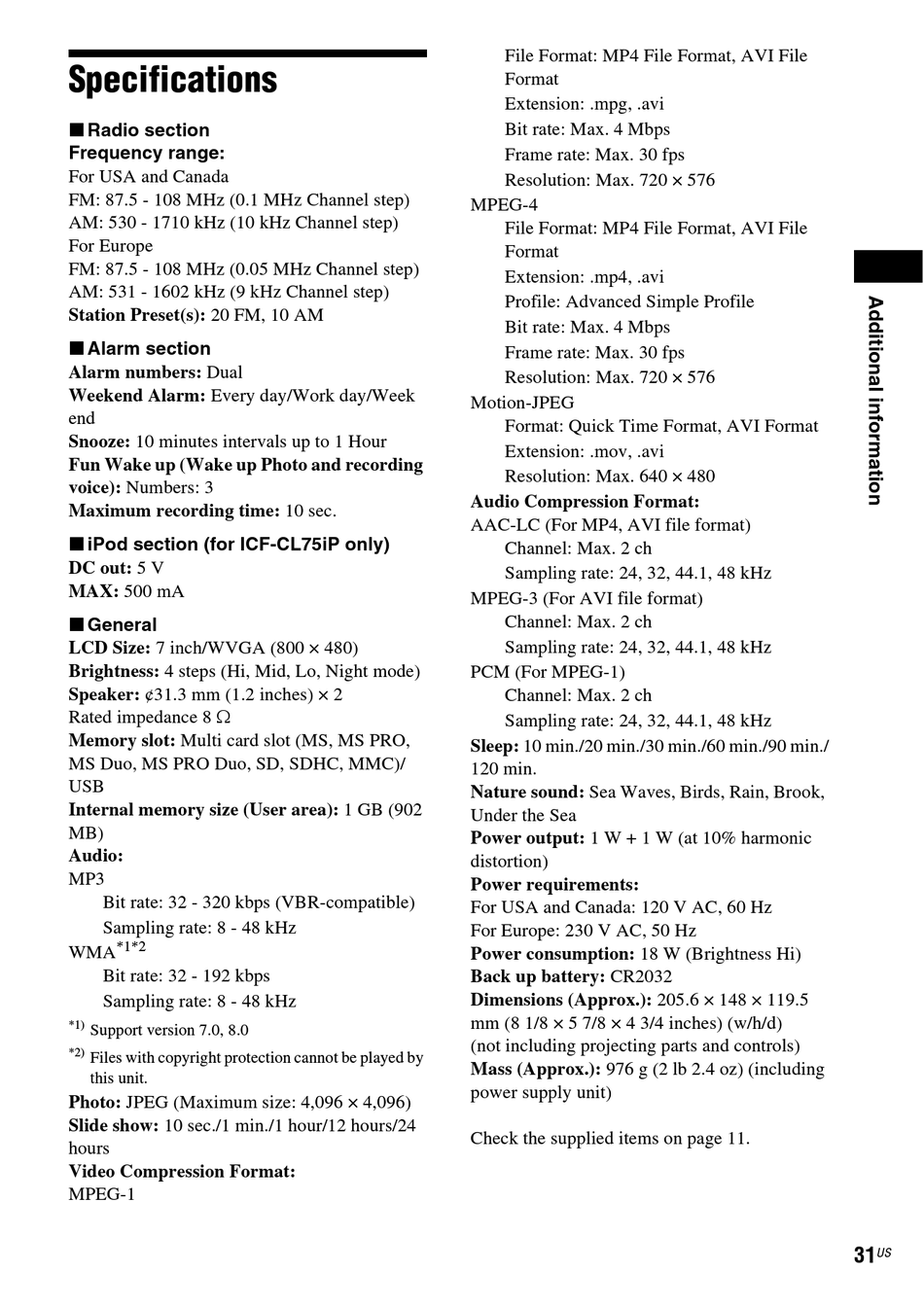

Specifications

x Radio section
Frequency range:
For USA and Canada
FM: 87.5 - 108 MHz (0.1 MHz Channel step)
AM: 530 - 1710 kHz (10 kHz Channel step)
For Europe
FM: 87.5 - 108 MHz (0.05 MHz Channel step)
AM: 531 - 1602 kHz (9 kHz Channel step)
Station Preset(s): 20 FM, 10 AM
x Alarm section
Alarm numbers: Dual
Weekend Alarm: Every day/Work day/Week
end
Snooze: 10 minutes intervals up to 1 Hour
Fun Wake up (Wake up Photo and recording
voice): Numbers: 3
Maximum recording time: 10 sec.
x iPod section (for ICF-CL75iP only)
DC out: 5 V
MAX: 500 mA
x General
LCD Size: 7 inch/WVGA (800 × 480)
Brightness: 4 steps (Hi, Mid, Lo, Night mode)
Speaker: ¢31.3 mm (1.2 inches) × 2
Rated impedance 8 Ω
Memory slot: Multi card slot (MS, MS PRO,
MS Duo, MS PRO Duo, SD, SDHC, MMC)/
USB
Internal memory size (User area): 1 GB (902
MB)
Audio:
MP3
Bit rate: 32 - 320 kbps (VBR-compatible)
Sampling rate: 8 - 48 kHz
*1*2
WMA
Bit rate: 32 - 192 kbps
Sampling rate: 8 - 48 kHz
*1)
Support version 7.0, 8.0
*2)
Files with copyright protection cannot be played by
this unit.
Photo: JPEG (Maximum size: 4,096 × 4,096)
Slide show: 10 sec./1 min./1 hour/12 hours/24
hours
Video Compression Format:
MPEG-1
File Format: MP4 File Format, AVI File
Format
Extension: .mpg, .avi
Bit rate: Max. 4 Mbps
Frame rate: Max. 30 fps
Resolution: Max. 720 × 576
MPEG-4
File Format: MP4 File Format, AVI File
Format
Extension: .mp4, .avi
Profile: Advanced Simple Profile
Bit rate: Max. 4 Mbps
Frame rate: Max. 30 fps
Resolution: Max. 720 × 576
Motion-JPEG
Format: Quick Time Format, AVI Format
Extension: .mov, .avi
Resolution: Max. 640 × 480
Audio Compression Format:
AAC-LC (For MP4, AVI file format)
Channel: Max. 2 ch
Sampling rate: 24, 32, 44.1, 48 kHz
MPEG-3 (For AVI file format)
Channel: Max. 2 ch
Sampling rate: 24, 32, 44.1, 48 kHz
PCM (For MPEG-1)
Channel: Max. 2 ch
Sampling rate: 24, 32, 44.1, 48 kHz
Sleep: 10 min./20 min./30 min./60 min./90 min./
120 min.
Nature sound: Sea Waves, Birds, Rain, Brook,
Under the Sea
Power output: 1 W + 1 W (at 10% harmonic
distortion)
Power requirements:
For USA and Canada: 120 V AC, 60 Hz
For Europe: 230 V AC, 50 Hz
Power consumption: 18 W (Brightness Hi)
Back up battery: CR2032
Dimensions (Approx.): 205.6 × 148 × 119.5
mm (8 1/8 × 5 7/8 × 4 3/4 inches) (w/h/d)
(not including projecting parts and controls)
Mass (Approx.): 976 g (2 lb 2.4 oz) (including
power supply unit)
Check the supplied items on page 11.
31
US
