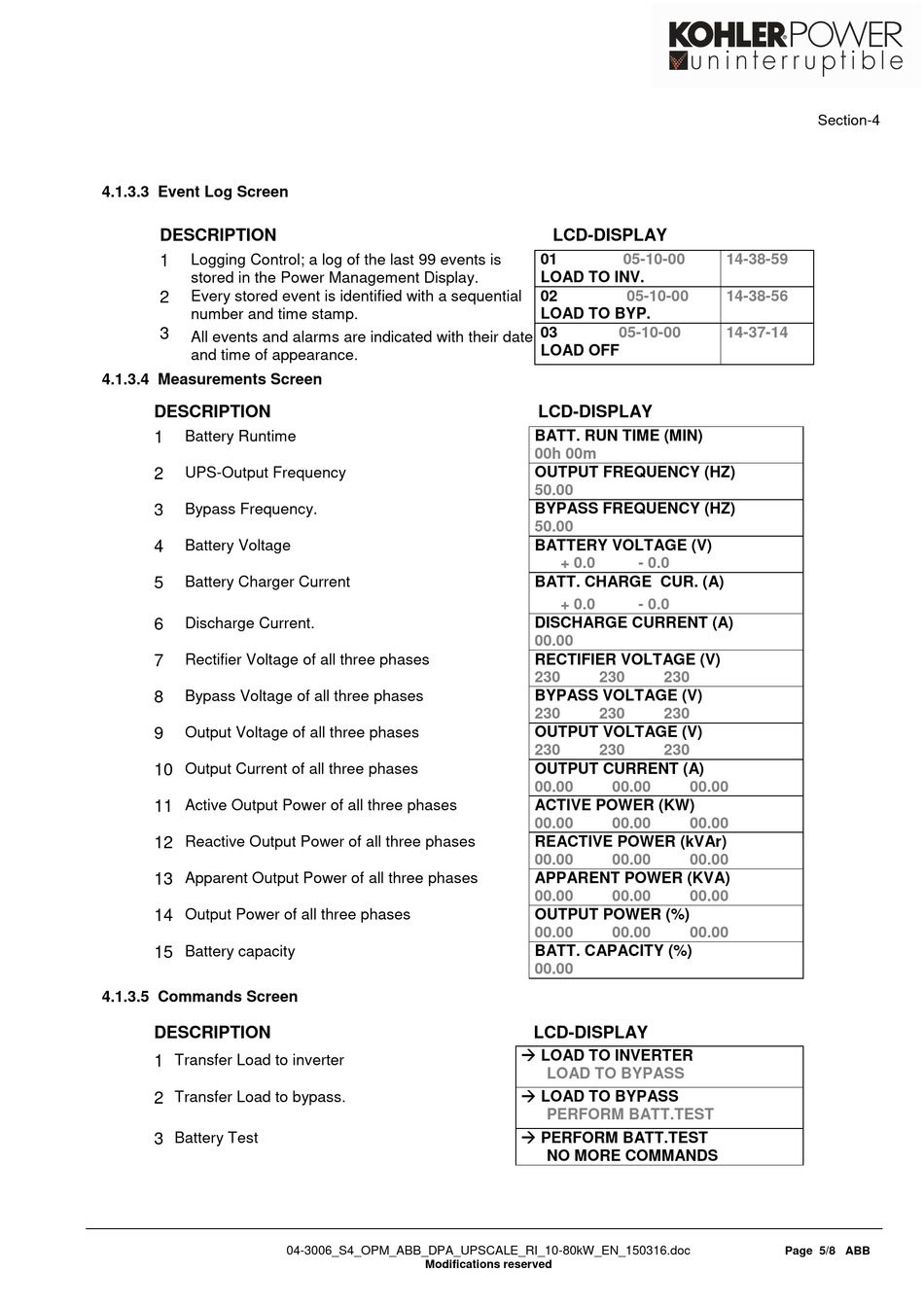

4.1.3.3 Event Log Screen

DESCRIPTION
1 Logging Control; a log of the last 99 events is
stored in the Power Management Display.
2 Every stored event is identified with a sequential
number and time stamp.
3
All events and alarms are indicated with their date
and time of appearance.

4.1.3.4 Measurements Screen

DESCRIPTION
1 Battery Runtime
2 UPS-Output Frequency
3 Bypass Frequency.
4 Battery Voltage
5 Battery Charger Current
6 Discharge Current.
7 Rectifier Voltage of all three phases
8 Bypass Voltage of all three phases
9 Output Voltage of all three phases
10 Output Current of all three phases
11 Active Output Power of all three phases
12 Reactive Output Power of all three phases
13 Apparent Output Power of all three phases
14 Output Power of all three phases
15 Battery capacity

4.1.3.5 Commands Screen

DESCRIPTION
1 Transfer Load to inverter
Transfer Load to bypass.
2
3 Battery Test
04-3006_S4_OPM_ABB_DPA_UPSCALE_RI_10-80kW_EN_150316.doc
Modifications reserved
LCD-DISPLAY
01 05-10-00
LOAD TO INV.
02 05-10-00
LOAD TO BYP.
03 05-10-00
LOAD OFF
LCD-DISPLAY
BATT. RUN TIME (MIN)
00h 00m
OUTPUT FREQUENCY (HZ)
50.00
BYPASS FREQUENCY (HZ)
50.00
BATTERY VOLTAGE (V)
+ 0.0 - 0.0
BATT. CHARGE CUR. (A)
+ 0.0 - 0.0
DISCHARGE CURRENT (A)
00.00
RECTIFIER VOLTAGE (V)
230 230 230
BYPASS VOLTAGE (V)
230 230 230
OUTPUT VOLTAGE (V)
230 230 230
OUTPUT CURRENT (A)
00.00 00.00 00.00
ACTIVE POWER (KW)
00.00 00.00 00.00
REACTIVE POWER (kVAr)
00.00 00.00 00.00
APPARENT POWER (KVA)
00.00 00.00 00.00
OUTPUT POWER (%)
00.00 00.00 00.00
BATT. CAPACITY (%)
00.00
LCD-DISPLAY
 LOAD TO INVERTER
LOAD TO BYPASS
 LOAD TO BYPASS
PERFORM BATT.TEST
 PERFORM BATT.TEST
NO MORE COMMANDS
Section-4
14-38-59
14-38-56
14-37-14
Page 5/8 ABB
