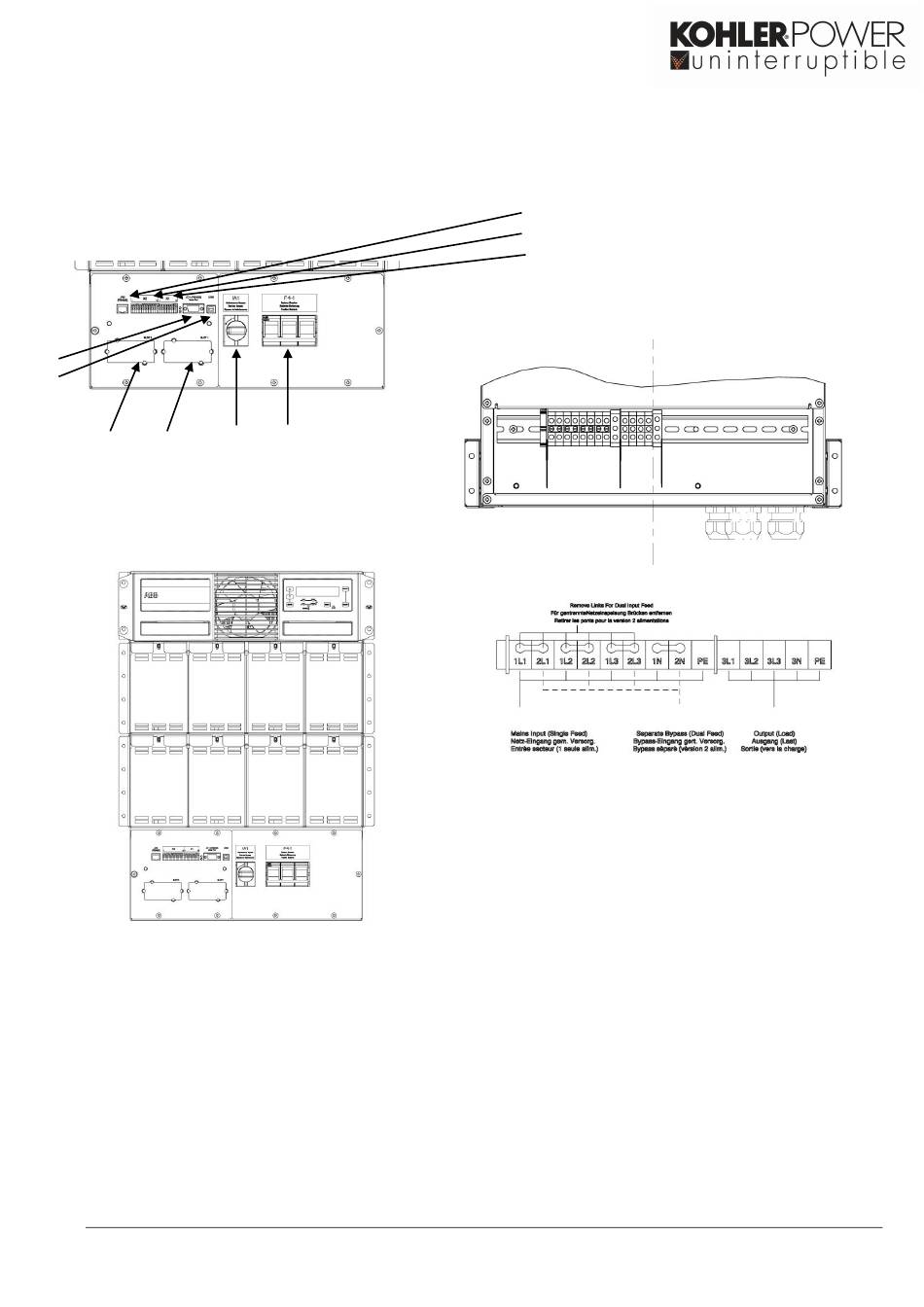

2.2.3 FRONT VIEW OF DPA UPScale RI 12 AND CONNECTION TERMINALS

Front side
4
5
6 7
1 Not used JR2 forseen for RJ45 Plug
2 X2 Customer interface on Phoenix Terminals = Potential free contacts
X1 Customer Inputs (detail see Section 3 / 3.1.2 )
3 LED red /green
4 JD1 RS232 / Sub D9/ female, PC interface
5 USB PC Interface
6 SNMP Slot for optional SNMP card ONLY
7 Modem Slot for optional Modem/Ethernet card ONLY
8 Input Bypass terminal for Dual Input feed
9 Input Rectifier terminal for Single feed
10 Output Load terminal
11 F4-1 Battery Circuit Breaker
12 IA1 Maintenance Bypass
Wiring see page 2 section 2.1
12 11
04-3006_S2_OPM_ABB_DPA_UPSCALE_RI_10-80kW_EN_150316.doc
1
2
3
Rear Side Terminal blocks
8+9
Terminal covers and indications
10/16 mm2
10/16 mm2
10/16 mm2
3x63 A / 800 VDC
Modifications reserved
10
Page 7/14 ABB
Section-2
