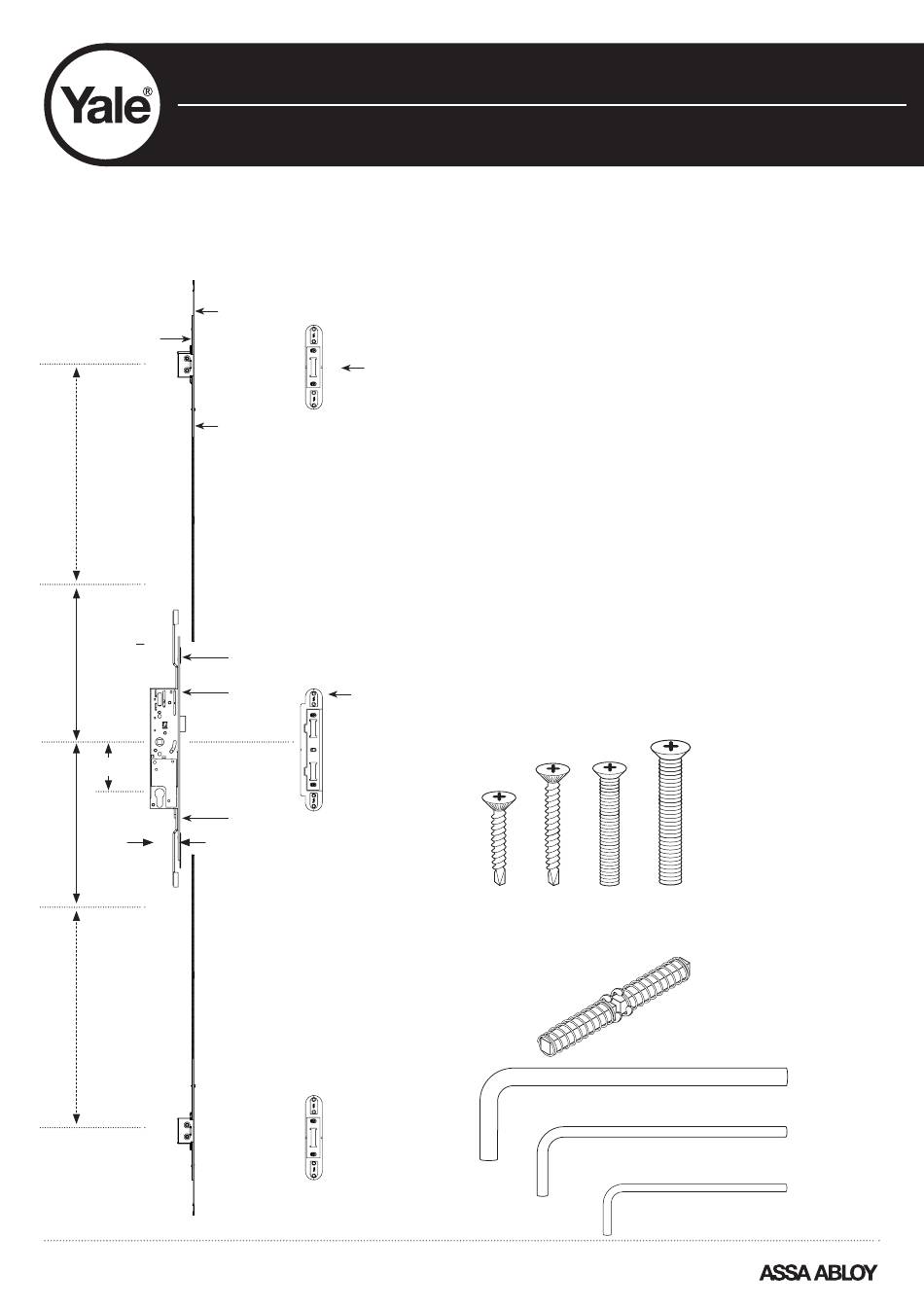

PAS3621: 2011 BS Replacement Door Lock
• Maximum Security replacement multi-point lock with
top and bottom hooks for professional use
Pack contents
1x Lock
Hook con rod
MAX
820mm
MIN
385mm
Centre
con rod
92mm
35mm
or
45mm
ASSA ABLOY LIMITED
Assa Abloy Limited, claims propriatory rights to the material disclosed hereon. This drawing and / or technical information is issued in con dence for engineering information
WILLENHALL, WEST MIDLANDS.
only and may not be reproduced or used to manufacture anything shown or referred to hereon without direct written permission from Assa Abloy Limited., to the user. This
DRAWING LIMITS UNLESS STATED
drawing and / or technical information is the property of Assa Abloy Limited. and is loaned for mutual assistance to be returned when its purpose has been served.
WV13 3PW. TEL. (01902) 366911
PRODUCT ENGINEERING DEPT.
MATERIAL
MIN
TREATMENT AND FINISH
408mm
MAX
845mm
An ASSA ABLOY Group brand
3x Keep
Hook faceplate
(16 or 20mm
wide)
Hook keep
Hook unit
DO NOT SCALE
FIRST ANGLE PROJECTION
ALL DIMENSIONS IN MILLIMETERS
--WIP
03/12/2014
ISSUE
DESCRIPTION
DATE
Cover plate
Centre unit
Centre keep
Centre
faceplate
PROJECT NO.
STATUS
DEVELOPMENT
CUSTOMER
PRODUCT
SCALE
SHEET
1
OF
1
NOTICE TO PERSONS RECEIVING THIS DRAWING AND / OR TECHNICAL INFORMATION.
TITLE
Centre case-faceplate assy
THIS DRAWING AND / OR TECHNICAL INFORMATION IS THE PROPERTY OF ASSA ABLOY LIMITED.
A1
DRAWN
CGW
DRG NUMBER
ISSUE
13YDWS004-704
--WIP
DATE
Fitting Instructions for
Timber/Composite model
Before you begin...
Please read these instructions carefully.
Following the steps in the right order will make the installation
much easier and help make sure the new lock is fitted properly.
Give yourself time...
Please ensure you give yourself plenty of time to install this
product correctly and adjust if required.
Please Note
If at any point you feel you can not successfully complete
the installation you can call our helpline on 01902 364606.
Tools required:
• Tape measure
• Pencil
• Cross-head screwdriver
• Flat blade screwdriver
• Drill and drill bits
• Hacksaw
• Mole Grips or Vice
Fixings included:
See screwpack
Cylinder
Small
Cylinder
50mm
screw
25mm
42x
8x
1x
Split spindle set for
nightlatch function
1x
1x
1x
Large
screw
1x
1x
4mm
2.5mm
2mm
