Assa Abloy PADDE Series Installation Instructions

P/n
Door
Frame
Mark centre of Door
latch on frame
(Line 2).
• To enable the Electric strike to be located in the door frame, first
mark the position of the Door Latch front face on the door frame
with the door in the closed position, ("X"mm).
• Mark where centre of latch meets door frame:
- For new installations, mark frame where front of latch touches
the door frame at the midpoint of the latch bolt.
- For retrofit installations, remove existing strike plate and ensure
the latch fits into and is centred in existing hole.
• Using the template as a guide, mortice out the door frame to the
required size.
• Countersink holes in metal frame to accept screws.
• For wider framed doors, an Extension Lip may be required.
MARKING OF STRIKE POSITION
Mark centre of Door
latch on frame
(Line 2).
Frame
MORTICING REBATE
ES3100 ES310 SERIES ELECTRIC STRIKE
Latch
Hole 'A' for
Door
metal frame
• Peel backing off adhesive template and centrally locate in the
marked position, lining up both the mark for the door latch front
face (Line 1) and the centre mark of the latch (Line 2).
• For the metal door drill two Ø5mm holes (A) 22mm above and
below the "X" mark on the template, f or a timber door drill
two Ø3mm holes (B).
• Ensure secondary bolt is not within the strike cavity.
Strike Body
Pin Chamber
Strike Body
Pin Chamber
To change the electric strike's mode of lock operation, remove the back
cover and the two screws securing the solenoid.
Remove solenoid from strike housing, and invert the strike. This will release
three locking pins from the strike and keeper chambers.
CAUTION! When removing solenoid, please be mindful to keep the
plunger in the solenoid as it is not secured, and may be easily misplaced.
Re-insert the pins as shown in the diagrams for desired mode of lock
operation (Fail Secure/PTO: See Fig 1; (Fail Safe/PTL: See Fig 2).
Place solenoid back in strike housing, and secure with solenoid screws.
Press strike back cover into position.

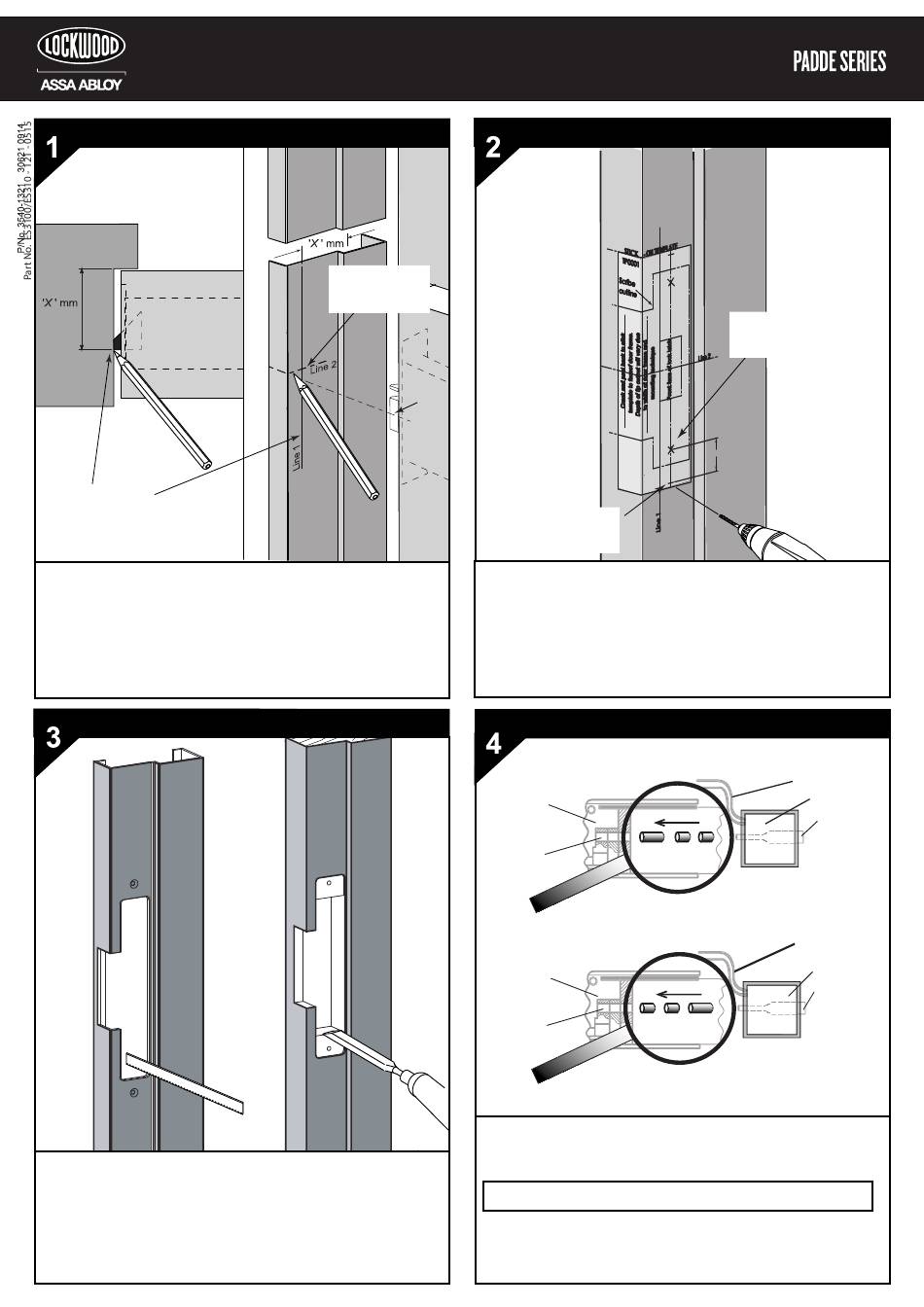

INSTALLATION INSTRUCTIONS
POSITIONING OF STRIKE
Hole 'B' for
timber frame
24
CHANGING MODE OF LOCK OPERATION
Locking Pins
(Long - Short - Short)
Fig.1 (Fail Secure)
Locking Pins
(Short - Short - Long)
Fig.2 (Fail Safe)
Solenoid Leads
Solenoid
Plunger
Solenoid Leads
Solenoid
Plunger
