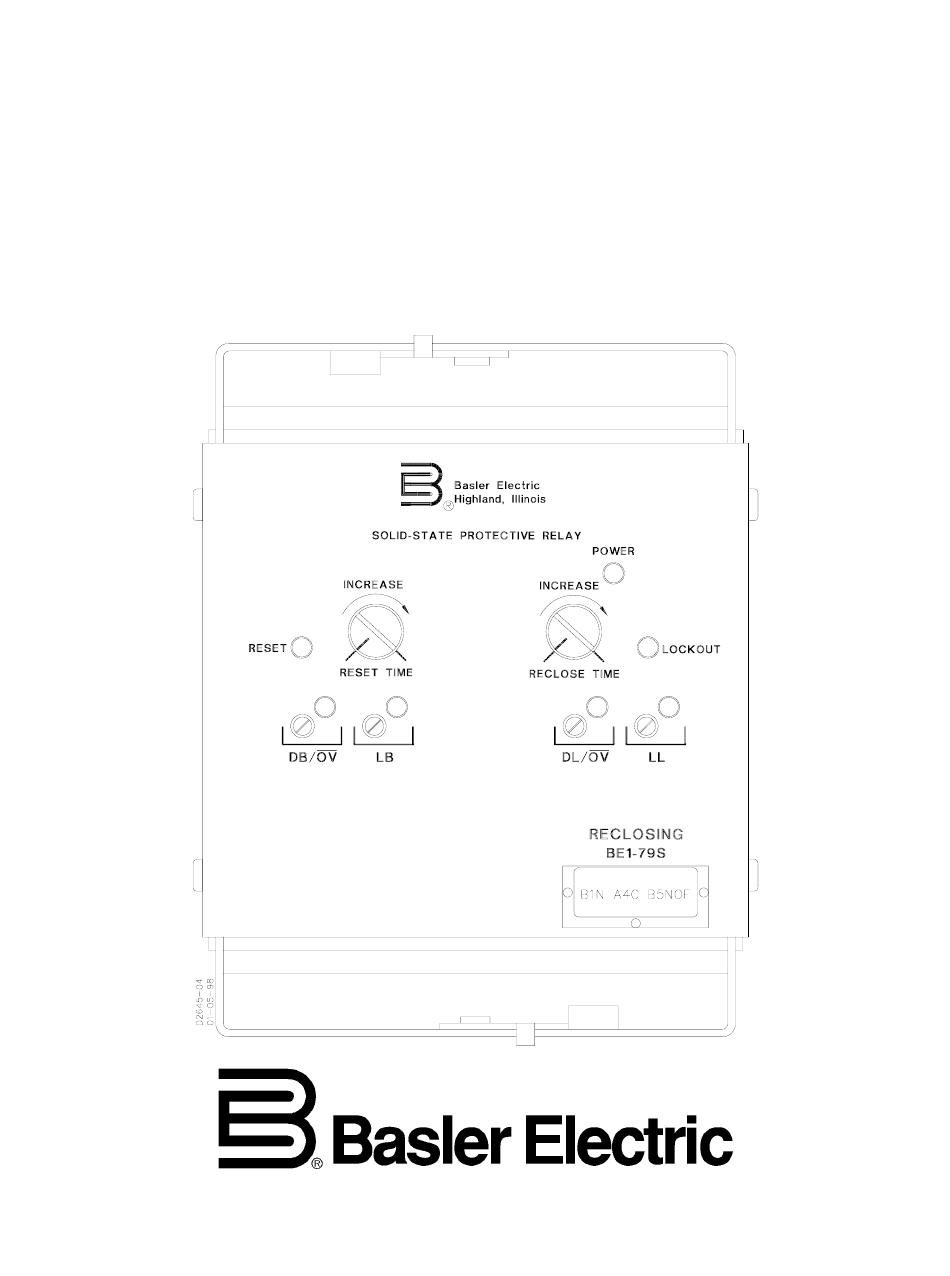

INSTRUCTION MANUAL
FOR
SINGLE SHOT RECLOSING RELAY
BE1-79S
Publication Number: 9 1410 00 990
Revision: B
02/2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BE1-79S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Basler BE1-79S

Summary of Contents for Basler BE1-79S

  • Page 1 INSTRUCTION MANUAL SINGLE SHOT RECLOSING RELAY BE1-79S Publication Number: 9 1410 00 990 Revision: B 02/2001...
  • Page 2 INTRODUCTION This Instruction Manual provides information concerning the operation and installation of BE1-79S Single Shot Reclosing Relay. To accomplish this, the following is provided.  Specifications  Installation  Operational Tests  Mounting Information WARNING To avoid personal injury or equipment damage, only qualified personnel should perform the procedures presented in this manual.
  • Page 3 February 2001 CONFIDENTIAL INFORMATION OF BASLER ELECTRIC COMPANY, HIGHLAND, IL. IT IS LOANED FOR CONFIDENTIAL USE, SUBJECT TO RETURN ON REQUEST, AND WITH THE MUTUAL UNDERSTANDING THAT IT WILL NOT BE USED IN ANY MANNER DETRIMENTAL TO THE INTEREST OF BASLER ELECTRIC COMPANY.

  • Page 4: Table Of Contents

    Changes ............7-1 BE1-79S Introduction...

  • Page 5: Section 1 • General Information

    The BE1-79S Reclosing Relay will provide a single reclosure signal following a trip as an attempt in restoring power and minimizing system disturbances.

  • Page 6: Model And Style Number

    Test points and circuit components are accessible by removal of the individual printed circuit boards from the relay cradle and using an extender board (Basler part number 9 1129 30 101) to test or troubleshoot. An available test plug (Basler part number 10095) permits the relay to be tested in place without disturbing external control circuit wiring.

  • Page 7: Specifications

    5.0 W X (High Range) 250 Vdc 62 to 280 Vdc 5.0 W 240 Vac 90 to 270 Vac 14.0 VA † Type D power supply initially requires 14 Vdc to begin operating. Once operating, the voltage BE1-79S General Information...

  • Page 8: Circuits

    Make 125/250 Vdc 30 A for 0.2 seconds, carry 7 A continuously, and break 0.1 A. Inductive Make 30A for 0.2 seconds, carry 7 A continuously, and break 0.1 A 120/240 Vac, (L/R = 0.04). 125/250 Vdc BE1-79S General Information...
  • Page 9 (high potential) tests as follows: All circuits to ground: 2121 Vdc Input to output circuits: 1500 Vac or 2121 Vdc Surge Withstand Capability Qualified to ANSI/IEEE C37.90-1978, C37.90a-1974, and IEC 255. Weight 12.5 pounds net. Case Size S1 (double ended). BE1-79S General Information...

  • Page 10: General

    SECTION 2 • FUNCTIONAL DESCRIPTION GENERAL The functional description contained in this section applies to the BE1-79S Single Shot Reclosing Relays with all combinations of available options. The reclosing relay, functionally shown in Figure 2-1, provides automatic reclosure of circuit breakers that have been tripped by a protective relay.

  • Page 11: Power Supply

    Figure 2-1. Functional Block Diagram POWER SUPPLY Basler Electric enhanced the power supply design for unit case relays. This new design created three, wide range power supplies that replace the four previous power supplies. Style number identifiers for these power supplies have not been changed so that customers may order the same style numbers that they ordered previously.

  • Page 12: Breaker Open Sensing (52B)

    LOCKOUT indicator. Reset, with RESET indicator lit, is the normal state for the relay as it waits for a protective breaker trip. BE1-79S Functional Description...

  • Page 13: Voltage Monitor

    (OV) level that defines a live voltage band for permissible relay closing (see Figure 2-2). In this mode, live-line or live-bus closing will be permitted if the appropriate monitored voltage(s) is within the permissible band. BE1-79S Functional Description...
  • Page 14 Figure 1-1. Figure 2-2. Voltage Monitor Conditions, Modes and Voltage Levels Diagram (Option 2-D or 2-S Only) BE1-79S Functional Description...
  • Page 15 Figure 2-4 provides further examples of the selection of line and bus live/dead zones using the selection diagram of Figure 2-2. Figure 2-3. Example of Optional Voltage Monitor Live-Line/Live-Bus and Dead-Line/Live-Bus Reclosing with Live-Bus Overvoltage Limit ( OV ) BE1-79S Functional Description...

  • Page 16: Power Supply Output

    Normal internal relay operating voltage maintains the power supply status output relay continuously energized with its output contact open. If the power supply output voltage falls below the requirements of proper operation, the power supply output relay is deenergized, closing the NC output contact. BE1-79S Functional Description...

  • Page 17: Section 3 Human-Machine Interface

    Figure 3-1. Location of Controls and Indicators Figure 3-2. Optional Voltage Monitor Board CONDITION and MODE Switches Location BE1-79S Human-Machine Interface...

  • Page 18: Human-Machine Interface

    LB function is used. When not in use, be sure (additionally) that it is set lower than 80 Vac. LB Indicator This red LED lights when the bus voltage is (Option 2-S, D) greater than the live-bus setting. BE1-79S Human-Machine Interface...
  • Page 19 This red LED lights when the relay generates a reclose command, or if the breaker reopens before the reset timer has expired. The indicator goes out when the breaker is closed and the reset time interval expires. BE1-79S Human-Machine Interface...
  • Page 20 Figure 3-1. Location of Controls and Indicators Figure 3-2. Optional Voltage Monitor Board CONDITION and MODE Switches Location BE1-79S Human-Machine Interface...

  • Page 21: Switches

    *MODE Switch No. 2 (Same as for MODE switch no. 1, for all (Option 2-S, D) live-line conditions). (*) Cradle must be removed for access to circuit board-mounted switches. See Figure 3-2 for location of switches on voltage monitor board. BE1-79S Human-Machine Interface...

  • Page 22: Section 4 • Installation

    Customer Service Representative or Basler Electric Company's main office in Highland, Illinois. Be sure also to check the relay model and style number against the requisition and packing list to see that they agree.

  • Page 23: Storing

    Storage life can be extended, if at 1 (one) year intervals, power is applied to the relay for a period of 30 (thirty) minutes. D 1 4 2 7 - 0 1 2-02-01 Figure 4-1 . S1 Case, Outline Dimensions, Front View BE1-79S Installation...
  • Page 24 D1427-27 02/2001 Figure 4-2 . S1 Case, Double-Ended, Semi-Flush Mounting, Outline Dimensions, Side View DETAIL A- OVER THE BOSS TO TIGHTEN THE D1427-03 02/2001 Figure 4-3 . S1 Case, Double-Ended, Projection Mount, Outline Dimensions, Side View BE1-79S Installation...
  • Page 25 Figure 4-4 . S1 Case, Double-Ended, Projection Mount, Outline Dimensions, Rear View BE1-79S Installation...
  • Page 26 Figure 4-5 . S1 Case, Panel Drilling Diagram, Semi-Flush Mounting BE1-79S Installation...
  • Page 27 Figure 4-6 . S1 Case, Double-Ended, Projection Mounting, Panel Drilling Diagram, Rear View Figure 4-7. Control Circuit Connections (Typical) BE1-79S Installation...
  • Page 28 Figure 4-8. Voltage Sensing Circuit Connections BE1-79S Installation...
  • Page 29 Figure 4-9. RI, RC, and 52b Sensing Circuit Connections BE1-79S Installation...
  • Page 30 Figure 4-10. Internal Connection Diagram With Power Supply Status BE1-79S Installation...

  • Page 31: Section 5 • Operational Test

    If a relay fails an operational test, or if the optional voltage monitor reclose enable level selection is faulty, and factory repair is desired, contact the Customer Service Department of the Power Systems Group, Basler Electric, for a return authorization number prior to shipping.
  • Page 32 Figure 5-1. Test Setup Diagram (Typical) Figure 5-2. Test Setup Diagram (Voltage Monitor Option 2-S,D) BE1-79S Operational Test...
  • Page 33 The following steps test the reclose circuit in a relay with a reclosure time delay range of 0.1 to 2 seconds (Option A2). If your relay has a different time delay option, refer to Table 5-1 for the steps and values to substitute in the test procedure. BE1-79S Operational Test...
  • Page 34 Step 40. Close switch S4 to supply the RI signal to the relay. Step 41. Depress and hold switch S2. Step 42. Connect a jumper across relay contact K1b on test setup to simulate a breaker trip that will not BE1-79S Operational Test...
  • Page 35 (Don't do test for units with Reset Timer D.) Step 55. Observe K1 is energized after two seconds. NOTE If equipped with Reset Timer D, omit steps 56 through 60. Step 56. Repeat steps 50 through 53. BE1-79S Operational Test...

  • Page 36: Voltage Monitor Conditions, Modes And Voltage Levels Selection

    Slowly adjust the LB control until the LB indicator just lights. d) Normal mode only) If the dead-bus condition is selected (STEP 3c or 3d), adjust the T1 (bus) output to the voltage level below which reclosing is desired. Slowly adjust the DB/OV control until BE1-79S Operational Test...
  • Page 37 For Reset Option C: 15 +2 seconds Step 20. If time period falls outside of the specified tolerance, adjust potentiometer R60 as required . NOTE The voltage monitor is now verified to operate in accordance with the previous selections. BE1-79S Operational Test...

  • Page 38: Section 6 • Maintenance

    If the relay fails to function, and factory repair is desired, contact the Customer Service Department of the Power Systems Group, Basler Electric, for a return authorization number prior to shipping. Due to the fact that most components are on conformally coated printed circuit boards, in-house replacement of individual components may be difficult and should not be attempted unless appropriate equipment and adequately trained personnel are available.

  • Page 39: Section 7 • Manual Change Information

    Added Option 2-D when Option 2-S is referred to in the manual. Added new power supply information to Specifications and Section 3 starting with “Basler Electric enhanced the power supply design...” Corrected Figure 2-1 and Figure 4-9 by making 52b a NC output.
