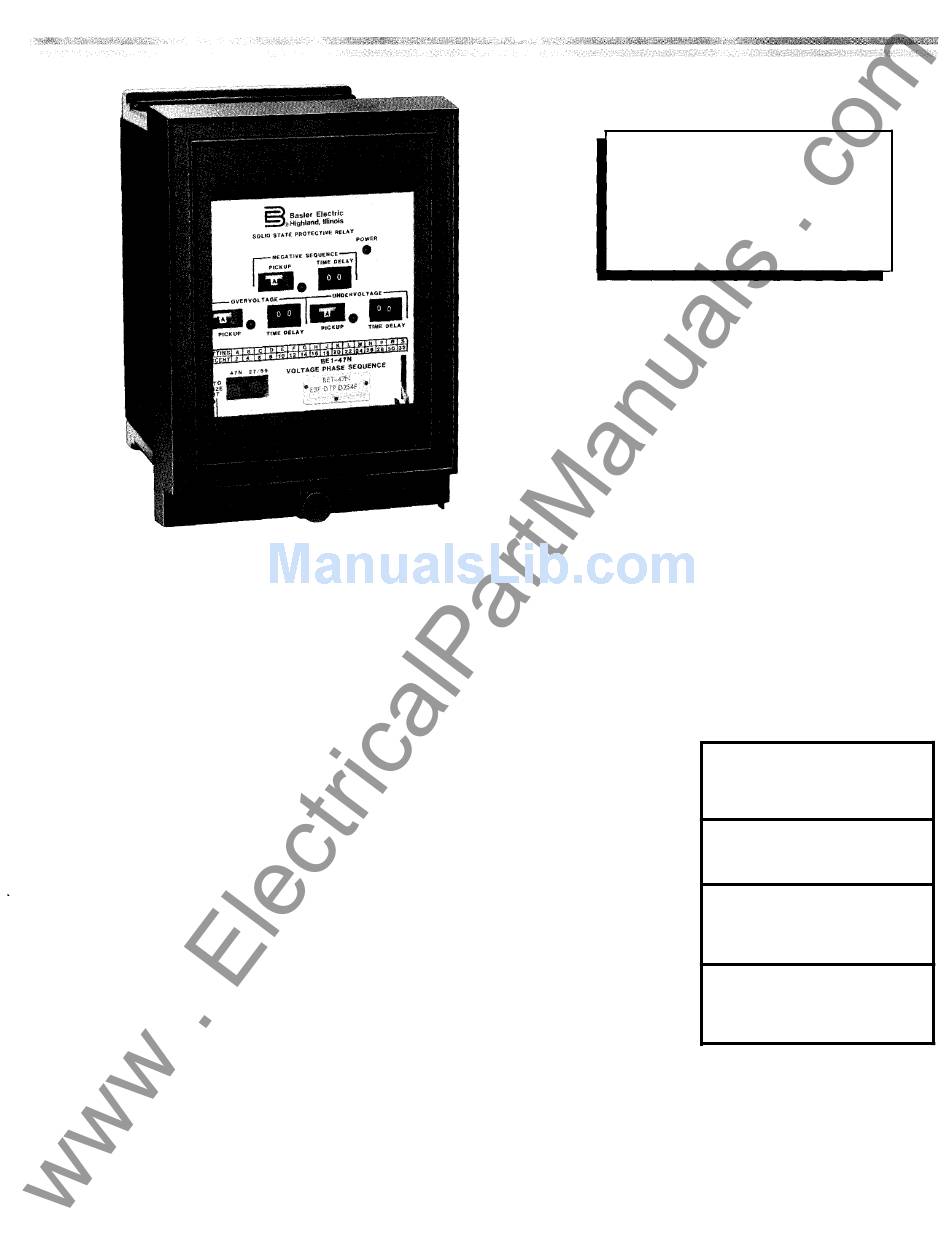

Instruction Manual

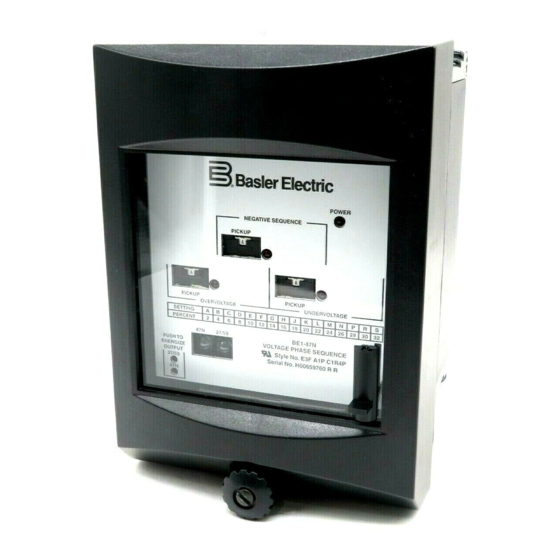

The BE1-47N Voltage Phase Sequence Relay provides protection for rotating equipment
from the damaging effects of excessive negative sequence voltage resulting from phase
failure, phase unbalance and reversed phase sequence.
•
Responds to true negative sequence voltage component.
•
Unaffected by frequency variations of ±5 Hz.
•
Negative Sequence Voltage adjustment range of 2 - 32 percent.
•
Optional Over and Undervoltage measuring elements.
•
Low sensing and supply burdens.
•
Instantaneous, Definite and Inverse time delay characteristics available for
each measuring element.
•
Qualified to the requirements of
-ANSI/IEEE C37.90.1-1989 and IEC 255 for surge withstand capability;
-IEC 255-5 for impulse.
•
UL Recognized under Standard 508, UL File #E97033.
ADDITIONAL INFORMATION
INSTRUCTION MANUAL
Request publication 9-1704-00-990
STANDARDS, DIMENSIONS
Request bulletin SDA
ADVANTAGES
ACCESSORIES
&
§Basler Electric
P. 0. BOX 269 HIGHLAND, ILLINOIS 62249, U.S.A.
NEGATIVE SEQUENCE
VOLTAGE RELAY
PHONE 618·654·2341
FAX 618·654·2351
BE1-47N
APPLICATION
Page2
SPECIFICATIONS
Page2
EXTERNAL
CONNECTIONS
Page
6
ORDERING
Page
7
UDK-3
10-95
Advertisement
Table of Contents
Related Manuals for Basler BE1-47N
Summary of Contents for Basler BE1-47N
- Page 1 BE1-47N NEGATIVE SEQUENCE VOLTAGE RELAY The BE1-47N Voltage Phase Sequence Relay provides protection for rotating equipment from the damaging effects of excessive negative sequence voltage resulting from phase failure, phase unbalance and reversed phase sequence. ADVANTAGES • Responds to true negative sequence voltage component.
-
Page 2: Specifications
The BE1-47N has the ability to detect negative sequence voltage levels of The BE1-47N may also be used to provide over/un... -
Page 3: Negative Sequence Voltage Comparator
SPECIFICATIONS ccontinuedl TIMING AUX. TIMING TIMING TO INTERNAL CIRCUITRY OPERATING POWER POWER SUPPlY 02818-12 STATUS 07-30-98 FIGURE FUNCTIONAL BLOCK DIAGRAM inputs are capable of withstanding 160% of the selected voltage filter which removes the positive sequence (V 1 ) nominal continuously, with a maximum burden of 2 VA and zero sequence (V o ) components of the voltage. - Page 4 SPECIFICATIONS ccontinuedl 250 Vdc - make and carry 30 A for 0.2 seconds, carry OVER/UNDERVOLTAGE COMPARATOR 7 A continuously, break 0.1 A. The scaled, single-phase signal is compared with the respective front panel pickup setting. If the magnitude 500 Vdc - make and carry 15 A for 0.2 seconds, carry of the ac signal is above the overvoltage pickup setting 7 A continuously, break 0.1 A.
- Page 5 � � � 2 0 � 100 0 <f) <fJ <J) <f) "' � � � >- N O MI N F R O M E N C E DIF f E R :; s N O M IN F R O M E N C E DIF F E R...
- Page 6 CONNECTIONS FIGURE DELTA VOLTAGE SENSING FIGURE WYE VOLTAGE SENSING LEGEND: VOLTAGE PHASE SEQUENCE 27/59 UNDER/OVERVOLTAGE BREAKER AUXILIARY CONTACTS 52 TC BREAKER TRIP COIL TIMED FIGURE CONTROL CIRCUITS...
-
Page 7: Style Number
Plug To allow testing of the relay without removing system DOD- DOD- DDDDD wiring, order one test plug, Basler Electric part number 10095. If option 3-1 through 3-8 has been specified, order two test plugs. Complete the style number by selecting one feature... -
Page 8: Style Number Identification Chart
STYLE NUMBER IDENTIFICATION CHART [[100-DDD-DDDDD MODEL NO. TIMING OPTION 1 SENSING INPUT OPTION 3 OUTPUT TARGET TYPE <Negative Sequence) (Undervoltagel Three-Phase El One Relay: None A 1) Instantaneous None None Voltage 47N-NO One Aux. Output Inverse A) One Internally Instantaneous Line-to-Line Fl Two Relays: Relay: 4 7N-NO...
