Basler BE1-32R Instruction Manual

Directional power
Hide thumbs Also See for BE1-32R:
Table of Contents

Advertisement

Quick Links

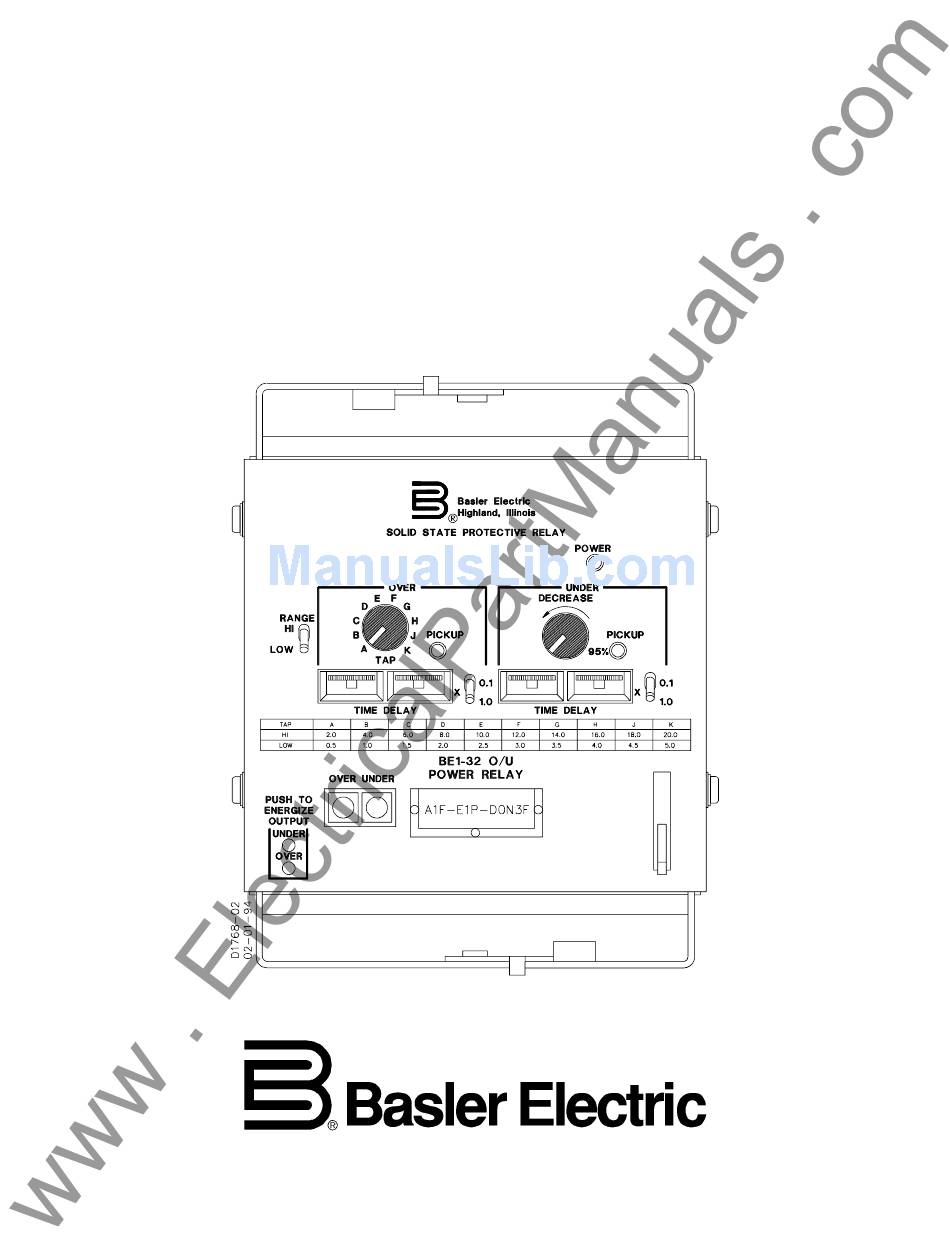

INSTRUCTION MANUAL
FOR
DIRECTIONAL POWER RELAYS
BE1-32R AND BE1-32 O/U
Publication Number:
9 1711 00 990
Revision:
L
08/2002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BE1-32R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Basler BE1-32R

Summary of Contents for Basler BE1-32R

  • Page 1 INSTRUCTION MANUAL DIRECTIONAL POWER RELAYS BE1-32R AND BE1-32 O/U Publication Number: 9 1711 00 990 Revision: 08/2002...
  • Page 2 INTRODUCTION This Instruction Manual provides information concerning the operation and installation of BE1-32R, O/U Directional Power Relays. To accomplish this, the following is provided. Specifications Functional characteristics Installation Operational Tests Mounting Information WARNING To avoid personal injury or equipment damage, only qualified personnel should perform the procedures presented in this manual.
  • Page 3 August 2002 CONFIDENTIAL INFORMATION OF BASLER ELECTRIC COMPANY, HIGHLAND, IL. IT IS LOANED FOR CONFIDENTIAL USE, SUBJECT TO RETURN ON REQUEST, AND WITH THE MUTUAL UNDERSTANDING THAT IT WILL NOT BE USED IN ANY MANNER DETRIMENTAL TO THE INTEREST OF BASLER ELECTRIC COMPANY.

  • Page 4: Table Of Contents

    Instantaneous Time (Overpower) ....... . . 5-2 BE1-32R, -32 O/U INTRODUCTION...
  • Page 5 MANUAL CHANGE INFORMATION ........7-1 BE1-32R, -32 O/U INTRODUCTION...

  • Page 6: Section 1 • General Information

    SECTION 1 • GENERAL INFORMATION PURPOSE BE1-32R, Directional Overpower and BE1-32 O/U, Directional Over/Underpower Relays sense real power (IE times cos ). These relays are solid state devices that are designed for use in single-phase or three-phase systems to provide equipment protection for overpower and/or underpower, or for use in the supervisory control of circuits.

  • Page 7: Example 2, Co-Generator Control

    The BE1-32R, Reverse Power Relay must be sensitive enough to detect power levels lower than those required to motor the generator. Sensitivity is much more important on steam and hydro turbines than on reciprocating engines and gas turbines. Table 1-1 represents the reverse power requirements to motor a generator when the prime mover is rotating at synchronous speed with no input power supplied by the prime mover.

  • Page 8: Example 3, Generator Overload

    T1 nor T2 alone can supply the total load. The BE1-32 O/U, over/underpower directional relays can protect this distribution system by providing overload protection for each transformer (overpower function) or by sensing power flow through the transformers (reverse power function) in an undesired direction. BE1-32R, -32 O/U GENERAL INFORMATION...

  • Page 9: Example 5, Delayed Electrical Trip

    Figure 1-5. The reverse power relay delays breaker tripping until trapped steam has been removed from the piping. In this case, as separate direct-tripping anti-motoring relay can be used to protect for situations not related to an automatic shutdown of the unit. Figure 1-5. Single-Phase, Non-Electrical Trip Supervision BE1-32R, -32 O/U GENERAL INFORMATION...

  • Page 10: Example 6, Breaker Opening Detection

    When breaker N opens, real power reverses from normal and flows toward the utility. This power may be flowing to the tapped load. At this time, the relay operates and causes the 52 breaker to open. BE1-32R, -32 O/U GENERAL INFORMATION...

  • Page 11: Example 7, Reactive Power (Vars) Detection

    Excessive heating results in the damper (amortissuer) windings, slot wedges, and in the surface iron of the rotor due to the slip frequency current flow when a synchronous generator is operated as an induction generator. BE1-32R, -32 O/U GENERAL INFORMATION...
  • Page 12 Figure 1-10 illustrates how a single-phase BE1-32R or BE1-32 O/U can be connected to measure either real power (watts) or reactive power (vars) flow in a three-phase system. Notice the difference of phase relationship between the alternate connections in Figure 1-10.

  • Page 13: Model And Style Number Description

    Style number identification chart (Figure 1-11) defines the electrical characteristics and operational features included in BE1-32R, -32 O/U relays. For example, if the model number of the relay was BE1-32R, and the style number was A1G-A1P-A0N1F, the device would have the following features:...
  • Page 14 D1618-01 or 150-6000W (trip) circuit is AC powered or the Sensing Input Types D and E 09-06-00 (C,D,E) relay has N.C. type output contacts. require M1 case. Figure 1-11. Style Number Identification Chart BE1-32R, -32 O/U GENERAL INFORMATION...

  • Page 15: Specifications

    SPECIFICATIONS Current Sensing BE1-32R and -32 O/U Directional Power Relays are designed for use with five amperes nominal (50/60 HZ) system current transformer secondaries. The input sensing current transformers within the relay are rated as follows: 1.) If sensing input range 1, 4, or 7 is selected, input current transformers are capable of 7 amperes continuous current, 10 amperes for 1 minute and 140 amperes for 1 second.
  • Page 16 The underpower instantaneous response time is less than 50 ms, 60 Hz or less than 65 ms, 50 Hz for real power magnitude of .8 times the setting and less. The response time is characterized by the graph in Figure 1-13. BE1-32R, -32 O/U GENERAL INFORMATION 1-11...
  • Page 17 +5 percent or 50 ms (whichever is greater) of the indicated time for any time dial setting. NOTE: Operating time is repeatable within 2 percent or 50 ms (whichever is greater) for any combination of time dial and power settings within the specified operating temperature range. 1-12 BE1-32R, -32 O/U GENERAL INFORMATION...
  • Page 18 IECC C37.90-1989, Trial-Use Standard Withstand Capability of Relay systems to Radiated electromagnetic Interference from Transceivers. UL Recognized UL Recognized per Standard 508, UL File No. E97033. Note: Output contacts are not UL Recognized for voltages greater than 250 volts. BE1-32R, -32 O/U GENERAL INFORMATION 1-13...
  • Page 19 Figure 1-14. Overpower Inverse Time Characteristic Curves 1-14 BE1-32R, -32 O/U GENERAL INFORMATION...
  • Page 20 10 to 500 Hz for a total of six sweeps, 15 minutes each sweep, without structural damage or degradation of performance. Weight S1 - 13.5 pounds maximum (6.12 kg) M1 - 18.5 pounds maximum (8.39 kg) BE1-32R, -32 O/U GENERAL INFORMATION 1-15...

  • Page 21: Controls And Indicators

    SECTION 2 • HUMAN-MACHINE INTERFACE (Controls and Indicators) Table 2-1. BE1-32R -32 O/U Controls and Indicators (Refer to Figure 2-1) Locator Control or Indicator Function A 10-position rotary switch provides selection of the OVERpower Tap Selector overpower pickup point when used in conjunction with the range switch (O).
  • Page 22 Figure 2-1. Location of Controls and Indicators BE1-32R, -32 O/U HUMAN-MACHINE INTERFACE (CONTROLS AND INDICATORS)

  • Page 23: Section 3 • Functional Description

    SECTION 3 • FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION BE1-32R, -32 O/U Directional Power Relays are solid state devices that provide equipment protection for system overpower, and/or underpower, or circuit supervisory control. A relay functional description is provided in the following paragraphs. Refer to Figure 3-1 to follow the functional description.

  • Page 24: Phase Rotation Sensitivity

    This is sometimes referred to as the two wattmeter method for power flow measurement. Figure 3-2 shows the phasor representations for ABC rotation. Figure 3-3 shows the phasor representations for ACB rotation. Figure 3-2. Type E Sensing With ABC Rotation BE1-32R, -32 O/U FUNCTIONAL DESCRIPTION...
  • Page 25 A to B voltage with ABC rotation. Figure 3-5. shows the phasor representation monitoring phase A to C voltage with ACB rotation. Figure 3-4. Type B or V Sensing With ABC Rotation Figure 3-5. Type B or V Sensing With ACB Rotation BE1-32R, -32 O/U FUNCTIONAL DESCRIPTION...

  • Page 26: Sensing Input Types

    30  lagging phase shift network is designed into the voltage input circuit. Type B or V configurations are phase rotation sensitive. The range switch of this type sensing is also calibrated in single-phase watts. Figure 3-7. Type B or V Sensing BE1-32R, -32 O/U FUNCTIONAL DESCRIPTION...
  • Page 27 Therefore, the power equation using E approximate. Type C sensing configurations are not phase rotation sensitive. The range switch of this type sensing is also calibrated in three-phase watts. Figure 3-8. Type C Sensing BE1-32R, -32 O/U FUNCTIONAL DESCRIPTION...
  • Page 28 Type D sensing configurations are not phase rotation sensitive. The range switch of this type sensing is calibrated in three-phase watts. Figure 3-9. Type D Sensing BE1-32R, -32 O/U FUNCTIONAL DESCRIPTION...
  • Page 29 The power equation assumes that conditions are balanced. Type E sensing configurations are phase rotation sensitive. The range switch for this type sensing is calibrated in three-phase watts. Figure 3-10. Type E Sensing BE1-32R, -32 O/U FUNCTIONAL DESCRIPTION...

  • Page 30: Kw Transducer

    Nominal Volts Timing Directional Power Relays (BE1-32R or BE1-32 O/U) are capable of instantaneous trip, definite time delayed trip, or an inverse time delayed trip and is defined by the style number. Instantaneous timing responds to a trip condition with no intentional time delay. Overall response time of the relay is less than 80 milliseconds, 60 hertz or 100 milliseconds, 50 hertz for a real power magnitude of 2 times the pickup setting.

  • Page 31: Outputs

    1500 Outputs Each model of the directional power relay family (BE1-32R or BE1-32 O/U) has a dedicated output relay for each indicated function. The BE1-32R output relay contacts, dedicated for directional overpower trip, may have either a normally open (NO) or a normally closed (NC) configuration for use in the customers circuitry. The BE1-32 O/U has dedicated output relay contacts for an overpower trip function and an underpower trip function.

  • Page 32: Targets

    Power Supply Basler Electric enhanced the power supply design for unit case relays. This new design created three, wide range power supplies that replace the four previous power supplies. Style number identifiers for these power supplies have not been changed so that customers may order the same style numbers that they ordered previously.

  • Page 33: Section 4 • Installation

    If there is evidence of damage, immediately file a claim with the carrier and notify the Regional Sales Office, or contact the Sales Representative at Basler Electric, Highland, Illinois. In the event the relay is not to be installed immediately, store the relay in its original shipping carton in a moisture and dust free environment.
  • Page 34 Figure 4-1. S1 Case, Panel Drilling Diagram, Semi-Flush Mounting P0002-12 01-31-01 Figure 4-2. S1 Case, Outline Dimensions, Front View BE1-32R, -32 O/U INSTALLATION...
  • Page 35 Figure 4-3. S1 Case, Single-Ended, Semi-Flush Mounting, Outline Dimensions, Side View CASE DETAIL A-A SHOWING THE ADDITION OF WASHERS OVER THE BOSS TO TIGHTEN THE RELAY AGAINST THE PANEL. P0002-17 01-30-01 Figure 4-4. S1 Case, Single-Ended, Projection Mounting, Outline Dimensions, Side View BE1-32R, -32 O/U INSTALLATION...
  • Page 36 Figure 4-5. S1 Case, Double-Ended, Semi-Flush Mounting, Outline Dimensions, Side View CASE DETAIL A-A SHOWING THE ADDITION OF WASHERS OVER THE BOSS TO TIGHTEN THE RELAY AGAINST THE PANEL. P0002-17 01-30-01 Figure 4-6. S1 Case, Double-Ended, Projection Mounting, Outline Dimensions, Side View BE1-32R, -32 O/U INSTALLATION...
  • Page 37 Figure 4-7. S1 Case, Single-Ended, Panel Drilling Diagram, Rear View BE1-32R, -32 O/U INSTALLATION...
  • Page 38 Figure 4-8. S1 Case, Double-Ended, Panel Drilling Diagram, Rear View BE1-32R, -32 O/U INSTALLATION...
  • Page 39 Figure 4-9. Semi-Flush Mounting, Outline Dimensions, Rear View BE1-32R, -32 O/U INSTALLATION...
  • Page 40 Figure 4-10. S1 Case, Projection Mounting, Outline Dimensions, Rear View BE1-32R, -32 O/U INSTALLATION...
  • Page 41 Figure 4-11. M1 Case, Semi-Flush Mounting, Panel Drilling Diagram BE1-32R, -32 O/U INSTALLATION...
  • Page 42 P0002-14 08-10-01 Figure 4-12. M1 Case, Outline Dimensions, Front View 4-10 BE1-32R, -32 O/U INSTALLATION...
  • Page 43 P 0 0 0 2 - 1 5 09-07-00 Figure 4-13. M1 Case, Double-Ended, Semi-Flush Mounting, Side View BE1-32R, -32 O/U INSTALLATION 4-11...
  • Page 44 PANEL CASE DETAIL A-A SHOWING THE ADDITION OF WASHERS OVER THE BOSS TO TIGHTEN THE RELAY AGAINST THE PANEL. P0002-16 09-07-00 Figure 4-14. M1 Case, Double-Ended, Projection Mounting, Side View 4-12 BE1-32R, -32 O/U INSTALLATION...
  • Page 45 Figure 4-15. M1 Case, Double-Ended, Projection Mounting, Panel Drilling Diagram, Rear View BE1-32R, -32 O/U INSTALLATION 4-13...
  • Page 46 Figure 4-16. M1 Case, Double-Ended, Projection Mount, Outline Dimensions, Rear View 4-14 BE1-32R, -32 O/U INSTALLATION...

  • Page 47: Connections

    Overpower, underpower, and power supply status output contacts are optionally normally open or normally closed. Auxiliary output contacts are optionally normally open, normally closed, or SPDT. if SPDT, power supply status is not available. Figure 4-17. Control Circuit Diagram BE1-32R, -32 O/U INSTALLATION 4-15...
  • Page 48 Figure 4-18. Internal Connections Sensing Type A, B, or V 4-16 BE1-32R, -32 O/U INSTALLATION...
  • Page 49 Figure 4-19. Internal Connections Sensing Type C BE1-32R, -32 O/U INSTALLATION 4-17...
  • Page 50 Figure 4-20. Internal Connections Sensing Type D 4-18 BE1-32R, -32 O/U INSTALLATION...
  • Page 51 Figure 4-21. Internal Connections Sensing Type E BE1-32R, -32 O/U INSTALLATION 4-19...
  • Page 52 Figure 4-22. BE1-32R Typical External Connections Figure 4-23. BE1-32 O/U Typical External Connections NOTES: Overpower, underpower, and power supply status output contacts are optionally normally open or normally closed. Auxiliary output contacts are optionally normally open, normally closed, or SPDT. If SPDT, power supply status is not available.
  • Page 53 Figure 4-24. Type A Sensing Figure 4-25. Type B or V Sensing With ABC Rotation BE1-32R, -32 O/U INSTALLATION 4-21...
  • Page 54 G E N E R A T O R P 0 0 0 2 - 1 1 9 - 0 6 - 0 0 Figure 4-26. Type B or V Sensing with ACB Rotation Figure 4-27. Type C Sensing 4-22 BE1-32R, -32 O/U INSTALLATION...
  • Page 55 Figure 4-28. Type D Sensing BE1-32R, -32 O/U INSTALLATION 4-23...
  • Page 56 Figure 4-29. Type E Sensing With ABC Rotation 4-24 BE1-32R, -32 O/U INSTALLATION...
  • Page 57 Figure 4-30. Type E Sensing With ACB Rotation BE1-32R, -32 O/U INSTALLATION 4-25...

  • Page 58: Section 5 • Testing

    Step 1. Make the following relay front panel adjustments: NOTE Units with inverse or instantaneous timing options will not have a multiplier switch. RANGE switch - LOW UNDER pickup control - fully CW (95 %) UNDER TIME DELAY - 00 (instantaneous) BE1-32R, -32 O/U TESTING...

  • Page 59: Instantaneous Time (Overpower)

    RESULT: The measured interval should be 0.1 ±0.050 seconds. Step 5. Repeat Steps 1 through 4 for TIME DELAY settings of 05 and 99. RESULT: Setting Expected Time 5.0 ±0.25 seconds 9.9 ±0.50 seconds BE1-32R, -32 O/U INSTALLATION...

  • Page 60: Definite Time (Underpower)

    Repeat Steps 1 through 3 for sensing input power magnitudes of 1.5 times and 8 times the TAP B watts setting. RESULTS: Setting Actual Time 1.5 X 1.048 ± 0.053 seconds 8.0 X 0.282 ± 0.050 seconds This concludes the operational test. BE1-32R, -32 O/U TESTING...
  • Page 61 W Wattmeter Reading With a wattmeter: 2. Terminals 1 and 10 are the overpower trip output device connections for both BE1-32R and BE1-32 0/U. Terminals 2 and 10 are the underpower output connections for the BE1-32 0/U. 3. Terminals 17 thru 20 are auxiliary relay output contacts. Determine the auxiliary output contact configuration by referring to the relay style number.
  • Page 62 Wattmeter Reading With a wattmeter: 2. Terminals 1 and 10 are the overpower trip output device connections for both BE1-32R and BE1-32 0/U. Terminals 2 and 10 are the underpower output connections for the BE1-32 0/U. 3. Terminals 17 thru 20 are auxiliary relay output contacts. Determine the auxiliary output contact configuration by referring to the relay style number.
  • Page 63 W 2 × Wattmeter Reading With a wattmeter: 2. Terminals 1 and 10 are the overpower trip output device connections for both BE1-32R and BE1-32 0/U. Terminals 2 and 10 are the underpower output connections for the BE1-32 0/U.
  • Page 64 W 3 × Wattmeter Reading With a wattmeter: 2. Terminals 1 and 10 are the overpower trip output device connections for both BE1-32R and BE1-32 0/U. Terminals 2 and 10 are the underpower output connections for the BE1-32 0/U.
  • Page 65 W 2 × Wattmeter Reading With a wattmeter: 2. Terminals 1 and 10 are the overpower trip output device connections for both BE1-32R and BE1-32 0/U. Terminals 2 and 10 are the underpower output connections for the BE1-32 0/U.

  • Page 66: Section 6 • Maintenance

    TEST PLUG Test plugs (Basler part number 10095 or G.E. part number XLA12A1) provide a quick, easy method of testing relays without removing them from their case. Test plugs are simply substituted for the connection plugs. This provides access to the external stud connections as well as to the internal circuitry.

  • Page 67: Manual Change Information

    Pickup Accuracy in Specifications which separated Single and Three-phase. Added new power supply information to Section 3 in Power Supply paragraph starting with “Basler Electric enhanced the power supply design...”. Added new dimension figures to include all options available (S1 Single-Ended and Double-Ended, M1 Double-Ended, and both mounting positions).
  • Page 68 Figure 4-12 to show the slotted knob on the front panel. Changed Figure 4-4. Changed the drawing number for Figure 4- Revised Figure 1-14 to illustrate the new 32R inverse time 08-26-02/18467 curves. Corrected various minor errors throughout the manual. BE1-32R, -32 O/U MANUAL CHANGE INFORMATION...
