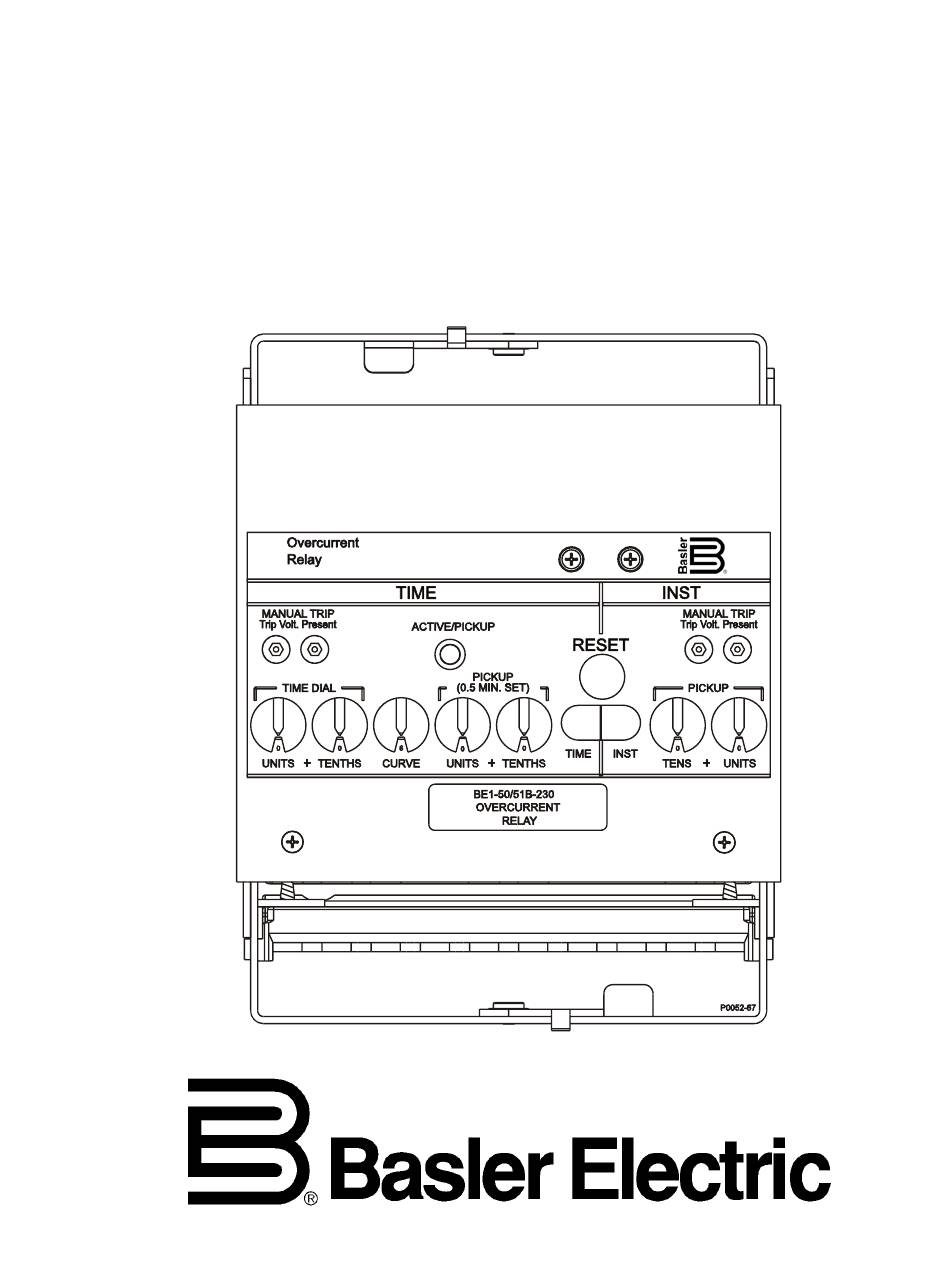

INSTRUCTION MANUAL
FOR
OVERCURRENT RELAYS
BE1-50/51B-230 and BE1-50/51B-234
Publication: 9252000894
Revision: D
05/08
