Einbau- und Betriebsanleitung
Installation and Operating Instructions
Instructions de montage et de service

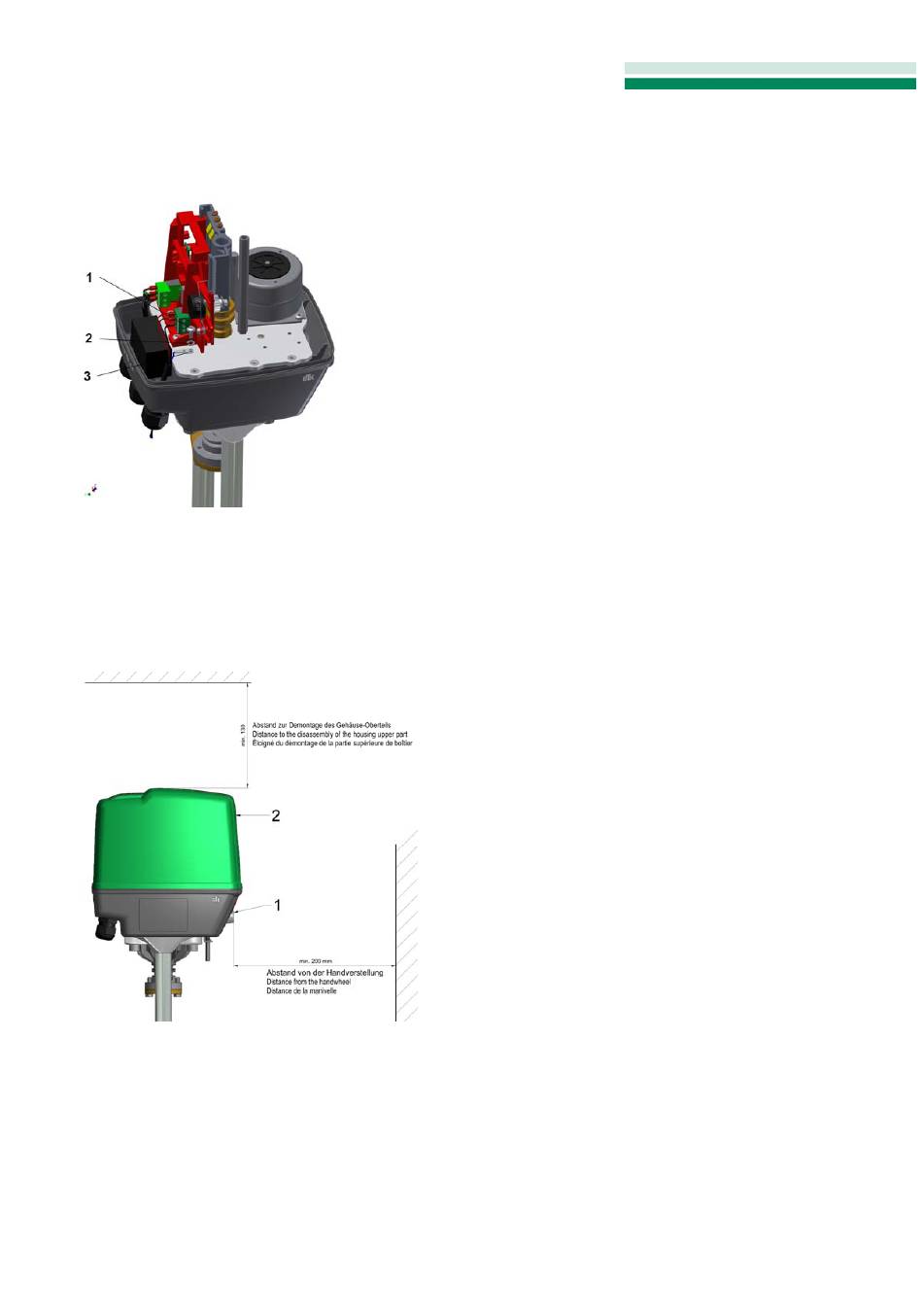

Erdanschluss / Earth connection / raccordement à la terre
1 Linsenschraube / Pan head screw / vis en bouton
2 Federring / Spring washer / anneau à ressort
3 Kabelschuh mit Erdungskabel / wiring terminal with grounding cable / terminal de câblage avec câble de terre
9 Einbau des Antriebes / Installing the drive / Installation de l'unité
1 Handverstellung / Manual adjustment / réglage manuel
2 Gehäuse-Oberteil / Housing upper part / partie supérieure du boîtier
08/2013
Bild 2
Bild 3
REact 15E - 80120
- 12 -
