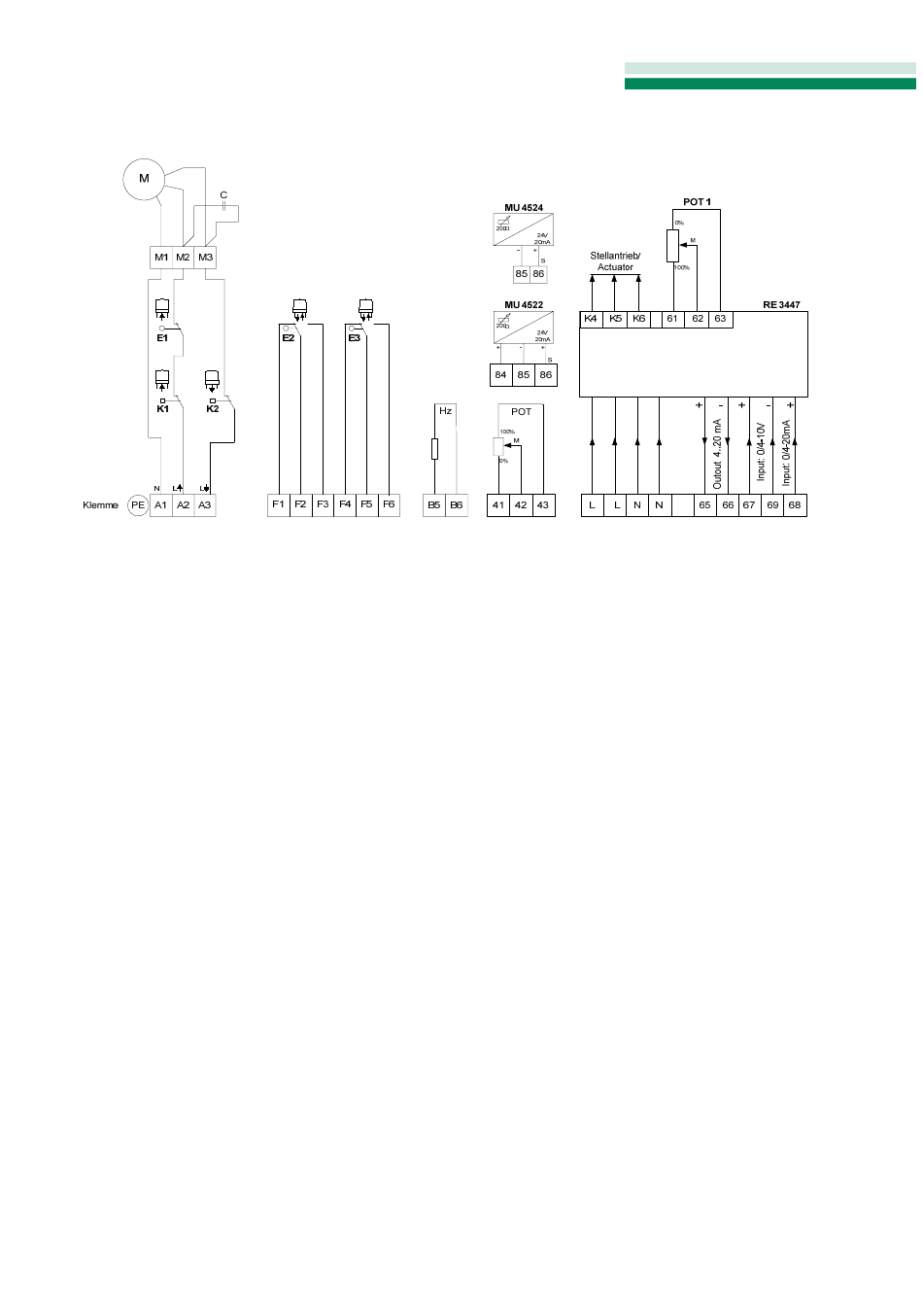

8 Elektrischer Anschlußplan / Terminal connection / schéma de cablage
Bild 1
K1
Kraftschalter
Richtung AUF
force switch
OPEN direction
contacteur de force
direction ouvert
K2
Kraftschalter
Richtung ZU
force switch
CLOSE direction
contacteur de force
direction fermée
E1
Wegschalter
Endlage AUF
limit switch
OPEN position
contacteur de
position ouvert
course
E2
Wegschalter
Endlage ZU
limit switch
CLOSE position
contacteur de
positon fermée
course
E3
Wegschalter
Meldung von Zwischenstellungen
limit switch
Intermediate position
contacteur de
Position intermédiare
course
08/2013
REact 15E - 80110
POT
Potentiometer
Potentiometer
Potentiomêtre
HZ
Heizung
Heater
Chauffage
MU
Messumformer
Transmitter
Transmetteur
RE
Stellungsregler
Positioner
Positionneur
C
Kondensator
Capacitor
Condensateur
- 11 -
