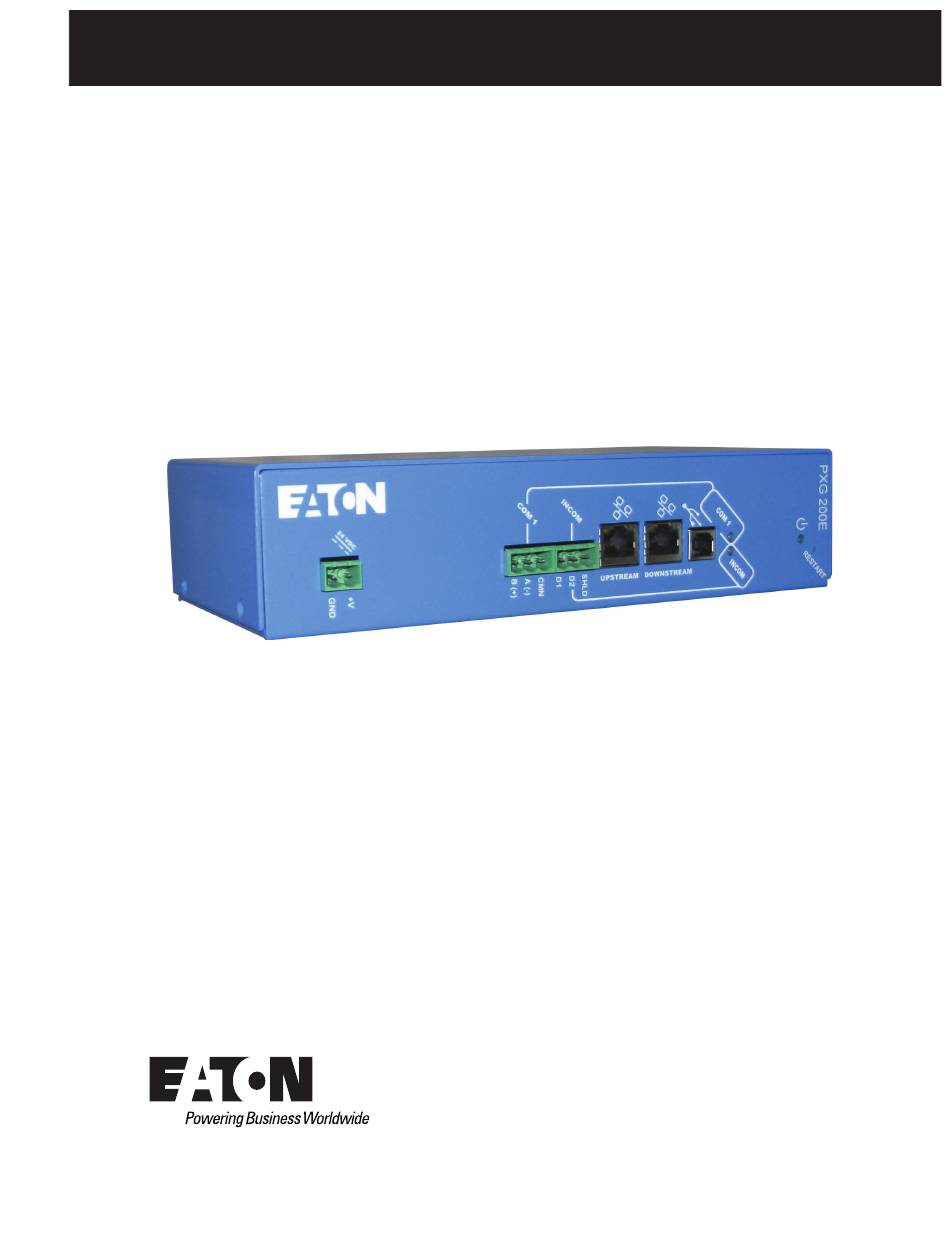

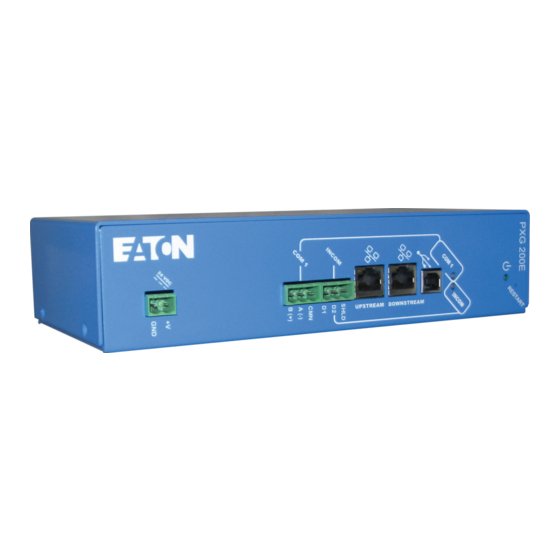

User & Installation Manual IM02603001E
Rev. 5.03:3835 May 2012
Power Xpert Gateway 200E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Xpert Gateway 200E and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton Power Xpert Gateway 200E

Summary of Contents for Eaton Power Xpert Gateway 200E

  • Page 1 User & Installation Manual IM02603001E Rev. 5.03:3835 May 2012 Power Xpert Gateway 200E...
  • Page 2 We reserve the right to make any change at any time. Power Xpert, PowerChain Management, Eaton Electrical trademark and Eaton Electrical (EMBLEM) are federally registered trademarks of Eaton Corporation in the U.S. and other countries. Please note that the screen shots shown in this manual are typical for the firmware that was current at the time this manual was published.
  • Page 3 Product Model or Version Number: _____________________________ Product Serial or License Number: ______________________________ Company: _____________________________________________________ Your Name: ___________________________________________________ Address 1: ____________________________________________________ Address 2: ____________________________________________________ City: __________________________________ State: _____ Zip:________ Email: ________________________________________________________ Today’s Date: __________________________________________________ Phone: ________________________________________________________ Eaton GO Number (if known) ___________________________________...
  • Page 4 This Page Intentionally Left Blank EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 5: Table Of Contents

    Eaton Power Xpert Architecture ........
  • Page 6 Manually Enter IPv6 Address ............EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 7 Accessing the PXG200E from Eaton Software Products ........
  • Page 8 Appendix F: Glossary ..........viii EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 9: Safety Precautions

    FAILURE TO GROUND THE PXG200E MAY RESULT IN INJURY, DEATH OR EQUIPMENT DAMAGE. Properly ground the PXG200E during installation. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 10 CHAPTER 1 - SAFETY PRECAUTIONS RETURN This Page Intentionally Left Blank EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 11: Technical Data

    Regulatory and Standards Compliance Subpart B, Sections 15.107b and 15.109b • EN55022: 1994 Class A, Information Technology Equipment • EN 61000-6-2:2001 Electromagnetic Compatibility (EMC) Party 6-2: Immunity for Industrial Environments EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 12: Mac Address For Pxg200E

    Wire Sizes for PXG200E Connectors PXG200E connectors can accommodate the following wire sizes. Power Connector 12 to 24 AWG COM1 12 to 24 AWG INCOM 12 to 24 AWG EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 13: Com1 Connection Chart

    “A (- Wire). ” Refer to the TD17513 wiring specifica- B (+) tions for the actual device marking for the “B (+ Wire). ” EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 14: Pxg200E Kit Contents

    #2 Phillips Screwdriver - Required for the larger Phillips screws in the DIN rail adapter mounting hardware kit. • 0.5 x 3 mm (0.02 x 0.12 in) (thickness x width) Flathead Screwdriver - Required for the wiring connectors. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 15: Introduction

    The gateway may be used as a standalone device to view one system or location, or it can be easily integrated into a large, multi-location system. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 16: Easy Integration Into Multi-Protocol Environments

    • Device status • Current • Voltage • Energy • Power • Demand EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 17: Pxg200E Overview

    PXG web page, it will return to the default image. Ensure that you have saved your configuration, using Save and Restore on page 100 function, BEFORE you continue. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 18 CHAPTER 4 - PXG200E OVERVIEW RETURN This Page Intentionally Left Blank EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 19: Pxg200E Theory Of Operation

    INCOM Network 19 IQ 35M RS-485 Network 10 MP-3000/MP-4000/MD- EOLR End of line resistor EOLTR End of line termination resistor 20 IQ MESII 3000/DT-3000/FP-4000/FP-5000 PXG200E_209 Figure 2 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 20: Supported Downstream Networks

    Modbus RTU device. It also allows for the use of any third party Modbus device configuration tools that support connectivity through a standard Modbus TCP gateway. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 21: Supported Downstream Devices

    Performance may be compromised if multiple clients access the PXG200E simultaneously. NOTICE: The recommendation is that you not exceed any combination of three supported connections at a time. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 22: Connecting A Pxg200E To The Ethernet Lan

    Ethernet LAN connection to all of the devices on the daisy- chain will be lost. Ethernet Switch UPSTREAM DOWNSTREAM UPSTREAM DOWNSTREAM IQ 250 Meter LINK DATA LINK UPSTREAM DOWNSTREAM UPSTREAM DOWNSTREAM PXG200E_210 Figure 3 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 23: Viewing Device Data Using A Web Browser

    PXG200E. Figure 4 shows the three levels of data display. Home Page Buses Page Device Pages (Up to 64 Device Pages) PXG200E_004 Figure 4 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 24: Home Web Page

    PXG. If you rollover the offline indicator, it will display how many connected devices are currently offline. • No Devices (gray) - there are no devices configured EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 25: Buses Page

    This page provides detailed data from the device. Figure 7 shows an example of a device page for a power meter. PXG200E_007 Figure 7 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 26: Accessing The Pxg200E On The Ethernet Lan

    “downstream” device via the Ethernet LAN. More details on pass-through can be found in PXG200E System Integration on page 141. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 27: Pxg Real Time Clock

    CSV format. This file can be used to perform analysis to discover potential system issues or perform maintenance on a proactive basis. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 28: Device Events

    • For Alarm parameters priority or level can be set on each native alarm • The ability to enable and disable trending of individual parameters EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 29: Security

    NOTICE: To ensure the security of your system, use the SSL connection to the PXG200E web UI by entering HTTPS://192.168.1.1 (if using default IP address) in your web browser. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 30: Access Control / Trusted Host List

    Modbus TCP , leave (set) the Modbus TCP port to disabled. If you will be reading data from Modbus TCP but not writing data, enable the port and disable Modbus TCP writes. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 31: Installation Of Pxg200E

    Ø0.187 (6) 0.560 0.800 4.300 2.750 3.230 1.375 0.240 0.750 0.510 1.025 0.250 0.600 PXG200E_010 Figure 9 Example of PXG200E Mounted with Low Profile Mounting Hardware (Optional) EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 32 (Can be used in conjunction with Standard or Low Profile Mounting Hardware) Figure 11 shows a typical installation using a combination of the standard panel mounting hardware and the DIN rail adapter. PXG200E_012 Figure 11 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 33: Grounding The Pxg200E

    “A (- Wire). ” Refer to the TD17513 wiring specifica- B (+) tions for the actual device marking for the “B (+ Wire). ” EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 34: Wiring Connections

    You are now ready to proceed and connect the unit to the Ethernet LAN and / or the USB port on your computer. See the instructions in Accessing the PXG200E on page UPSTREAM DOWNSTREAM PXG200E_001 Figure 13 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 35: Accessing The Pxg200E

    After you connect both ends of the USB AB cable, and the USB driver is installed, wait at least two minutes for the PXG200E to be properly recognized by your computer. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 36 Enter the login and click OK. PXG200E_016 Figure 17 The home web page should appear. See a description of the home web page in PXG200E Home Web Page Details on page 130. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 37: Using An Ethernet Lan Connection

    “Connecting a PXG200E to the Ethernet LAN” on page 14. After you connect both ends of the Ethernet LAN cable, wait at least two minutes for the PXG200E to be properly recognized by your computer. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 38 NOTICE: To establish a secure connection, you must install the root certificate for the PXG200E. Refer to the procedures listed in the Root Certificate Authority Installation on page 173. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 39 Enter the login and click OK. PXG200E_019 Figure 20 The home web page should appear. See a description of the home web page in PXG200E Home Web Page Details on page 130. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 40 CHAPTER 7 - ACCESSING THE PXG200E RETURN This Page Intentionally Left Blank EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 41: Pxg200E Configuration Web Page

    Accessing the PXG200E Configuration Web Page The PXG200E configuration web page can be accessed at any time by clicking the CONFIGURATION button (Figure 22, PXG200E_021 Figure 22 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 42: Pxg200E Configuration Web Page Links

    Network Configuration Serial Settings • INCOM • COM1 Application Servers • Access Control • Modbus TCP • SNMP • BACnet/IP Time Settings • Date/Time Diagnostics • Device Logs EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 43: Common Pxg200E Configuration Functions

    Click OK to save the data to the PXG200E or CANCEL to ignore the save data request. NOTICE: The format of this message will vary with your browser. PXG200E_211 Figure 25 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 44 “Prevent this page from creating additional dialogs. ” this dialog MUST display for the PXG200E to function properly. PXG200E_212 Figure 26 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 45: Viewing Configuration Changes

    After you click on the VIEW CHANGES link, a screen similar to Figure 28 appears. Note that the screen shows the parameters before and after the COM1 change. PXG200E_027 Figure 28 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 46: Discarding Configuration Changes

    This will delete all changes that are listed in the “These Variables Have Changed” screen (Figure 28). PXG200E_028 Figure 29 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 47: Configuration Of Downstream Communication Ports

    You can SAVE ALL SETTINGS, VIEW CHANGES or DISCARD CHANGES that you have made. For details on how to use these functions, see Common PXG200E Configuration Functions on page EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 48: Com1 Configuration

    Select the Baud Rate from the BAUD RATE drop-down menu (Figure 31, C). Choose from the following baud rates: 1200 b. 9600 (default) 19200 d. 38400 57600 115K g. 230K h. 460K EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 49 You can SAVE ALL SETTINGS, VIEW CHANGES or DISCARD CHANGES that you have made. For details on how to use these functions, see Common PXG200E Configuration Functions on page EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 50: Bacnet/Ip

    (Figure 32, Wait 10-30 seconds and then click the Refresh link (Figure 32, The following WARNING message (Figure 33, A) appears, click OK (Figure 33, PXG200E_214 Figure 33 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 51 BACnet/IP MAC Address - (Figure 35, E) This value is automatically generated by the PXG200E and cannot be modified. PXG200E_216 Figure 35 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 52 This value is used as a template in generating the separate BACnet/IP Mac address (Figure 36, F) as a BACnet/IP-capable device is added to the PXG200E. PXG200E_217 Figure 36 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 53 Check the Device Object-Name (Figure 38, A) for the BACnet/IP-capable device and edit if required. The BACnet/IP Mac address (Figure 38, C) cannot be altered. PXG200E_219 Figure 38 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 54: Adding Downstream Devices

    PXG screen. The user can scroll up or down to view all of the devices installed on the system. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 55 The current capacity of the Main feed is 1000A. There are four feeder circuits connected to the power Bus coming from the Main. Each of these circuits is monitored by an Eaton IQ230M meter at COM1 (Modbus RTU) address 02 through 05. Each feeder circuit has a capacity of 100A.
  • Page 56 You can SAVE ALL SETTINGS, VIEW CHANGES or DISCARD CHANGES that you have made. For details on how to use these functions, see Common PXG200E Configuration Functions on page PXG200E_032 Figure 40 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 57 You can SAVE ALL SETTINGS, VIEW CHANGES or DISCARD CHANGES that you have made. For details on how to use these functions, see Common PXG200E Configuration Functions on page PXG200E_033 Figure 41 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 58 You can SAVE ALL SETTINGS, VIEW CHANGES or DISCARD CHANGES that you have made. For details on how to use these functions, see Common PXG200E Configuration Functions on page PXG200E_035 Figure 42 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 59 Figure 43 Resulting Buses Screen - The Buses screen shown in Figure 44 automatically generated based on the device list entry for this example. PXG200E_037 Figure 44 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 60: Adding A New Main - Step-By-Step

    Click on the button (Figure 46, C) to go back to Step 1 if you wish to change the selection. PXG20E_039 Figure 46 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 61 10. Click on the button (Figure 48, C) to go back to Step 1 if you wish to change the selection. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 62 (Figure 49, D) – Click this box to enable trending for this device. See Trend Viewing on page 136 for details on this feature. PXG200E_042 Figure 49 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 63 TCP access to all parameters of Modbus RTU devices only. NOTICE: If you are not configuring Device Configuration Tabs Saving the Entries on page 57 to save the entries. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 64 Trends on page 119. NOTICE: After you complete Device Configuration Tabs Saving the Entries on page 57 to save the entries. PXG200E_220 Figure 50 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 65 (INCOM or Modbus) as the Main that you added will go offline for a short time. The Buses web page will show when the devices come back online. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 66: Adding A New Bus - Step-By-Step

    Click on the button (Figure 53, C) to go back to Step 1 if you wish to change the selection. PXG200E_223 Figure 53 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 67 Click on the button (Figure 54, D) to go back to Step 1 if you wish to change the selection. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 68 (INCOM or Modbus) as the Bus that you added will go offline for a short time. The Buses web page will show when the devices come back online. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 69: Adding Additional Devices To An Existing Bus - Step-By-Step

    (See “Procedure for Submaster” on page 67.) • IQMESII Meter points (See “Procedure for IQMESII Meter Point” on page 73.) • Pulse counters (See “Procedure for Pulse Counter” on page 79.) EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 70 Click on the button (Figure 57, C) to go back to Step 1 if you wish to change the selection. PXG200E_227 Figure 57 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 71 10. Click on the button (Figure 59, C) to go back to Step 1 if you wish to change the selection. PXG200E_229 Figure 59 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 72 NOTICE: If you are not configuring Device Configuration Tabs Saving the Entries on page 66 to save the entries. PXG200E_230 Figure 60 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 73 Trends on page 119. NOTICE: After you complete Device Configuration Tabs Saving the Entries on page 66 to save the entries. PXG200E_231 Figure 61 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 74 (INCOM or Modbus) as the Main that you added will go offline for a short time. The Buses web page will show when the devices come back online. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 75 INCOM network data. Click on the button (Figure 63, A) in the device list of the PXG200E configuration web page. PXG200E_233 Figure 63 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 76 Click on the button (Figure 65, C) to go back to Step 1 if you wish to change the selection. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 77 10. Click on the button (Figure 66, C) to go back to Step 1 if you wish to change the selection. PXG200E_236 Figure 66 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 78 NOTICE: If you are not configuring Device Configuration Tabs Saving the Entries on page 72 to save the entries. PXG200E_237 Figure 67 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 79 Trends on page 119. NOTICE: After you complete Device Configuration Tabs Saving the Entries on page 72 to save the entries. PXG200E_238 Figure 68 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 80 (INCOM or Modbus) as the Main that you added will go offline for a short time. The Buses web page will show when the devices come back online. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 81 PXG200E(s) that will monitor the IQMESII(s). That is the only way you will understand what the meter points represent when you review reports from the PXG200E. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 82 Click on the button (Figure 71, C) to go back to Step 3 if you wish to change the selection. PXG200E_241 Figure 71 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 83 12. Click on the button (Figure 73, C) to go back to Step 3 if you wish to change the selection. PXG200E_243 Figure 73 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 84 NOTICE: If you are not configuring Device Configuration Tabs Saving the Entries on page 78 to save the entries. PXG200E_244 Figure 74 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 85 Trends on page 119. NOTICE: After you complete Device Configuration Tabs Saving the Entries on page 78 to save the entries. PXG200E_245 Figure 75 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 86 (INCOM or Modbus) as the Main that you added will go offline for a short time. The Buses web page will show when the devices come back online. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 87 Click on the button (Figure 78, C) to go back to Step 1 if you wish to change the selection. PXG200E_248 Figure 78 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 88 10. Click on the button (Figure 80, C) to go back to Step 1 if you wish to change the selection. PXG200E_250 Figure 80 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 89 NOTICE: If you are not configuring Device Configuration Tabs Saving the Entries on page 83 to save the entries. PXG200E_251 Figure 81 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 90 Pulse Counting on page 122. NOTICE: After you complete Device Configuration Tabs Saving the Entries on page 83 to save the entries. PXG200E_252 Figure 82 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 91 (INCOM or Modbus) as the Main that you added will go offline for a short time. The Buses web page will show when the devices come back online. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 92: Edit Downstream Devices

    The device list shown in Figure 84 is part of the PXG200E configuration web page. PXG200E_254 Figure 84 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 93 Point. The steps to define and edit the parameters are the same. To edit pulse counters start at Step 11 of the Procedure for Pulse Counter. The steps to define and edit the parameters are the same. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 94: Delete Downstream Devices

    PXG200E configuration web page. PXG200E_255 Figure 85 After you click on the device you want to delete, a screen similar to Figure 86 appears. PXG200E_256 Figure 86 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 95 Main, Bus or device that was deleted will go offline for a short time. The Buses web page will show when the devices come back online. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 96: Configuring Modbus Tcp Feature

    (Figure 87, E). Range is 0 to 10000 milliseconds. Note that the “Timeout” value is the amount of time allotted before the PXG200E stops processing a command. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 97 You can SAVE ALL SETTINGS, VIEW CHANGES or DISCARD CHANGES that you have made. For details on how to use these functions, see Common PXG200E Configuration Functions on page EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 98: Configuration Of Password

    (Figure 89, D) will disappear after you re-enter the password in the “re-enter” box (Figure 89, C) and you then you click outside of the “re-enter” (Figure 89, EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 99: Admin Password

    (Figure 90, D) will disappear after you re-enter the password in the “re-enter” box (Figure 90, C) and you then you click outside of the “re-enter” (Figure 90, EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 100: Saving The Entries

    Common PXG200E Configuration Functions on page NOTICE: After you change the “Admin Password” you will be asked to use the new password to login to the PXG200E configuration web page. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 101: Ip Address Setup

    “Netmask, ” “Gateway” and “Name Server” fields shown in Figure 92 will be “grayed out. ” Click the refresh button (Figure 92, C) to display the current address. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 102: Manually Enter Ipv4 Address

    You can SAVE ALL SETTINGS, VIEW CHANGES or DISCARD CHANGES that you have made. For details on how to use these functions, see Common PXG200E Configuration Functions on page EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 103: Manually Enter Ipv6 Address

    You can SAVE ALL SETTINGS, VIEW CHANGES or DISCARD CHANGES that you have made. For details on how to use these functions, see Common PXG200E Configuration Functions on page EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 104: Personalization

    NOTICE: The file should be a “ .JPG, ” “JPEG” or a “ .GIF” and must not be larger than 100 Kb. Click on the START UPLOAD button (Figure 96, PXG200E_266 Figure 96 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 105 You can SAVE ALL SETTINGS, VIEW CHANGES or DISCARD CHANGES that you have made. For details on how to use these functions, see Common PXG200E Configuration Functions on page EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 106: Remote Reboot

    After you click on the REBOOT GATEWAY button, the following message (Figure 99) appears. Click OK. NOTICE: The format of this message will vary according to the browser you are using. PXG200E_269 Figure 99 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 107 After you click OK, the “Gateway rebooting, please wait... ” (Figure 100, A) message appears. PXG200E_270 Figure 100 The home web page will refresh when the reboot is complete; this will take approximately two minutes. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 108: Save And Restore

    The path for the folder will appear in the field shown (Figure 101, Click OK (Figure 101, EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 109 Click on the SAVE THE CONFIGURATION button (Figure 102, PXG200E_272 Figure 102 A confirmation of the downloaded file will appear similar to the one shown in Figure 103. PXG200E_273 Figure 103 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 110: Saving The Configuration - Internet Explorer

    Click on the SAVE THE CONFIGURATION button (Figure 104, PXG200E_274 Figure 104 Click on the SAVE button (Figure 105, Click on the SAVE AS button (Figure 105, PXG200E_275 Figure 105 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 111 The file is saved to the location you selected in Step 5. A message similar to the one shown in Figure 107 will display. PXG200E_277 Figure 107 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 112: Restoring The Configuration

    Click on the BROWSE button (Figure 108, PXG200E_278 Figure 108 Select the file you want to upload to restore the configuration (Figure 109, Click OPEN (Figure 109, PXG200E_279 Figure 109 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 113 This will cause the affected device to display improperly. After the restore has completed, make sure you edit the EDS with the correct parameter and alarm attribute values. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 114: Product Support

    Product Support allows the user to establish the location and contact information for the person responsible for the PXG200E in their organization. Also, a link to the Eaton Power Xpert web page is provided for convenience. Click on the PRODUCT SUPPORT link...
  • Page 115 A list of helpful troubleshooting suggestions is also available on the support page. Click on the SUPPORT button (Figure 114, A) and then click on the HELP FILE link (Figure 114, PXG200E_284 Figure 114 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 116 (Figure 115, B). Download the EPICS file for the device you need help with by clicking on the download link for the device (Figure 115, PXG200E_285 Figure 115 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 117: Access Control

    NOTICE: To ensure the security of your system, if you ARE using any of the previously listed protocols, AND you can identify the client IP addresses, leave (set) access control enabled and enter the trusted host IP addresses. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 118 When you are done adding all of the trusted hosts, you can SAVE ALL SETTINGS, VIEW CHANGES or DISCARD CHANGES that you have made. For details on how to use these functions, see Common PXG200E Configuration Functions on page EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 119: Snmp

    Support for PCD MIB (Power Chain Device) Proper configuration of the PXG200E and NMS requires that there be a community string match before requested MIB data is returned from the PXG200E. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 120 14. When you are done adding all of the trusted hosts, you can SAVE ALL SETTINGS, VIEW CHANGES or DISCARD CHANGES that you have made. For details on how to use these functions, see Common PXG200E Configuration Functions on page EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 121: Time Settings

    Testing for valid NTP servers Started, not synchronized Synchronizing with NTP server Synchronized to aaa.bb.cc, NTP stratum 1 (where “aaa.bb.cc” is the address of the NTP server) EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 122 NOTICE: After you have saved the IP addresses or host names of the time server it may take about 15 minutes for the PXG200E to become synchronized with the NTP server. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 123: Device Configuration Tabs

    While you are adding a downstream device or editing it a screen similar Figure 120 appears. Click on the Parameters Tab (Figure 120, A) to select which parameters you wish to disable. PXG200E_288 Figure 120 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 124 Click another tab to continue customizing the parameters for the device. If you have completed customizing the parameters go to Saving the Entries on page 123. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 125: Native Events

    PXG200E_291 Figure 123 Select the native event parameter (Figure 124, A) you are configuring the priority for. PXG200E_292 Figure 124 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 126 Click another tab to continue customizing the parameters for the device. If you have completed customizing the parameters go to Saving the Entries on page 123. PXG200E_293 Figure 125 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 127: Trends

    Step To disable interval logs for all parameters follow the instructions in Step Select individual parameters (Figure 127, PXG200E_295 Figure 127 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 128 NOTICE: You must select at least one trait if Interval Log Enable (Figure 128, A) has a check-mark for the parameter. d. Repeat Step 3 to enable/disable interval logs for additional parameters. PXG200E_296 Figure 128 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 129 Figure 130 Click another tab to continue customizing the parameters for the device. If you have completed customizing the parameters go to Saving the Entries on page 123. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 130: Pulse Counting

    Up to four meters can be monitored by the DIM KYZ. Select the units (Figure 132, A) used for each meter. Select the scale factor (units/pulse) (Figure 132, B) used for each meter. PXG200E_300 Figure 132 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 131: Saving The Entries

    You can SAVE ALL SETTINGS, VIEW CHANGES or DISCARD CHANGES that you have made. For details on how to use these functions, see Common PXG200E Configuration Functions on page PXG200E_301 Figure 133 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 132 CHAPTER 9 - DEVICE CONFIGURATION TABS RETURN This Page Intentionally Left Blank EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 133: Pxg200E Web

    PXG screen. The user can scroll up or down to view all of the devices installed on the system. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 134 “Main” link (Figure 136, PXG200E_117 Figure 136 To access a “Main” web page from a “Bus” web page, click on a “Main” link (Figure 137, PXG200E_118 Figure 137 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 135: Accessing The Pxg200E Bus Web Page

    To access a “Bus” web page from the home web page, click on a “Bus” link (Figure 138, PXG200E_119 Figure 138 To access a “Bus” page from any other page, click on the BUSES button (Figure 139, PXG200E_120 Figure 139 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 136: Accessing The Pxg200E Bus Device Web Page

    Access the associated “Bus” web page (Figure 140, PXG200E_120 Figure 140 Click on the link for the device you want to display (Figure 141, PXG200E_121 Figure 141 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 137: Accessing The Device Summary Web Page

    Click on the DEVICE SUMMARY link (Figure 142, A) in the toolbar of the PXG200E configuration web page. PXG200E_122 Figure 142 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 138: Pxg200E Home Web Page Details

    See Personalization on page Web UI Alert Symbol (Figure 143, H) – This means that the Web UI has lost communications with the PXG200E. PXG200E_123 Figure 143 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 139: Pxg200E Home Web Page Events

    Here is an example of how the text might appear. North Wing Meter/Summary Alarm (1) - Device is in Alarm Status Occurred at: Wednesday, May 09, 2012 10:03:11 PM EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 140 Events Box (Figure 144, A) is “auto- closed” so it does not appear in the Events Box (Figure 144, All events are recorded in the event log. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 141: Pxg200E Main Web Page Details

    “Bus” that you selected. A typical “Bus” page is shown in Figure 147. Note the navigation bar (Figure 147, A) on the left side of the screen allows easy access to other “Main” pages. PXG200E_126 Figure 147 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 142: Pxg200E Bus Device Web Page Details

    148. Note the navigation bar (Figure 148, A) on the left side of the screen allows easy access to other Mains, Buses and Bus devices. PXG200E_127 Figure 148 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 143: Pxg200E Device Summary Web Page Details

    A print screen (Figure 150) appears on the screen. Click the print button (Figure 150, A) to print the device summary. PXG200E_128 Figure 149 PXG200E_129 Figure 150 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 144: Trend Viewing

    While the data is being compiled, an screen similar to (Figure 152, A) will be displayed. Uploading trend data..PXG200E_131 Figure 152 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 145 Hover the mouse cursor over one of the points (Figure 153, D) view the exact value of the trend data on a specific date. PXG200E_132 Figure 153 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 146: Interval Logs

    ® Save the data file in the format available. If you have Microsoft Excel at the workstation, download the file as file type XLS. PXG200E_305 Figure 155 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 147: Procedure To Erase The Interval Log

    Click on the ERASE THE INTERVAL LOG button (Figure 156, B) permanently erase the interval log for the device you selected. PXG200E_306 Figure 156 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 148: Excel

    Viewing the Interval Log With Microsoft Excel 2007 or Greater Open the file. View the data for the interval log for the device you selected. PXG200E_136 Figure 158 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 149: Pxg200E System Integration

    The PXG200E maps data from the devices on the INCOM and COM1 port (Modbus RTU) to registers that can be accessed by requests from the Modbus TCP client. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 150: Modbus Pass-Through To Modbus Rtu Devices

    Modbus Pass-Through to Modbus RTU Devices The PXG200E supports a direct pass-through mode to Modbus RTU devices. This mode of operation is only available for the Modbus RTU “downstream” devices. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 151: Snmp

    SNMP configuration. BACnet/IP BACnet/IP communication provides read-only data from Building Automation Systems (BASs), so that the PXG200E can be easily integrated in a BAS alongside other BACnet/IP-capable devices. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 152 CHAPTER 11 - PXG200E SYSTEM INTEGRATION RETURN This Page Intentionally Left Blank EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 153: Firmware Updates

    Click on the START UPLOAD button (Figure 159, During the firmware upload, the message “Updating Firmware... ” will appear. A typical message is shown (Figure 160, PXG200E_138 Figure 160 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 154 The home web page should appear. If not, press the F5 key on your computer keyboard. 10. The new version of the firmware should now display on the bottom right of the browser (Figure 162, PXG200E_140 Figure 162 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 155: Troubleshooting And Maintenance

    This manual supports unit-level troubleshooting only. There are no user serviceable parts in the PXG200E. If the cause of a malfunction is traced to the PXG200E, replace the unit and return the suspect unit to Eaton for repair or replacement.

  • Page 156: Technical Assistance

    PXG200E configuration web page. Click the VIEW THE INCOM LOG button (Figure 163, B) or the VIEW THE MODBUS-RTU LOG button (Figure 163, PXG200E_307 Figure 163 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 157: Resetting Lost Passwords And Ip Addresses

    User Password User Name: user Password: user Admin Password User Name: admin Password: admin To customize these passwords, follow the steps in Configuration of Password on page EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 158: Troubleshooting Matrix

    Modbus TCP client Reset passwords and IP addresses using the Incorrect IP address set at Resetting Lost Passwords and IP Addresses on PXG200E page 149. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 159 Browser is not communicating Add gateway IP address to proxy server exceptions or Configuration changes with PXG because of LAN Proxy list. are not being saved. server. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 160 CHAPTER 13 - TROUBLESHOOTING AND MAINTENANCE RETURN This Page Intentionally Left Blank EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 161: Appendix A: Warranty Information

    MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Warranty Repair If you believe your equipment is in need of repair, call Eaton Corporation and ask for a customer service representative. It is important to contact us first as many problems may be resolved with a phone call. Please have the serial number of the unit and the nature of the problem available before you call 1.800.809.2772.

  • Page 162: Repair After Warranty Expiration

    The remedies provided herein are Buyer's sole and exclusive remedies. Eaton Corporation shall not be liable for any direct, indirect, special, incidental, or consequential damages, whether based on contract, tort, or any other legal theory. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 163: Appendix B: Usb Driver Installation

    Connect the USB AB cable to the PXG200E USB port (Figure 166, UPSTREAM DOWNSTREAM PXG200E_013 Figure 166 Connect the other end of the USB AB cable to an empty USB port on the computer. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 164: Procedure For Windows Xp

    NEXT (Figure 168, PXG200E_142 Figure 168 Select “Install from a list or specific location (Advanced)” (Figure 169, A) and click NEXT (Figure 169, PXG200E_143 Figure 169 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 165 (Figure 170, C) d. Click on the BROWSE button (Figure 170, PXG200E_144 Figure 170 Browse for the folder called “usbd” (Figure 171, A) and click OK. PXG200E_145 Figure 171 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 166 APPENDIX B - USB DRIVER INSTALLATION RETURN Click NEXT (Figure 172, PXG200E_146 Figure 172 Click CONTINUE ANYWAY (Figure 173, PXG200E_147 Figure 173 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 167 APPENDIX B - USB DRIVER INSTALLATION RETURN Wait while the USB drivers are installed (Figure 174). PXG200E_148 Figure 174 Click FINISH (Figure 175, PXG200E_149 Figure 175 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 168 Click on the START button (Figure 178, A) and the start menu (Figure 178, B) appears. b. Click on the RUN button (Figure 178, PXG200E_152 Figure 178 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 169 Close the CMD window. NOTICE: The next time you connect the PXG200E to this computer using the USB port, you will not need to reinstall the drivers. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 170: Procedure For Windows 7

    (also called the “Start Button”) (Figure 183, A) and then the “Control Panel” link (Figure 183, PXG200E_157 Figure 183 Click Hardware and Sound (Figure 184, PXG200E_159 Figure 184 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 171 Click on Device Manager (Figure 185, PXG200E_160 Figure 185 RIGHT Click on RNDIS/Ethernet Gadget (Figure 186, A) and select “Update Driver Software... ” (Figure 186, PXG200E_161 Figure 186 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 172 Click “Browse my computer for driver software... ” (Figure 187, PXG200E_162 Figure 187 Click on “Let me pick from a list of device drivers on my computer... ” (Figure 188, PXG200E_163 Figure 188 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 173 APPENDIX B - USB DRIVER INSTALLATION RETURN Select device type: Wait until the list appears on your screen. b. Select “Network Adapters” (Figure 189, Click NEXT (Figure 189, PXG200E_164 Figure 189 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 174 Select MICROSOFT CORPORATION (not Microsoft) (Figure 190, b. Select REMOTE NDIS COMPATIBLE DEVICE (Figure 190, B) Select NEXT (Figure 190, PXG200E_165 Figure 190 10. Click YES (Figure 191, PXG200E_166 Figure 191 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 175 11. Wait while the USB drivers are installed (Figure 192). PXG200E_167 Figure 192 12. Windows will indicate that the USB drivers have successfully been installed (Figure 193). PXG200E_168 Figure 193 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 176 14. Unplug the USB cable from the PXG200E and reboot the computer. 15. After the computer reboots, plug in the USB cable and wait two minutes for the PXG200E to be fully recognized by the computer. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 177 Click on the CMD program (Figure 195, PXG200E_170 Figure 195 d. Enter “ipconfig /all” at the command prompt (Figure 196, A) press the ENTER key on the keyboard. PXG200E_154 Figure 196 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 178 Close the CMD window. NOTICE: The next time you connect the PXG200E to this computer using the USB port, you will not need to reinstall the drivers. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 179: Appendix C: Connecting To An Ethernet Lan

    Once the network administrator has added the PXG200E to the DHCP server, you should be able to move forward with connecting the gateway to the Ethernet LAN. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 180: Manually Assigning An Ip Address

    Once the network administrator has provided you with the assignments, you can enter them on the Network Configuration web page. Write these values down in the spaces provided in Technical Data on page 3 for future reference. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 181: Appendix D: Root Certificate Authority Installation

    PXG200E is not impacted by using secure transactions. This section explains root CA installation for: • Microsoft Internet Explorer 6 or higher • Mozilla Firefox 2 or higher EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 182: Installing Root Ca With Microsoft Internet Explorer 6 Or Higher

    A). A Root CA Installation window opens (Figure 199). PXG200E_173 Figure 199 Click “Root CA Certificate” (Figure 199, A). A File Download warning window opens (Figure 200). EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 183 NOTICE: The certificate cannot be verified yet because it is issued by a nontrusted CA. PXG200E_175 Figure 201 Click “INSTALL CERTIFICATE... ” (Figure 201, A). The Certificate Import Wizard window opens (Figure 202). EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 184 ” (Figure 203, Click the “Browse... ” button (Figure 203, B). In the next window (Figure 204) you will select the certificate store you will use. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 185 11. Verify that the certification store the certificate will be stored in is “Trusted Root Certification Authorities” (Figure 205, 12. Click NEXT (Figure 205, B). The “Completing the Certificate Import Wizard (Figure 206) appears. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 186 (Figure 206, A) to complete the wizard. A message box similar to Figure 207 opens. PXG200E_179 Figure 207 14. Click YES (Figure 207, A) to install the CA. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 187 Figure 208 16. Click OK (Figure 208, 17. The certificate you installed appears once again. Click OK (Figure 209, A) to close the window. PXG200E_193 Figure 209 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 188 20. Open the Internet Options menu by first opening the browser navigation menu (Figure 210) and selecting Tools (Figure 210, A) and then Internet Options (Figure 210, PXG200E_194 Figure 210 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 189 APPENDIX D - ROOT CERTIFICATE AUTHORITY INSTALLATION RETURN 21. The Internet Options menu (Figure 211) opens. Click on the “Content” (Figure 211, A) and then “Certificates” (Figure 211, PXG200E_195 Figure 211 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 190 (Figure 212, A) and verify the “PowerXpert... ” certificate (Figure 212, B) is listed. Click “Close” (Figure 212, C) to close the “Certificates” menu (Figure 212). PXG200E_196 Figure 212 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 191 (Figure 213) and click “Trusted Sites” (Figure 213, Click the “Sites” button (Figure 213, C) and the “Trusted sites” menu (Figure 214) appears. PXG200E_197 Figure 213 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 192 The trusted site is now listed in the “Websites” box (Figure 214, g. Click the “Close” button (Figure 214, D). The “Trusted Sites” menu closes and the “Internet Options” menu (Figure 215) appears. PXG200E_198 Figure 214 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 193 “Internet Options” menu (Figure 215) and click the “Delete... ” button (Figure 215, B) and “Delete Browsing History” menu (Figure 216) appears. PXG200E_200 Figure 215 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 194 (Figure 216, A) after you change the Internet Options). 26. Click the “Delete” button (Figure 216, B) to complete the delete browsing history operation. PXG200E_201 Figure 216 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 195 APPENDIX D - ROOT CERTIFICATE AUTHORITY INSTALLATION RETURN 27. Click the “OK” button (Figure 217, A) on the “Internet Options” menu (Figure 217) to close it. PXG200E_202 Figure 217 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 196 30. You can view additional page attributes by opening the Properties Page by clicking on the PAGE button (Figure 218, B) and then the properties link (Figure 218, PXG200E_308 Figure 218 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 197: Installing Root Ca With Mozilla Firefox 2 Or Higher

    Figure 221. Make sure the certificate was issued by Eaton Corporation. Click CLOSE (Figure 221, A) after you view it to return to Figure 220. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 198 The window shown in Figure 222 appears. PXG200E_185 Figure 222 Click the “Root CA Certificate” link (Figure 222, A) and the window shown in Figure 223 appears. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 199 11. Click the “Trust this CA to identify web sites” (Figure 223, B) check box option. 12. Click OK (Figure 223, C) to complete the installation process. The installation process is complete. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 200 PXG200E_203 Figure 224 16. The “Options” menu (Figure 225) opens. Click on the “Advanced” tab (Figure 225, A) and then “View Certificates” (Figure 225, PXG200E_204 Figure 225 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 201 “Certificate Manager” menu (Figure 226). PXG200E_205 Figure 226 18. The “Options” menu (Figure 227) opens. Click the “OK” button (Figure 227, A) to close the menu. PXG200E_206 Figure 227 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 202 (Figure 229, A) on the Clear Recent History window (Figure 229) and click “Clear Now” (Figure 229, B) to complete the Clear Recent History operation. PXG200E_208 Figure 229 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 203 NOTICE: The format of the home web page depends upon the version of FireFox browser you have installed. In some versions the second secure icon at the bottom of the page does not appear. PXG200E_309 Figure 230 EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 204 APPENDIX D - ROOT CERTIFICATE AUTHORITY INSTALLATION RETURN This Page Intentionally Left Blank EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 205: Appendix E: Supported Device List

     Meter IQ35M    Meter SQD PM710     Meter IQ130     Meter IQ140 Meter IQ150     EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 206 APPENDIX E - SUPPORTED DEVICE LIST RETURN This Page Intentionally Left Blank EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

  • Page 207: Appendix F: Glossary

    Media Access Control (MAC)/Data Link Layer, and a common addressing format (Ethernet and Timing). EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 208 Ethernet adapter and a wireless adapter in the same computer, and as would multiple network cards in a router. However, it is possible to change the MAC address on most of today's hardware. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 209 Eaton and 3rd party electrical products and systems. Power Factor: A ratio of fundamental (50/60Hz) active power to apparent power (fundamental watts to fundamental volt-amperes). EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 210 STP cabling often is used in Ethernet networks, especially fast data rate Ethernets (Ethernet and Timing). EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 211 World Wide Web website or a local area network. EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...
  • Page 212 APPENDIX F - GLOSSARY This Page Intentionally Left Blank EATON PXG200E User Manual • IM02603001E Rev 5, 11-May-2012 • Firmware Version 5.03:3835...

Table of Contents
