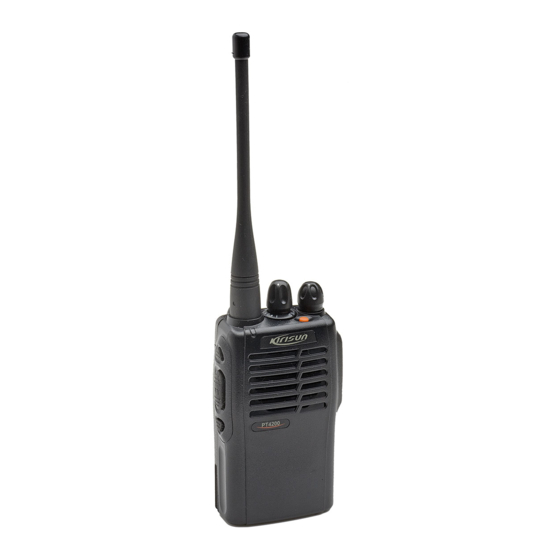

Kirisun PT4200-01 Tune-Up  Instructions

Kirisun PT4200-01 Tune-Up Instructions

Advertisement

Quick Links

TUNE UP PROCEDURE FOR PT4200-01
THE BUILT-IN CHANNELS ARE 15 CHANNELS +1 SCAN
CHANNEL
THE RANGE OF FREQUENCY IS 421--470MHz .
Before test/debugging, make sure all the equipments have been well connected to the
ground.
Before test/debugging, make sure the antenna output terminal has been connected
properly to the corresponding devices and load.
The transmitter output must pass RF power attenuator before being connected to the
standard signal source/ frequency deviator/ frequency spectrum.
When testing the receiver, make sure not to conduct transmitting operation.
When in debugging/testing/service, make sure static free measures for human body and
equipments.
1.1 Service Equipment and Software.
The following equipments and software in Table 1.1 are necessary for the service and test
of the radio.
Table 1.1 For Test and Service: Equipment and Software
No.
Item
1
Computer
2
Programming
Software
3
Programming
Line
4
Cloning Line
5
DC Regulated
Power
RF
power
6
meter
Frequency
7
Meter
8
Frequency
Deviator
9
Digital
Specifications
Higher than P2, compatible with IBM PC,WINDOWS 98/ME/2000/XP
KSP-20
KSPL02
KCL01
Output voltage:7.5V, Output current:≥ 5A
Test range:0.5---10W
Frequency range:100MHz—500MHz
Impedance:50Ω
SWR≤1.2
Frequency range: 0.1—600MHz
Frequency precision: Higher than ±1×10
Sensitivity: Higher than 100mV
Frequency range:DC—600MHz
Test range:0--±5kHz
Input impedance: Higher than 10MΩ/V DC , with the ability of testing voltage,
-6

Advertisement

loading

Summary of Contents for Kirisun PT4200-01

  • Page 1 TUNE UP PROCEDURE FOR PT4200-01 THE BUILT-IN CHANNELS ARE 15 CHANNELS +1 SCAN CHANNEL THE RANGE OF FREQUENCY IS 421--470MHz . Before test/debugging, make sure all the equipments have been well connected to the ground. Before test/debugging, make sure the antenna output terminal has been connected properly to the corresponding devices and load.
  • Page 2 Multimeter current, impedance. Audio Signal Frequency range: 2---3000Hz Generator Output level: 1---500mV power Attenuation:40dB or 50dB Attenuator Supporting power:Bigger than 10W Standard Frequency range:10MHz---1000MHz signal source Output level:0.1uV~32mV (-127dBm~-17dBm) Oscillograph Frequency range: DC~20MHz Test range:10mV~20V Audio Test range:10mV~10V voltmeter The equipments in item 6, 7, 8, 10, 11, and 12 can be replaced by a comprehensive test instrument.
  • Page 3 1.3 Debugging 1.3.1 VCO Modification Turn off the power saving mode. Set the frequency at the low frequency (see Table 1.2). In receiving status, test the PD power with the digital multimeter. Adjust the trimming capacitor C180 to make the PD power at 1V±0.1V. Set the TX frequency at high frequency, press the PTT button, test the PD power with the digital multimeter.
  • Page 4 1.3.9 Receiver Squelch Setting Under the computer test mode, select “the 9 squelch” and click “adjustment” to enter. Input the receiver with the signals of 1kHz modulation frequency, 3kHz frequency deviation, and -117dBm level. Adjust the figure to make the green light flash. Under the computer test mode, select “the 3 squelch”...
  • Page 5 activation is Computer normal. : Test Mode -117dBm After adjustment, squelch : -124dBm activation is normal. Table 1.5 Transmitter Test Item Test Condition Test Equipment Adjustment Requirement Note Point Frequency Meter/ Computer Comprehensive Test Within ±200Hz Frequency Test Mode Device Wave shape is DCS Wave Oscillator...
