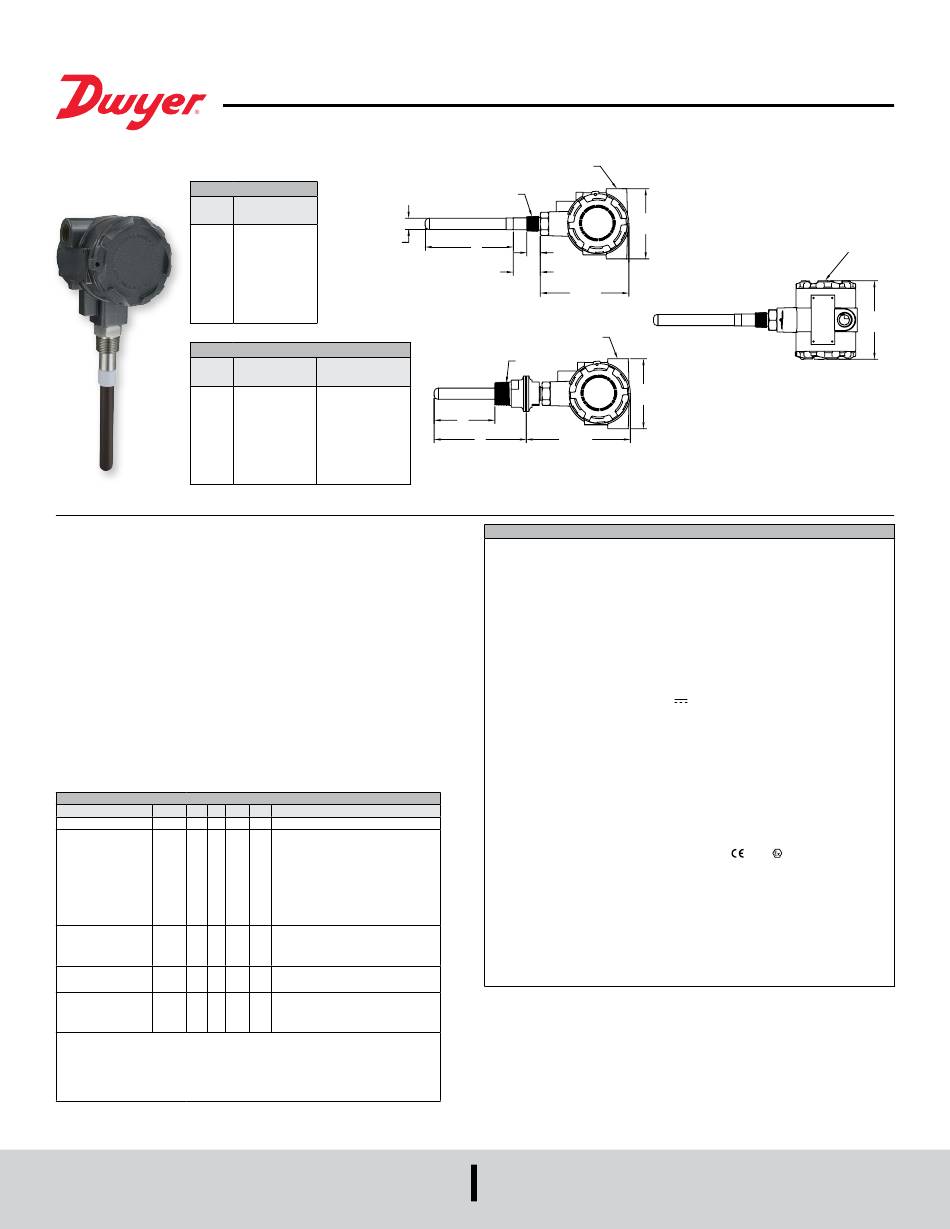

Series PMT2 Particulate Transmitter
Specifications - Installation and Operating Instructions
THREADED MOUNT
Probe
Length
3˝
5˝
10˝
15˝
20˝
30˝
36˝
1.5˝ TRI-CLAMP MOUNT
Probe
Length
3˝
5˝
10˝
15˝
20˝
30˝
36˝

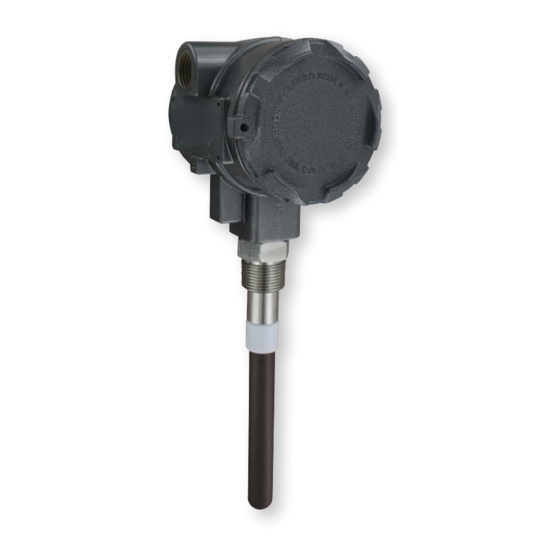

The SERIES PMT2 Particulate Transmitter is designed to measure particulate emission
levels from dust collector discharge. Using DC coupled electrostatic induction sensing
technology, the transmitter monitors a pA current that is generated as particulate
passes near the probe; a 4 to 20 mA signal will vary based on the particulate level. The
PMT2 offers 6 sensitivity ranges allowing the user to choose the range that will best fit
the application. The range and test selector switch can also be set to output a 4 mA or
20 mA signal to assist with set up or trouble shooting. Averaging time setting can be
used to dampen the signal if desired.
FEATURES/BENEFITS
• Simple 2-wire installation for PLC and control panels
• Non-stick PTFE coated probe to prevent false readings from moist and conductive
dusts, condensate, and dust buildup
• Remote zero calibration helps to decrease maintenance time
MODEL CHART
Example PMT2 -05 -A -U2
Series PMT2
Probe 03
Length 05
10
15
20
30
36
Process A
Connection B
C
Enclosure Rating A2
U2
Options
*Options that do not have ATEX or IECEx.
Attention: Units without the A2 suffix are not Directive 2014/34/EC (ATEX)
compliant. These Units are not intended for use in potentially hazardous
atmospheres in the EU. These unites may be CE marked for other Directives
of the EU.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
2X 1/2˝ NPT OR M20 ELECTRICAL ENTRY
A
in [mm]
3 [76.20]
5 [127.00]
5/8
[15.88]
10 [254.00]
15 [381.00]
20 [508.00]
30 [762.00]
36 [914.40]
A B
in [mm] in [mm]
3-1/2 [88.90] 1-25/32 [45.24]
5-1/2 [139.70] 3-25/32 [96.04]
10-1/2 [266.70] 8-25/32 [223.04]
15-1/2 [393.70] 13-25/32 [350.04]
20-1/2 [520.70] 18-25/32 [477.04]
30-1/2 [744.70] 28-25/32 [731.04]
36-1/2 [927.10] 34-25/32 [883.44]
PMT2-05-A-U2
Particulate transmitter
3˝ probe length
5˝ probe length
10˝ probe length
15˝ probe length
20˝ probe length
30˝ probe length
36˝ probe length
3/4˝ male NPT
1.5˝ tri-clamp kit with 1˝ male NPT
3/4˝ male BSPT
ATEX and IECEx (IS)
UL (IS)*
ST Stainless steel tag
M2 Female M20 electrical entries
(female 1/2˝ NPT standard)
3/4˝ NPT or 3/4˝ BSPT
"A"
3/4
[19.05]
1-1/2
[38.10]
4-15/16
[125.41]
3/4˝ Male NPT OR 3/4˝ Male BSPT Mount
2X 1/2˝ NPT OR M20 ELECTRICAL ENTRY
1˝ NPT
"B"
5-13/16
"A"
[147.64]
1.5˝ Tri-Clamp Option Mount
SPECIFICATIONS
Service: Air and compatible gases, any type of particulate conductive or non-
conductive.
Wetted Materials: 316L SS, silicone, and PTFE.
Enclosure: Powder coated aluminum.
Accuracy: ±5% of reading.
Particulate Size: 0.3 microns and higher.
Detection Range: 5 to 5000 pA (6 selectable range options).
Temperature Limits: Ambient: -40 to 145°F (-40 to 63°C); Process: -40 to 248°F
(-40 to 120°C).
Pressure Limit: 30 psi (2 bar).
Output Signal: 4 to 20 mA.
Power Requirements: 12 to 28 VDC (
Electrical Connection: Two 1/2˝ female NPT electrical entries or two M20 electrical
entries (A2 suffix only).
Terminal Block: Removable (16 to 20 AWG wire).
Process Connection: See model chart. BSPT process connections are not UL
listed.
Probe Lengths: See model chart.
Enclosure Rating: UL Type 4 (IP66) ATEX/IECEx IP65.
Mounting Orientation: Any.
Averaging Time: 1 to 360 s (10 selectable options).
Weight: Varies with length of probe and type of mount.
Agency Approvals: CE, cULus; ATEX Compliant:
(-40°C ≤ Tamb ≤ 63°C) (-40°C ≤ T
(-40°C ≤ Tamb ≤ 63°C) (-40°C ≤ T
16ATEX1768 X. ATEX Standards: EN 60079-0:2012/A11:2013; EN 60079-11:2012.
IECEx Certified: Ex ia IIB T4 Ga (-40°C ≤ Tamb ≤ 63°C) (-40°C ≤ T
Ex ia IIIC T120°C Da (-40°C ≤ Tamb ≤ 63°C) (-40°C ≤ T
Certificate of Conformity: IECEx UL 16.013X. IECEx Standards: IEC 60079-0: 2011;
IEC 60079-11: 2011. UL Listed Intrinsically Safe for Class I, Groups C and D; Class
II, Groups E, F and G; Class III; Class I Zone 0 AEx ia IIB T4 Ga; Class I Zone 0 Ex
ia IIB T4 Ga.
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin PC-PMT2-M
3-29/32
ALLOW 1-1/4˝ [32]
[99.22]
FOR COVER REMOVAL
BOTH SIDES
3-29/32
[99.22]
).
0518 II 1 G Ex ia IIB T4 GA
≤ 120°C) / II 1 D Ex ia IIIC T120°C Da
Process
≤ 120°C). Type Certificate No.: DEMKO
Process
Process
≤ 120°C).
Process
www.dwyer-inst.com
e-mail: info@dwyermail.com
4-3/8
[111.13]
≤ 120°C) /
