Dwyer Instruments 605 Installation And Operating Instructions

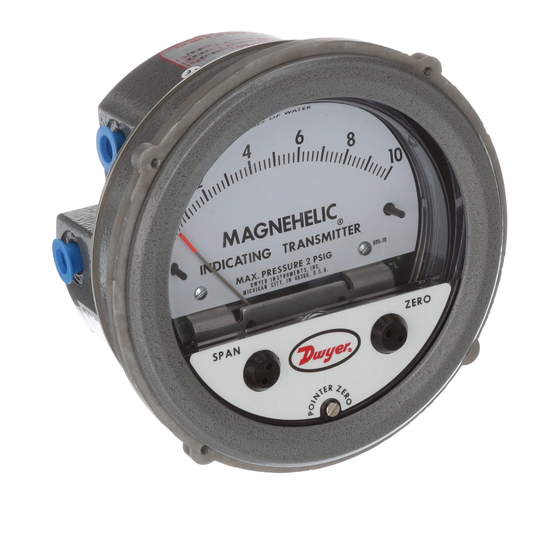

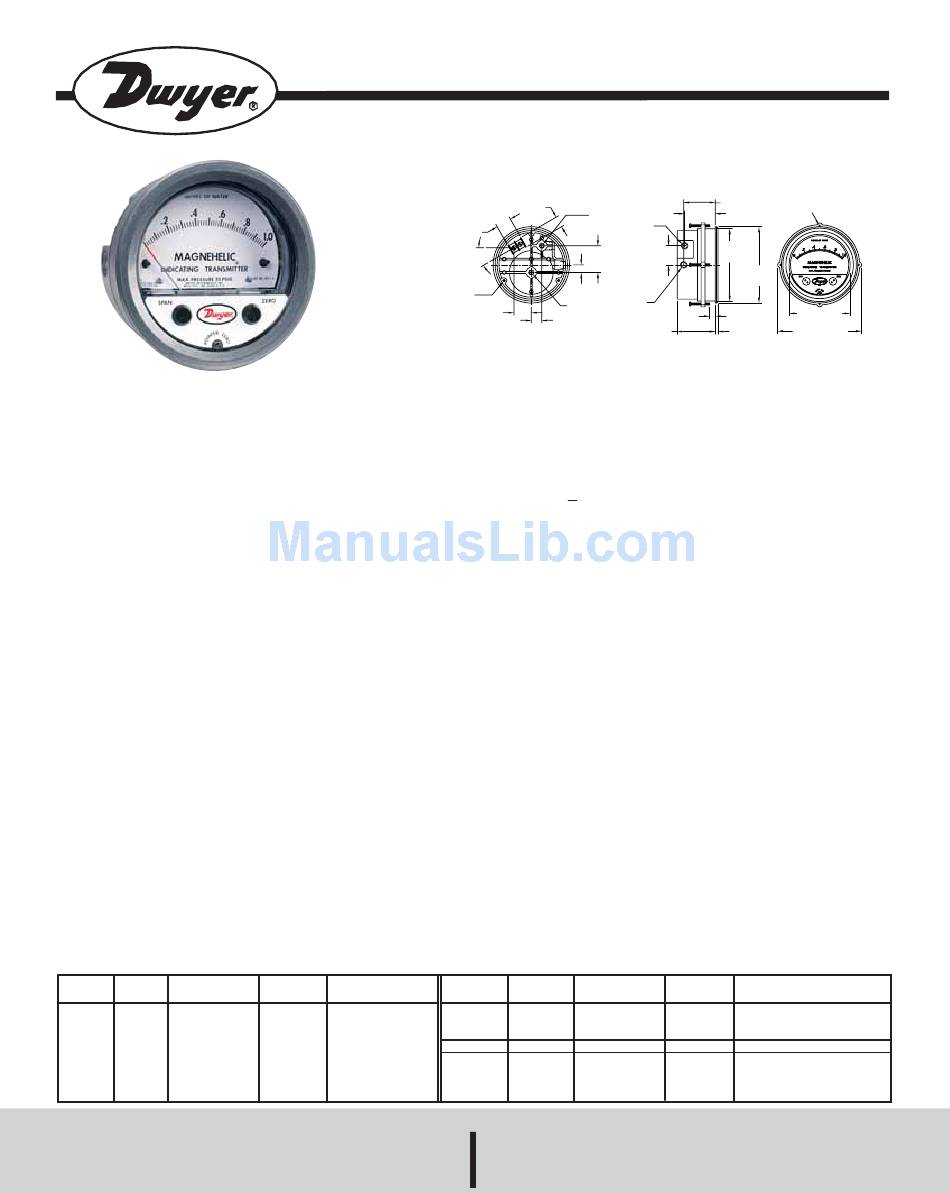

Series 605 Magnehelic
neously provides local indication on a large, easily read ana-
log scale while also converting that pressure into a standard
two-wire, 4-20 mA signal for ranges from 0-0.5 to 0-50˝
w.c. Positive, negative or differential air and compatible gas
pressure can be measured with an accuracy of ±2% of full
scale. The basic mechanical components of the Series 605
Magnehelic ® indicating transmitter are similar to those used
in the popular, time-proven Magnehelic
sure gage. However, the Series 605 models add electrical
conditioning and amplification of a resistance change pro-
duced by a silicon strain gage which is cemented to the
range spring. This resistance change is the result of the
slight flexing which results from spring deflection as pres-
sure is applied to the diaphragm which is directly linked to
the spring.
STANDARD ACCESSORIES
Mounting ring
Snap ring
(4) 6-32 x 1-1/4 screws (panel mtg.)
(3) 6-32 x 5/16 screws (surface mtg.)
(2) Tubing to 1/8˝ NPT adapters
(2) 1/8˝ NPT plugs
Adjustment key
Maximum
Model Range
Number in w.c. Pressure
25 psi (1.7 bar)
605-00N .05-0-.20
25 psi (1.7 bar)
605-11 .25-0-.25
25 psi (1.7 bar)
605-0 0-.50
25 psi (1.7 bar)
605-1 0-1.0
5 psi (34.5 kPa)
605-2 0-2.0
5 psi (34.5 kPa)
605-3 0-3.0
5 psi (34.5 kPa)
605-6 0-6.0
5 psi (34.5 kPa)
605-10 0-10
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, IN 46361, U.S.A.
Series 605 Magnehelic
Specifications - Installation and Operating Instructions
(3) #6-32 x 3/16 [4.76]
DP HOLES EQUALLY SPACED
ON A Ø4-1/8 [104.78] B.C.
FOR PANEL MOUNTING
Patent No. 4,890,497
The Dwyer
® Indicating Transmitter simulta-
® differential pres-
Electrical
Mechanical
Accuracy +/-% Accuracy +/-%
2 4
2 3
2 3
2 2
0.5 2
0.5 2
0.5 2
0.5 2
® Differential Pressure Indicating Transmitter
1/8 FEMALE
23/32
NPT HIGH
[18.26]
PRESSURE
1
CONNECTION
[25.40]
1-3/4
30°
[44.45]
1/2 [12.70]
1-1/8
1/8 FEMALE NPT
[28.58]
LOW PRESSURE
11/16
CONNECTION
[17.46]
SPECIFICATIONS
GAGE SPECIFICATIONS
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Accuracy: See chart.
Stability: +1% F.S./yr.
Pressure Limits: See chart.
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Process Connections: 1/8˝ female NPT.
Size: 4˝ (101.6 mm) dial face, 5˝ (127 mm) O.D. x 2-11/16˝
(68.3 mm).
Weight: 1 lb, 12.6 oz (811 g).
Agency Approvals: CE.
TRANSMITTER SPECIFICATIONS
Accuracy: See chart (includes linearity, hysteresis,
repeatability).
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Compensated Temperature Range: 32 to 120°F (0 to
48.9°C).
Thermal Effect: ±0.025% F.S./°F (0.045% F.S./°C).
Power Requirements: 10-35 VDC (2-wire).
Output Signal: 4 to 20 mA.
Zero and Span Adjustments: Protected potentiometers.
Loop Resistance: DC; 0-1250 ohms maximum.
Current Consumption: DC; 38 mA maximum.
Electrical Connections: Screw terminal block.
Mounting Orientation: Diaphragm in vertical position.
Consult factory for other position orientations.
Model Range Maximum
Number in w.c. Pressure
20 psi (1.4 bar)
605-20 0-20.0
605-30 0-30 20 psi (1.4 bar)
20 psi (1.4 bar)
605-50 0-50
Range in Pa
25 psi (1.7 bar)
605-60Pa 0-60
25 psi (1.7 bar)
605-125Pa 0-125
25 psi (1.7 bar)
605-250Pa 0-250
5 psi (34.5 kPa)
605-500Pa 0-500
Phone: 219/879-8000 www.dwyer-inst.com
Fax: 219/872-9057
Bulletin E-68
(4) 6-32 HOLES
EQUALLY SPACED ON
2-1/16
A 5-1/8 [130.18] B.C.
[52.39]
2 FOR FLUSH MOUNTING
[50.80]
Ø4-47/64
1-1/4
[ 120.25]
[31.75]
Ø5
[127.00]
5/8 [15.88]
Ø4 [101.60]
PANEL MAX
2-1/2
FACE
3/16
[63.50]
5-1/2 [139.70]
[4.76]
O.D. MOUNTING
RING
Electrical
Mechanical
Accuracy +/-% Accuracy +/-%
0.5 2
0.5 2
0.5 2
2 4
2 3
2 2
0.5 2
