Appendix - Selected Drawing...

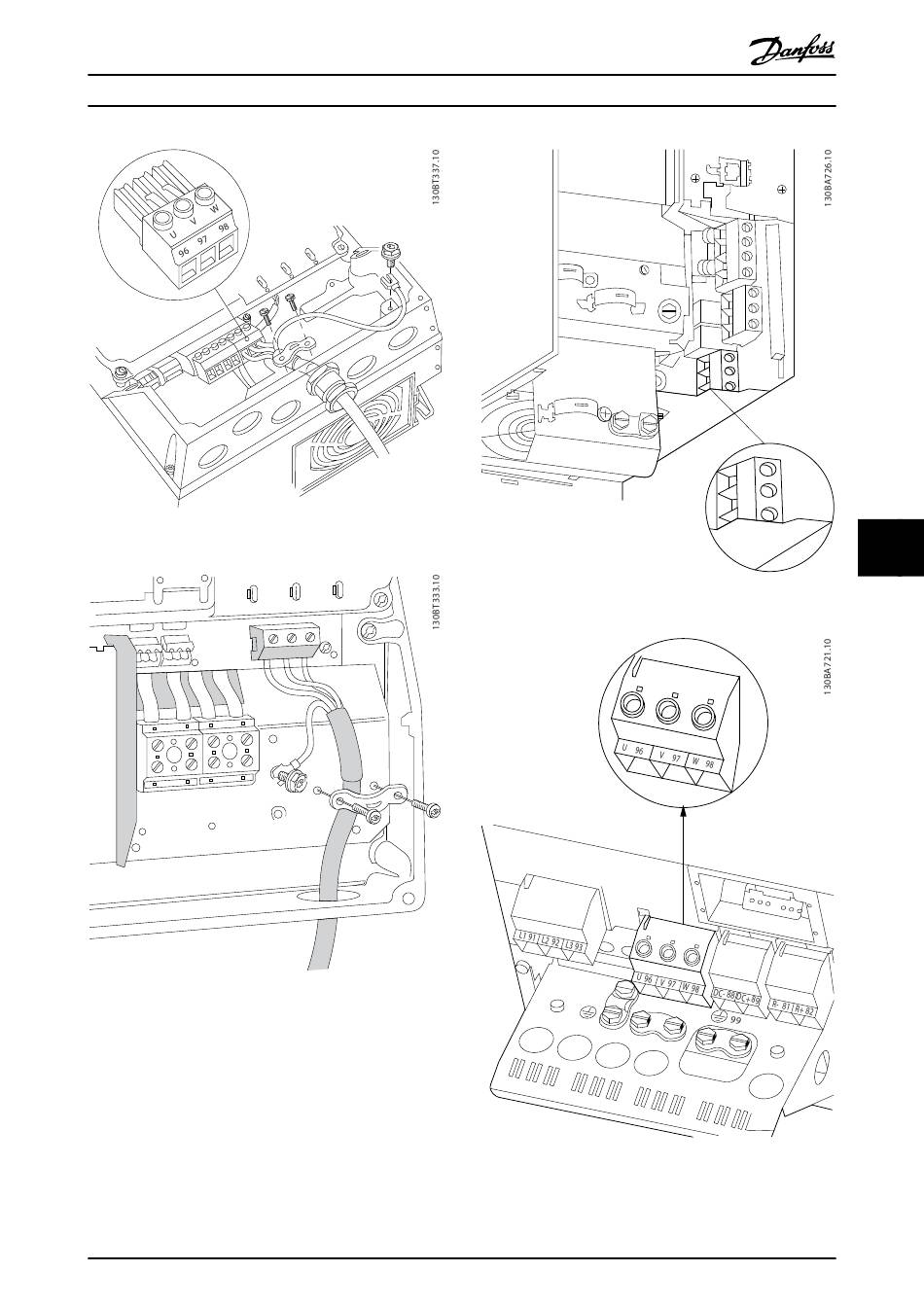

Illustration 8.12 Motor Connection for Enclosures A4/A5
Illustration 8.13 Motor Connection for Enclosures B1 and B2
MG20N602
Design Guide
Illustration 8.14 Motor Connection for Enclosure B3
Illustration 8.15 Motor Connection for Enclosure B4
Danfoss A/S © 09/2014 All rights reserved.
