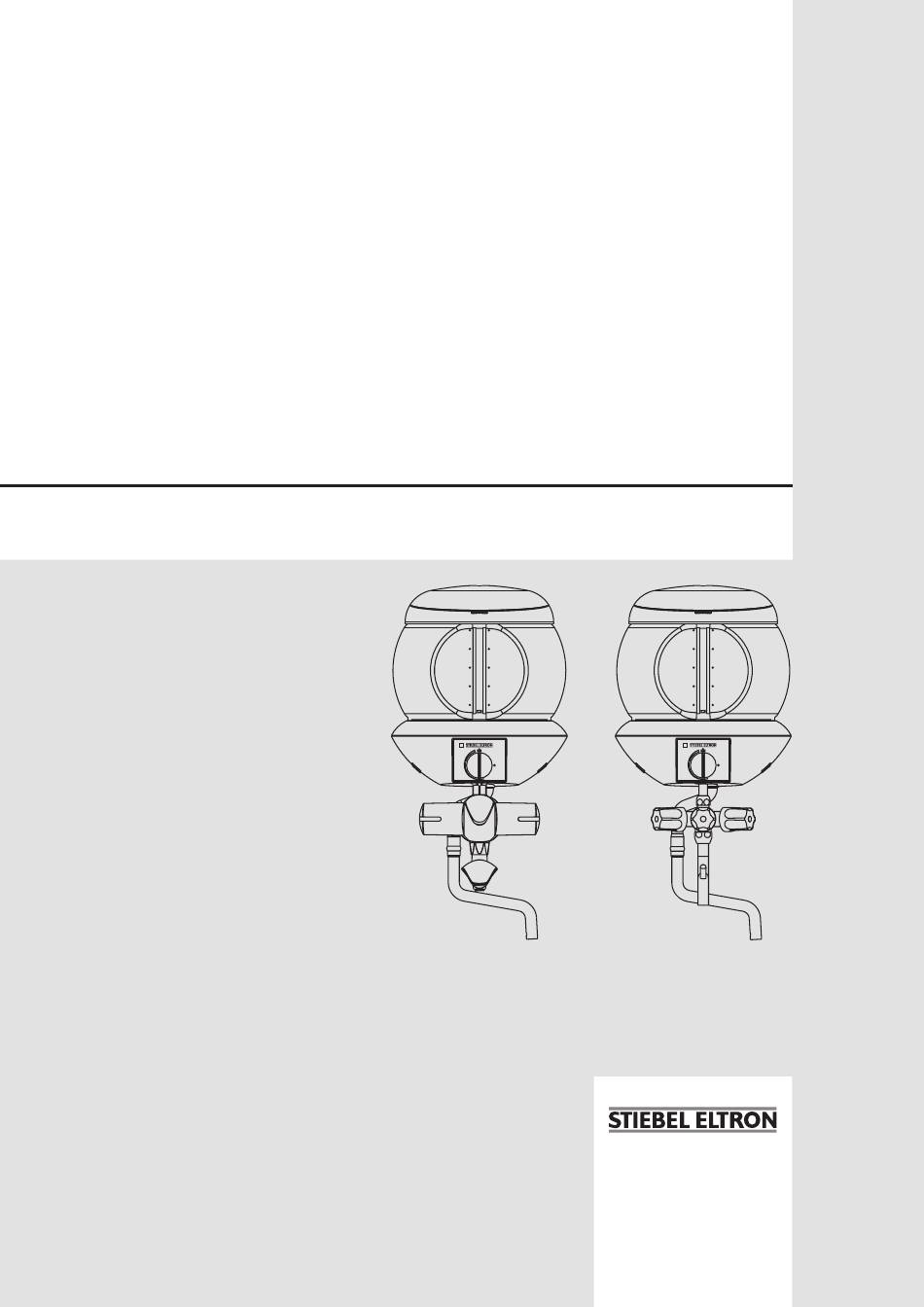

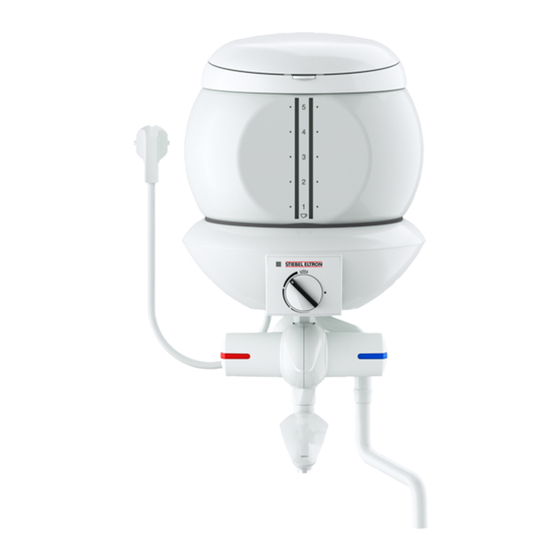

- Page 1 BEDIENUNG UND INSTALLATION OPERATION AND INSTALLATION UTILISATION ET INSTALLATION BEDIENING EN INSTALLATIE Kochendwassergerät | Water boiler | Bouilloire électrique | Kokendwatertoestel » EBK 5 G » EBK 5 GA...
-
Page 2: Table Of Contents
CONTENTS | SPECIAL INFORMATION SPECIAL INFORMATION SPECIAL INFORMATION OPERATION General information ��������������������������������������� 15 - The appliance may be used by children aged 3 Safety instructions ���������������������������������������������� 15 and up and persons with reduced physical, sen- Other symbols in this documentation ���������������������� 15 sory or mental capabilities or a lack of experience Units of measurement �����������������������������������������... -
Page 3: General Information
OPERATION General information OPERATION Other symbols in this documentation Note General information is identified by the symbol shown on the left. General information f Read these texts carefully. The chapters "Special Information" and "Operation" are intended for both the user and qualified contractors. Symbol Meaning The chapter "Installation"... -
Page 4: Safety Instructions
OPERATION Appliance description Safety instructions Settings EBK 5 G WARNING Burns Steam escapes from the overflow/steam pipe during the boiling process. The pipe must not be enclosed or extended. WARNING Burns If the appliance is overfilled, boiling water may spurt out. -
Page 5: Cleaning, Care And Maintenance
OPERATION Cleaning, care and maintenance Cleaning, care and maintenance Descaling Almost every type of water will deposit lime at high temperatures. Therefore, it is necessary to descale the appliance every so often. WARNING Burns Descalers that generate a lot of foam can result in the 1 Temperature setting OFF appliance overflowing, which would put users at risk. -
Page 6: Troubleshooting
Appliance description The appliance heats DHW electrically. Once the selected temper- ature has been reached, the temperature limiter switches the appliance off. Nr.: Typ: EBK 5 G 000000 0000 000000 5l Glas/verre/glass 0 MPa 10l/min 2kW 230V 50Hz 8,7A Standard delivery... - Page 7 INSTALLATION Installation EBK 5 G f Using the installation template, transfer the dimensions of the wall mounting to the wall. To do so, loosely screw the in- stallation template with tap connection to the wall. f Drill the holes. EBK 5 G...
-
Page 8: Alternative Installation Methods
INSTALLATION Installation EBK 5 G and EBK 5 GA 10.2.2 Attaching the overflow/steam pipe to finished walls f Attach the tap outlet. Note f Attach the wall mounting using the washers and screws With these connections, the overflow/steam pipe must supplied. -
Page 9: Power Supply
Carry out all electrical connection and installation work be fixed to the wall. in accordance with relevant regulations. WARNING Electrocution EBK 5 G Installation with a permanent power cable is not per- mitted. 180 - 250 When permanently connected to the power supply using... -
Page 10: Appliance Handover
13.2 Checking the earth conductor f In accordance with DGUV V3, check the earth conductor on the heating element and the earth conductor contact on the power cable. EBK 5 G EBK 5 GA 13.3 Replacing the power cable Cold water inlet Male thread... -
Page 11: Wiring Diagram
INSTALLATION | GUARANTEE | ENVIRONMENT AND RECYCLING 14.2 Wiring diagram 14.4 Data table EBK 5 G EBK 5 GA 1/N/PE ~ 230 V 074286 074287 Hydraulic data Nominal capacity Electrical data Connected load ~ 230 V Rated voltage Phases 1/N/PE... - Page 12 Deutschland Verkauf Tel. 05531 702-110 | Fax 05531 702-95108 | info-center@stiebel-eltron.de STIEBEL ELTRON GmbH & Co. KG Kundendienst Tel. 05531 702-111 | Fax 05531 702-95890 | kundendienst@stiebel-eltron.de Dr.-Stiebel-Straße 33 | 37603 Holzminden Ersatzteilverkauf Tel. 05531 702-120 | Fax 05531 702-95335 | ersatzteile@stiebel-eltron.de Tel.
