BEDIENUNG UND INSTALLATION
OPERATION AND INSTALLATION
UTILISATION ET INSTALLATION
BEDIENING EN INSTALLATIE
USO E INSTALLAZIONE
OBSLUHA A INSTALACE

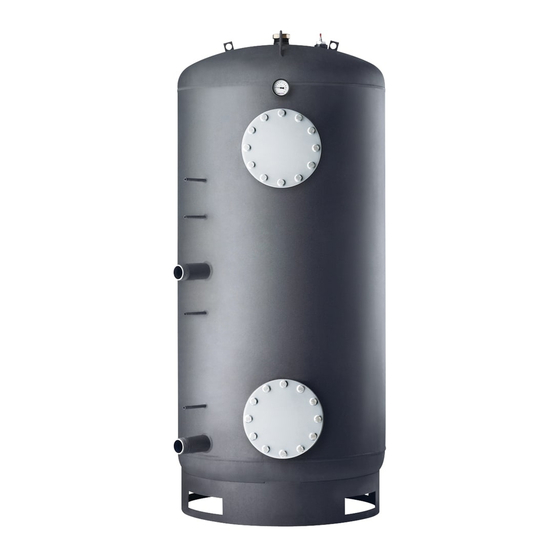

Warmwasser-Standspeicher | Floorstanding DHW cylinder | Ballon ECS sur pied |
Staande warmwaterboiler | Acqua calda - Caldaia verticale | Stacionární zásobník
teplé vody
» SBB 751
» SBB 1001
» SBB 751 SOL
» SBB 1001 SOL
Advertisement
Table of Contents
Troubleshooting
Related Manuals for STIEBEL ELTRON SBB 751
Summary of Contents for STIEBEL ELTRON SBB 751
- Page 1 OBSLUHA A INSTALACE Warmwasser-Standspeicher | Floorstanding DHW cylinder | Ballon ECS sur pied | Staande warmwaterboiler | Acqua calda - Caldaia verticale | Stacionární zásobník teplé vody » SBB 751 » SBB 1001 » SBB 751 SOL » SBB 1001 SOL...
-
Page 2: Table Of Contents
13.3 Replacing the signal anode ����������������������������������� 21 Specification ������������������������������������������������ 22 14.1 Dimensions and connections ��������������������������������� 22 14.2 Fault conditions ������������������������������������������������� 27 14.3 Data table �������������������������������������������������������� 27 GUARANTEE ENVIRONMENT AND RECYCLING | SBB 751-1001 | SBB 751-1001 SOL WWW.STIEBEL-ELTRON.COM... -
Page 3: Operation
” enamel and is equipped with a signal anode to protect the inside of the cylinder against corrosion. SBB 751 SOL and SBB 1001 SOL These appliance types are additionally equipped with an indirect coil for heating with solar energy. -
Page 4: Cleaning, Care And Maintenance
A heating contractor who knows the local water quality will tell you when the next service is due. Troubleshooting Telephone your contractor. To facilitate and speed up your enquiry, please provide the serial number from the type plate (000000-0000-000000): | SBB 751-1001 | SBB 751-1001 SOL WWW.STIEBEL-ELTRON.COM... -
Page 5: Installation
These type-tested safety assemblies protect the appliance against unacceptable excess pressure. Flanged immersion heaters and thermal insulation In addition, flanged immersion heaters and thermal insulation are available as accessories. WWW.STIEBEL-ELTRON.COM SBB 751-1001 | SBB 751-1001 SOL |... -
Page 6: Preparing For Installation
Fitting the flanged immersion heater, if appropriate f Remove the dummy flanges to install flanged immersion heaters in accordance with the operating and installation in- structions supplied. Maintain the DC separation towards the cylinder. | SBB 751-1001 | SBB 751-1001 SOL WWW.STIEBEL-ELTRON.COM... -
Page 7: Fitting The Water Connection And The Safety Assembly
Replace the signal anode if it becomes depleted. Observe the maximum permissible transition resistance between the SBB 751 SOL | SBB 1001 SOL anode and the cylinder 0.3 Ω. f Thoroughly flush the indirect coil with water before connect- ing the solar thermal system. -
Page 8: Specification
Sensor heat pump DHW optional Diameter Thermometer Diameter 14.5 Flange 1 Diameter Pitch circle diameter Screws M 14 Torque Flange 2 Diameter Pitch circle diameter Screws M 14 Torque Protective anode Female thread G 1 1/4 | SBB 751-1001 | SBB 751-1001 SOL WWW.STIEBEL-ELTRON.COM... - Page 9 Sensor heat pump DHW optional Diameter Thermometer Diameter 14.5 Flange 1 Diameter Pitch circle diameter Screws M 14 Torque Flange 2 Diameter Pitch circle diameter Screws M 14 Torque Protective anode Female thread G 1 1/4 WWW.STIEBEL-ELTRON.COM SBB 751-1001 | SBB 751-1001 SOL |...
- Page 10 Sensor solar cylinder Diameter Thermometer Diameter 14.5 Flange 1 Diameter Pitch circle diameter Screws M 14 Torque Flange 2 Diameter Pitch circle diameter Screws M 14 Torque Protective anode Female thread G 1 1/4 | SBB 751-1001 | SBB 751-1001 SOL WWW.STIEBEL-ELTRON.COM...
- Page 11 Sensor solar cylinder Diameter Thermometer Diameter 14.5 Flange 1 Diameter Pitch circle diameter Screws M 14 Torque Flange 2 Diameter Pitch circle diameter Screws M 14 Torque Protective anode Female thread G 1 1/4 WWW.STIEBEL-ELTRON.COM SBB 751-1001 | SBB 751-1001 SOL |...
-
Page 12: Fault Conditions
INSTALLATION SPECIfICATION Appliance cross-section SBB 751 SOL | SBB 1001 SOL 14.2 Fault conditions In the event of a fault, temperatures of up to 95 °C at 1.0 MPa can occur depending on the type of heart source used. | SBB 751-1001 | SBB 751-1001 SOL... -
Page 13: Data Table
This will not affect warranties issued by any importers. Environment and recycling We would ask you to help protect the environment. After use, dispose of the various materials in accordance with national regulations. WWW.STIEBEL-ELTRON.COM SBB 751-1001 | SBB 751-1001 SOL |... - Page 14 Deutschland Verkauf Tel. 05531 702-110 | Fax 05531 702-95108 | info-center@stiebel-eltron.de STIEBEL ELTRON GmbH & Co. KG Kundendienst Tel. 05531 702-111 | Fax 05531 702-95890 | kundendienst@stiebel-eltron.de Dr.-Stiebel-Straße 33 | 37603 Holzminden Ersatzteilverkauf Tel. 05531 702-120 | Fax 05531 702-95335 | ersatzteile@stiebel-eltron.de Tel.
