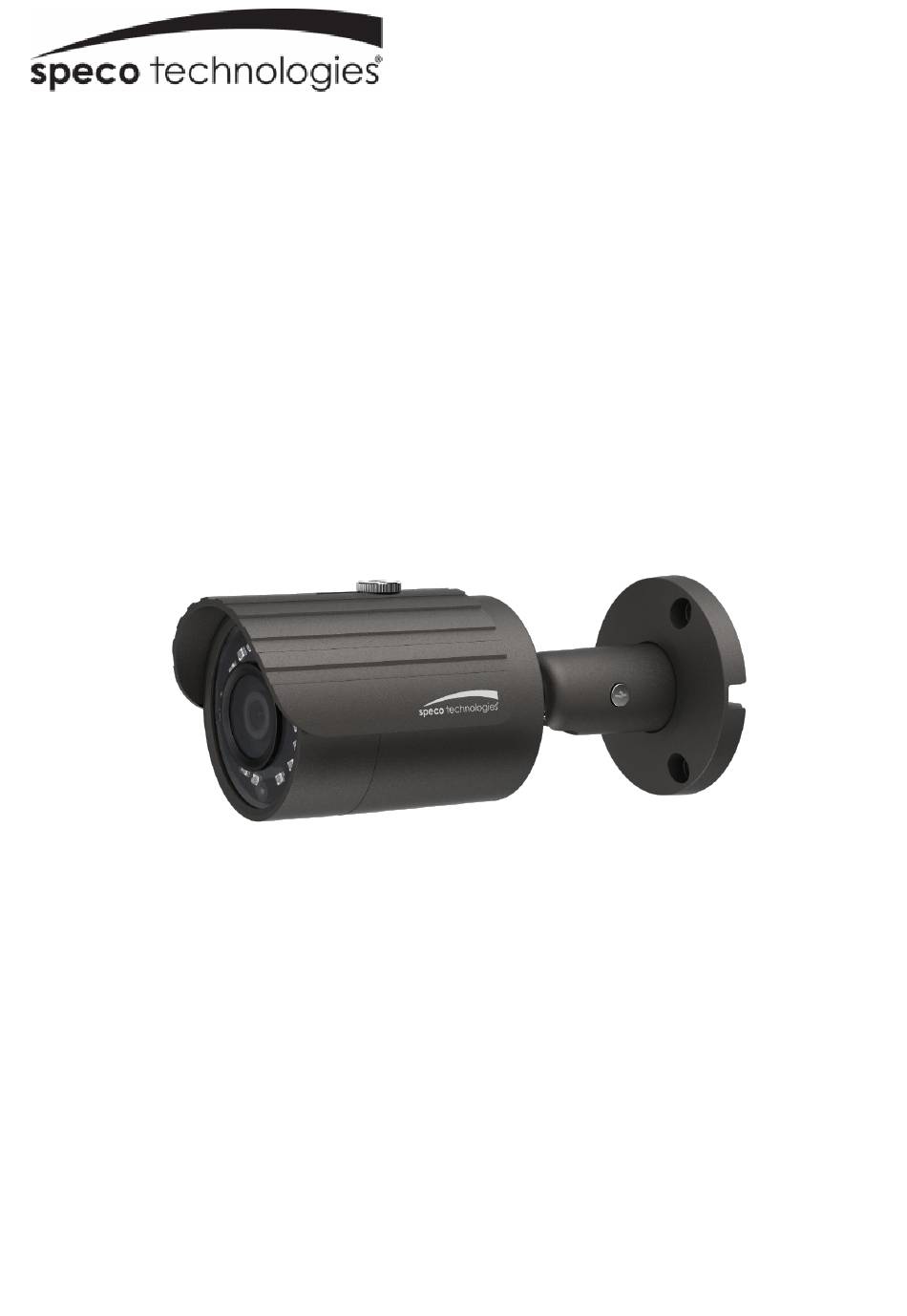

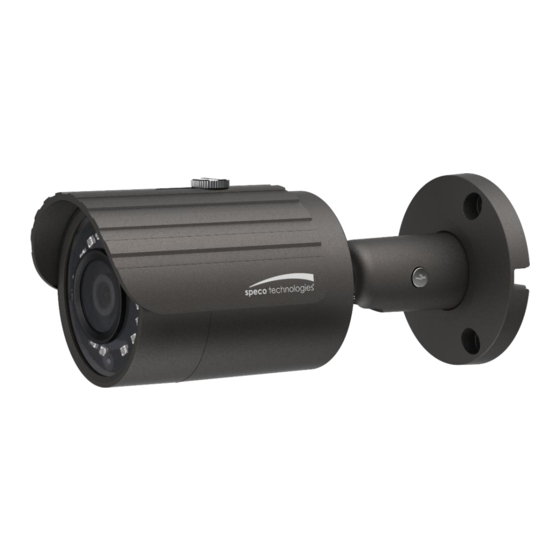

- Page 1 Quick Start Guide 4MP Fixed Lens Bullet IP Camera O4B7 Version 1.2.0...
- Page 2 This owner’s manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, please contact Speco Technologies Technical Support.
- Page 3 Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to local electrical safety codes. Use a certified/listed 12VDC Class 2 power supply only. Please note: Do not connect two power supplying sources to the device at the same time; it may result in device damage! The product must be grounded to reduce the risk of electric shock.
- Page 4 Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included. Contact your rep or Speco customer service department immediately if something is broken or missing in the package. Accessory Name...
-
Page 5: Table Of Contents
Table of Contents Physical Specifications ......................1 Device External Cable ......................... 1 Dimensions ............................1 Device Installation ....................... 2 IP Scanner ........................... 4 Operation ............................4 Web Operation ........................5 Login and Main Interface ........................5... -
Page 6: Physical Specifications
1 Physical Specifications 1.1 Device External Cable You can refer to the following figure for cable information. See Figure 1-1. Figure 1-1 Please refer to the following table for detailed information. Port name Function description Ethernet port Network data in/out and PoE DC power Connect to DC 12V power jack... -
Page 7: Device Installation
2 Device Installation Note: Before installation, please make sure the installation surface can support a minimum of 3 times the weight of the camera Figure 2-1 Please see Figure 2-1 and Figure 2-2. Step 1 Dig holes on the installation surface (wall or ceiling). Step 2 Take out the expansion bolts from the accessories bag and insert them into the holes. - Page 8 Figure 2-2 Step 5 Use the screwdriver (in accessories bag) to loosen adjusting screw. Step 6 Adjust the device in all possible directions, and set its monitoring direction according to the requirements. Step 7 Use the screwdriver to tighten the adjusting screws.
-
Page 9: Ip Scanner
3 IP Scanner IP Scanner can search for the device on the local network. Please note that only devices that are on the same subnet can be discovered. 3.1 Operation Open up IP Scanner. Figure 3-1 In the device list, you can view the IP address, model number, and MAC address of each device. -
Page 10: Web Operation
4 Web Operation This device supports viewing and management via a web browser on a PC. 4.1 Login and Main Interface Open the browser and input network camera address in the address bar or double click the device in IP Scanner. See Figure 4- 1. Input your IP address here Figure 4- 1 IP address...
