F08.17 X8 Input terminal opened time Range: 0.00~99.99s
F08.02 ~ F08.17 parameter defines the corresponding delay time of Xi input
terminal from closed to opened or opened to closed so as to meet user's multiple
requirements. This parameter does not affect the monitor value of input terminal
state. You can revise the parameter to control the filtering when the interruption is
strong.
Xi Level
Xi Valid
F08.18 Input terminal X1 function selection Range: 0~96
F08.19 Input terminal X2 function selection Range: 0~96
F08.20 Input terminal X3 function selection Range: 0~96
F08.21 Input terminal X4 function selection Range: 0~96
F08.22 Input terminal X5 function selection Range: 0~96
F08.23 Input terminal X6 function selection Range: 0~96
F08.24 Input terminal X7 function selection Range: 0~96
F08.25 Input terminal X8 function selection Range: 0~96
Multi-functional input terminal X1 ~ X8 provides users with up to 95 selections,
which can be selected based on actual applications. For details, please refer to
parameter function Table 7-3.
Table 7-3 Multi-functional input selection function table
Content
0 Leave control terminal unused
1 Forward running FWD terminal
2 Reverse running REV terminal
3 External forward jogging control
4 External reverse jogging control
5 Multi-step speed control terminal 1
Invalid
Valid
On-delay

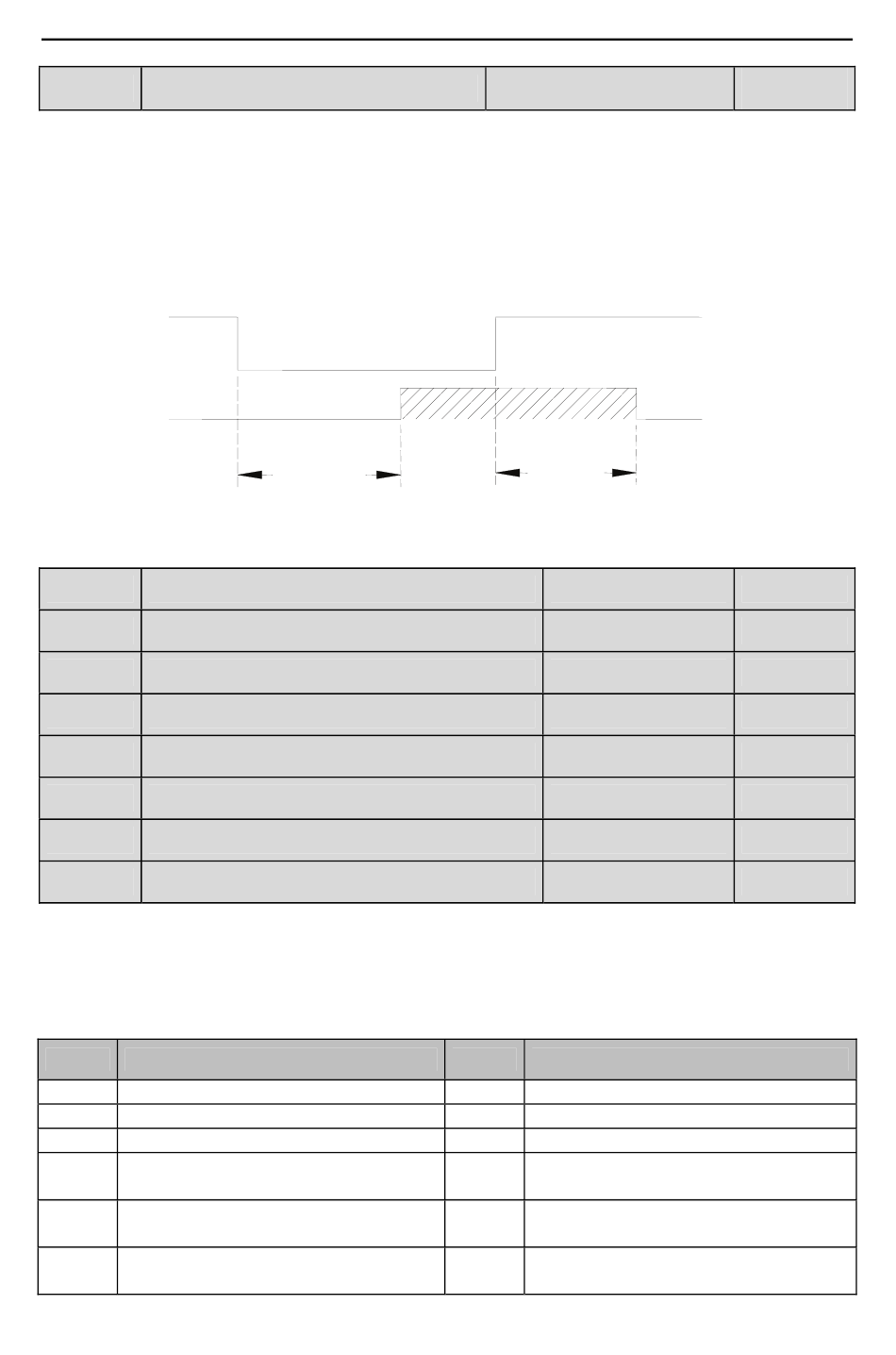

Fig. 7-13 closed and opened delay
Function
7 Detailed function specification
Off-delay
Content
49 Auxiliary frequency reset
50 Command switchover to panel
51 Command switchover to terminal
Command switchover to
52
communication
Running command Channel selection
53
terminal 1
Running command Channel selection
54
terminal 2
0.00s
Invalid
1
2
0
0
0
0
0
0
Function
