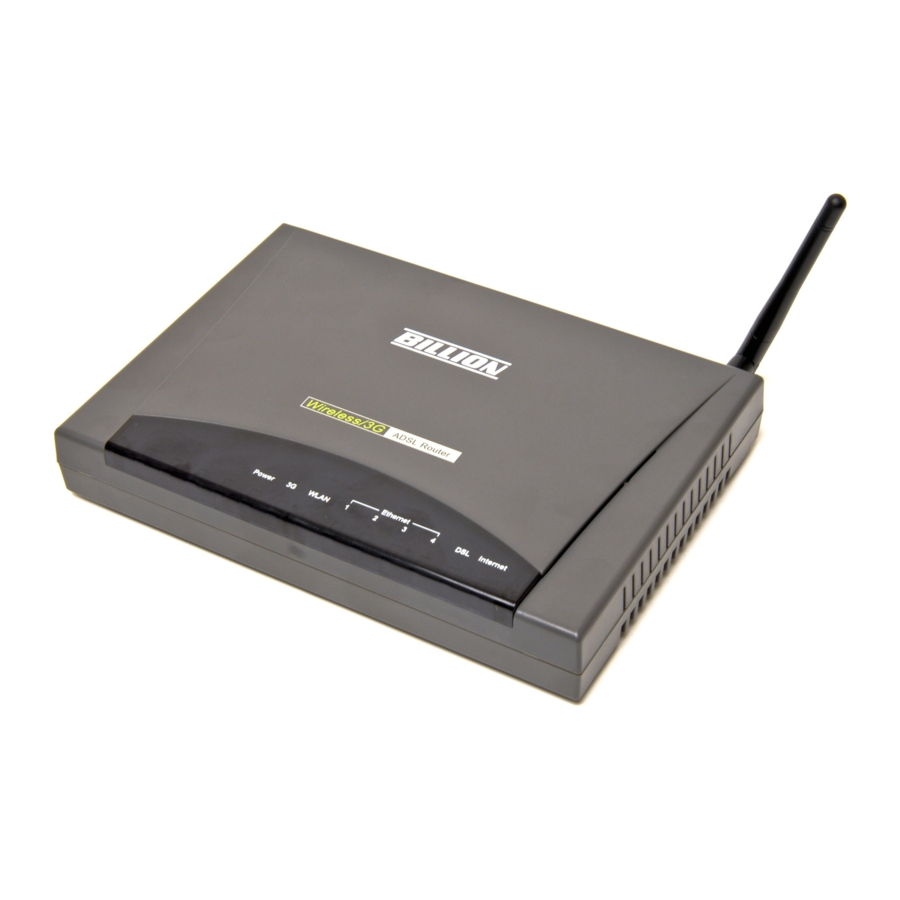

Billion BiPAC 7300GX User Manual

3g/ adsl2+ wireless router
Hide thumbs Also See for BiPAC 7300GX:
Table of Contents

Advertisement

Quick Links

Download this manual
BiPAC 7300GX
3G/ ADSL2+ Wireless Router
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BiPAC 7300GX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Billion BiPAC 7300GX

Summary of Contents for Billion BiPAC 7300GX

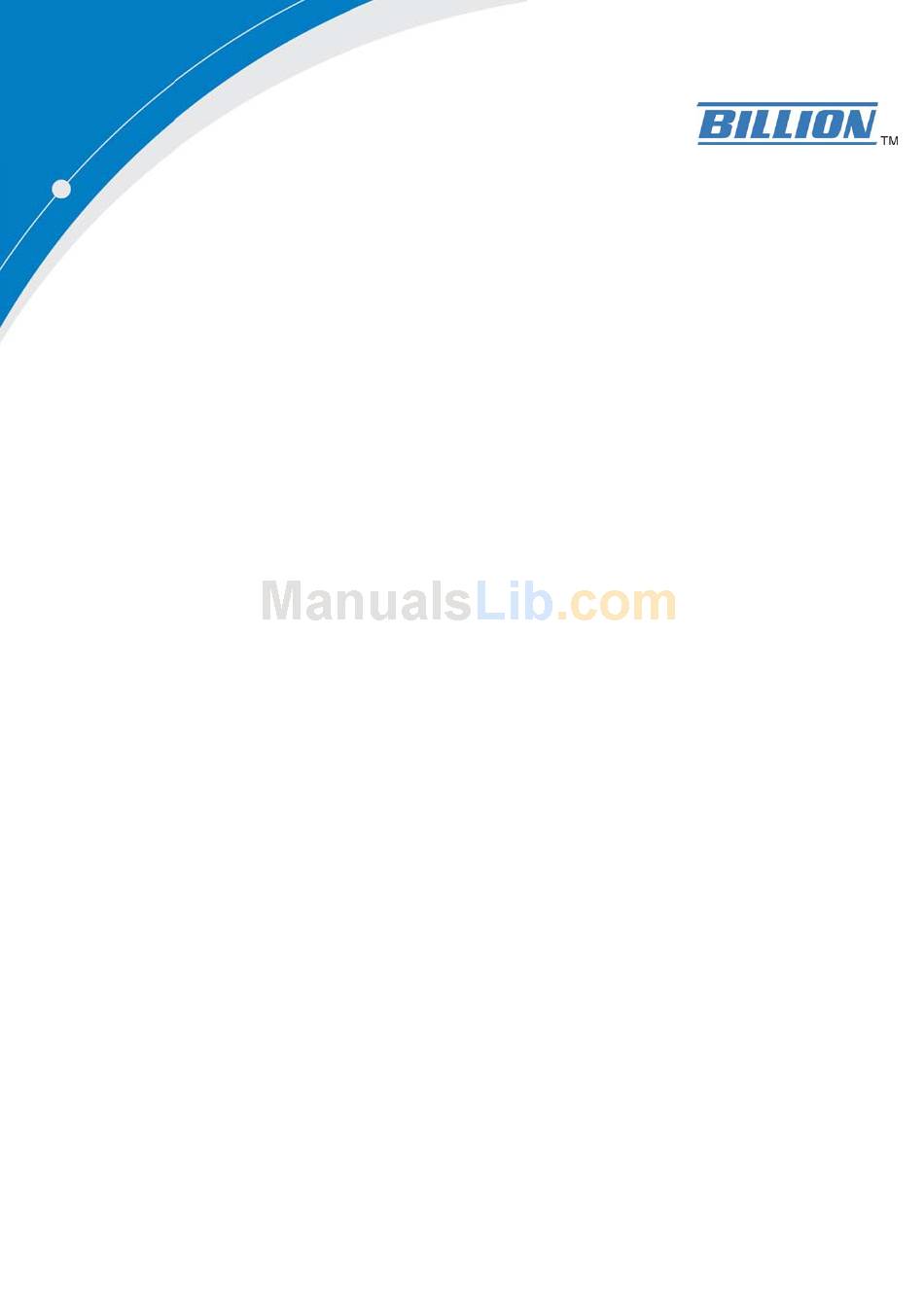

  • Page 1 BiPAC 7300GX 3G/ ADSL2+ Wireless Router User’s Manual...

  • Page 2: Table Of Contents

    Table of Contents Chapter 1 ... 3 1.1 Introducing the BiPAC 7300GX ... 3 1.2 Features... 5 1.3 Applications of the BiPAC 7300GX ... 8 Chapter 2 ... 9 2.1 Important Notes ... 10 2.2 Package Contents ... 10 2.3 The Front LEDs ... 11 2.4 The Rear Ports ...
  • Page 3 5.5 Restart ... 122 5.6 Logout... 123 Chapter 6 ... 124...

  • Page 4: Chapter 1

    Introduction 1.1 Introducing the BiPAC 7300GX Thank you for purchasing the BiPAC 7300GX ADSL2+ Router by Billion. Your new router is an all-in-one unit that combines an ADSL modem, ADSL2/2+ router , PC card slot for 3G/HSDPA data card and Ethernet network switch to provide everything you need to get the machines on your network connected to the Internet over an ADSL broadband connection.
  • Page 5 Internet. The BiPAC 7300GX provides two levels of security support. First, it masks LAN IP addresses making them invisible to outside users on the Internet, so it is much more difficult for a hacker to target a machine on your network. Second, it can block and redirect certain ports to limit the services that outside users can access.

  • Page 6: Features

    Multi-Mode standard (ANSI T1.413, Issue 2; G.dmt (ITU G.992.1); G.hs (ITU G994.1); G.dmt.bis (ITU G.992.3); and G.dmt.bisplus (ITU G.992.5) Communication Diversity with HSDPA/UMTS Including one PC card slot, the BiPAC 7300GX router allows the users to insert a 3G/HSDPA PC card to share 3G/HSDPA, UMTS, EDGE, GPRS, or GSM Internet connection.
  • Page 7 DDNS service such as http://www.dyndns.org/. PPP over Ethernet (PPPoE) The BiPAC 7300GX provides an embedded PPPoE client function to establish a connection. You get greater access speed without changing the operation concept, while sharing the same ISP account and paying for one access account. No PPPoE client software is required for the local computer.
  • Page 8 Quality of Service (QoS) QoS gives you full control over which types of outgoing data traffic should be given priority by the router, ensuring important data like gaming packets, customer information, or management information move through the router ay lightning speed, even under heavy load.

  • Page 9: Applications Of The Bipac 7300Gx

    1.3 Applications of the BiPAC 7300GX...

  • Page 10: Product Overview

    Keep the number of walls and ceilings between the BiPAC 7300GX and other network devices to a minimum - each wall or ceiling can reduce your BiPAC 7300GX wireless product’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized. Be aware of the direct line between network devices.

  • Page 11: Important Notes

    2.1 Important Notes Do not use the BiPAC 7300GX in high humidity or high temperatures. Do not use the same power source for the BiPAC 7300GX as other equipment. Do not open or repair the case yourself. If the BiPAC 7300GX...

  • Page 12: The Front Leds

    2.3 The Front LEDs Power WLAN Ethernet 8-11 Port 1-4 Internet Description Lights Green when the power and router system are ready. Flickering Green when system is booting or system upgrade. Lights Red when device can not boot successfully. Lights off means power off. Lights when 3G service is ready.

  • Page 13: The Rear Ports

    2.4 The Rear Ports Port Power Power ON/OFF switch. Switch Power Connect the supplied power adapter to this jack. 3G card Connect the 3G card bus data card to this slot slot After the router is powered on, press this reset button using the end of paper clip or other small pointed object to reset the router and to restore it to factory default settings.
  • Page 14 The detail instruction in Reset Button 1. Recovery procedures for non-working routers (e.g. after a failed firmware upgrade flash): Hold the Reset Button on the back of the modem in. Keep this button held in and turn on the modem. Once the lights on the modem have stopped flashing, release the Reset Button. modem's emergency-reflash http://192.168.0.254...

  • Page 15: Cabling

    2.5 Cabling One of the most common causes of problems is because of bad cabling or ADSL line(s). Make sure that all connected devices are turned on. On the front of the product is a bank of LEDs. Verify that the LAN Link and ADSL line LEDs are lit. If they are not, verify that you are using the proper cables.

  • Page 16: Before Configuration

    You can configure the BiPAC 7300GX router through the convenient and user-friendly interface of a web browser. Most popular operating systems such as Linux and Windows 98/NT/2000/XP/Me include a web browser as a standard application. 3.1 Before Configuration PCs must have a properly installed Ethernet interface which connects to the router directly or through an external repeater hub.
  • Page 17 Configuring a PC in Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window, click Properties. 4. Select Internet Protocol (TCP/IP) and click Properties.
  • Page 18 Configuring a PC in Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window click Properties. 4.
  • Page 19 Configuring PC in Windows 98/Me 1.Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. 2.Select TCP/IP ->NE2000 Compatible, or the name of your Network Interface Card (NIC) in your PC. 3.Select the Obtain an IP address automatically radio button.
  • Page 20 Configuring PC in Windows NT4.0 1.Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Protocols tab. 2.Select TCP/IP Protocol and click Properties. 3.Select the Obtain an IP address from a DHCP server radio button and click OK.

  • Page 21: Factory Default Settings

    3.2 Factory Default Settings Before configuring the BiPAC 7300GX router, you need to know the following default settings. Web Interface: (Username and Password) Username: admin Password: admin The default username and password are “admin” and “admin” respectively. If you ever forget the username/password to login to the router, you may press the RESET button up to 6 seconds then release it to restore the factory default settings.

  • Page 22: Lan And Wan Port Addresses

    3.3 LAN and WAN Port Addresses The parameters of LAN and WAN ports are preset at the factory. The default values are shown below. LAN Port IP address Subnet Mask DHCP server function IP addresses for distribution to PCs 192.168.1.254 255.255.255.0 Enabled 100 IP addresses continuing...

  • Page 23: Information From Your Isp

    3.4 Information from your ISP Before configuring this device, you have to check with your ISP (Internet Service Provider) what kind of services are provided, such as PPPoE, PPPoA, MPoA or Pure Bridge. Gather the information as illustrated in the following table and keep it for reference. PPPoE VPI/VCI, VC-based/LLC-based multiplexing, Username, Password, Service Name, and Domain Name System (DNS) IP address (it can be...

  • Page 24: Configuring With Your Bipac 7300Gx

    3.5 Configuring with your BiPAC 7300GX 1. To configure this device, you must have IE 5.0 / Netscape 4.5 2. You may configure the router for Internet access in two ways: Easy Sign On: After setting up the router with appropriate cables plugged, proceed to load the internet browser to surf Internet, the EZSO WEB GUI will be popped up and request you to input some basic information you get from ISP.
  • Page 25 3. Show Auto scan result - Protocol information. 4. Please enter “Username” and “Password” as supplied by your ISP (Internet Service Provider) and click continue. 5. Wait for the device to be configured.
  • Page 26 6. You’ve have completed the WAN port setup and now click “next to wireless” to proceed to the wireless configuration. Please configure the Wireless LAN setting and click Continue. 8. Save Configuration. 9. Congratulations!! You’ve completed the setup procedure and you are now ready to surf the Internet, enjoy.
  • Page 27 Open your web browser, enter the IP address of your router, which by default is 192.168.1.254, and click “Go”, a user name and password window prompt appears. The default username and password are “admin” and “admin”. Congratulations! You have successfully logged on to your BiPAC 7300GX ADSL2+ Router!

  • Page 28: Basic Configuration

    Once you have logged on to your BiPAC 7300GX ADSL2+ Router via your web browser, you can begin to set it up according to your requirements. On the configuration homepage, the left navigation pane links you directly to the setup pages, which include:...

  • Page 29: Status

    4.1 Status Device Information Model Name: Provide a name for the router for identification purposes. System Up-Time: Records system up-time. Hardware Version: Device version Software Version: Firmware version Port Status Port Status：User can look up to see if they are connected to Ethernet, ADSL, 3G or Wireless.

  • Page 30: Quick Start

    4.2 Quick Start Select WAN Port Connect Mode: User can choose either “ADSL” or “3G” mode. TEL No.: The dial string to make a GPRS / 3G user internetworking call. Username: The username provided by your service provider. APN: An APN is similar to a URL on the WWW, it is what the unit makes a GPRS / UMTS call.

  • Page 31: Set Wireless Configuration

    Protocol: The current ATM protocol in the device. VPI / VCI: The current value of VPI/VCI in the device. Username: To show current authentication username. IP Address: To show current value of IP address in the device. Set Wireless configuration WLAN Service: Default setting is set to Enable.

  • Page 32: Wan

    4.3 WAN 3G Mode ( Main Port : 3G ) APN: An APN is similar to a URL on the WWW, it is what the unit makes a GPRS / UMTS call. The service provider is able to attach anything to an APN to create a data connection, requirements for APNs varies between different service providers.
  • Page 33 Username: Enter the username provided by your service provider. Password: Enter the password provided by your service provider. PIN: PIN stands for Personal Identification Number. A PIN code is a numeric value used in certain systems as a password to gain access, and authenticate. In mobile phones a PIN code locks the SIM card until you enter the correct code.
  • Page 34 provided by your ISP Auth. Protocol: Default is Auto. Your ISP advises on using Chap or Pap. IP Address: Your WAN IP address. Leave this at 0.0.0.0 to automatically obtain an IP address from your ISP. PPPoA Connection PPPoA stands for Point to Point Protocol over ATM Adaptation Layer 5 (AAL5). It provides access control and billing functionality in a manner similar to dial-up services using PPP.
  • Page 35 VPI and VCI: Enter the VPI and VCI information provided by your ISP. Encap. method: Select the encapsulation format, the default is LLC. Select the one provided by your ISP. Encap. mode: Choose whether you want the packets in WAN interface as bridged packet or routed packet.

  • Page 36: Wlan

    4.4 WLAN Wireless Parameters WLAN Service: Default setting is set to Enable. If you don’t want to use wireless, both 802.11g and 802.11b, device in your network, you can select Disable. ESSID: The ESSID is the unique name of a wireless access point (AP) to be distinguished from another.
  • Page 37 different based on this setting. Channel ID: Select the ID channel that you would like to use. Security Mode: You can disable or enable with WPA or WEP for protecting wireless network. The default mode of wireless security is Disable. Security Parameters WPA Pre-Shared Key WPA Shared Key: The key for network authentication...
  • Page 38 WEP Authentication: To prevent unauthorized wireless stations from accessing data transmitted over the network, the router offers secure data encryption, known as WEP. If you require high security for transmissions, there are three options to select from: Open System, Share key or Both. Default Used WEP Key: Select the encryption key ID;...

  • Page 39: Advance Configuration

    Once you have logged on to your BiPAC 7300GX ADSL2+ Router via your web browser, you can begin to set it up according to your requirements. On the configuration homepage, the left navigation pane links you directly to the setup pages, which include:...

  • Page 40: Status

    5.1 Status Device Information Host Name: Provide a name for the router for identification purposes. Host Name lets you change the router name.
  • Page 41 System Up-Time: Records system up-time. Current time: Set the current time. See the Time Zone section for more information. Hardware Version: Device version. Software Version: Firmware version. MAC Address: The LAN MAC address. Port: Name of the WAN connection. Protocol VPI/VCI: Virtual Path Identifier and Virtual Channel Identifier Operation: The current status in WAN interface.

  • Page 42: Adsl Status

    5.1.1 ADSL Status DSP Firmware Version: DSP code version DMT Status: Current DMT Status Operational Mode: To show the state when user select “AUTO” on connect mode. Upstream: Upstream rate. Downstream: Downstream rate. Noise Margin (Upstream): This is noise margin in upstream. Noise Margin (Downstream): This is noise margin in downstream.

  • Page 43: Status

    5.1.2 3G Status This section displays the 3G Card’s overall status, which shows you a number of helpful information such as the current signal strength and statistics on current and total bytes transferred and received. Status: The current status of the 3G card. Signal Strength: The signal strength bar indicates current 3G signal strength.

  • Page 44: Arp Table

    5.1.2 ARP Table This section displays the router’s ARP (Address Resolution Protocol) Table, which shows the mapping of Internet (IP) addresses to Ethernet (MAC) addresses. This is useful as a quick way of determining the MAC address of the network interface of your PCs to use with the router’s Firewall –...

  • Page 45: Dhcp Table

    5.1.3 DHCP Table IP Address: The current corresponding DHCP-assigned dynamic IP address of the device. MAC Address: The MAC Address of internal dhcp client host. Client Host Name: The Host Name of internal dhcp client. Register Information: Register time information...

  • Page 46: System Log

    5.1.4 System Log Display system logs accumulated up to the present time. You can trace historical information with this function.

  • Page 47: Firewall Log

    5.1.5 Firewall Log Firewall Log display log information of any unexpected action with your firewall settings. This page displays the router’s Firewall Log entries. The log shows log entries when you have enabled Intrusion Detection or Block WAN PING in the Configuration – Firewall section of the interface.

  • Page 48: Quick Start

    5.2 Quick Start For detailed instructions on configuring WAN settings, see the WAN section of this manual. The information you need for the Quick Start wizard to get you online are your login (often in the form of username@ispname), your password, and the encapsulation type. Your ISP can supply all the details you need.
  • Page 49 Select WAN Port Connect Mode: User can choose either “ADSL” or “3G” mode. Protocol: The current ATM protocol in the device. VPI / VCI: The current value of VPI/VCI in the device. Username: To show current authentication username. IP Address: To show current value of IP address in the device. TEL No.: The dial string to make a GPRS / 3G user internetworking call.
  • Page 50 WLAN Service: Default setting is set to Enable. If you don’t want to use wireless, both 802.11g and 802.11b, device in your network, you can select Disable. ESSID: The ESSID is the unique name of a wireless access point (AP) to be distinguished from another.

  • Page 51: Configuration

    5.3 Configuration Click this item to access the following sub-items that configure the ADSL router: LAN, WAN, System, Firewall, QoS, Virtual Server, Time Schedule and Advanced. These functions are described in the following sections.

  • Page 52: Lan (Local Area Network)

    5.3.1 LAN (Local Area Network) A Local Area Network (LAN) is a shared communication system to which many computers are attached and is limited to the immediate area, usually the same building or floor of a building. There are six items within the LAN section: Ethernet, IP Alias, Wireless, Wireless Security, WPS and DHCP Server.
  • Page 53 The router supports more than one Ethernet IP addresses in the LAN, and with distinct LAN subnets through which you can access the Internet at the same time. Users usually only have one subnet in their LAN. The default IP address for the router is 192.168.1.254. IP Address: The default IP on this router.
  • Page 54 5.3.1.3 Wireless Parameters WLAN Service: Default setting is set to Enable. If you don’t want to use wireless, both 802.11g and 802.11b, device in your network, you can select Disable. Mode: The default setting is 802.11b+g (Mixed mode). If you do not know or have both 11g and 11b devices in your network, then keep the default in mixed mode.
  • Page 55 Regulation Domain: There are seven Regulation Domains for you to choose from, including North America (N.America), Europe, France, etc. The Channel ID will be different based on this setting. Channel ID: Select the ID channel that you would like to use. Tx Power Level: It is function that enhances the wireless transmitting signal strength.

  • Page 56: Wireless Security

    5.3.1.4 Wireless Security You can disable or enable with WPA or WEP for protecting wireless network. The default mode of wireless security is Disable. WPA1 Pre-Shared Key WPA Algorithms: TKIP (Temporal Key Integrity Protocol) / AES(Advanced Encryption Standard) utilizes a stronger encryption method and incorporates Message Integrity Code (MIC) to provide protection against hackers.

  • Page 57: Wpa2 Pre-Shared Key

    WPA2 Pre-Shared Key WPA Algorithms: TKIP (Temporal Key Integrity Protocol) / AES(Advanced Encryption Standard) utilizes a stronger encryption method and incorporates Message Integrity Code (MIC) to provide protection against hackers. WPA Shared Key: The key for network authentication style and key size should be in the range between 8 and 63 characters. Group Key Renewal: The period of renewal time for changing the security key automatically between wireless client and Access Point (AP).
  • Page 58 string and a pre-defined algorithm in WEP64 or WEP128. You can input the same string in both the AP and Client card settings to generate the same WEP keys. Please note that you do not have to enter Key (1-4) as below when the Passphrase is enabled. Key (1-4): Enter the key to encrypt wireless data.
  • Page 59 Step 3: Enter AP’s PIN into the utility and click on the “next” button. Step 4: These are two ways to trigger AP as Enrolee role, you can choose one to do it. Push AP’s WPS button 1 second and release it. Or In the AP’s WPS configuration page, change Role to “Enrollee”...
  • Page 60 Step 5: Jumpstart WPS utility search WPS AP. Step 6: SSID and security will be generated automatically (You can change it) and apply “next” button.
  • Page 61 Step 7: WPS set up complete. And you have set up security-enabled Wi-Fi networks.
  • Page 62 Set up of security-enabled Wi-Fi network using WCN in Vista Step 1: Note down the AP’s PIN from Web (Ex: 78749887). Step 2: Set WPS State to “Unconfigured” at Wireless page and click “Apply”. Step 3: In Vista`s Control Panel, select Network and Internet and choose View network computers and devices.
  • Page 63 Step 4: Enter the AP SSID and apply “Next” button.
  • Page 64 Step 5: Enter the Passphrase and apply “Next” button. Step 6: WCN set up complete. And you have set up security-enabled Wi-Fi networks.
  • Page 65 Adding a new WPS device (wireless client) to a network - Use PBC Method Step 1: Push AP’s WPS button more than one second and you will see AP’s WLAN led will flashing per second. Step 2: Open wireless client’s WPS utility, select “Join a wireless network” and apply “next” button.
  • Page 66 Step 4: New WPS device have join into the wireless network. Adding a new WPS device (wireless client) to a network - Use PIN Method Step 1: Open wireless client’s WPS utility, select “Join a wireless network” and apply “next” button.
  • Page 67 Step 2: Note down the wireless client’s PIN (Ex: 41538142) and apply “Start” button for active wireless client WPS PIN method. Step 3: Enter wireless client’s PIN into “Enrollee’s PIN” of Web and apply “Start” button. Step 4: New WPS device have join into the wireless network.

  • Page 68: Dhcp Server

    Adding a new WPS device (wireless client) to a network - Use PIN Method Step 1: Open wireless client’s WPS utility, select “Join a wireless network” and apply “next” button. 5.3.1.6 DHCP Server You can disable or enable the DHCP (Dynamic Host Configuration Protocol) server or enable the router’s DHCP relay functions.
  • Page 69 DHCP Server Mode: DHCP Server To configure the router’s DHCP Server, check DHCP Server. You can then configure parameters of the DHCP Server including the IP pool (starting IP address and ending IP address to be allocated to PCs on your network), lease time for each assigned IP address (the period of time the IP address assigned will be valid), DNS IP address and the gateway IP address.
  • Page 70 which assigns an IP address back to the DHCP client in the LAN. Use this function only if advised to do so by your network administrator or ISP. Click Apply to enable this function.

  • Page 71: Wan (Wide Area Network)

    5.3.2 WAN (Wide Area Network) A WAN (Wide Area Network) is an outside connection to another network or the Internet. There are three items within the WAN section: WAN Interface, WAN Profile and ADSL Mode. 5.3.2.1 WAN Interface The factory default has the Connection Mode as ADSL and the Protocol as PPPoE. WAN Connection-ADSL Mode...
  • Page 72 Main Port: User can select either “ADSL” or “3G” mode. Failover / Failback: Set Enable to trigger ADSL / 3G failover / failback function ready. Note: If 3G is set for main port, then there can be no option for failover/failback. Backup Port: It links to backup port configuration page.
  • Page 73 Rule 1. ADSL Down Rule 2. Ping Fail No Ping: It will not send any ping packet to determine the connection. It means to disable the ping fail detection. Ping Gateway: It will send ping packet to gateway and wait response from gateway in every “Probe Cycle”.

  • Page 74: Wan Profile

    This is an example of Failover/Failback function. The device will determine ADSL status and send ping packet to Gateway every 60 seconds. It will determine if the ADSL is Down or not replying from Gateway. If this happens 5 times continuously, the device will switch to 3G mode and try to establish the internet connection.
  • Page 75 Description: A user-definable name for this connection. VPI/VCI: Enter the VPI and VCI information provided by your ISP. Encap. method: Select the encapsulation format, the default is LLC. Select the one provided by your ISP Username: Enter the username provided by your ISP. You can input up to 128 alphanumeric characters (case sensitive).
  • Page 76 program on your computer attempts to access the Internet). In this mode, you must set Idle Timeout value at same time. Idle Timeout: Auto-disconnect the broadband firewall gateway when there is no activity on the line for a predetermined period of time. The minimum value is 10 minutes. MTU: Maximum Transmission Unit.
  • Page 77 have public IP addresses and can access the Internet directly, the NAT function can be disabled. IP Address: Your WAN IP address. Leave this at 0.0.0.0 to automatically obtain an IP address from your ISP. Authentication Protocol Type: Default is Auto. Your ISP should advises you on whether to use Chap or Pap.
  • Page 78 provided by your ISP. Encap. mode: Choose whether you want the device to function as bridge mode or routing mode. NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single IP account, sharing the single IP address. If users on your LAN have public IP addresses and can access the Internet directly, the NAT function can be disabled.
  • Page 79 TEL No.: The dial string to make a GPRS / 3G user internetworking call. It may provide by your mobile service provider. APN: An APN is similar to a URL on the WWW, it is what the unit makes a GPRS / UMTS call.

  • Page 80: Adsl Mode

    Keep Alive: Set Enable to allow the router automatically reconnects the connection when ISP disconnects it. Connect to Demand: If you want to make UMTS/GPRS call only when there is a packet requesting access to the Internet (i.e. when a program on your computer attempts to access the Internet).

  • Page 82: System

    5.3.3 System There are five items within the System section: Time Zone, Firmware Upgrade, Backup/Restore, Restart and User Management.

  • Page 83: Time Zone

    5.3.3.1 Time Zone The router does not have a real time clock on board; instead, it uses the Simple Network Time Protocol (SNTP) to get the current time from an SNTP server outside your network. Choose your local time zone, click Enable and click the Apply button. After a successful connection to the Internet, the router retrieves the correct local time from the SNTP server you have specified.
  • Page 84 5.3.3.2 Firmware Upgrade Your router’s “firmware” is the software that allows it to operate and provides all its functionality. Think of your router as a dedicated computer, and the firmware as the software it runs. Over time this software may be improved and modified. Your router allows you to upgrade the software it runs to take advantage of these changes.

  • Page 85: Backup / Restore

    5.3.3.3 Backup / Restore These functions allow you to save and backup your router’s current settings to a file on your PC, or to restore a previously saved backup. This is useful if you wish to experiment with different settings, knowing that you have a backup handy in the case of any mistakes. It is advisable to backup your router’s settings before making any significant changes to your router’s configuration.

  • Page 86: User Management

    If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings. You may also reset your router to factory settings by holding the small Reset pinhole button more than 6 seconds on the back of your router.

  • Page 87: Firewall

    5.3.4 Firewall Firewall and Access Control Your router includes a full SPI (Stateful Packet Inspection) firewall for controlling Internet access from your LAN, as well as helping to prevent attacks from hackers. In addition to this, when using NAT (Network Address Translation) the router acts as a “natural” Internet firewall, since all PCs on your LAN use private IP addresses that cannot be directly accessed from the Internet.

  • Page 88: Packet Filter

    prevent unauthorized computers or applications accessing your local network from the Internet. Intrusion Detection: Enable Intrusion Detection to detect, prevent, and log malicious attacks. MAC Filter rules: Prevents unauthorized computers accessing the Internet. URL Filter: Blocks PCs on your local network from unwanted websites. A detailed explanation of each of the following five items appears in the Firewall section below: Packet Filter, MAC Address Filter, Intrusion detection, Block WAN PING and URL Filter.
  • Page 89 Rule Name: Users-define description to identify this entry. The maximum name length is 32 characters, and then can choose application that they want from listbox. Internal IP Address / External IP Address: This is the Address-Filter used to allow or block traffic to/from particular IP address(es).
  • Page 90 If the DHCP server option is enabled, you must be very careful in assigning IP addresses of a filtered private IP range to avoid conflicts because you do not know which PC in the LAN is assigned which IP address. The easiest and safest way is that the filtered IP address is assigned to a specific PC that is not allowed to access an outside resource such as the Internet.
  • Page 91 5.3.4.3 Intrusion Detection Check Enable if you wish to detect intruders accessing your computer without permission. The router automatically detects and blocks a DoS (Denial of Service) attack if a user enables this function. This kind of attack is not to access confidential data on the network; instead, it aims to disrupt specific equipment or the entire network.
  • Page 92 Intrusion Detection. For SYN Flood, ICMP Echo Storm and ICMP flood, IDS will just warn the user in the Event Log but it will not be able to protect against such attacks. Hacker attack types recognized by the IDS Intrusion Name Detect Parameter Blacklist Ascend Kill Ascend Kill data...

  • Page 93: Url Filter

    (Default 100 c/sec) Max ICMP Count ICMP Flood (Default 100 c/sec) Max PING Count ICMP Echo (Default 15 c/sec) Src IP: Source IP Dst Port: Destination Port 5.3.4.4 Block WAN PING Check Enable if you wish to exclude outside PING requests from reaching this router. 5.3.4.5 URL Filter URL (Uniform Resource Locator –...
  • Page 94 Keywords Filtering: Allows blocking by specific keywords within a particular URL rather than having to specify a complete URL (e.g. to block any image called “advertisement.gif”). When enabled, your specified keywords list is checked to see if any keywords are present in URLs accessed to determine if the connection attempt should be blocked.
  • Page 95 Restrict URL Features: This function enhances the restriction to your URL rules. Block Java Applet: Blocks Web content which includes the Java Applet to prevent someone who wants to damage your system via the standard HTTP protocol. Block ActiveX: Blocks ActiveX Block Cookies: Blocks Cookies Block Proxy: Blocks Proxy Except IP Address:...

  • Page 96: Qos (Quality Of Service)

    5.3.5 QoS (Quality of Service) Quality of Service Introduction If you’ve ever found your ‘net’ speed has slowed to a crawl because another family member is using a P2P file sharing program, you’ll understand why the Quality of Service features in Billion’s routers is such a breakthrough for home users and office users.
  • Page 97 Direction: The traffic flow direction to be controlled by the QoS policy. There are two settings to be provided in the Router: LAN to WAN: You want to control the traffic flow from the local network to the outside world. e.g., you have a FTP server inside the local network and you want to have a limited traffic rate controlled by the QoS policy.
  • Page 98 Silver service (M) Silver service (H) Bronze service (L) Bronze service (M) Bronze service (H) Rate Type: 2 types are provided: Limited (Maximum): specify a limited data rate for this policy. It also is the maximal rate for this policy. As above FTP server example, you may want to “throttle” the outgoing FTP speed to 20% of 256K and limit to it, you may use this type.

  • Page 99: Connection Diagram

    from WAN to LAN, it is the destination port value.) External IP Address: The IP address values for Remote WAN machines you want to control. (For IP packets from LAN to WAN, it is the destination IP address. For IP packages from WAN to LAN, it is the source IP address.) External Ports: The Application port values for remote machines you want to control.
  • Page 100 FTP Sever 192.168.0.100 Incoming HTTP web browsing users Example QoS Setup VoIP application Voice is latency-sensitive application. Most VoIP devices are used SIP protocol and the port number will be assigned by SIP module automatically. Better to use fixed IP address for catching VoIP packets as high priority.

  • Page 101: Virtual Server

    5.3.6 Virtual Server In TCP and UDP networks a port is a 16-bit number used to identify which application program (usually a server) incoming connections should be delivered to. Some ports have numbers that are pre-assigned to them by the IANA (the Internet Assigned Numbers Authority), and these are referred to as “well-known ports”.
  • Page 102 to 65535, but only port numbers 0 to 1023 are reserved for privileged services and are designated as “well-known ports”. The registered ports are numbered from 1024 through 49151. The remaining ports, referred to as dynamic ports, or private ports, are numbered from 49152 through 65535.

  • Page 103: Port Mapping

    5.3.6.1 Port Mapping Application: Select the service you wish to configure Protocol: Automatic when you choose Application from listbox or select a protocol type which you want. External Port & Internal Port: Enter the public port number & range you wish to configure.
  • Page 104 In addition to specifying the port number used, you also need to specify the protocol used. The protocol is determined by the particular application. Most applications use TCP or UDP, however you can specify other protocols using the drop-down Protocol menu. Setting the protocol to “all”...
  • Page 105 Using port mapping does have security implications, since outside users are able to connect to PCs on your network. For this reason you are advised to use specific Virtual Server entries just for the ports your application requires instead of simply using DMZ or creating a Virtual Server entry for “All”...

  • Page 106: Time Schedule

    5.3.7 Time Schedule The Time Schedule supports up to 16 time slots which helps you to manage your Internet connection. In each time profile, you may schedule specific day(s) i.e. Monday through Sunday to restrict or allowing the usage of the Internet by users or applications. This Time Schedule correlates closely with router’s time, since router does not have a real time clock on board;...
  • Page 107 Start Time: The default is set at 8:00 AM. You may specify the start time of the schedule. End Time: The default is set at 18:00 (6:00PM). You may specify the end time of the schedule. Select the Apply button to apply your changes.

  • Page 108: Advanced

    5.3.8 Advanced Configuration options within the Advanced section are for users who wish to take advantage of the more advanced features of the router. Users who do not understand the features should not attempt to reconfigure their router, unless advised to do so by support staff.

  • Page 109: Static Route

    5.3.8.1 Static Route Destination: The destination subnet IP address. Netmask: Subnet mask of the destination IP addresses based on above destination. Gateway: The gateway IP address to which packets are forwarded. Interface: Select the interface through which packets are forwarded. Cost: Represents the cost of transmission for routing purposes.
  • Page 110 There are more than 5 DDNS services supported. Disable: Check to disable the Dynamic DNS function. Enable: Check to enable the Dynamic DNS function. The fields following are activated and required. Dynamic DNS Server: Select the DDNS service you have established an account with. Wildcard: Select this check box to enable the DYNDNS Wildcard.

  • Page 111: Device Management

    5.3.8.3 Device Management The Device Management advanced configuration settings allow you to control your router’s security options and device monitoring features. Embedded Web Server: HTTP Port: The port number of the router’s embedded web server (for web-based configuration uses. The default value is the standard HTTP port, 80. You may specify an alternative if, for example, you are running a web server on a PC within your LAN.

  • Page 112: Installing Upnp In Windows Example

    Disable: Check to disable the router’s UPnP functionality. Enable: Check to enable the router’s UPnP functionality. UPnP Port: The Default setting is 2800. It is highly recommended you use this port value. If this value conflicts with other ports already in use you may wish to change the port. Installing UPnP in Windows Example Follow the steps below to install the UPnP in Windows Me.
  • Page 113 Step 4: Click OK to go back to the Add/Remove Programs Properties window. Click Next. Step 5: Restart the computer when prompted. Follow the steps below to install the UPnP in Windows XP. Step 1: Click Start and Control Panel. Step 2: Double-click Network Connections.
  • Page 114 Step 5: In the Networking Services window, select the Universal Plug and Play check box. Step 6: Click OK to go back to the Windows Optional Networking Component Wizard window and click Next.
  • Page 115 Auto-discover Your UPnP-enabled Network Device Step 1: Click start and Control Panel. Double-click Network Connections. An icon displays under Internet Gateway. Step 2: Right-click the icon and select Properties. Step 3: In the Internet Connection Properties window, click Settings to see the port mappings that were automatically created.
  • Page 116 Step 4: You may edit or delete the port mappings or click Add to manually add port mappings. Step 5: Select Show icon in notification area when connected option and click OK. An icon displays in the system tray Step 6: Double-click on the icon to display your current Internet connection status.
  • Page 117 Step 3: Select My Network Places under Other Places. Step 4: An icon describing each UPnP-enabled device shows under Local Network. Step 5: Right-click on the icon of your BiPAC 7300GX and select Invoke. The web configuration login screen displays.

  • Page 118: Wan Ip Change Alert

    IGMP Proxy: Accepting multicast packet. Default is set to Disable. IGMP Snooping: Allowing switched Ethernet / Wireless to check and make correct forwarding decisions. Default is set to Disable. 5.3.8.5 WAN IP Change Alert Send a log via Email When WAN IP is changed. Default is set to Disable. Recipient’s E-mail: Set the Recipient’s email address to which the email notification is sent.
  • Page 119 SNMP V1 and V2: Read Community: Specify a name to be identified as the Read Community, and an IP address. This community string will be checked against the string entered in the configuration file. Once the string name is matched, user obtains this IP address will be able to view the data.
  • Page 120 Traps supported: Cold Start, Authentication Failure. The following MIBs are supported: From RFC 1213 (MIB-II): System group Interfaces group Address Translation group IP group ICMP group TCP group UDP group EGP (not applicable) Transmission SNMP group From RFC1650 (EtherLike-MIB): dot3Stats From RFC 1493 (Bridge MIB): dot1dBase group dot1dTp group...

  • Page 121: Remote Access

    ifMIBObjects Group From RFC1695 (atmMIB): atmMIBObjects From RFC 1907 (SNMPv2): only snmpSetSerialNo OID 5.3.8.7 Remote Access Remote Access Control: Enable: Select Enable to allow management access from remote side (mostly from internet). Duration: Set how many minutes to allow management access from remote side. Zero means always on.

  • Page 122: Save Configuration To Flash

    5.4 Save Configuration to Flash After changing the router’s configuration settings, you must save all of the configuration parameters to FLASH to avoid losing them after turning off or resetting your router. Click “Save Config“ and click “Apply” to write your new configuration to FLASH.
  • Page 123 5.5 Restart Click Restart with option Current Settings to reboot your router (and restore your last saved configuration). If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings.
  • Page 124 5.6 Logout To exit the router’s web interface, choose Logout. Please ensure that you have saved the configuration settings before you logout. Be aware that the router is restricted to only one PC accessing the configuration web pages at a time. Once a PC has logged into the web interface, other PCs cannot get access until the current PC has logged out of the web interface.

  • Page 125: Troubleshooting

    If your ADSL Router is not functioning properly, you can refer first to this chapter for simple troubleshooting before contacting your service provider or Billion support. This can save you time and effort but if symptoms persist, consult your service provider. Problems starting up the router None of the LEDs are on when you...

  • Page 126: Problems With The Lan Interface

    Frequent loss ADSL linesync (disconnections). Problems with the LAN Interface Can’t ping any PCs on the LAN. Ensure that all other devices connected to the same telephone line as your router (e.g. telephones, fax machines, analogue modems) have a line filter connected between them and the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified and licensed electrician), and ensure that all line filters are correctly...
