Billion BiPAC 7800VDOX Setup Manual

Hide thumbs Also See for BiPAC 7800VDOX:

Advertisement

Quick Links

Download this manual
Billion BiPAC 7800VDOX
Setup Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the BiPAC 7800VDOX and is the answer not in the manual?

Questions and answers

Related Manuals for Billion BiPAC 7800VDOX

Summary of Contents for Billion BiPAC 7800VDOX

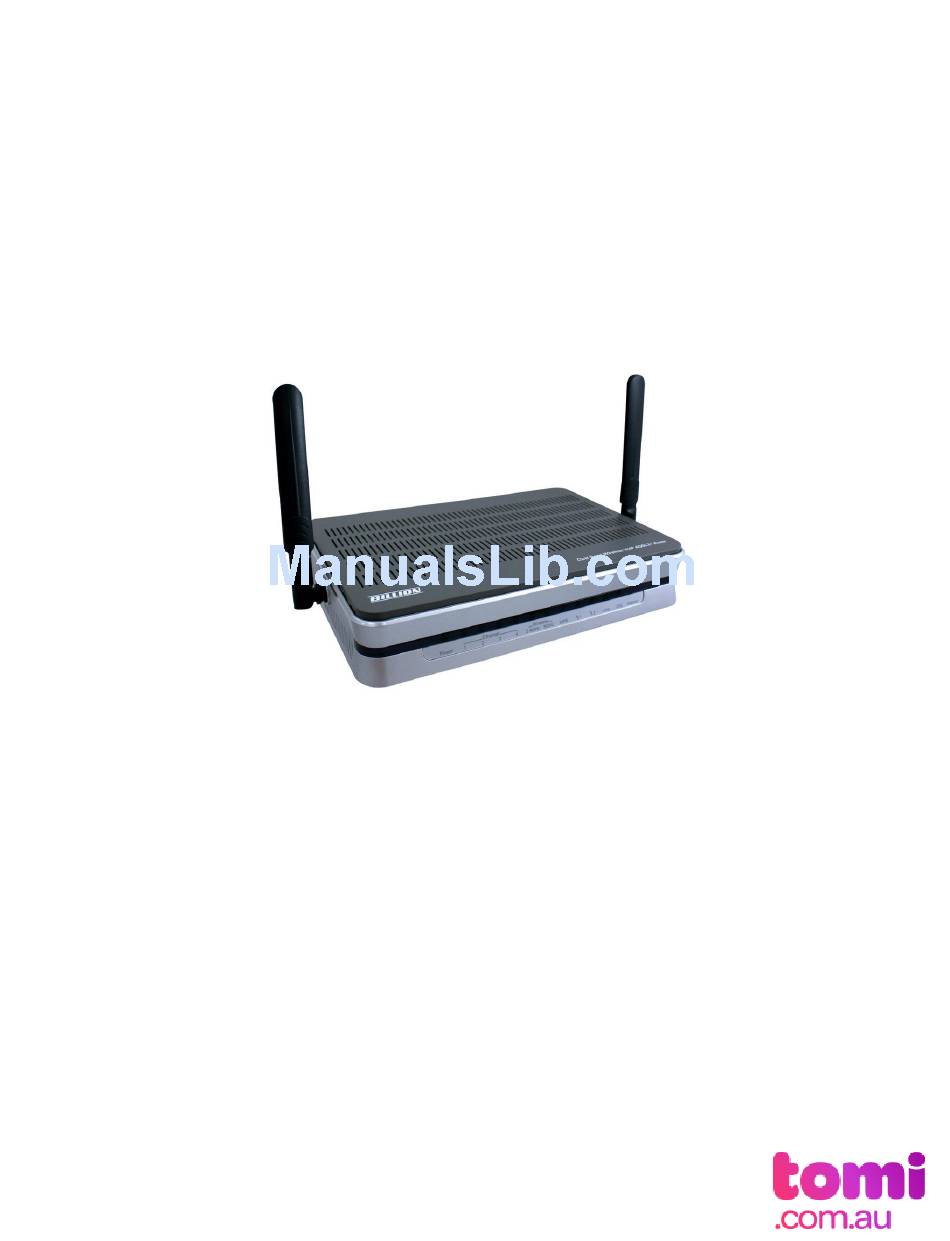

  • Page 1 Billion BiPAC 7800VDOX Setup Guide...
  • Page 2 MODEM REFERENCE & LIGHT STATUS SHEET On the front of your modem you will notice a number of lights. The below table explains what each of these lights mean: LABEL ACTION DESCRIPTION Solid Green Power is on [1] Power Solid Red Boot failure Power is off Blinking Green...

  • Page 3: Getting Started

    3. Ethernet network adapter 4. Wireless enabled computer if you are using the wireless feature Connecting the Billion BiPAC 7800VDOX to your computer Connect a network cable to the yellow port (numbered ‘4’) located at the back of the modem...
  • Page 4 3. Finally, connect the power cable to your modem and plug the power adapter in to your power point. Press the power button to the "ON" state The diagram on the previous page (Figure: Billion BiPAC 7800NXL) shows how the modem connects physically to your phone line, computer, and power point.

  • Page 5: Configuring Your Modem

    2. Configuring your modem Logging in to your modem Open your web browser (typically Internet Explorer/Chrome/Firefox/Safari) and in the address bar enter the details:  http://192.168.1.254 2. You will be asked for a Username and Password. Enter the following login details: Username admin...
  • Page 6 Configuring your NBN modem to access the Internet Once you have logged into your modem, the Billion home page will appear as shown below. Click on the Quick Start tab on the left hand side to begin the setup 2. Ensure the following settings have been set, then click on Continue ...
  • Page 7 4. Please wait while the device is being configured 5. Once the settings have been successfully configured, you will now get a message to configure your wireless connection 6. To configure the Wireless connection, ensure the following settings are entered. ...
  • Page 8 8. Please click on Restart with Current Settings to restart the modem 9. Please wait while the modem is restarting. This can take a minutes so please be patient. The following page will appear when the modem’s updating your details. 10.
  • Page 9 How to configure the 5GHz wireless connection on your modem The Billion 7800VDOX has the extra capability to configure a wireless connection in the 5GHz range. Log in to your router by opening your internet browser and entering 192.168.1.254 in the address bar. Enter the following credentials:...
  • Page 10 4. Now click on Security on the left hand side. Select the Network Authentication method as Mixed WPA2/WPA-PSK and your passphrase to o ne of your choosing. Once finished click on Apply 5. Once the settings have been applied click on Restart at the bottom of the page...
  • Page 11 3. Connecting the Billion 7800NXL to your devices using wireless In the previous section you have configured the wireless connection for your modem. Please use your Wi-Fi Network Name (SSID) and Pre Shared Key (Password) to connect to any wireless compatible devices you have.
  • Page 12 4. Once connected it will indicate that you are now connected to wlan-ap-2.4g (wlan-ap-5g) or your chosen Wi-Fi Network Name (SSID) 5. Repeat steps 1-3 to add other wireless devices such as laptops, tablets, and smart phones...
