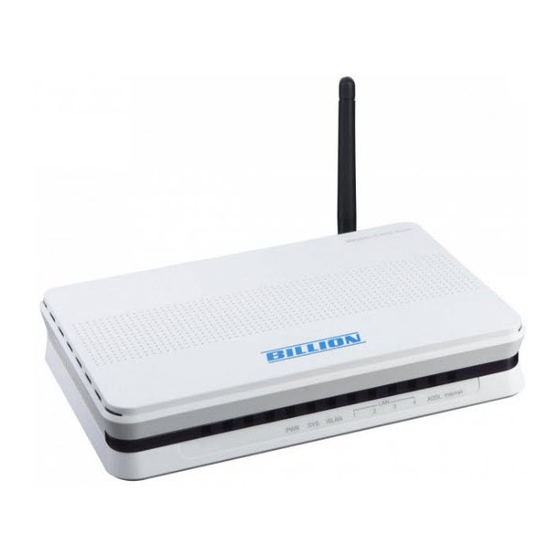

Billion BiPAC 7300W User Manual

Wireless-n adsl2+ firewall router
Hide thumbs Also See for BiPAC 7300W:
Table of Contents

Advertisement

Quick Links

BiPAC 7300W
Wireless-N ADSL2+ Firewall Router

User Manual

Version Released: 1.02 (FW: v2.01.RC1)
Last Revised on April 14, 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BiPAC 7300W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Billion BiPAC 7300W

Summary of Contents for Billion BiPAC 7300W

  • Page 1: User Manual

    BiPAC 7300W Wireless-N ADSL2+ Firewall Router User Manual Version Released: 1.02 (FW: v2.01.RC1) Last Revised on April 14, 2010...

  • Page 2: Table Of Contents

    Chapter 1 ........................1 1.1 Introducing the BiPAC 7300W ............... 1 1.2 Features ....................3 1.3 Hardware Specifications ................. 7 1.3 Applications of the BiPAC 7300W ............8 Chapter 2 ........................9 2.1 Important Notes ..................9 2.2 Package Contents ................10 2.3 The Front LEDs ..................11...
  • Page 3 5.3.2 WAN (Wide Area Network) ..............76 5.3.2.1 WAN Profile ................77 5.3.2.3 ADSL Mode ................86 5.3.3 System ....................87 5.3.3.1 Time Zone ................88 5.3.3.2 Firmware Upgrade..............89 5.3.3.3 Backup / Restore ..............90 5.3.3.4 Restart Router ................. 91 5.3.3.5 User Management ..............

  • Page 4: Chapter 1

    2.5Mbps (up to 3Mbps under ideal conditions). With a Wireless-N Access Point that supports up to 150Mbps wireless data rate, the BiPAC 7300W is truly an upgrade Wireless LAN solution compared to your existing 802.11b/g standard. With all...
  • Page 5 Internet. So the SOHO or small office users can even deploy the BiPAC 7300W for FTTx (Fiber-to-the-building, noed, or home) applications over a VDSL or Fiber device connected. Rich Security Wi-Fi Protected Access (WPA-PSK / WPA2-PSK) and Wired Equivalent Privacy (WEP) features enhance the level of transmission security and access control over your Wireless LAN.

  • Page 6: Features

    1.2 Features • Base on Wireless-N Technology, and compliant with IEEE 802.11g, 802.11b standards • High-speed wireless connection up to 150Mbps • Wireless-N AP with Wi-Fi Protected Setup (WPS), Wi-Fi Protected Access (WPA-PSK/ WPA2-PSK) and Wired Equivalent Privacy (WEP) support •...
  • Page 7 • Compliant with ADSL2+ Standards - G.dmt.bis plus (ITU G.992.5) - ADSL2+ Annex M (ITU G.992.5 Annex M)(available for BiPAC 7300WA model only) Network Protocols and Feathers • NAT, static routing and RIP-1/2 • Universal Plug and Play (UPnP) Compliant •...
  • Page 8 Wireless LAN • Base on Wireless-N Technology, and compliant with IEEE 802.11g, 802.11b standards • Up to 150Mbps wireless operation rate • 2.4 GHz–2.484 GHz frequency range • WPS (Wi-Fi Protected Setup) • 64/128 bits WEP supported for encryption • Wireless Security with WPA-PSK/ WPA2-PSK support •...
  • Page 9 Management • Easy Sign-ON (EZSO) and Auto-scan ADSL settings • Web-based GUI for remote and local management • Firmware upgrades and configuration data upload/download via web-based interface • Embedded Telnet server for remote and local management • Available syslog • Supports DHCP server/client/relay •...

  • Page 10: Hardware Specifications

    1.3 Hardware Specifications Physical Interface • DSL: ADSL port • EWAN: Ethernet port #1 can be configured to WAN port for connecting to ADSL/Cable/VDSL/Fiber modem device • Ethernet: 4-port 10/100M auto-crossover (MDI/MDI-X) switch • Factory default reset button • WPS push button •...

  • Page 11: Applications Of The Bipac 7300W

    1.3 Applications of the BiPAC 7300W...

  • Page 12: Chapter 2

    Chapter 2 Product Overview 2.1 Important Notes Do not use the router in high humidity or high temperatures. Do not use the same power source for the router as other equipment. Do not open or repair the case yourself. If the router is too hot, turn off the power immediately and have it repaired at a Warning qualified service center.

  • Page 13: Package Contents

    2.2 Package Contents BiPAC 7300W Wireless-N ADSL2+ Firewall Router CD-ROM containing the online manual RJ-11 ADSL/telephone Cable (1.8M) Ethernet (CAT-5 LAN) Cable (1.8M Straight) Power Adapter (12V DC, 1A) Quick Start Guide (105*150 mm) Antennas (1 pcs)

  • Page 14: The Front Leds

    2.3 The Front LEDs Meaning Lit red while the flash is damage and cannot bring the system Power Lit green when the system is ready. Flashes green when the the system is rebooting or firmware upgrading. Lit when connected to an Ethernet device. Ethernet Green for 100Mbps;...

  • Page 15: The Rear Ports

    2.4 The Rear Ports Port Description Antenna Connect the antenna to this port. ON/OFF Power ON/OFF switch. Power Connect the supplied power adapter to this jack. After the router is powered on, press this reset button using the end of paper clip or other small pointed object for 6 seconds and above to restore it to factory default settings.
  • Page 16 The detail instruction in Reset Button 1. Recovery procedures for non-working routers (e.g. after a failed firmware upgrade flash): Hold the Reset Button on the back of the modem in. Keep this button held in and turn on the modem. Once the lights on the modem have stopped flashing, release the Reset Button. modem's emergency-reflash interface...

  • Page 17: Cabling

    2.5 Cabling One of the most common causes of problems is because of bad cabling or ADSL line(s). Make sure that all connected devices are turned on. On the front of the product is a bank of LEDs. Verify that the LAN Link and ADSL line LEDs are lit. If they are not, verify that you are using the proper cables.

  • Page 18: Chapter 3

    Chapter 3 Installation You can configure the BiPAC 7300W router through the convenient and user-friendly interface of a web browser. Most popular operating systems such as Linux and Windows 7/Vista/98/NT/2000/XP/Me include a web browser as a standard application. 3.1 Before Configuration PCs must have a properly installed Ethernet interface which connects to the router directly or through an external repeater hub.

  • Page 19: Network Configuration

    3.2 Network Configuration 3.2.1 Configuring a PC in Windows 7 1. Go to Start. Click on Control Panel. Then click on Network and Internet. 2. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel.
  • Page 20 4. Select Internet Protocol Version 4 (TCP/IPv4) then click Properties. 5. In the TCP/IPv4 properties window, select the Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting. 6. Click OK again in the Local Area Connection Properties window to apply...

  • Page 21: Configuring A Pc In Windows Vista

    3.2.2 Configuring a PC in Windows Vista 1. Go to Start. Click on Network. 2. Then click on Network and Sharing Center at the top bar. 3. When Network Sharing Center window pops up, select and click on Manage network connections left window pane.
  • Page 22 5. Select Internet Protocol Version 4 (TCP/IPv4) then click Properties. 6. In the TCP/IPv4 properties window, select the Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting. 7. Click OK again in the Local Area Connection Properties window to apply...

  • Page 23: Configuring A Pc In Windows Xp

    3.2.3 Configuring a PC in Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window, click Properties. 4.

  • Page 24: Configuring A Pc In Windows 2000

    3.2.4 Configuring a PC in Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window click Properties. 4.

  • Page 25: Configuring Pc In Windows 98/Me

    3.2.5 Configuring PC in Windows 98/Me 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network choose Configuration tab. 2. Select TCP/IP ->NE2000 Compatible, or the name of your Network Interface Card (NIC) in your PC. 3.

  • Page 26: Configuring Pc In Windows Nt4.0

    3.2.6 Configuring PC in Windows NT4.0 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Protocols tab. 2. Select TCP/IP Protocol and click Properties. 3. Select the Obtain an IP address from a DHCP server radio button and click OK.

  • Page 27: Factory Default Settings

    3.3 Factory Default Settings Before configuring the router, you need to know the following default settings. Web Interface: (Username and Password) Username: admin Password: admin The default username and password are “admin” and “admin” respectively. If you ever forget the username/password to login to the router, you may press the RESET button up to 6 seconds then release it to restore the factory default settings.

  • Page 28: Lan And Wan Port Addresses

    3.4 LAN and WAN Port Addresses The parameters of LAN and WAN ports are preset in the factory. The default values are shown below. LAN Port WAN Port IP address 192.168.1.254 PPPoE function enabled to automatically get Subnet Mask 255.255.255.0 the WAN port configuration from the ISP.

  • Page 29: Configuring With Your Bipac 7300W

    3.6 Configuring with your BiPAC 7300W 1. To configure this device, you must have IE 5.0 / Netscape 4.5 or above installed 2. You may configure the router for Internet access in two ways: (A) Easy Sign-On (EZSO) (B) Web Configuration...
  • Page 30 3. Show Auto scan result - Protocol information. 4. Please enter “Username” and “Password” as supplied by your ISP (Internet Service Provider) and click continue. 5. Wait for the device to be configured. 6. You’ve have completed the WAN port setup and now click “Next to Wireless” to proceed to the wireless configuration.
  • Page 31 7. Please configure the Wireless LAN setting and click Continue. 8. Save Configuration. 9. Congratulations!! You’ve completed the setup procedure and you are now ready to surf the Internet, enjoy.
  • Page 32 Open your web browser, enter the IP address of your router, which by default is 192.168.1.254, and click “Go”, a user name and password prompt window appears. The default username and password are “admin” and “admin” respectively. Congratulations! You have successfully logged on to your BiPAC 7300W Router!

  • Page 33: Chapter 4

    Chapter 4 Basic Configuration Once you have logged on to your BiPAC 7300W Router via your web browser, you can begin to set it up according to your requirements. On the configuration homepage, the left navigation pane links you directly to the setup pages, which include:...
  • Page 34 4.1 Status Device Information Model Name: Provide a name for the router for identification purposes. System Up-Time: Records system up-time. Hardware Version: Device version Software Version: Firmware version Physical Port Status Port Status: Users can look up to see if they are connected to Ethernet, ADSL, EWAN or Wireless.

  • Page 35: Quick Start

    4.2 Quick Start For the exactly steps, turn to Advanced –Quick Start on page 47 for help. Set Wireless configuration WLAN Service: Default setting is set to Enable. ESSID: The ESSID is the unique name of a wireless access point (AP) to be distinguished from another.

  • Page 36: Wan

    4.3 WAN Main Port: Select the connection mode from the drop-down menu, ADSL or EWAN. VPI/VCI: Enter the VPI and VCI information provided by your ISP. Username: Enter the username provided by your ISP. You can input up to 128 alphanumeric characters (case sensitive).

  • Page 37: Wlan

    4.4 WLAN WLAN Service: Default setting is set to Enable. ESSID: The ESSID is the unique name of a wireless access point (AP) to be distinguished from another. For security propose, change to a unique ID name to the AP which is already built-in to the router’s wireless interface.
  • Page 38 Security Parameters WPA or WPA2 WPA and WPA2 pre-shared keys are an authentication mechanism in which users provide some form of credentials to verify that they should be allowed access to a network. This requires a single password entered into each WLAN node (Access Points, Wireless Routers, client adapters, bridges).
  • Page 39 The default mode of wireless security is Disable. RADIUS/802.1x: You can enable or disable the RADIUS(Remote Authentication Dial In User Service) service. WPA Shared Key: The key for network authentication. The input format is in character style and key size should be in the range between 8 and 63 characters. Group Key Renewal: The period of renewal time for changing the security key between wireless client and Access Point (AP).
  • Page 40 select Enable. ESSID: The ESSID is the unique name of a wireless access point (AP) used to distinguish one from another. For security propose, change to a unique ID name which is already built into the router wireless interface. It is case sensitive and must not exceed 32 characters.
  • Page 41 WLAN Service: Default setting is set to Enable. If you do not have any wireless, select Disable. ESSID: The ESSID is the unique name of a wireless access point (AP) used to distinguish one from another. For security propose, change to a unique ID name which is already built into the router wireless interface.
  • Page 42 Channel ID: Select the wireless connection channel ID that you would like to use. Note: Wireless performance may degrade if the selected channel ID is already being occupied Security Mode: You can disable or enable with WPA or WEP to protect wireless network. The default mode of wireless security is Disable.

  • Page 43: Chapter 5

    Chapter 5 Advanced Configuration Once you have logged on to your BiPAC 7300W Router via your web browser, you can begin to set it up according to your requirements. On the configuration homepage, the left navigation pane links you directly to the setup pages, which include:...

  • Page 44: Status

    5.1 Status Device Information Host Name: Provide a name for the router for identification purposes. Host Name lets you change the router name.
  • Page 45 System Up-Time: Records system up-time. Current time: Set the current time. See the Time Zone section for more information. Hardware Version: Device version. Software Version: Firmware version. MAC Address: The LAN MAC address. Port: Name of the WAN connection. Protocol VPI/VCI: Virtual Path Identifier and Virtual Channel Identifier Operation: Current available operation.

  • Page 46: Adsl Status

    5.1.1 ADSL Status DSP Firmware Version: DSP code version DMT Status: Current DMT Status Operational Mode: To show the state when user select “AUTO” on connect mode. Click the link, the following will appear. ADSL Mode: There are four modes “Open Annex Type and Follow DSLAM’s Setting”, ”Annex A”, ”Annex L”, ”Annex M”...

  • Page 47: Arp Table

    SNR Margin (Downstream): This is noise margin in downstream. Line Attenuation (Upstream): This is attenuation of signal in upstream. Line Attenuation (Downstream): This is attenuation of signal in downstream. Refresh: Press this button to get the latest statistics. 5.1.2 ARP Table This section displays the router’s ARP (Address Resolution Protocol) Table, which shows the mapping of Internet (IP) addresses to Ethernet (MAC) addresses.

  • Page 48: System Log

    5.1.4 System Log Display system logs accumulated up to the present time. You can trace historical information with this function.

  • Page 49: Firewall Log

    5.1.5 Firewall Log Firewall Log displays log information of any unexpected action with your firewall settings. This page displays the router’s Firewall Log entries. The log shows log entries when you have enabled Intrusion Detection or Block WAN PING in the Configuration – Firewall section of the interface.

  • Page 50: Quick Start

    5.2 Quick Start ADSL Connect mode: ADSL Protocol: The current ATM protocol in the device VPI / VCI: The current value of VPI / VCI in the device IP address: To show current value of IP address in the device. EWAN Click on Continue to choose the Protocol to connect with EWAN or click Jump to Wireless Setting to use Protocol: Obtain an IP Address Automatically to connect and setup wireless...
  • Page 51 Obtain an IP Address Automatically When connecting to the ISP, BiPAC 7300W also functions as a DHCP client. BiPAC 7300W can automatically obtain an IP address, subnet mask, gateway address, and DNS server addresses if the ISP assigns this information via DHCP.
  • Page 52 Fixed IP Address Select this option to set static IP information. You will need to enter in the Connection type, IP address, Netmask, and gateway address, provided to you by your ISP. Each IP address entered in the fields must be in the appropriate IP form, which is four IP octets separated by a dot (x.x.x.x).
  • Page 53 PPPoE PPPoE (PPP over Ethernet) provides access control in a manner similar to dial-up services using PPP. Protocol: The current ATM protocol in the device Username: Enter the username provided by your ISP. You can input up to 128 alphanumeric characters (case sensitive). This is in the format of “username@ispname” instead of simply “username”.
  • Page 54 If connection is successful the following image will be shown. Set Wireless configuration WLAN Service: Default setting is set to Enable. ESSID: The ESSID is the unique name of a wireless access point (AP) to be distinguished from another. For security propose, change to a unique ID name to the AP which is already built-in to the router’s wireless interface.

  • Page 55: Configuration

    5.3 Configuration Click this item to access the following sub-items that configure the ADSL router: LAN, WAN, System, Firewall, QoS, Virtual Server, Wake on LAN, Time Schedule and Advanced. These functions are described in the following sections. 5.3.1 LAN (Local Area Network) A Local Area Network (LAN) is a shared communication system to which many computers are attached and is limited to the immediate area, usually the same building or floor of a building.

  • Page 56: Ip Alias

    The router supports more than one Ethernet IP addresses in the LAN, and with distinct LAN subnets through which you can access the Internet at the same time. Users usually only have one subnet in their LAN. The default IP address for the router is 192.168.1.254. IP Address: The default IP on this router.

  • Page 57: Wireless

    Click Edit radio button, then the item you want to reedit will be displayed above just as showed below. Press Edit/Delete to apply your modification. Check Delete if you want to delete the item, then press Edit/Delete, the deleting prompt window will appear to remind you, do as you like.
  • Page 58 Parameters WLAN Service: Default setting is set to Enable. Time Schedule: A self-defined time period. You may specify a time schedule for your prioritization policy. Here we provide two groups of Time Schedule setting. You can flexibly set the time you want the wireless connection works.
  • Page 59 Channel Wdith: Select either 20 MHz or 20/40 MHz or 40MHZ for the channel bandwidth. The higher the bandwidth the better the performance will be. Note: This parameter appears only when you select one of the item as the following graph Tx Power Level: It is function that enhances the wireless transmitting signal strength.

  • Page 60: Wireless Security

    3. Peer WDS MAC Address: It is the third associated AP’s MAC Address. 4. Peer WDS MAC Address: It is the fourth associated AP’s MAC Address. Note: For MAC Address, Semicolon ( : ) or Dash (-) must be included. 5.3.1.4 Wireless Security You can disable or enable with WPA or WEP for protecting wireless network.
  • Page 61 seconds. If you want to enable the RADIUS service, check Enable and then do the following settings. RADIUS Server IP Address: Enter the IP address of RADIUS authentication server. RADIUS Server Port: Enter the port number of RADIUS authentication server here. Default value is 1812.
  • Page 62 WPA Shared Key: The key for network authentication. The input format is in character style and key size should be in the range between 8 and 63 characters. Group Key Renewal: The period of renewal time for changing the security key automatically between wireless client and Access Point (AP).
  • Page 63 If you want to enable the RADIUS service, check Enable and then do the following settings. WEP Authentication: If you enable RADIUS/802.1x, then the default WEP Authentication is Open System. RADIUS Server IP Address: Enter the IP address of RADIUS authentication server. RADIUS Server Port: Enter the port number of RADIUS authentication server here.

  • Page 64: Wps

    5.3.1.5 WPS WPS (WiFi Protected Setup) feature is a standard protocol created by Wi-Fi Alliance. This feature greatly simplifies the steps needed to create a Wi-Fi network for a residential or an office setting. WPS supports 2 types of configuration methods which are commonly known among consumers: Method &...
  • Page 65 3. Launch the wireless client’s WPS utility (eg. Ralink Utility). Set the Config Mode as Enrollee, press the WPS button on the top bar, select the AP (eg. wlan-ap) from the WPS AP List column. Then press the PIN button located on the middle left of the page to run the scan.
  • Page 66 4. The client’s SSID and security setting will now be configured to match the SSID and security setting of the registrar.
  • Page 67 PIN Method: Configure AP as Enrollee 1. In the WPS configuration page, change the Role to Enrollee. Then press Start. 2. Jot down the WPS PIN (eg. 25879810). 3. Launch the wireless client’s WPS utility (eg. Ralink Utility). Set the Config Mode as Registrar. Enter the PIN number in the PIN Code column then choose the correct AP (eg.
  • Page 68 4. The router’s (AP’s) SSID and security setting will now be configured to match the SSID and security setting of the registrar.
  • Page 69 5. Now to make sure that the setup is correctly done, cross check to see if the SSID and the security setting of the registrar setting match with the parameters found on both Wireless Configuration and Wireless Security Configuration page.
  • Page 70 The parameters on both Wireless Configuration and Wireless Security Configuration page are as follows:...
  • Page 71 PBC Method: 1. Press the PBC button of the AP. 2. Launch the wireless client’s WPS Utility (eg. Ralink Utility). Set the Config Mode as Enrollee. Then press the WPS button and choose the correct AP (eg. wlan-ap) from the WPS AP List section before pressing the PBC button to run the scan.
  • Page 72 3. When the PBC button is pushed, a wireless communication will be established between your router and the PC. The client’s SSID and security setting will now be configured to match the SSID and security setting of the router.
  • Page 73 Wi-Fi Network Setup with Windows Vista WCN: 1. Jot down the AP PIN from the Web (eg. 25879810). 2. Access the Wireless configuration of the web GUI. Set the WPS State to Unconfigured then click Apply.
  • Page 74 3. In your Vista operating system, access the Control Panel page, then select Network and Internet > View Network Computers and Devices. Double click on the BiPAC 7300W icon and enter the AP PIN in the column provided then press Next.
  • Page 75 4. Enter the AP SSID then click Next. 5. Enter the Passphrase then click Next.
  • Page 76 6. When you have come to this step, you will have completed the Wi-Fi network setup using the built-in WCN feature in Windows Vista.

  • Page 77: Dhcp Server

    5.3.1.6 DHCP Server You can disable or enable the DHCP (Dynamic Host Configuration Protocol) server or enable the router’s DHCP relay functions. The DHCP protocol allows your router to dynamically assign IP addresses to PCs on your network if they are configured to obtain IP addresses automatically.
  • Page 78 DHCP Server Mode: DHCP Server To configure the router’s DHCP Server, check DHCP Server. You can then configure parameters of the DHCP Server including the IP pool (starting IP address and ending IP address to be allocated to PCs on your network), lease time for each assigned IP address (the period of time the IP address assigned will be valid), DNS IP address and the gateway IP address.

  • Page 79: Wan (Wide Area Network)

    DHCP Server Mode: DHCP Relay If you check DHCP Relay and then you must enter the IP address of the DHCP server which assigns an IP address back to the DHCP client in the LAN. Use this function only if advised to do so by your network administrator or ISP.

  • Page 80: Wan Profile

    5.3.2.1 WAN Profile Main Port--ADSL PPPoE Connection (ADSL) PPPoE (PPP over Ethernet) provides access control in a manner similar to dial-up services using PPP. Description: A user-definable name for this connection. VPI/VCI: Enter the VPI and VCI information provided by your ISP. Encap.
  • Page 81 IP Address: Your WAN IP address. Leave this at 0.0.0.0 to automatically obtain an IP address from your ISP. Auth. Protocol: Default is Auto. Your ISP advises on using Chap or Pap. Obtain DNS Automatically: Select this check box to use DNS. Primary DNS/ Secondary DNS: Enter the IP addresses of the DNS servers.
  • Page 82 Description: User-definable name for the connection. VPI/VCI: Enter the VPI and VCI information provided by your ISP. Encapsulation method: Select the encapsulation format, the default is LLC. Select the one provided by your ISP Username: Enter the username provided by your ISP. You can input up to 128 alphanumeric characters (case sensitive).
  • Page 83 MPoA Connection (ADSL) Description: Your description of this connection. VPI and VCI: Enter the VPI and VCI information provided by your ISP. Encap. method: Select the encapsulation format, the default is LLC. Select the one provided by your ISP. Encap. mode: Choose whether you want the device to function as bridge mode or routing mode.
  • Page 84 Pure Bridge Connections (ADSL) Description: A user-definable name for this connection. VPI/VCI: Enter the VPI and VCI information provided by your ISP. Encap. method: Select the encapsulation format, this is provided by your ISP. PPPoE with Pass-through (ADSL) Description: A user-definable name for this connection. VPI/VCI: Enter the VPI and VCI information provided by your ISP.
  • Page 85 alphanumeric characters (case sensitive) Service Name: This item is for identification purposes. If it is required, your ISP provides you the information. Maximum input is 15 alphanumeric characters. NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single ISP account, sharing a single IP address.
  • Page 86 Main Port—EWAN Besides using ADSL to get connected to the Internet, BiPAC 7300W offers its Ethernet port 1 as a WAN port to be used to connect to Cable Modems, VDSL and fibre optic lines. This alternative, yet faster method to connect to the internet will provide users with more flexibility...
  • Page 87 Fixed IP Address (EWAN) Select this option to set static IP information. You will need to enter in the Connection type, IP address, netmask, and gateway address, provided to you by your ISP. Each IP address entered in the fields must be in the appropriate IP form, which is four IP octets separated by a dot (x.x.x.x).
  • Page 88 PPPoE (EWAN) PPPoE (PPP over Ethernet) provides access control in a manner similar to dial-up services using PPP. Line Speed: Set the downstream and upstream of your connection in kilobytes per second. The connection speed is used by QoS settings. Username: Enter the username provided by your ISP.

  • Page 89: Adsl Mode

    5.3.2.3 ADSL Mode ADSL Mode: There are four modes “Open Annex Type and Follow DSLAM’s Setting”, ”Annex A”, ”Annex L”, ”Annex M” and “Annex J” that user can select for this connection. Modulator: There are seven modes “AUTO”,”ADSL multimode”,”ADSL2”,”ADSL2+”, “G.Lite:”, “T1.413” and “G.DMT” that user can select for this connection.

  • Page 90: System

    5.3.3 System There are five items within the System section: Time Zone, Firmware Upgrade, Backup/Restore, Restart, User Management and Mail Alert.

  • Page 91: Time Zone

    5.3.3.1 Time Zone The router does not have a real time clock on board; instead, it uses the Simple Network Time Protocol (SNTP) to get the current time from an SNTP server outside your network. Choose your local time zone, click Enable and click the Apply button. After a successful connection to the Internet, the router retrieves the correct local time from the SNTP server you have specified.

  • Page 92: Firmware Upgrade

    5.3.3.2 Firmware Upgrade Your router’s “firmware” is the software that allows it to operate and provides all its functionality. Think of your router as a dedicated computer, and the firmware as the software it runs. Over time this software may be improved and modified. Your router allows you to upgrade the software it runs to take advantage of these changes.

  • Page 93: Backup / Restore

    5.3.3.3 Backup / Restore These functions allow you to save and backup your router’s current settings to a file on your PC, or to restore a previously saved backup. This is useful if you wish to experiment with different settings, knowing that you have a backup handy in the case of any mistakes. It is advisable to backup your router’s settings before making any significant changes to your router’s configuration.

  • Page 94: Restart Router

    5.3.3.4 Restart Router Click Restart with option Current Settings to reboot your router and save the current configuration to device. If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings.

  • Page 95: Mail Alert

    receive your router, and any time you reset your configuration to Factory Defaults. 5.3.3.6 Mail Alert Send a log via email, if WAN IP is changed or if intruders accessing your computer without permission. SMTP Server: Enter the SMTP server that you would like to use for sending emails. Username: Enter the username of your email account to be used by the SMTP server.

  • Page 96: Firewall

    5.3.4 Firewall Firewall and Access Control Your router includes a full SPI (Stateful Packet Inspection) firewall for controlling Internet access from your LAN, as well as helping to prevent attacks from hackers. In addition to this, when using NAT (Network Address Translation) the router acts as a “natural” Internet firewall, since all PCs on your LAN use private IP addresses that cannot be directly accessed from the Internet.
  • Page 97 Firewall Security and Policy (General Settings): Inbound direction of Packet Filter rules prevent unauthorized computers or applications accessing your local network from the Internet. Intrusion Detection: Enable Intrusion Detection to detect, prevent, and log malicious attacks. MAC Filter rules: Prevents unauthorized computers accessing the Internet. URL Filter: Blocks PCs on your local network from unwanted websites.

  • Page 98: Packet Filter

    5.3.4.1 Packet Filter Packet filtering enables you to configure your router to block specified internal/external users (IP address) from Internet access, or you can disable specific service requests (Port number) to /from Internet. This configuration program allows you to set up to 6 different filter rules for different users based on their IP addresses or their network Port number.
  • Page 99 Direction: Determine whether the rule is for outgoing packets or for incoming packets. Time Schedule: It is self-defined time period. You may specify a time schedule for your prioritization policy. For setup and detail, refer to Time Schedule section. Log: Choose “log” if you wish to generate logs when the filer rule is applied to a packet. Add: Click this button to add a new packet filter rule and the added rule will appear at the bottom table.

  • Page 100: Mac Filter

    5.3.4.2 MAC Filter A MAC (Media Access Control) address is the unique network hardware identifier for each PC on your network’s interface (i.e. its Network Interface Card or Ethernet card). Using your router’s MAC Address Filter function, you can configure to block specific machines from accessing your LAN.

  • Page 101: Intrusion Detection

    5.3.4.3 Intrusion Detection Check Enable if you wish to detect intruders accessing your computer without permission. The router automatically detects and blocks a DoS (Denial of Service) attack if a user enables this function. This kind of attack is not to access confidential data on the network; instead, it aims to disrupt specific equipment or the entire network.
  • Page 102 For SYN Flood, ICMP Echo Storm and ICMP flood, IDS will just warn the user in the Event Log but it will not be able to protect against such attacks. Hacker attack types recognized by the IDS Type of Block Intrusion Name Detect Parameter Blacklist Drop Packet Show Log...

  • Page 103: Block Wan Ping

    Src IP: Source IP Src Port: Source Port Dst Port: Destination Port Dst IP: Destination IP 5.3.4.4 Block WAN PING Check Enable if you wish to exclude outside PING requests from reaching this router. 5.3.4.5 URL Filter URL (Uniform Resource Locator – e.g. an address in the form of http://www.example.com filter rules allow you to prevent users on your network from accessing particular websites from their URL.
  • Page 104 “abcde” occurs in the URL. Domains Filtering: Checks the domain name in URLs accessed against your list of domains to block or allow. If it matches, the URL request is sent (Trusted) or dropped (Forbidden). The checking procedure is: 1. Check the domain in the URL to determine if it is in the trusted list. If yes, the connection attempt is sent to the remote web server.
  • Page 105 Block Cookies: Blocks Cookies Block Proxy: Blocks Proxy Except IP Address: Time Schedule: It is self-defined time period. You may specify a time schedule for your prioritization policy. For setup and detail, refer to Time Schedule section. Log: Click “Log” if you wish to generate logs when the filer rule is applied to the URL Filter.

  • Page 106: Qos (Quality Of Service)

    5.3.5 QoS (Quality of Service) Quality of Service Introduction If you’ve ever found your ‘net’ speed has slowed to a crawl because another family member is using a P2P file sharing program, you’ll understand why the Quality of Service features in the routers is such a breakthrough for home users and office users.
  • Page 107 There are two settings to be provided in the Router: LAN to WAN: You want to control the traffic flow from the local network to the outside world. e.g., you have a FTP server inside the local network and you want to have a limited traffic rate controlled by the QoS policy.
  • Page 108 DSCP Mapping Table ADSL2+ Router Standard DSCP Disabled None Best Effort Best Effort (000000) Premium Express Forwarding (101110) Gold service (L) Class 1, Gold (001010) Gold service (M) Class 1, Silver (001100) Gold service (H) Class 1, Bronze (001110) Silver service (L) Class 2, Gold (010010) Silver service (M) Class 2, Silver (010100)
  • Page 109 Priority: Specify the priority for the bandwidth that is not used. For examples, you may specify two different QoS policies for different applications. Both applications need a minimal bandwidth and need more bandwidth, beside the assigned one, if there is any available/non-used one available.

  • Page 110: Connection Diagram

    QoS example for your Network Connection Diagram VoIP HTTP web Normal PCs browsing users Restricted PC ADSL Subscription Rate Upstream: 256 kbps Downstream: 2048 Mbps Example QoS Plan Application IP or Ports Control Flow Data Rate Time Schedule VoIP User 192.168.1.1 Outgoing Minimal 20% with high priority...
  • Page 111 Example QoS Setup VoIP application Voice is latency-sensitive application. Most VoIP devices are used SIP protocol and the port number will be assigned by SIP module automatically. Better to use fixed IP address for catching VoIP packets as high priority.

  • Page 112: Virtual Server

    5.3.6 Virtual Server In TCP and UDP networks a port is a 16-bit number used to identify which application program (usually a server) incoming connections should be delivered to. Some ports have numbers that are pre-assigned to them by the IANA (the Internet Assigned Numbers Authority), and these are referred to as “well-known ports”.
  • Page 113 designated as “well-known ports”. The registered ports are numbered from 1024 through 49151. The remaining ports, referred to as dynamic ports, or private ports, are numbered from 49152 through 65535. Examples of well-known and registered port numbers are shown below, for further information, please see IANA’s website at: http://www.iana.org/assignments/port-numbers Well-known and Registered Ports...

  • Page 114: Port Mapping

    5.3.6.1 Port Mapping Application: Select the service you wish to configure Protocol: Automatic when you choose Application from listbox or select a protocol type which you want. External Port & Internal Port: Enter the public port number & range you wish to configure.
  • Page 115 Since NAT acts as a “natural” Internet firewall, your router protects your network from access by outside users, as all incoming connection attempts point to your router unless you specifically create Virtual Server entries to forward those ports to a PC on your network. When your router needs to allow outside users to access internal servers, e.g.

  • Page 116: Dmz

    5.3.6.2 DMZ DMZ: The DMZ Host is a local computer exposed to the Internet. When setting a particular internal IP address as the DMZ Host, all incoming packets are checked by the Firewall and NAT algorithms, it is then passed to the DMZ host when a packet received does not use a port number in use by any other Virtual Server entries.

  • Page 117: Alg

    5.3.6.3 ALG Controls enable or disable various protocols over application layer. For example, SIP ALG: Enable: When SIP phone need ALG to pass through the NAT. Disable: When SIP phone included NAT-Traversal algorithm. Turn off the SIP ALG. Using port mapping does have security implications, since outside users are able to connect to PCs on your network.

  • Page 118: Wake On Lan

    5.3.7 Wake on LAN This feature provides greater flexibility for users to turn on / boot the computer of the network from a remotely site. MAC Address: Enter the MAC address of the target computer or you can select the MAC address directly from the Select drop down menu on the right.

  • Page 119: Time Schedule

    5.3.8 Time Schedule The Time Schedule supports up to 16 time slots which helps you to manage your Internet connection. In each time profile, you may schedule specific day(s) i.e. Monday through Sunday to restrict or allowing the usage of the Internet by users or applications. This Time Schedule correlates closely with router’s time, since router does not have a real time clock on board;...

  • Page 120: Advanced

    5.3.9 Advanced Configuration options within the Advanced section are for users who wish to take advantage of the more advanced features of the router. Users who do not understand the features should not attempt to reconfigure their router, unless advised to do so by support staff.

  • Page 121: Static Route

    5.3.9.1 Static Route Destination: The destination subnet IP address. Netmask: Subnet mask of the destination IP addresses based on above destination. Gateway: The gateway IP address to which packets are forwarded. Interface: Select the interface through which packets are forwarded. Cost: Represents the cost of transmission for routing purposes.

  • Page 122: Dynamic Dns

    Edit: Check the Edit radio button to display the parameter of the selected application, then after changing the parameters click the "Edit/Delete" button to apply the changes. Delete: To remove a static ARP entry, check the Delete box of the selected entry then click the "Edit/Delete"...

  • Page 123: Vlan

    Domain Name, Username and Password: Enter your registered domain name and your username and password for this service. Period: Set the time period between updates, for the Router to exchange information with the DDNS server. In addition to updating periodically as per your settings, the router will perform an update when your dynamic IP address changes.

  • Page 124: Device Management

    5.3.9.5 Device Management The Device Management advanced configuration settings allow you to control your router’s security options and device monitoring features. Embedded Web Server: HTTP Port: The port number of the router’s embedded web server (for web-based configuration uses. The default value is the standard HTTP port, 80. You may specify an alternative if, for example, you are running a web server on a PC within your LAN.
  • Page 125 Disable: Check to disable the router’s UPnP functionality. Enable: Check to enable the router’s UPnP functionality. UPnP Port: The Default setting is 2800. It is highly recommended you use this port value. If this value conflicts with other ports already in use you may wish to change the port. Installing UPnP in Windows Example Follow the steps below to install the UPnP in Windows Me.
  • Page 126 Step 3: In the Communications window, select the Universal Plug and Play check box in the Components selection box. Step 4: Click OK to go back to the Add/Remove Programs Properties window. Click Next. Step 5: Restart the computer when prompted. Follow the steps below to install the UPnP in Windows XP.
  • Page 127 Step 4: Select Networking Service in the Components selection box and click Details. Step 5: In the Networking Services window, select the Universal Plug and Play check box. Step 6: Click OK to go back to the Windows Optional Networking Component Wizard window and click Next.
  • Page 128 Auto-discover Your UPnP-enabled Network Device Step 1: Click start and Control Panel. Double-click Network Connections. An icon displays under Internet Gateway. Step 2: Right-click the icon and select Properties. Step 3: In the Internet Connection Properties window, click Settings to see the port mappings that were automatically created.
  • Page 129 Step 4: You may edit or delete the port mappings or click Add to manually add port mappings. Step 5: Select Show icon in notification area when connected option and click OK. An icon displays in the system tray Step 6: Double-click on the icon to display your current Internet connection status.
  • Page 130 Step 3: Select My Network Places under Other Places. Step 4: An icon describing each UPnP-enabled device shows under Local Network. Step 5: Right-click on the icon of your BiPAC 7300W and select Invoke. The web configuration login screen displays.

  • Page 131: Igmp

    5.3.9.6 IGMP IGMP, known as Internet Group Management Protocol, is used to management hosts from multicast group. IGMP Proxy: Accepting multicast packet. Default is set to Disable. IGMP Snooping: Allowing switched Ethernet / Wireless to check and make correct forwarding decisions. Default is set to Disable. 5.3.9.7 SNMP Access Control Software on a PC within the LAN is required in order to utilize this function –...
  • Page 132 view and modify the data. Trap Community: Specify a name to be identified as the Trap Community, and an IP address. This community string will be checked against the string entered in the configuration file. Once the string name is matched, users from this IP address will be sent SNMP Traps.
  • Page 133 dot3Stats From RFC 1493 (Bridge MIB): dot1dBase group dot1dTp group dot1dStp group (if configured as spanning tree) From RFC 1471 (PPP/LCP MIB): pppLink group pppLqr group From RFC 1472 (PPP/Security MIB): PPP Security Group) From RFC 1473 (PPP/IP MIB): PPP IP Group From RFC 1474 (PPP/Bridge MIB): PPP Bridge Group From RFC1573 (IfMIB):...

  • Page 134: Remote Access

    5.3.9.8 Remote Access Remote Access Control: Enable: Select Enable to allow management access from remote side (mostly from internet). Duration: Set how many minutes to allow management access from remote side. Zero means always on. Allowed Access IP Address Range: Valid: Select Valid to allow remote management from these IP ranges.

  • Page 135: Save Configuration To Flash

    5.4 Save Configuration to Flash After changing the router’s configuration settings, you must save all of the configuration parameters to FLASH to avoid losing them after turning off or resetting your router. Click “Save Config“ and click “Apply” to write your new configuration to FLASH. 5.5 Restart Click Restart with option Current Settings to reboot your router (and restore your last saved configuration).

  • Page 136: Logout

    5.6 Logout To exit the router’s web interface, choose Logout. Please ensure that you have saved the configuration settings before you logout. Be aware that the router is restricted to only one PC accessing the configuration web pages at a time. Once a PC has logged into the web interface, other PCs cannot get access until the current PC has logged out of the web interface.

  • Page 137: Chapter 6

    Chapter 6 Troubleshooting If your ADSL Router is not functioning properly, you can refer first to this chapter for simple troubleshooting before contacting your service provider support. This can save you time and effort but if symptoms persist, consult your service provider. Problems starting up the router Problem Corrective Action...

  • Page 138: Problems With The Lan Interface

    Frequent loss Ensure that all other devices connected to the same telephone ADSL linesync line as your router (e.g. telephones, fax machines, analogue (disconnections). modems) have a line filter connected between them and the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified and licensed electrician), and ensure that all line filters are correctly installed and the right way around.

  • Page 139: Appendix

    Most problems can be solved by referring to the Troubleshooting section in the User’s Manual. If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer where you purchased this product. Contact Billion WORLDWIDE http://www.billion.com MAC OS is a registered Trademark of Apple Computer, Inc.
