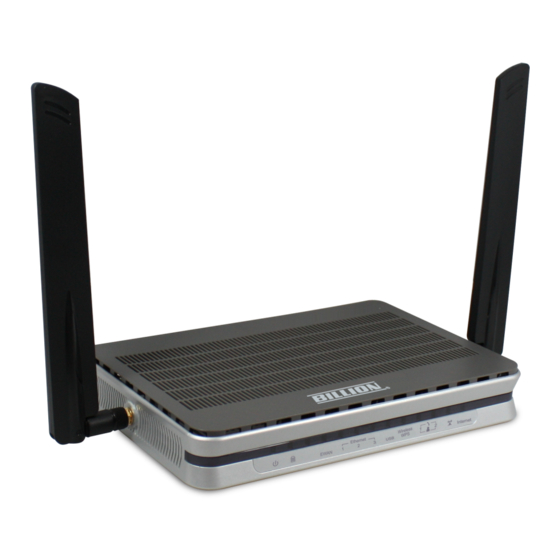

Billion BiPAC 7820NZ Quick Start Manual

3g/4g lte embedded with dual-sim slots adsl2+ wireless-n vpn firewall router
Hide thumbs Also See for BiPAC 7820NZ:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
BiPAC 7820NZ
3G/4G LTE Embedded with
Dual-SIM Slots ADSL2+
Wireless-N VPN Firewall Router
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BiPAC 7820NZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Billion BiPAC 7820NZ

Summary of Contents for Billion BiPAC 7820NZ

  • Page 1 BiPAC 7820NZ 3G/4G LTE Embedded with Dual-SIM Slots ADSL2+ Wireless-N VPN Firewall Router Quick Start Guide...

  • Page 2: Package Contents

    Billion BiPAC 7820NZ 3G/4G LTE Embedded with Dual-SIM Slots ADSL2+ Wireless-N VPN Firewall Router PLEASE READ THE QUICK START GUIDE AND FOLLOW THE STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE.

  • Page 3: Hardware Overview

    Quick Start Guide Hardware Overview The Front LEDs STATUS DESCRIPTION Boot failure or in emergency mode. Power Green System is up and ready. Green Transmission speed is at 10/100Mbps. Ethernet 1- 4 Blinking Data being transmitted/ received. Green Connecting to a USB dongle or a hard drive. Green Wireless connection established.
  • Page 4 Billion BiPAC 7820NZ 3G/4G LTE Embedded with Dual-SIM Slots ADSL2+ Wireless-N VPN Firewall Router Rear Panel Connectors 4G LTE mode: 3G mode: PORT MEANING Power Connect the supplied Power Adapter to this jack. Power Switch Power ON / OFF switch.

  • Page 5: Hardware Connection

    Quick Start Guide Hardware Connection BiPAC 7820NZ offers four modes to connect to the internet. Besides using ADSL, users can set EWAN (Ethernet port # 4) or 3G/4G LTE for internet connection. BiPAC 7820NZ also allows Dual WAN connection: ADSL fail-over to 3G/4G LTE, EWAN fail-over to 3G/4G LTE, ADSL fail-over to EWAN, 3G/4G LTE fail-over to the 3G/4G LTE, and counter likewise.
  • Page 6 Billion BiPAC 7820NZ 3G/4G LTE Embedded with Dual-SIM Slots ADSL2+ Wireless-N VPN Firewall Router ADSL fail-over to EWAN 3G/4G LTE fail-over to the 3G/4G LTE...

  • Page 7: Hardware Installation

    Quick Start Guide Hardware Installation 1. 3G/ 4G LTE Connection Slide the SIM card into the card slot of the device with the gold contact facing down. Make sure that the SIM card has been slid into the bottom of the slot with a click. When removing the SIM card, press the SIM card again it will be ejected from the card slot.
  • Page 8 Billion BiPAC 7820NZ 3G/4G LTE Embedded with Dual-SIM Slots ADSL2+ Wireless-N VPN Firewall Router 3. LAN Connection Connect the supplied RJ-45 Ethernet cable to one of the Ethernet ports, and the other side to the PC’s Ethernet interface. 4. EWAN Connection...
  • Page 9 Quick Start Guide 6. USB Connection FTP or Samba Server attached to the USB port. Simply plug in an external USB HD and do a setup in the GUI. <Please refer to User Manual for detailed instruction.> 7. Splitter/ Micro-filter Connection Splitter/Micro-filters are important for ADSL installation, they help ensure that high-frequency signals are directed to the ADSL modem, and low-frequency signals are directed to the telephone or other analog voice-channel device to prevent...

  • Page 10: Connecting To The Router

    Billion BiPAC 7820NZ 3G/4G LTE Embedded with Dual-SIM Slots ADSL2+ Wireless-N VPN Firewall Router Connecting to the Router 1. Open the web browser and type http://192.168.1.254 in the browser's address box. This number is the default IP address for this router. Press Enter.
