Sierra SmartTrak 100 Series Instruction Manual

Foundation fieldbus device specification, mass flow meters & controllers
Hide thumbs Also See for SmartTrak 100 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
SmartTrak
100 Series
®
Foundation Fieldbus
Instruction Manual
Foundation Fieldbus Device Specification for SmartTrak
®
Models: 100, 101 and 140
Mass Flow Meters & Controllers
Part Number: IM-100 FF-BUS Rev.V1
November 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartTrak 100 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Sierra SmartTrak 100 Series

Summary of Contents for Sierra SmartTrak 100 Series

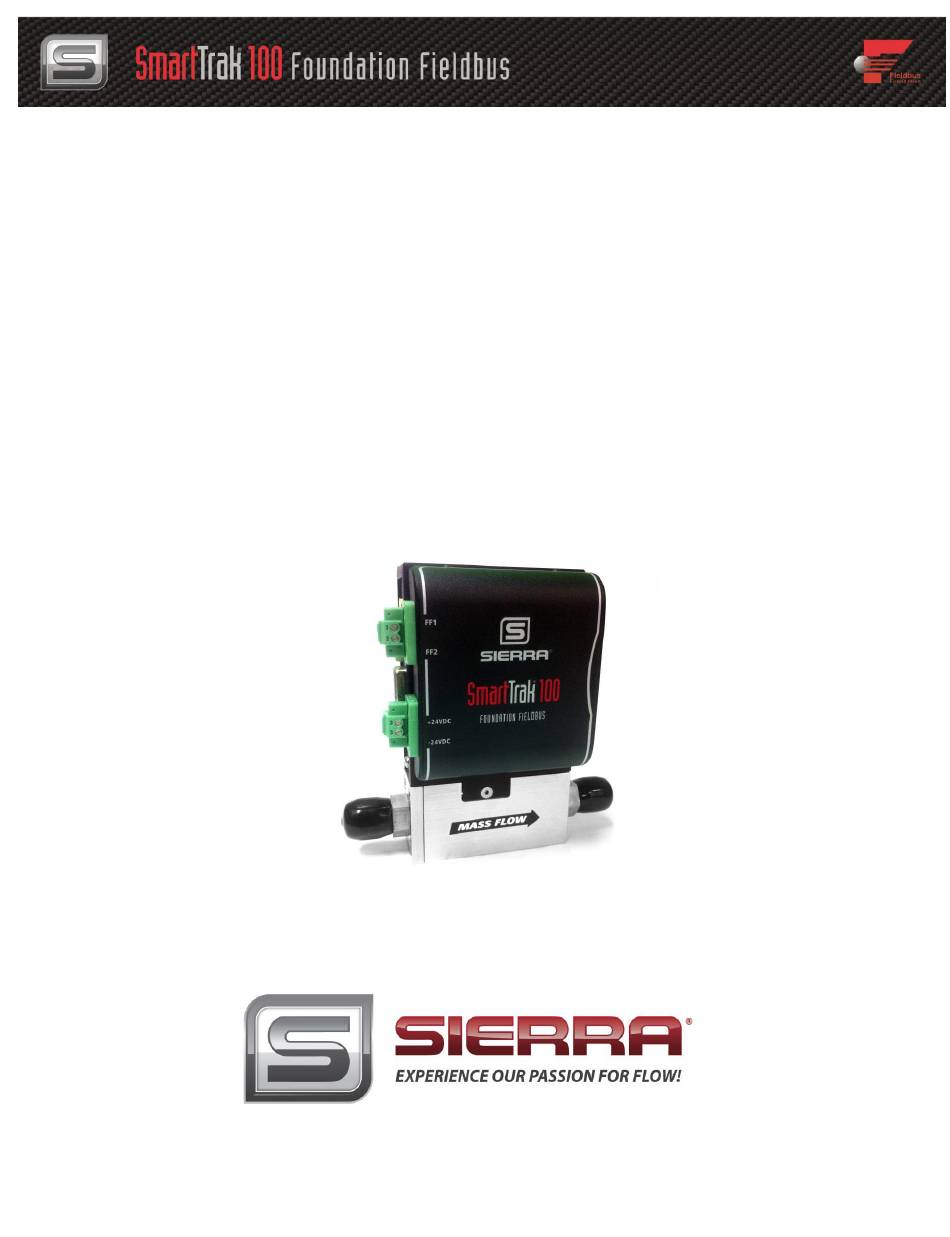

  • Page 1 SmartTrak 100 Series ® Foundation Fieldbus Instruction Manual Foundation Fieldbus Device Specification for SmartTrak ® Models: 100, 101 and 140 Mass Flow Meters & Controllers Part Number: IM-100 FF-BUS Rev.V1 November 2013...
  • Page 2 Sierra Instruments. The information contained in this manual is subject to change without notice. TRADEMARKS SmartTrak is a trademark of Sierra Instruments, Inc. Other product and company names listed in this manual are trademarks or trade ® names of their respective manufacturers.
  • Page 3 Warnings and Cautions Warning! Agency approval for hazardous location installations varies between flow meter models. Consult the flow meter nameplate for specific flow meter approvals before any hazardous location installation. Warning! All wiring procedures must be performed with the power off. Warning! To avoid potential electric shock, follow National Electric Code safety practices or your local code when wiring this unit to a power source and to peripheral devices.
  • Page 4 If the problem persists after following the troubleshooting procedures outlined in the SmartTrak 100 Series manual, contact Sierra Instruments by fax or by E-mail (see inside front cover). For urgent phone support you may call (800) 866-0200 or (831) 373-0200 between 8:00 a.m.

  • Page 5: Table Of Contents

    Table of Contents Table of Contents ..........................5 Chapter 1: Introduction ........................6 Chapter 2: Connecting the SmartTrak 100 to Your FF-BUS Network .......... 7 Chapter 3: Definitions ........................8 Chapter 4: Foundation Fieldbus Interface Configuration ............9 AI/AO Blocks ............................... 9 MODBUS_REGS_ (1 through 4) .........................

  • Page 6: Chapter 1: Introduction

    Chapter 1: Introduction This manual will explain how to add a Sierra flow meter or controller equipped with Foundation Fieldbus to your network. The Foundation Fieldbus interface allows access to all relevant data available in the flow meter. ® This manual is intended to document the configuration of the Sierra Instruments SmartTrak Series mass flow meters and controllers with the Foundation Fieldbus Communication Module.

  • Page 7: Chapter 2: Connecting The Smarttrak 100 To Your Ff-Bus Network

    Chapter 2: Connecting the SmartTrak 100 to Your FF-BUS Network ® The instrument power, 24 VDC (±10%) may be supplied via the DB15 connector (see SmartTrak 100 Instruction Manual, Chapter 4) or the lower terminal blocks on the FF-BUS Module. The unit uses more current than can be supplied by the H1 network.

  • Page 8: Chapter 3: Definitions

    Modbus: Modbus is another digital communication protocol and is only relevant here because the Sierra FF-BUS interface uses Modbus as an intermediary between the meter and the FF-BUS interface. For special configuration, you will only need a rudimentary knowledge of MODBUS.

  • Page 9: Chapter 4: Foundation Fieldbus Interface Configuration

    Chapter 4: Foundation Fieldbus Interface Configuration ® The SmartTrak 100 FF-BUS interface module uses a Modbus to FF-BUS translator board. This allows the user to configure most of the many variables accessible to the MODBUS interface. For the most part, the Modbus to FF-BUS translation is invisible to the end user unless they want to reconfigure the Transducer Block (TB) to access other Modbus variables.

  • Page 10: Chapter 5 - Configuring The Ff_Bus Using Ni-Fbus Configurator

    Chapter 5 – Configuring the device using NI-FBUS Configurator The National Instruments FBUS Configurator software is widely used for testing and configuration of FF-BUS devices. Consult your NI-FBUS Configurator manual for more information on this NI software (included in NI-FBUS help on the software). Before starting the NI-FBUS Configurator, you must import the DD using the NI-FBUS Interface Configurator Utility.
  • Page 11 Figure 3: Screen Before Writing Changes After completing the configuration, you should be able to read the variables being returned from your ® controller or meter on the same SIERRA_TB (TB) block on the “Others” tab. Flow SmartTrak (PV_1), Total (PV_2), Set Point Read (PV_3), and Factory Full Scale shown below. If you scroll down futher you’ll also see the static MODBUS_REGS_ values being read from the instrument.
  • Page 12 Current Flow Rate Total Current Set Point Rate Factory Full Scale Figure 4: Screen after Writing Changes Following is an example of writing a set point using a NI-FBUS Configurator under SIERRA_TB (TB). In this example, we will give the SmartTrak a set point of 100. The mode must be in “Manual” to do this.

  • Page 13: Modbus Com Settings

    3. Scroll back up to see PV_1, PV_2, PV_3, and PV_4 and you will see the flow rate is now 99.947, the accumulated total has increased, and the set point is now 100. Note: this assumes you have a gas source connected to the controller. Current Flow Rate Accumulated Total New Set Point...
  • Page 14 Figure 8: Screen Showing MODBUS_COM_SETUP...

  • Page 15: Chapter 6 - Available Modbus Registers

    Chapter 6 – Available Modbus Registers Although most users will be satisfied using the default configuration, other Modbus registers can be configured for Foundation Fieldbus access. Below in Table 4 is a list of all available Modbus registers. These would need to be configured in the transducer block. Description Read/Write Data type...

  • Page 16: Chapter 7 - Modbus Holding Register Defined

    .500 to 2.00. It is useful for adjusting the calibration or correcting the reading for another gas. See the SmartTrak 100 Series Instruction Manual, Chapter 4 for more information on the use of the span and K-Factors. This value will be returned to 1.000, if factory defaults are reset. The data type used is a 32 bit float format, Byte order 1-0-3-2.
  • Page 17 34 : Valve Position Index The Valve Position Index is the mode at which the valve of the controller will operate. The data type used is a 16 bit unsigned short integer, byte order 0,1. The table below shows the available values: Value Mode 0 or 1...
  • Page 18 38: Analog Output Index The analog output index is the value which indicates the current selected analog output of the instrument. This index does not affect the FF-BUS operation, only the analog output on the DB 15 connector. The table below shows the available values: Value Output Option 0 –...
  • Page 19 143: Device Type This 16 bit read only integer register displays the Sierra Instrument basic model series (100). 144: Serial Number Low Word The SmartTrak serial number is coded as a 32 bit unsigned integer split between 2 -16 bit registers, 144 and 145.
