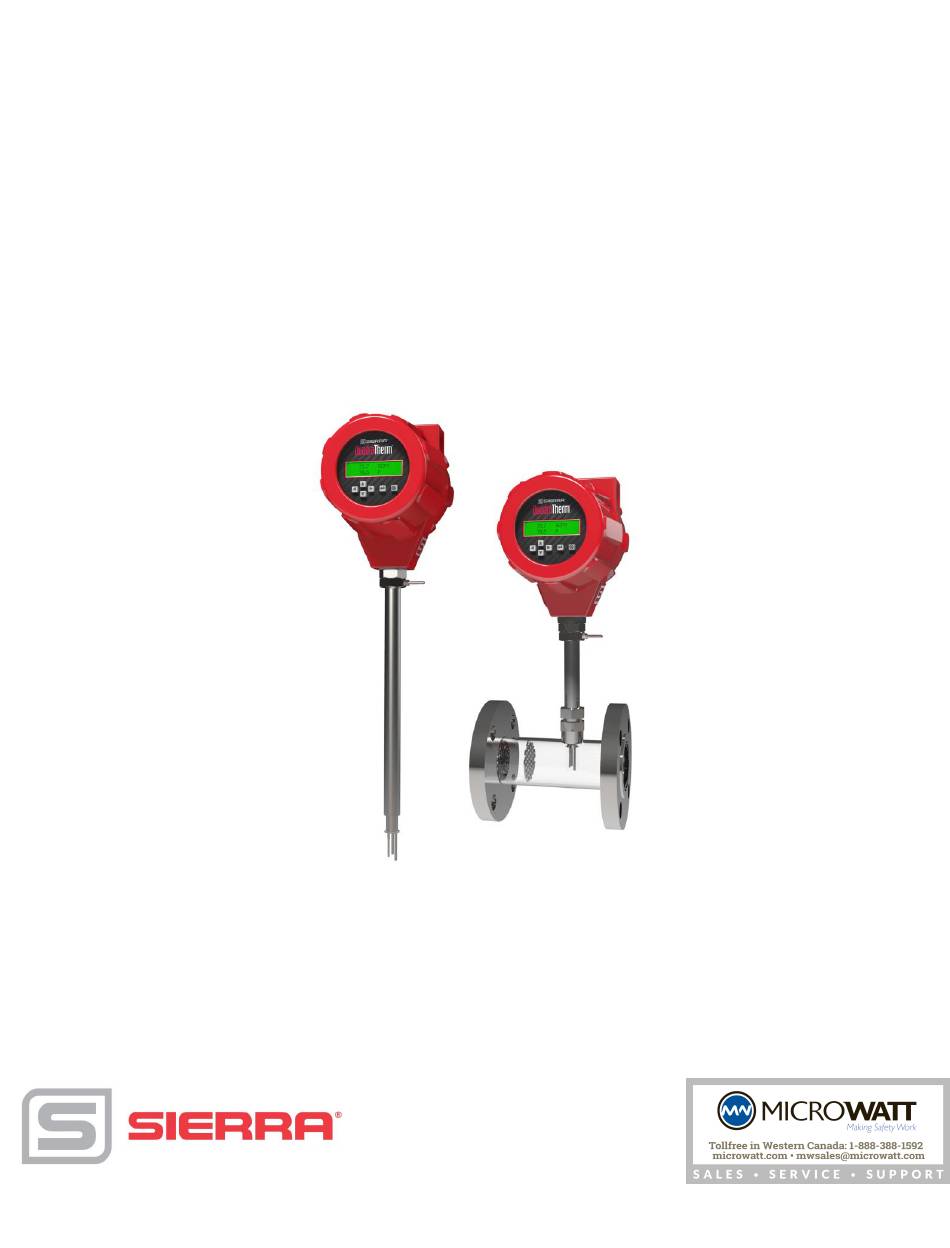

QuadraTherm
®
640i/780i Series
Insertion and In-Line Mass Flow Meters
Instruction Manual
Part Number: IM-640i/780i Rev.V20
August 2016
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QuadraTherm 640i Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sierra QuadraTherm 640i Series

  • Page 1 QuadraTherm ® 640i/780i Series Insertion and In-Line Mass Flow Meters Instruction Manual Part Number: IM-640i/780i Rev.V20 August 2016...
  • Page 2 Phone: + 8621 5879 8521 Fax: +8621 5879 8586 IMPORTANT CUSTOMER NOTICE- OXYGEN SERVICE Sierra Instruments, Inc. is not liable for any damage or personal injury, whatsoever, resulting from the use of Sierra Instruments standard mass flow meters for oxygen gas. You are responsible for determining if this mass flow meter is appropriate for your oxygen application.
  • Page 3: Table Of Contents

    Table of Contents Chapter 1: Introduction & Product Description..................... 5 Technical Assistance ............................7 Principle of Operation ............................8 qTherm™ Electronics Features ..........................9 Enclosure Options ............................... 10 Chapter 2: Installation & Wiring ...........................11 Installation Overview ............................11 Installing the Flow Meter ............................. 13 Cold Tap Installation ............................
  • Page 4: Warnings And Cautions

    Warnings and Cautions Warning! Agency approval for hazardous location installations varies between flow meter models. Consult the flow meter nameplate for specific flow meter approvals before any hazardous location installation. Warning! Hot tapping must be performed by a trained professional. U.S. regulations often require a hot tap permit.
  • Page 5: Chapter 1: Introduction & Product Description

    Chapter 1: Introduction & Product Description From Sierra’s beginning over forty years ago, Founder Dr. John G. Olin was driven by the vision of supplying industrial customers with the world’s most accurate thermal mass flow meter. And, he knew it was a “sensor” game.
  • Page 6 Features and Benefits  Accuracy (air) +/- 0.5% of reading from 50% to 100% of full scale +/-0.5% of reading plus 0.5% of full scale from 0% to 50% of full scale  Patented vastly improved thermal sensor element for high accuracy ...
  • Page 7: Note And Safety Information

    If the problem persists after following the troubleshooting procedures outlined in Chapter 4, contact Sierra Instruments by fax or by E-mail (see inside front cover). For urgent phone support you may call (800) 866-0200 or (831) 373- 0200 between 8:00 a.m.
  • Page 8: Principle Of Operation

    Principle of Operation Watch a principal of operation video at www.sierrainstruments.com/thermalprincipal Sierra’s unique QuadraTherm™ sensor probe is responsible for the unsurpassed accuracy, ruggedness, and reliability of Sierra industrial flow meters. The immersible sensor consists of four sensing elements–a velocity sensor, a temperature sensor, and two stem conduction sensors that measure heat lost to the outside.
  • Page 9: Qtherm™ Electronics Features

    qTherm™ Electronics Features qTherm™ Dial-A-Gas™ Technology Select gas to be measured qTherm™ Dial-A-Pipe™ Technology Set-up pipe dimensions Units Select units for mass flow, temperature, and pressure User Full Scale Flow Rate Field-configure from 50% to 100% of the factory full scale setting Alarms Program high &...
  • Page 10: Enclosure Options

    View Communications Protocol Parameters View communications settings: 38,400 Baud rate, no parity, 8 data bits, and 1 stop Bit ValidCal™ Diagnostics Review minimum, maximum flow, temperature and pressure and other diagnostics Enclosure Options Flow meter electronics are available mounted directly to the flow body, or remotely mounted up to 200 feet (60 meters) away.
  • Page 11: Chapter 2: Installation & Wiring

    Chapter 2: Installation & Wiring Installation Overview The 640i and 780i are easy to set up in the field. The flow meter should be inserted to the centerline of the pipe. When selecting an installation site, make sure that: 1. Line pressure and temperature will not exceed the flow meter rating.
  • Page 12: Unobstructed Flow Requirements

    Unobstructed Flow Requirements Select an installation site that will minimize possible distortion in the flow profile. Valves, elbows, control valves and other piping components may cause flow disturbances. Check your specific piping condition against the examples shown below. In order to achieve accurate and repeatable performance, install the flow meter using the recommended number of straight run pipe diameters upstream and downstream of the sensor.
  • Page 13: Installing The Flow Meter

    Installing the Flow Meter When positioning the flow meter, refer to the flow direction indicator at- tached to the probe. For proper operation, install the meter with the flow direction indicator pointing downstream in the direction of flow. Installing the meter opposite this direction will result in inaccurate flow measurement Cold Tap Installation 1.
  • Page 14: Hot Tap Installation

    Hot Tap Installation When positioning the flow meter, refer to the flow direction indicator at- tached to the probe. For proper operation, install the meter with the flow direction indicator pointing downstream in the direction of flow. Install- Warning! Hot tapping must be ing the meter opposite this direction will result in inaccurate flow meas- performed by a trained urement.
  • Page 15 Calculating Insertion Depth for a Low Pressure Tap 640i Insertion Low Pressure Hot Tap To 150 psig (10.3 barg) Figure 2-2: Low Pressure Tap Insertion Depth...
  • Page 16 Policy. internal components of this precision instrument. Water penetration can lead to a damaged flow meter. Sierra’s "E" HALE ex-proof enclosures are rated to a NEMA4X, IP66 rating. This provides protection against, rain, sleet, snow and splashing water, but water can damage the sensor, electronics or wiring terminals if the meter is not properly installed and maintained.
  • Page 17 Corrective action can be made based on this data before instrument degradation sets in. Contact Sierra Instruments for suggested sources of small dataloggers. ...
  • Page 18: Wiring Connections

    Wiring Connections - General Use the terminal blocks located inside the cap of the flow meter enclosure for all wiring connections. Make sure to observe all CE compliance requirements for AC wiring connections given on the next Warning! page. To avoid potential electric shock, follow National Elec- tric Code safety practices or your local code when wiring...
  • Page 19: Input Power Wiring

    Input Power Wiring Note: AC power must be ordered at the factory. DC units cannot be Warning! powered with AC. All wiring procedures must be performed with the power Off. AC Power Wiring The AC power wire size must be 26 to 16 AWG with the wire stripped 1/4 Caution! inch (6 mm).
  • Page 20 DC Power Wiring The DC power wire size must be 26 to 16 AWG with the wire stripped 1/4 inch (6 mm). Connect 24 VDC +/- 10% (1.04A load, maximum) to the Warning! terminals marked on the terminal block. Connect the Earth ground wire to All wiring procedures must the safety ground lug.
  • Page 21: Output Signal Wiring

    Output Signal Wiring Output signal cable should be completely screened with a 100% shield. You must use metal cable glands that provide cable screen clamping. The Warning! cable screen should be connected to the gland and shielded at both ends Do not externally power over 360 degrees.
  • Page 22: Alarm Output Wiring

    Figure: 2-8 Ferrite Installation (Ferrite not required for conduit) Alarm Output Wiring One alarm output contact is included on the flow meter terminal block. The alarm output is driven by an optical relay that is normally-open single-pole. The relay is isolated and requires a separate power supply (isolated) the voltage of the alarm output is the same as the voltage supplied to the circuit.
  • Page 23: Pulse Output

    RS-232 Wiring RS-232 provides serial communication. Wire per figure 2-10. Figure 2-10: RS-232 Communication Pulse Output QuadraTherm provides an adjustable pulse output with a maximum of 1 Hz. Wire per figure 2-11 below. Figure 2-11:Pulse Output...
  • Page 24: Usb Output

    USB Output If supplied, plug your USB adapter into J1, per figure 2-12 (USB pending). Figure 2-12: USB Output (pending)
  • Page 25: Remote Sensor Wiring

    When connecting more than one meter, do not intermix the sensor probes and electronics. The elec- tronics, sensor probes and interconnecting cables supplied by Sierra In- struments are calibrated as a complete precision mass flow circuit.
  • Page 26 Figure 2-14 and 2-15 Remote Junction Box Pressure Transducer Option...
  • Page 27: Chapter 3: Operation & Programming

    Chapter 3: Operation & Programming General Navigation In general terms, the menu system consists of a main menu, the set-up menu, a sub- menu to program each item in the set-up menu, and a series of data entry or pull- down screens with to enter set-up data for each parameter.
  • Page 28: Start-Up Routine

    Start-up Routine Then the meter is first powered up, it will cycle through set-up data. See an example below of the type of screens you will see. 1. Product Name and Firmware Version. Left is main PCA / right is display PCA 640i/780i V1.0.X 2.
  • Page 29 Once set-up data is displayed, the meter will display the flow variables. The instrument will Auto Scroll through each flow variable. You can turn OFF the Auto Scroll feature by hitting  down arrow. Auto Scroll  Turn Auto Scroll back ON again by hitting the up arrow.
  • Page 30: Level 2: Sub-Menu (Password Protected)

    6. qTherm Dial-A-Gas (Gas Type) Dial-A-Gas Carbon Dioxide 7. qTherm Dial-A-Pipe Dial-A-Pipe 8. Reference Conditions Ref: Standard 14.695949 / 70.0 9. Serial Serial 1234XXXX 10. Tag 1234XXXX And finally complete the cycle back to the flow and temperature screen. Level 2: Sub-Menu (Password Protected) At this point, you can access various other menus .To enter the next level press the enter key.
  • Page 31: Calibration (Sub-Menu)

    Table 3-2: Level 2 Sub-Menu Calibration (Sub-Menu) Table 3-3 below Navigate to the Calibration Sub Menu, use for guidance if necessary. The calibration menu allows you to set up the meter to match the application. Calibration (Sub-Menu) To start, move down to the next level by pressing the enter key (). From this level, you can set up Dial-A-Gas and Dial-A-Pipe, as well as flow and temperature units (pressure is optional and has its own set-up menu to be covered later).
  • Page 32: Calibration (Sub-Menu): Gas Type -"Qtherm Dial-A Gas

    Use the up and down keys to scroll through the available qTherm Dial-A-Gas menu. The meter can be pre-configured with four gases from Sierra’s qTherm Gas Library. There are eighteen gases and gas mixes available from the Sierra qTherm Gas Library. Sierra will continually update the library as more gases and mixtures become available.
  • Page 33 Navigate to the “Dial-A-Pipe ID” screen. Use Step 1(Dial-A-Pipe): Table 3-3: Calibration Sub-Menu for guidance if necessary. The display will show pipe inner diameter in the units selected. In the example below the inside diameter of the pipe is 6.065000 inches. Dial-A-Pipe ID 6.065000 / In Press enter ...
  • Page 34: Calibration (Sub-Menu): Flow Units

    cs-normal cs-rough c-fiber cast-iron concrete Glass ss-UHP where: ss = stainless steel cs = carbon steel c-fiber = carbon fiber UHP = ultra-high purity (5 – 10 Ra finish) Again, use the  up and  down keys to select. Choice will flash until the enter key  is pressed.
  • Page 35: Calibration (Sub-Menu): Temperature Unit

     SMPS, SMPM, SMPH, SMPD, SMPY: Standard Meters per Second, Minute, Day, Hour or Year. Note this is a point VELOCITY. You can press the exit  several times to climb back up to the main menu level or press to proceed to the next Calibration Sub-Menu called Temperature Units.
  • Page 36: Calibration (Sub-Menu): Low Flow Cut Off

    The Calibration Date is a read-only field that shows when the meter was last factory-calibrated in MM/DD/YYYY format. Calibration Date 08/13/2012 Sierra recommends recalibration as required by your metrology policy or when the meter validation routine found in the Smart Interface Program software detects a problem. See Meter Validation in XXXXXX).
  • Page 37: Calibration (Sub-Menu): Full Scale Flow

    You can press the exit  several times to climb back up to the main menu level or press to proceed to the next Calibration Sub-Menu called Full Scale. Calibration (Sub-Menu): Full Scale Flow The full scale value is the flow value that corresponds to 20mA on the Flow 4-20mA analog output.
  • Page 38: Process Pressure Sub-Menu: Process Pressure

    Use the enter key () to drill down to Pressure Units selection. Press enter  and the units will begin flashing. Use the buttons to enter the desired information, and the enter key () to save the value. Pressure Units Psia Available units are: ...
  • Page 39: Totalizer Sub-Menu: Reset Pulse Count

    The Totalizer Sub Menu controls all aspects of the totalizer function. Totalizers are used to monitor accumulated flow, often for billing and cost allocation purposes. The totalizer sub- menu is used to turn the totalizer ON or OFF, to reset, and to tell the meter when to send out a totalizer pulse and what that pulse should look like Table 3-5: Totalizer Sub-Menu Totalizer (Sub-Menu): Reset Totalizer...
  • Page 40: Totalizer (Sub-Menu): Units Per Pulse

    To reset this to zero, press enter () and a “YES” will appear and flash. Reset Pulse Cnt. Press enter () again and the pulse counter will be reset. In addition, from the screen above you can press the down button to a flashing “NO”. Pressing enter () will return back to the Reset Pulse Count screen.
  • Page 41: Totalizer (Sub-Menu): Totalizer On/Off

    Table Use this menu to select the units per pulse. Navigate to the Units Per Pulse screen 3-5 above for guidance if necessary. Note the maximum frequency at which the totalizer can count is 1 pulse per second, or 1 Hz. This puts a limit on the units per pulse and makes resolution dependent on flow rate.
  • Page 42 Alarm (Sub-Menu) The alarm sub menu controls all aspects of the 640i and 780i Alarm feature. The instrument can be set to alarm on one of the following variables: Flow, Pressure, Temperature or Totalizer. The instrument alarm can be set on one of the following conditions: Low, High or Window. The Window alarm becomes active when the parameter reads higher OR lower than the set point (when it is outside of its “operating window”).
  • Page 43 You can press the exit  several times to climb back up to the main menu level or press to proceed to the next Sub-Menu called Alarm Mode. Alarm (Sub-Menu): Alarm Mode Table 3-6 above Navigate to the Alarm Mode screen for guidance if necessary.
  • Page 44: Output Adjust (Sub-Menu): Flow, Pressure And Temperature

    set the Active Alarm to “Flow” and the alarm condition is set to go off on a “Low” flow. The Flow Alarms (Sub Menu) allows you to set the actual alarm setpoint along with hysteresis. Press enter () and the units will begin flashing. As in previous examples, use the buttons to enter the desired numeric value, and the enter key () to save the value.
  • Page 45 All values in the output menu have been calibrated and set at the factory. You only need to enter these screens if you wish to view, adjust, or test any of the values. Setting Up: 4-20 mA Outputs We will set Flow 4-20 mA to demonstrate this function. The same routines apply for setting up Pressure 4-20 mA and Temperature 4-20 mA.
  • Page 46: Getting 4 To 20 Ma For Temperature And Pressure

    NOTE: The engineering units are as set in the Calibration (Sub Menu). Go to that section for more detailed information. In the example above, assume full scale flow is 100 SCFM. As a result, a 20 mA output equals 100 SCFM and 4 mA output equals 0.00000 SCFM. These values are fixed for flow. The output is linear between these two points, in this example, if we had a flow of 50 SCFM, the output would be 12 mA.
  • Page 47: Reference Conditions (Sub-Menu): Standard And Normal

    Temperature High 212.00 In the example above, if your temperature units are °F then 212.00 °F would correspond to the temperature 20mA output. Press enter key () and use the left right up and down keys to modify this value if desired and then press the enter key () to accept. If you change these temperature low/high values the temperature accuracy is still based on the original +/-1°C specification.
  • Page 48: Diagnostics (Sub-Menu)

    In Europe, Nm3/hr (Normal Cubic Meters per Hour) is commonly used. The N = Normal and is generally referenced to 0°C and 101.32 KPa A(or 1 atmosphere). Once a “Standard” or “Normal” selection has been made press enter () again to go to the adjust screen.
  • Page 49 Table 3-9: Diagnostics (Sub Menu) Change Password (Sub-Menu) Use this menu to set or change a password. Navigate to the Change Password (Sub Menu) Table 3-9 above for guidance if necessary. A password is required to access the set-up sub menu’s. Press enter () and the four digit password units will begin flashing.
  • Page 50 You can press the exit  several times to climb back up to the main menu level or press to proceed to the next Sub-Menu called Output Filter. Output Filter (Sub-Menu): Use this menu to view or change your current Output Filter value. Navigate to the Output Filter Table 3-9 above (Sub-Menu), for guidance if necessary.
  • Page 51: Chapter 4: Troubleshooting & Repair

    Chapter 4: Troubleshooting & Repair Troubleshooting the Flow Meter Begin hardware troubleshooting by verifying the following facilities is- sues are correct. These areas impact system operation and must be corrected prior to performing any flow meter inspections. Verify the incoming power to the flow meter is present and of the correct voltage and polarity.
  • Page 52 Problem Possible Cause Solution Velocity measurement is Very erratic or non-uniform flow Follow installation requirements shown erratic or fluctuating in Chapter 2 Flow meter installed with less than Follow installation requirements shown required minimum pipe diameters in Chapter 2 upstream and downstream of the sensor Sensor probe must be mounted se- Insertion sensor probe not mounted...
  • Page 53: Returning Equipment To Factory

    Factory Calibration—All Models Sierra Instruments maintains a fully-equipped calibration laboratory. All measuring and test equipment used in the calibration of Sierra transducers are traceable to NIST Standards. Sierra is ISO-9001 registered and conforms to the requirements of ANSI/NCSL-Z540 and ISO/IEC Guide 25.
  • Page 54: Appendix A: Product Specifications

    Appendix A: Product Specifications...
  • Page 65: Appendix B: Smart Interface Installation

    Operation System: Windows QuadraTherm 640i & 780i Sierra Interface Program (SIP): Click on the file (640i & 780i Sierra Interface Program). This file is self-extracting. Follow instructions for installing the files. Process takes about 1-10 minutes total depending on speed of your computer.
  • Page 66: Program Start-Up

    Program Start-up The smart interface program allows the user to configure the unit and view all unit parameters. NOTE: The current version of the program. You may obtain the latest version from www.sierrainstruments.com. Make sure your meter is powered up and the meter is connected via the serial or USB port to the computer running this SIP program.
  • Page 67: Meter Data

    Meter Data The meter data shows the basic identifying data of the meter hardware, firmware and manufacture date. The calibration date represents the last time the meter was factory calibrated. Latest PCA and Firmware revisions are posted at www.sierrainstruments.com. The qTherm™ math model is continuously evolving, with new gases added to the library periodically, so check the firmware revision periodically in order to take advantage of these refinements.
  • Page 68 In this example:  The gas being measured is air  The calibrated full scale (FS) is 1440.40 SCFM  The inside diameter of the pipe is 4.0260 Inches  The meter is currently reading 0.0000 SCFM (there in no flow in the pipe) ...
  • Page 69 Quick Keys: Dial-A-Pipe The Dial-A-Pipe feature makes field configuration very convenient. You must know the type of pipe and either the pipe schedule or the inside diameter. If inside diameter is known, select the units from the diameter units menu and type in the number in the Inside diameter field.
  • Page 70 Selecting qTherm Gas Library from the Dial-A-Gas pull down menu allows users to access Sierra’s unique Dial-A-Gas library. Our library is continually growing and expanding. As Sierra calibrates more and more gases with the 640i, we are able to improve the accuracy of our current qTherm gases and add new ones.
  • Page 71 All Gas Files saved on your computer are displayed in the ‘Local Gases’ window. These are not necessarily the gas files in your meter, but ones you have downloaded from the Sierra Server previously. If you have never done so, this area will be blank.
  • Page 72 Download Gas File (Arrow Button) To download a remote gas file, the file is selected in the Remote Gas window and the arrow button is clicked. Once the download is completed, the gas file will appear in the Local Gases window and will no longer appear as red in the Remote gases window.
  • Page 73 Quick Keys: Alarm Setpoint Pressing the Alarm Setpoint Quick Key brings up the following details about the alarms: Only one alarm can be active at any time. Use the Active pull down menu to select the active alarm or to turn off the alarm function entirely. Once you have selected the active alarm, use the Mode pull down menu to select whether the meter should alarm on low, high or to set an alarm window.
  • Page 74 It must be performed under no flow conditions. The meter must be removed from the pipe if possible, and the Sierra end cap placed over the sensor. The test may be performed in the pipe provided these same conditions are met while the probe tip is inside the...
  • Page 75 If any of the tests fail, follow the troubleshooting tips below and the more general ones contained in chapter four of this manual. 4-20 mA Output Validations The 4-20 mA output validation allows users to force a 4 or 20 mA output on all three analog outputs.
  • Page 76 Press Test 4 mA and enter the value from your DVM (should be around 4.000 mA) The program will show passed provided the reading is within tolerance. If it shows failed, please contact the factory for assistance. Repeat this procedure for all remaining 4- 20 mA tests. The most common failure is that the 4- 20 mA wires have become loose or that the DVM is incorrectly set up (must be set up for measuring direct DC current in the mA range).
  • Page 77 This routine checks the QuadraTherm gas temperature sensors (T2, T3 and T4). Select Validate Temperature, then Enter the temperature in the pipe as read by another device (not the Sierra flow meter) in the pop-up window. The readings should be roughly the same. Note it can take up to 20 minutes for the probe tip to cool to the surrounding temperature once it has been removed from the pipe.
  • Page 78 This routine validates the gas pressure sensor. Select validate pressure, then enter the pressure in the pipe or test area as read by another device (not the Sierra flow meter) in the pop-up window. The readings should be roughly the same. If there is no pressure transducer, the Screen will appear as below.
  • Page 79 Use the pull down menu to select relay Open and close and use your DVM to check the relay. Test Totalizer Relay Hook up DVM s shown: Open and close the relay and use your DVM to check the relay.
  • Page 80 Low/High FTP Pressing the Low/High FTP button (located at the bottom left of the main ValiCal screen brings up the following data screen. It shows the lowest and highest flow, temperature and pressure the meter has experienced since the last reset. This information is valuable in documenting events that might have caused meter damage, such as blowing out the pressure transducer or severely overheating the sensor.
  • Page 81: Function Selector

    Quick Keys: Exit Exit will immediately close the program. Any unsaved data will be lost. Function Selector The function selector does all of the same things the quick keys do, while giving deeper access to some functions. To operate the selector, pick the desired function from the drop-down menu and hit enter or left click.
  • Page 82: Reference Conditions

    Dial-A-Pipe See Dial-A-Pipe Quick Key Description Dial-A-Gas and Units See Dial-A-Gas Quick Key Description qTherm Gas Library See qTherm Gas Library information on page 66 Alarm Setpoint See Alarm Setpoint Quick Key Description ValidCal Diagnostics See ValidCal Quick Key Description MeterTune (Span Adjust) See MeterTune Quick Key Description Reference Conditions...
  • Page 83 which gas MASS flows are referenced. Typically this is 70°F and 1 atmosphere in the USA (f.i. standard conditions as used in scfm: standard cubic feet per minute) or 0°C and 1 atmosphere in Europe (f.i. normal conditions as used in nlpm: normal liters per minute). Totalizer Setup/Reset If units are not mass flow, it will not turn on.
  • Page 84: Low Flow Cut Off Value

    Low Flow Cut Off Value Due to thermal gradients, movement of gas molecules in the pipe can occur even with all valves shut. The Zero Cut Off forces both analog and digital outputs to zero at a percentage of the full scale.
  • Page 85 for which the meter was calibrated. Exceeding it will not damage the meter, but flow readings will not be accurate. The calibrated full scale is found in the calibration menu. Note the meter will still read digital flow values up to the calibrated full scale, but analog outputs will be scaled per the user settings Pressure and temperature may be scaled as the user desires.
  • Page 86: Meter Information

    Save/Restore Data This screen allows users to:  Save any new data  Restore the meter to factory default (undoing any changes)  Reboot (restart) the meter Meter Information User information allows you to view data about the meter and to customize some aspects of it.
  • Page 87: Display Language

    You must be hooked up to the internet so you can download these files from the Sierra Server. If the language file is a newer version than a corresponding local file or is not present locally, then it appears in red. Files that are already saved...
  • Page 88 Download Language File (Arrow Button) To download a remote language file, the file is selected in the Remote Language window and the arrow button is clicked. Once the download is completed, the language file will appear in the Local Languages window and will no longer appear as red in the Remote Languages window. If a new version of a language file is downloaded, the older local version is moved into the Archive directory.
  • Page 89: Appendix C: Flow Totalizer Feature

    Flowmeters shipped prior to September 3, 2013 (firmware 1.0.73 or lower) will need to send their meters back to the factory for a FREE firmware upgrade which activates the feature. Please return instrument to Sierra via the Return Materials Authorization (RMA)
  • Page 90 Overview of Flow Totalizer Features Figure 1. Flow Totalizer User Interface Turn Totalizers On/Off, Test or Reset Totalize accumulated flow for each of four loaded gases loaded into the instrument. The totalizer for each gas can be activated or reset independently of the others. Each gas also has its own value for pulse width and units per pulse.
  • Page 91 Figure 2. Turn Totalizers On/Off, Test and Reset NOTE If units are not mass flow, this menu is locked.
  • Page 92 Set Units Per Pulse and Pulse Width Each totalizer can use a different unit per pulse and pulse width. The unit per pulse is the mass of the active gas that must accumulate before the meter generates a pulse. It will be in the mass units selected in the units menu.
  • Page 93 Figure 4. Setting Units Per Pulse and Pulse Width NOTE Each totalizer operates at a maximum frequency of 1 Hz (1 pulse per second). This limits the maximum units per pulse.
  • Page 94 Figure 5. Setting Up a Gas to Totalize Summary: Setting Up A Gas To Totalize (see Figure 5) 1. Only the active gas will be totalized. The active gas is selected from the Dial-A-Gas menu in the previous screen and cannot be changed from this screen. 2.
  • Page 95 7. To test the totalizer relay pulse, set Force Totalizer Relay Pulse to On and click the Save button. Return to Off position when you wish to end the pulse testing. 8. Save your changes. 9. Use the Exit button to return to the main menu.
  • Page 96: Appendix D: Qmix™ Gas Mixing Feature

    “My Gases Database” – To locate a complete history of qMix gases created and/or gases downloaded from Sierra’s qTherm “Gas Database,” click the “My Gases Database” button on the main menu. You can also upload gases to your meter from your “My Gases Database”.
  • Page 97 Create and upload unlimited gas mixtures onto one meter–free of charge • Save custom gas mixtures onto your personal “My Gases Database” for later use • Benefit from Sierra’s proprietary, ever improving qTherm “Gas Database” to download more accurate gases Figure 1. “qMix Gas Composition” User Interface 97 ...
  • Page 98 (2 ) % o f fu l l s c a le (3 ) Air is standard on the instrument and cannot be removed (4 ) The Sierra qTherm “Gas Database” is a proprietary gas property index that is continuously updated and improved Getting Started with the qMix Beta Trial To get started, first you need to determine if your QuadraTherm 640i/780i mass flow meter currently supports qMix.
  • Page 99 During this beta trial, Sierra will offer the upgrade package for $250.00 which includes: firmware upgrade to 1.0.87 and required air calibration (a savings of $245 off the normal recalibration cost of $495).
  • Page 100 2. When you click the “qMix Gas Composition” button, if this is the first time you have started this qMix feature, you will see a “New Free Trial! Get Started Now” window. Click the green “Get qMix™ Started Now!” button to continue. A “Free Trial Activation”...
  • Page 101 4. You will be directed to Sierra’s website to either register for a new account or login to an existing account. If you have an account, use the “Registered Customers” section. If not, fill in the “New Registration” section. 101 ...
  • Page 102 5. Once registered or logged in, you will be directed to a qMix registration and activation page on Sierra’s website. Under “Your Activation Code,” you will see your unique qMix activation code. You will also get an email confirming your registration and your activation code for your records.
  • Page 103 7. You will be directed to the “Activation Complete” window detailing the benefits of your new qMix beta trial, including an explanation of your meter upload credits and a qMix Tutorial video. Click “Continue” to access the “qMix Gas Composition” screen. 8.
  • Page 104 qMix Activation Steps on 640i/780i SIP (no internet connection) 1. To begin using qMix you need to download your Smart Interface Program (SIP) software. Then click “qMix Gas Composition” button or select “qMix Gas Composition” from the function selector drop down on the main menu. 2.
  • Page 105 3. A Sierra customer service representative will request the following information for account registration: 4. Once you registration is complete, you will be provided with an activation code. Enter your code into the text field and click “Start Free Trial.”...
  • Page 106 5. The “Activation Complete” window will pop up detailing the benefits of your new qMix beta trial, including an explanation of your meter upload credits and a qMix Tutorial video. Click “Continue” to access the “qMix Gas Composition” screen and begin creating gas mixtures. 106 ...
  • Page 107 Overview of qMix Gas Composition User Interface Figure 2. Overview of “qMix Gas Composition” User Interface           107   ...
  • Page 108 Create a New Gas Composition Using qMix To learn how to create a new gas composition watch the qMix How to Video and follow the instructions on the following pages.  Video URL: http://www.sierrainstruments.com/library/videos/qmix 1. If you are not already on the “qMix Gas Composition” page, then click the “qMix Gas Composition”...
  • Page 109   Click “Add Gas” to Add Your Gas Enter Gas Composition Select Percentage for Target Target Gas Total Gas Composition Percentage of Target     Figure 4. Add Target Gas and Define Gas Composition Percentage   3. To edit a gas composition percentage, go to the “Create Gas Mix” section. Click directly on the percentage value and enter the new percentage value.
  • Page 110 4. Select the next target gas for your mixture from the “Gas Database” section and click “Add Gas”. In this example, 73% of Hydrogen is added. The gas composition percentage total is now at 98%.  Select Target Gas Gas Composition Percentage Total of Gas Mixture  ...
  • Page 111 6. To successfully generate a gas mixture, your total gas percentage must equal 100%. In this example, the gas composition percentage is 98%. If you try to generate the mixture a message will pop up prompting you to re-adjust or normalize your gas composition percentage to reach 100%.
  • Page 112 8. Once your gas composition reaches 100%, select a mix basis and enter a mix name. You can choose between “Volume” and “Mass” in the “Mix Basis” dropdown. Volume is how much space an object takes and mass is the amount of matter an object contains.  In this example, “Volume” is selected and the mixture is named “GasMix”.
  • Page 113 10. Your new gas mixture is now in your “My Gases” section which shows the name of your gas, the type (either qMix or qTherm), and the gas composition percentage. Your New Gas Mixture Appears in Your My Gases Section Which Includes Gas Name, Type, and Gas Composition  ...
  • Page 114 Load Your Gas onto Your Meter (with internet connection)   1. To upload a gas onto your meter, first select the gas or gas mixture you want to upload; then click the green “Upload Gas Mix to Meter” button. Click to Upload Gas Mix to Meter 2.
  • Page 115 3. A message will appear asking if you would like to save the gas being replaced to your “My Gases” Database. It is recommended that you save the gas you are replacing, so you have the option to use it again in the future. Click “Yes” to continue. 4.
  • Page 116 5. A message will ask if you are sure you want to use 1 of your Gas Upload Credits to load your gas. During the beta trial, once you have used your 5 gas upload credits, you will be issued five more credits free of charge.
  • Page 117 6. A progress icon will appear showing the gas being uploaded onto your meter. Once complete, a message will appear notifying you that your gas was successfully loaded onto your meter. Click “OK” to continue. 7. To activate your new gas, go to your SIP main menu and click the qTherm “Dial-A-Gas & Units” button or select it from the function selector drop down.
  • Page 118 8. Click the “Selected Gas” dropdown and choose your new qMix gas.                       9. You can also adjust your meter gases by clicking the “My Gases Database” button or selecting it from the function selector drop down on the SIP main menu.
  • Page 119 Load Your Gas onto Your Meter (without internet connection)   1. To upload a gas onto your meter, first select the gas or gas mixture you want to upload; then click the green “Upload Gas Mix to Meter” button. Click to Upload Gas Mix to Meter 2.
  • Page 120 3. A message will appear asking if you would like to save the gas being replaced to your “My Gases” Database. It is recommended that you save the gas you are replacing, so you have the option to use it again in the future. Click “Yes” to continue. 4.
  • Page 121 5. A message will ask if you are sure you want to use 1 of your Gas Upload Credits to load your gas. During the beta trial, once you have used your 5 gas upload credits, you will be issued five more credits free of charge.
  • Page 122 6. If you are not connected to the internet, a new window will appear displaying your Client Code. Please call the Sierra Customer Support line (800) 866-0200 and provide the Client Code displayed on your screen. The Support Representative will then provide you with a Verification Code.
  • Page 123 11. To activate your new gas, go to your SIP main menu and click the qTherm “Dial-A-Gas & Units” button or select it from the function selector drop down.                     123   ...
  • Page 124 12. Click the “Selected Gas” dropdown and choose your new qMix gas.                       13. You can also adjust your meter gases by clicking the “My Gases Database” button or selecting it from the function selector drop down on the SIP main menu.
  • Page 125 ® Database” You can also download gases from Sierra’s qTherm “Gas Database” and save them to your “My Gases Database.” Sierra qTherm gases have a higher accuracy (between +/- 0.5% to +/- 3.0%), generally a result of actual gas calibrations at Sierra or updates to gas properties. The qTherm “Gas Database” is continually growing as new gases and mixtures are added or updated.
  • Page 126 2. Select the qTherm gas you would like to download to your “My Gases Database.” Select a gas or multiple gases from this list by holding down the shift button. Then click the “Download Selected qTherm Gases” button. This will cause the selected qTherm gases to turn black to signify that you own them and are no longer available for download.
  • Page 127: Appendix E: Warranty Policy

    Limited Warranty Policy- Register Online All Sierra products are warranted to be free from defects in material and workmanship and will be repaired or replaced at no charge to Buyer, provided return or rejection of product is made within a reasonable period but no longer than one (1) year for calibration and non-calibration defects, from date of delivery.
  • Page 128: Appendix F: Protective Sensor Shield Information

    Appendix F: Protective Sensor Shield Information   128   ...
  • Page 129 129   ...
  • Page 130   130   ...
  • Page 131 131   ...
  • Page 132 132   ...
