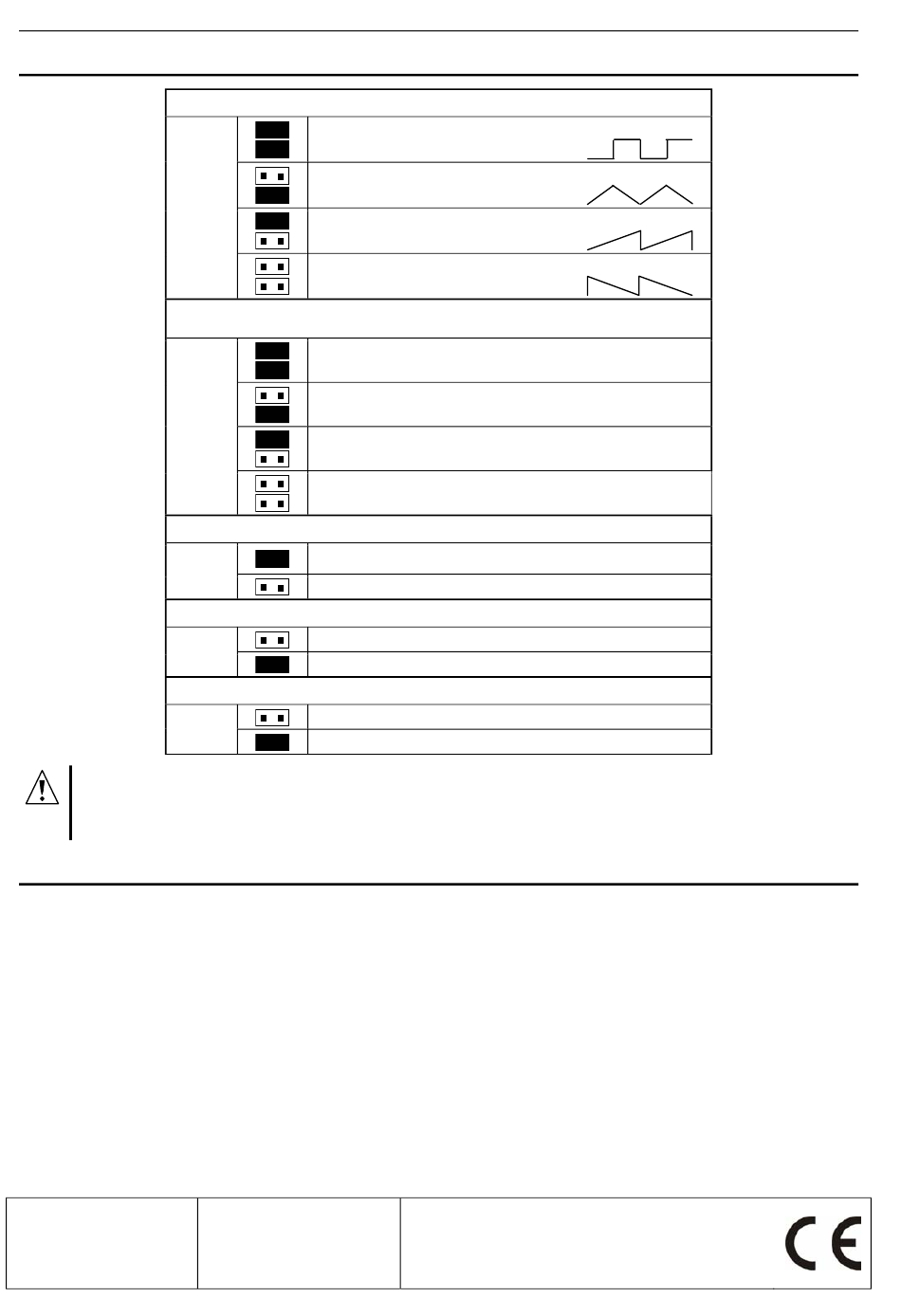

5. Jumper settings

ML0
ML1
TM0
TM1
O+A
PLA
PLO
The converter powering the optical signaling circuit generates high voltage, which can
result in electric shock Therefore, all connections have to be made while the battery is
disconnected, and the +12V wire is to be connected last.

6. Technical data

Power supply voltage
Average current consumption: acoustic signaling
Average current consumption: visual signaling
Average current consumption: signaling + charging .............................................up to 650 mA
Battery........................................................................................................................ 6V/1.3 Ah
Battery protection...................................................................................................fuse T 3.15A
Sound intensity level ...............................................................................................min. 120 dB
Operating temperature ....................................................................................... -35 o C...+60 o C
Dimensions .................................................................................................. 300 x 200 x 90mm
Weight.............................................................................................................................. 1.6 kg
SATEL sp. z o.o.
ul. Schuberta 79
80-172 Gdańsk
POLAND
ACOUSTIC SIGNAL TYPE SELECTION
Two-tone signal, step
modulated
Smooth modulated signal
Smooth modulated signal
Smooth modulated signal
LIMITATION OF ACOUSTIC ALARM DURATION TO:
Approx. 1 minute
Approx. 5 minutes
Approx. 10 minutes
Approx. 15 minutes
SIGNALING MODE AFTER POWER SUPPLY LOSS
Acoustic alarm only
Acoustic and visual alarm
STA INPUT POLARITY (acoustic)
Alarm if voltage changes from 0V to 12V
Alarm if voltage changes from +12V to 0V
STO INPUT POLARITY (visual)
Alarm if voltage changes from 0V to 12V
Alarm if voltage changes from +12V to 0V
....................................................................................
tel. (+48 58) 320 94 00
info@satel.pl
www.satel.pl
SATEL
)
......................................................
..........................................................
The latest EC declaration of conformity and
certificates are available for downloading on
website www.satel.pl
SPLZ-1011
DC 12V ±20%
270 mA
270 mA
