Summary of Contents for Zeiss LSM 880

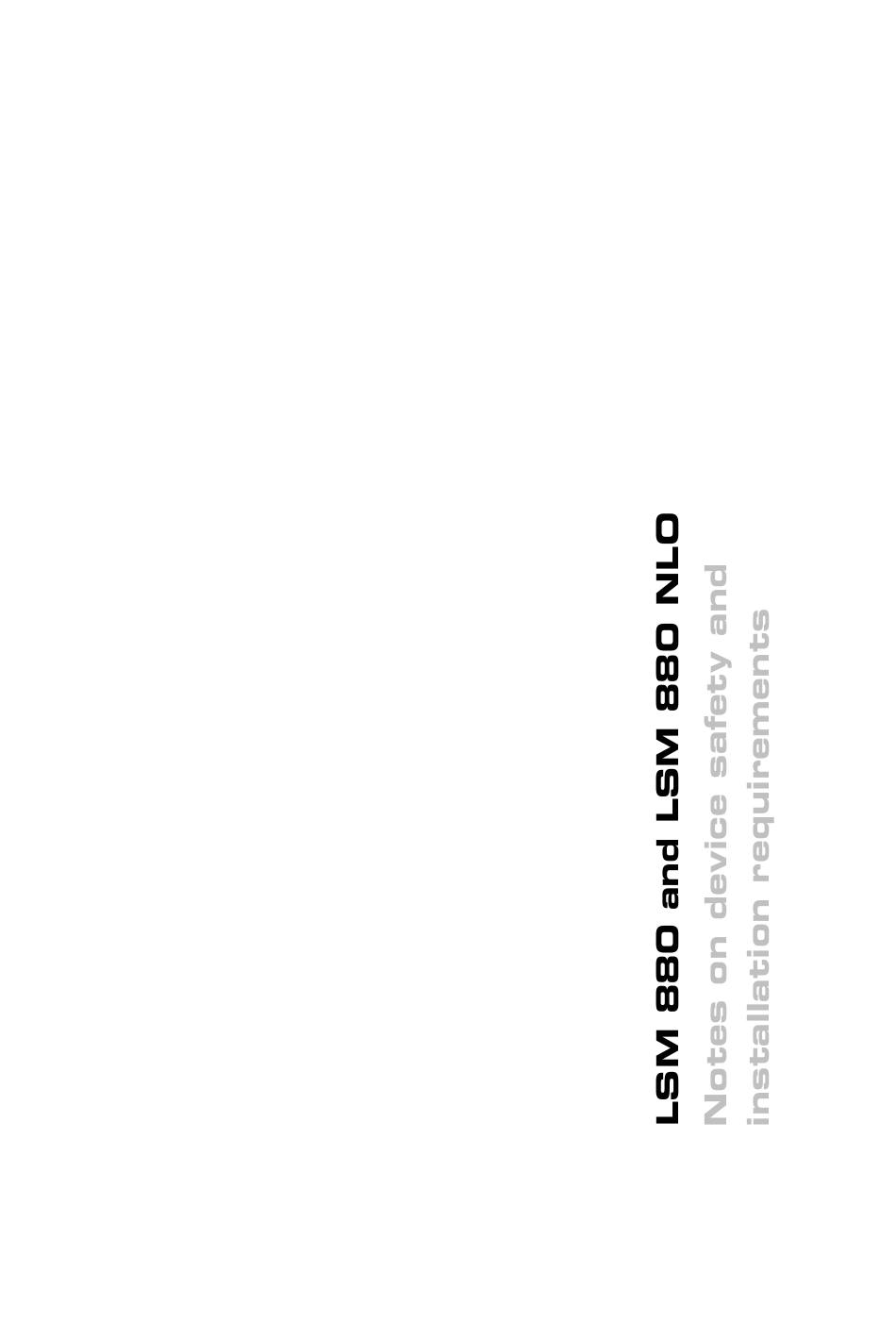

  • Page 1 November 2014...
  • Page 2 Violations will entail an obligation to pay compensation. All rights reserved in the event of granting of patents or registration of a utility model. Issued by Carl Zeiss Microscopy GmbH Carl-Zeiss-Promenade 10 07745 Jena, Germany microscopy@zeiss.com www.zeiss.com/microscopy...

  • Page 3: Table Of Contents

    CHAPTER 1 - NOTES ON DEVICE SAFETY LSM 880 Contents ZEISS CHAPTER 1 NOTES ON DEVICE SAFETY CONTENTS Page General ........................ 2 Regulations ......................3 Power Requirements ..................4 Physical Dimensions .................... 8 Environmental Requirements ................9 Notes on Setting up the Microscope System ..........10 Warning and Information Labels ..............

  • Page 4: General

    3B and 4. If equipped with a Ti:Sa laser (see list in section 8), the LSM 880 system is a device that belongs to laser hazard class 4. WHO recommendations concerning health and industrial protection when handling laser devices must be observed.

  • Page 5: Regulations

    Regulations ZEISS Regulations Extensive knowledge of the hardware / the system is indispensable for safe operation of the LSM 880 system. Read these operating instructions and all device publications belonging to the system conscientiously before operating the LSM 880 system! You can obtain additional information on the hardware configuration delivered and on optional system extensions from the manufacturer or via the service hotline.

  • Page 6: Power Requirements

    Power Requirements LSM 880 Power Requirements The LSM 880 system comes with a mains power supply cord and plug, either CEE red (3/N/PE 400/230 V/16A), or NEMA L 14-30P (2/N/Ground 120/240 V/30 A), and with the matching mains socket outlet.
  • Page 7 The Ti:Sa laser(s) and OPO need to have a separate electrical connection according to the instructions of the manufacturer. When operating the main switch of the LSM 880 NLO the Ti:Sa lasers and the OPO are not switched on or off.
  • Page 8 LSM 880 Fig. 2 Power connector for the LSM 880 system including NLO system and set ups with laser module UV and components. Free/reserve outlets may be used to supply power to additional equipment. No more than 1 A can be provided by each outlet.
  • Page 9 Door interlock interface (1) on the back of the electronic rack (see Fig. 2 top) The LSM 880 system is controlled by a remote control. This remote control contains the main switch for the system and the key switch for the laser.

  • Page 10: Physical Dimensions

    Periscope for two NLO lasers or NLO laser with OPO Active anti-vibration table (NLO) for Laser Chameleon with OPO Scanning Module LSM 880 Microscope Electronic Rack with laser units Plug-in unit external laser Laser Module UV Airyscan...

  • Page 11: Environmental Requirements

    (with system table) 10 µm pp at 10 Hz 10 µm pp at 20 Hz 11. Shipping shock (LSM 880 box) 10 g These requirements do not include the requirements for high precision measurements. Please refer to the Operator’s Manual of the microscope for these requirements.

  • Page 12: Notes On Setting Up The Microscope System

    The LSM 880 and LSM 880 NLO laser scanning microscopes are delivered in several crates. The LSM 880 system must be set up so as to ensure that the minimum clearance between the wall and the rear of the system is no less than 0.5 m. This clearance is needed for adjustment and maintenance operations.
  • Page 13 By establishing a corresponding workplace environment, please ensure that the formation of electrostatic charges is avoided. To avoid vibrations during operation, the LSM 880 system should only be operated in conjunction with the system table (vibration damping). 11/2014 V_05...

  • Page 14: Warning And Information Labels

    LSM 880 Warning and Information Labels The warning and information labels attached on the LSM 880 system must be observed. Check whether all of the labels shown below are provided on your instrument, and contact ZEISS Germany or one of the service agencies if you should discover that any of the labels should be missing.
  • Page 15 CHAPTER 1 - NOTES ON DEVICE SAFETY LSM 880 Warning and Information Labels ZEISS Fig. 5 Warning and information labels on the Axio Observer.Z1 microscope with the LSM 880 scanning module 11/2014 V_05 000000-2071-466...
  • Page 16 CHAPTER 1 - NOTES ON DEVICE SAFETY ZEISS Warning and Information Labels LSM 880 Fig. 6 Warning and information labels on the Axio Observer.Z1 microscope with the LSM 880 scanning module (US version only) 000000-2071-466 11/2014 V_05...
  • Page 17 CHAPTER 1 - NOTES ON DEVICE SAFETY LSM 880 Warning and Information Labels ZEISS Fig. 9 Warning and information labels on the Axio Imager.Z2 microscope with the LSM 880 scanning module 11/2014 V_05 000000-2071-466...
  • Page 18 CHAPTER 1 - NOTES ON DEVICE SAFETY ZEISS Warning and Information Labels LSM 880 Fig. 10 Warning and information labels on the Axio Imager.Z2 microscope with the LSM 880 scanning module (US version only) 000000-2071-466 11/2014 V_05...
  • Page 19 CHAPTER 1 - NOTES ON DEVICE SAFETY LSM 880 Warning and Information Labels ZEISS Fig. 11 Warning and information labels on the Axio Examiner microscope with the LSM 880 scanning module 11/2014 V_05 000000-2071-466...
  • Page 20 CHAPTER 1 - NOTES ON DEVICE SAFETY ZEISS Warning and Information Labels LSM 880 Fig. 12 Warning and information labels on the Axio Examiner microscope with the LSM 880 scanning module (US version only) 000000-2071-466 11/2014 V_05...
  • Page 21 CHAPTER 1 - NOTES ON DEVICE SAFETY LSM 880 Warning and Information Labels ZEISS Fig. 13 Warning and information labels on the laser and electronic rack Fig. 14 Explanatory labels on the laser module UV 11/2014 V_05 000000-2071-466...
  • Page 22 CHAPTER 1 - NOTES ON DEVICE SAFETY ZEISS Warning and Information Labels LSM 880 Fig. 15 Warning label on the AOM or attenuator box(es) Fig. 16 Warning label on the motorized periscope 000000-2071-466 11/2014 V_05...

  • Page 23: Notes On Handling The Laser Components And Illumination Systems

    The following laser types are currently intended for use in the LSM 880 system. The use of any other lasers as the ones listed below is not authorized. The values represent the laser power ex fiber into the scan head for all fiber coupled lasers.
  • Page 24 Life time specified for total power Average power for cw operation If used properly, the LSM 880 system will not pose any laser radiation risks for operating staff. Nevertheless, you should observe the following warnings: • If necessary - insofar as specified by law - inform the laser safety officer before commissioning the laser.
  • Page 25 A replacement fiber can be ordered at your local ZEISS sales or service representative using order # 000000-1870-253 (UV-Fiber, packed). The replacement fiber must be installed by a ZEISS service representative.

  • Page 26: Notes On Care, Maintenance And Service

    Any such action will render all warranty claims null and void and also laser safety is no longer warranted. You are well advised to arrange a service agreement with your nearest ZEISS representative to guarantee perfect functioning of the microscope system in the long term.

  • Page 27: Cleaning

    Please observe the directions of the cooling system manufacturer in the supplied operating manual. If you have signed a service agreement with ZEISS, our service staff will perform the check as part of the maintenance procedure.

  • Page 28: Count On Service In The True Sense Of The Word

    Count on Service in the True Sense of the Word Because the ZEISS microscope system is one of your most important tools, we make sure it is always ready to perform. What’s more, we’ll see to it that you are employing all the options that get the best from your microscope.

  • Page 29: User Interface

    These interlock devices must not be manipulated. Other interfaces not described here are service interfaces and are only to be operated by authorized ZEISS service personnel. The following devices can be mounted and dismounted by the user or are accessible by the user: −...
  • Page 30 ZEISS User Interface LSM 880 For dismounting the lamps, T-PMT or switching mirror slightly unscrew the contact ring first (Fig. 18/2) so it can be moved away from the sensor ring (Fig. 17). Then unscrew the lamp, T-PMT or switching mirror turning the main screw which is in one of the recesses of the sensor ring (Fig.

  • Page 31: Mounting And Dismounting The Big.2

    10.2 Mounting and Dismounting the BiG.2 Do not remove the laser safety cable (Fig. 20/1) from the LSM 880 system. This might result in failure of laser safety and a non-operating system. Always shut down the system completely before mounting or dismounting the BiG.2.
  • Page 32 • Push the laser safety cover (Fig. 21/3) to the port (Fig. 21/1) and fasten the two fastening screws (Fig. 21/2). Fig. 20 Port connection between LSM 880 Fig. 21 Laser safety cover for BiG.2 port and BiG.2...

  • Page 33: Changing The Filter Modules In The Big.2

    CHAPTER 1 - NOTES ON DEVICE SAFETY LSM 880 User Interface ZEISS 10.3 Changing the Filter Modules in the BiG.2 You can remove and replace filter modules by push and click. When opening the filter insert, the safety control will switch off the laser light.

  • Page 34: External Connectors On Big.2

    CHAPTER 1 - NOTES ON DEVICE SAFETY ZEISS User Interface LSM 880 10.4 External Connectors on BiG.2 In the rear of the BiG.2 module, two SMA connectors are available which deliver the signals of both GaAsP PMT detector channels (see Fig.

  • Page 35: Using The Gaasp Ndd 2 Channels On Axio Examiner Stand For Multiphoton Imaging

    CHAPTER 1 - NOTES ON DEVICE SAFETY LSM 880 User Interface ZEISS 10.5 Using the GaAsP NDD 2 Channels on Axio Examiner Stand for Multiphoton Imaging The GaAsP NDD 2 channels is used instead of a regular objective holder on the Axio Examiner stand. It is equipped with two high sensitive GaAsP detectors.
  • Page 36 CHAPTER 1 - NOTES ON DEVICE SAFETY ZEISS User Interface LSM 880 Using and changing the dichroic filter of the GaAsP NDD 2 channels Imaging with the GaAsP NDD 2 channels: • Move the dichroic filter by turning the knob on the front of the unit (Fig.
  • Page 37 LSM 880 Equipped with Two Photon Laser (NLO) for Dual Stand ........40 LSM 880 NLO on Axio Examiner Equipped with NLO Laser and OPO ........ 41 LSM 880 NLO on Axio Examiner Equipped with Two NLO Lasers ........41 LSM 880 NLO on Axio Observer Equipped with NLO Laser and OPO ........

  • Page 38: Space Requirements

    The user PC is located under the computer table. If present, the laser module UV is located on top of the Laser Rack of the LSM 880. The total height of this rack is then 1 m.

  • Page 39: Lsm 880 With Airyscan On Large System Table

    The user PC is located under the computer table. If present, the laser module UV is located on top of the Laser Rack of the LSM 880. The total height of these racks is then 1 m.

  • Page 40: Lsm 880 Equipped With Two Photon Laser (Nlo) For Single Stand

    CHAPTER 2 - SETUP REQUIREMENTS ZEISS Space Requirements LSM 880 LSM 880 Equipped with Two Photon Laser (NLO) for Single Stand Fig. 3 Space requirements for Two Photon Laser (NLO) single stand (measurements in mm) The user PC and the real time electronics are located beneath the computer table. The power supply of the Argon laser is placed on top of the laser rack.

  • Page 41: Lsm 880 Nlo On Axio Examiner Equipped With Nlo Laser And Opo

    LSM 880 Space Requirements ZEISS LSM 880 NLO on Axio Examiner Equipped with NLO Laser and OPO Fig. 5 Space requirements for LSM 880 NLO with NLO laser and OPO (Measurements in mm. With Airyscan module the system table size is 1800 x 1800.) The user PC and the real time electronics are located beneath the computer table.

  • Page 42: Lsm 880 Nlo On Axio Observer Equipped With Nlo Laser And Opo

    ZEISS Space Requirements LSM 880 LSM 880 NLO on Axio Observer Equipped with NLO Laser and OPO Fig. 7 Space requirements for LSM 880 NLO with NLO laser and OPO (Measurements in mm. With Airyscan module the system table size is 1800 x 1800.) The user PC and the real time electronics are located beneath the computer table.

  • Page 43: Power Requirements

    The Ti:Sa laser(s) and OPO need to have a separate electrical connection according to the instructions of the manufacturer. When operating the main switch of the LSM 880 NLO the Ti:Sa lasers are not switched on or off. 11/2014 V_05...

  • Page 44: Physical Dimensions

    Periscope for two NLO lasers or NLO laser with OPO Active anti-vibration table (NLO) for Laser Chameleon with OPO Scanning Module LSM 880 Microscope Electronic Rack with laser units Plug-in unit external laser Laser module UV Airyscan...

  • Page 45: Dimension Of Shipment Crates

    Periscope for two NLO lasers or NLO laser with OPO Active anti-vibration table (NLO) for Laser Chameleon with OPO Laser Rack and LSM 880 Accessories (large box) Accessories (small box) Microscope stand (max. size) Laser module UV (without laser)

  • Page 46: Environmental Requirements

    9. Loss of heat (without Ti:Sa or OPO laser) 2 kW 10. Vibrations under operation conditions 5 µm pp at 5 Hz (with system table) 10 µm pp at 10 Hz 10 µm pp at 20 Hz 11. Shipping shock (LSM 880 box) 10 g 000000-2071-466 11/2014 V_05...

  • Page 47: Available Lasers

    CHAPTER 2 - SETUP REQUIREMENTS LSM 880 Available Lasers ZEISS Available Lasers Laser Insert RGB (pigtailed; 458, 488, 514, 543, 561, 594, 633 nm) Single-mode polarization preserving fiber Laser beam attenuation for all lasers by VIS-AOTF Ar laser (458, 488, 514 nm, 11.5 or 19.5 mW) HeNe laser (543 nm, 0.7 mW)

  • Page 48: System Overview Lsm 880

    CHAPTER 2 - SETUP REQUIREMENTS ZEISS System Overview LSM 880 LSM 880 System Overview LSM 880 000000-2071-466 11/2014 V_05...
  • Page 49 CHAPTER 2 - SETUP REQUIREMENTS LSM 880 System Overview LSM 880 ZEISS 11/2014 V_05 000000-2071-466...
