ZIEHL UFR1001E Short Operating Manual

- Archive document -

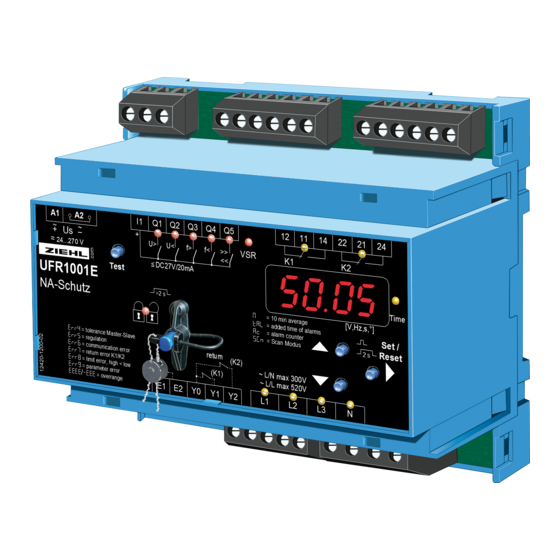

Short Operating Manual UFR1001E
Temperature-Relays, Grid-Relays, Digital Panelmeters MINIPAN, Switching Relays and Controls, Transducers
- NA-protection according to VDE-AR-N 4105, power generators at the low voltage grid
- for use in power generators at the medium voltage grid according to BDEW
- with selectable vector shift detection
Operating controls
1 Test button
Press
shortly
2 LEDs Frequency / voltage, above / below threshold (red)
AL
ON, or
8 8
AL
Flashing,
8
3 LED Vektor shift (VSR, red)
AL
ON,
8 8
AL
Flashing,
8
4 LEDs Relay status (yellow)
OFF Relays de-energized
ON Relays energized
5 Digital display 4-digit (red)
Depending on program, display of current voltage, frequency, vector shift, average value
Display of alarm message
Display of error with error code e.g.
6 LED Time (yellow)
ON A time is displayed
7 Backmost decimal point (red)
OFF Display mode
Lightning Menu mode
Flashing Configuration mode
8
Set / Reset button
Press shortly
Press for > 2 s
Press for > 4 s
Press for > 10 s
UFR1001E 12420-0751-00
Output relays de-energize immediately. If Y1+Y2 are connected and the feedback
signal is activated, the tripping time is displayed as long as no button is actuated
AL M
Above / below threshold
8 8
AL M
or OFF-delay
88 8 8
Threshold value for vector shift exceeded
dof
OFF-delay
8 8
AL
,
8 8
(in display mode, normal state)
Display of next measured value / alarm counter
Reset, quit error messages
Display of program, e.g.
Display of firmware version, e.g.
from Firmware:0-01
updated:120522WL/Fz
dof
active
8 8
active
8
aL M
8 8
Err9
8 8
Pr 1
8 8
Page 1 / 8
