Temperature Relays and MINIKA®

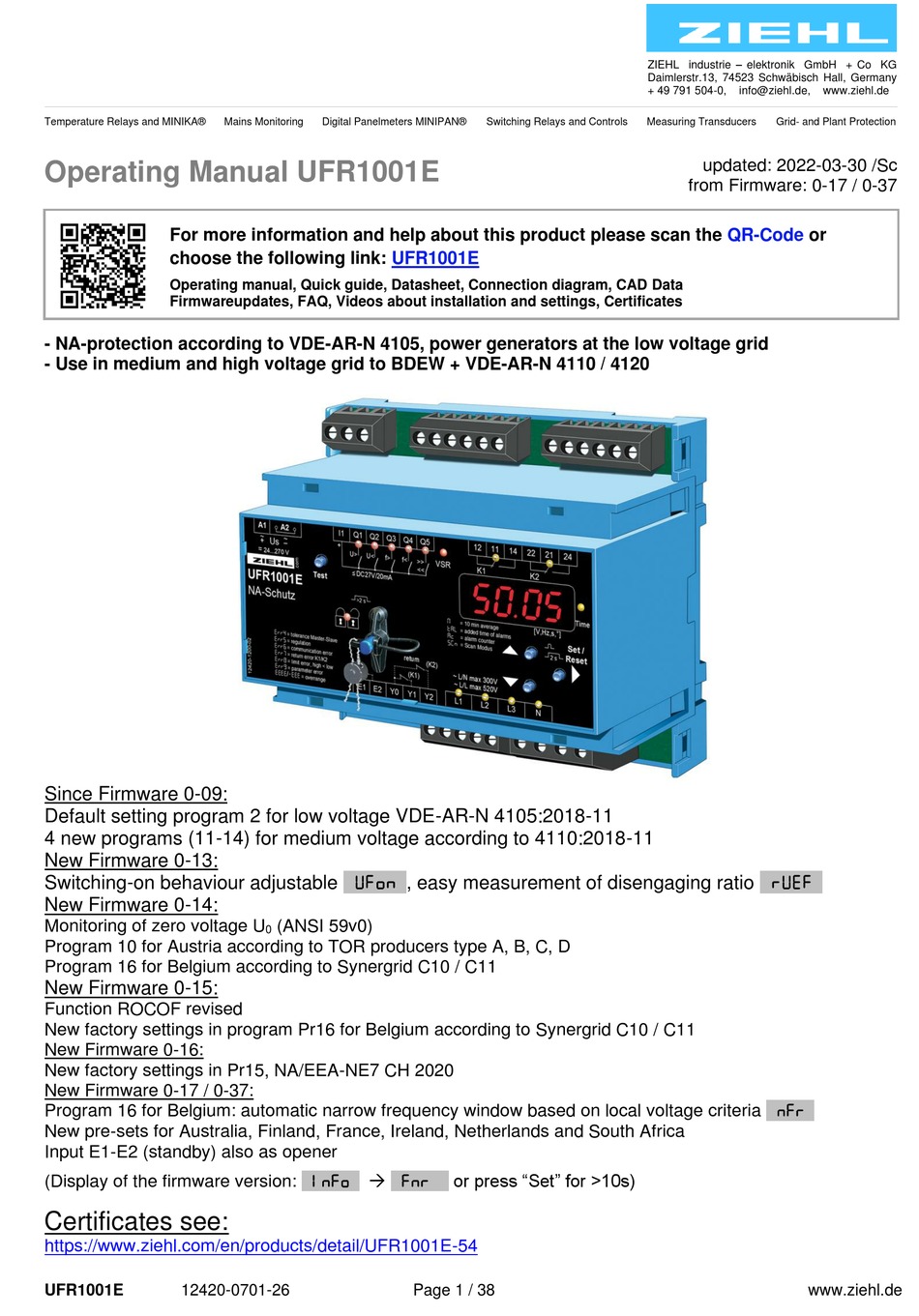

Operating Manual UFR1001E
For more information and help about this product please scan the
choose the following link:
Operating manual, Quick guide, Datasheet, Connection diagram, CAD Data
Firmwareupdates, FAQ, Videos about installation and settings, Certificates
- NA-protection according to VDE-AR-N 4105, power generators at the low voltage grid
- Use in medium and high voltage grid to BDEW + VDE-AR-N 4110 / 4120
Since Firmware 0-09:
Default setting program 2 for low voltage VDE-AR-N 4105:2018-11
4 new programs (11-14) for medium voltage according to 4110:2018-11
New Firmware 0-13:
Switching-on behaviour adjustable 8UFon8, easy measurement of disengaging ratio
New Firmware 0-14:
Monitoring of zero voltage U
Program 10 for Austria according to TOR producers type A, B, C, D
Program 16 for Belgium according to Synergrid C10 / C11
New Firmware 0-15:
Function ROCOF revised
New factory settings in program Pr16 for Belgium according to Synergrid C10 / C11
New Firmware 0-16:
New factory settings in Pr15, NA/EEA-NE7 CH 2020
New Firmware 0-17 / 0-37:
Program 16 for Belgium: automatic narrow frequency window based on local voltage criteria
New pre-sets for Australia, Finland, France, Ireland, Netherlands and South Africa
Input E1-E2 (standby) also as opener
(Display of the firmware version:
Certificates see:
https://www.ziehl.com/en/products/detail/UFR1001E-54

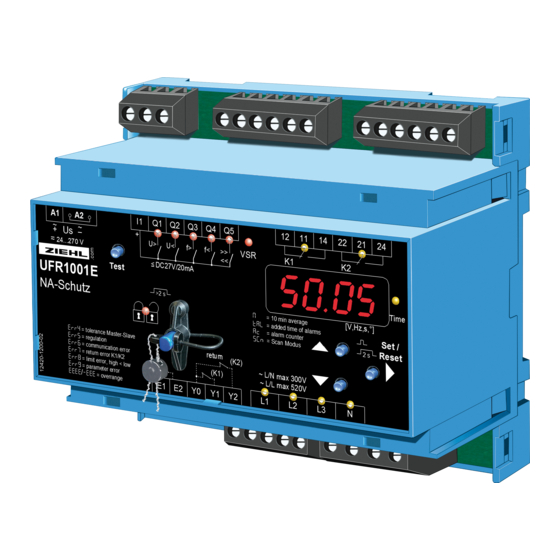

UFR1001E
12420-0701-26
Mains Monitoring
Digital Panelmeters MINIPAN®
UFR1001E
(ANSI 59v0)
0
→ 8fnr
8Info8
Switching Relays and Controls
or press "Set" for >10s)
8
Page 1 / 38
ZIEHL industrie – elektronik GmbH + Co KG
Daimlerstr.13, 74523 Schwäbisch Hall, Germany
+ 49 791 504-0,
info@ziehl.de,
Measuring Transducers
Grid- and Plant Protection
updated: 2022-03-30 /Sc
from Firmware: 0-17 / 0-37
QR-Code
or
8ruEF8
8nFR8
www.ziehl.de
www.ziehl.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UFR1001E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZIEHL UFR1001E

Summary of Contents for ZIEHL UFR1001E

  • Page 1 ZIEHL industrie – elektronik GmbH + Co KG Daimlerstr.13, 74523 Schwäbisch Hall, Germany + 49 791 504-0, info@ziehl.de, www.ziehl.de Temperature Relays and MINIKA® Mains Monitoring Digital Panelmeters MINIPAN® Switching Relays and Controls Measuring Transducers Grid- and Plant Protection updated: 2022-03-30 /Sc...

  • Page 2: Table Of Contents

    17 Adjustment values (VDE-AR-N 4110:2018-11 Medium Voltage / VDE-AR-N 4120:2018-11 High Voltage) higher protection Pr 11+12 ......................27 18 Adjustment values VDE-AR-N 4110:2018-11, Medium Voltage Unit Protection Pr 13+14 ....28 19 Disposal ..............................28 UFR1001E 12420-0701-26 Page 2 / 38 www.ziehl.de...
  • Page 3 20.3 TOR Erzeuger Typ A,B,C,D + NA/EEA-NE7 CH 2020 + C10/C11 + G98(G83/2)+G99(G59/3) ..33 20.4 SFS-EN50549-1+2:2019 + EN50549-1 2-stage + NEN-EN50549-1:2019 + VDE 0126 VFR2019 35 20.5 NRS097 + AS4777,2 ........................37 UFR1001E 12420-0701-26 Page 3 / 38 www.ziehl.de...

  • Page 4: General Notes

    Press briefly resets the stored values Display of MAX (Up) / MIN (Down) - measured values, additional pushing of Set Press for > 2 s button for ≥ 2 s deletes the stored values UFR1001E 12420-0701-26 Page 4 / 38 www.ziehl.de...
  • Page 5 Sealable button + LED Press for > 2 s Lock / Unlock Settings and simulation mode are locked, LED red While attempting to set, 8LOc is displayed for 3s LED green Setting and simulation enabled UFR1001E 12420-0701-26 Page 5 / 38 www.ziehl.de...

  • Page 6: Application And Brief Description

    The UFR1001E is a dual-channel device and thus one-fault-proof. The function of the output-relays and of the connected switches can be monitored with feed-back contacts. When a connected switch does not switch off, the UFR does not switch on again.

  • Page 7: Connection Diagrams

    This second shutdown path must be tested separately during commissioning. Power supply / buffering. Switches have to withstand undervoltage for min.3 s (FRT) TT-system: switch all line conductors and N, TN-system: only switch line conductor UFR1001E 12420-0701-26 Page 7 / 38...

  • Page 8: Important Information

    Us on the side rating plate matches the mains voltage connected to the device! 7 Assembly The device can be mounted: • Distribution panel or control panel on 35 mm rail according to EN 60715 UFR1001E 12420-0701-26 Page 8 / 38 www.ziehl.de...

  • Page 9: Detailed Description

    Digital output over-/under voltage/-frequency, Q3 + Q4 = ROCOF Digital output error, in Programs with >> and << additionally the 2nd threshold value L1, L2, L3, N Phase L1, L2, L3 and neutral conductor UFR1001E 12420-0701-26 Page 9 / 38 www.ziehl.de...

  • Page 10: Functional Characteristics

    F one of the measured voltages less than 8uonf8, the frequency protection evaluation is interrupted until all voltages have exceeded 8uonf8 8uonF8 (does not apply to device start / apply of the control voltage) UFR1001E 12420-0701-26 Page 10 / 38 www.ziehl.de...

  • Page 11: Commissioning

    9 Commissioning 9.1 Program setup The suitable program must be set on the UFR1001E in accordance with the application. If the UFR1001E is sealed/locked (red LED illuminated), the sealing has to be deactivated first. Connection Limit Voltage Country / Standard...
  • Page 12 ➔ Device resets and starts with the newly selected program Hint: When changing programs, all parameters of the selected program are reset to “default settings“ (see table „Default settings“). Only change the parameters after having selected the correct program. UFR1001E 12420-0701-26 Page 12 / 38...

  • Page 13: Control Chart Pr 2

    (Pin = 504) activated Error messages: Err4 = Tolerance Master Slave Err5 = Internal control Err6 = Communication Err7 = Contactor feedback contacts K1/K2 Err8 = Limit error Err9 = Parameter error UFR1001E 12420-0701-26 Page 13 / 38 www.ziehl.de...

  • Page 14: Control Chart Pr 1 And Pr 7

    (Pin = 504) Error messages: Err4 = Tolerance Master Slave Err5 = Internal control Err6 = Communication Err7 = Contactor feedback contacts K1/K2 Err8 = Limit error Err9 = Parameter error UFR1001E 12420-0701-26 Page 14 / 38 www.ziehl.de...

  • Page 15: Description Of The Parameters

    Measuring time ROCOF, (4=sensitive, 50=insensitive) … 8per Periods Response time= 8per * Period duration + 8dal Interval during which the display is updated in … 0. 1 2. 0 delay Display 8ddi the display mode UFR1001E 12420-0701-26 Page 15 / 38 www.ziehl.de...

  • Page 16: Display Mode (Last Decimal Point Off)

    9.5 Display mode (last decimal point off) In the display mode, the UFR1001E is in its normal state; here, depending on the program, the actual voltage, the highest actual 10 minute mean value, the frequency or the vector surge is displayed. In addition, the alarm signals (e.g.

  • Page 17: Disengaging Ratio

    F,, (overfrequency) and F__ (underfrequency) are automatically switched off again after DOF has expired. If the function is switched off (nfr = off), the frequency alarms F,, and F__ get their original function again. UFR1001E 12420-0701-26 Page 17 / 38...

  • Page 18: Test Mode (Timekeeping Only Activated And Connected Feedback Contacts)

    The alarm counter 8ac is increased by 1 with every shut-down. Up to 100 shut-downs are counted. That allows quick detection of how often the UFR1001E has shut down since the last delete of the alarm counter (see cumulative alarm time).

  • Page 19: Alarm Memory

    9.16 Standby counter and standby time The standby counter 8stby8, is increased by 1 with every standby shut-down. Up to 9999 shut-downs are counted. That lets the UFR1001E quickly detect how often, e.g., shut-down was performed through a ripple control receiver.

  • Page 20: Sealing

    If the UFR1001E is sealed/locked, simulation is not possible. If the section switch feedback contacts are connected to the UFR1001E and enabled, (set value > section- switch turn-on time under 8trel.8), after a shut-down, the tripping time (dAL + time of slowest section switch) is displayed.

  • Page 21: Possible Indications In Display

    8ruef8 Function for testing disengaging ratio 8UFon8 Switch-on behaviour after off-limit condition Narrower frequency window (narrower frequency range) H3U0 Menu Nfr : Undervoltage and zero voltage 3U , with hysteresis UFR1001E 12420-0701-26 Page 21 / 38 www.ziehl.de...

  • Page 22: Technical Data

    >100V: -3 digit (res. 1 V), <100V: -3 digit (res. 0.1V) Measurement function 3-phase with/without N Adjustable 0.05 (±15ms)… 300.0 s Response time Adjustable 0(>200ms) … 6000 s Reset time Digital outputs (galvanic isolated) UFR1001E 12420-0701-26 Page 22 / 38 www.ziehl.de...
  • Page 23 IP 30 Protection class, terminals IP 20 Mounting snap-on fastening on 35 mm mounting rail acc EN 60 715 or with M4 screwed attachment (additional bar not included in the scope of delivery) UFR1001E 12420-0701-26 Page 23 / 38 www.ziehl.de...

  • Page 24: Troubleshooting And Measures

    Its normal in Pr2 at Test 2 8noY28. * If the error cannot be patched by a reset, send back to factory for repair. UFR1001E 12420-0701-26 Page 24 / 38 www.ziehl.de...

  • Page 25: Maintenance And Repair

    12 Maintenance and repair The UFR1001E is maintenance-free. Periodically test for proper functioning. 13 Construction form V6 Dimensions in mm Option 16,5 Oberteil / cover Unterteil / base Riegel / bar for snap mounting Sealing max. Ø 1.8 mm Frontplatteneinsatz / front panel Kennzeichen für unten / position downward...

  • Page 26: Adjustment Values Table Vde-Ar-N 4105:2011, Low Voltage Pr 1+7

    300 ms 50.0 – 65.0 Hz Frequency increase protection f> 51.5Hz 100 ms 45.0 – 50.0 Hz Frequency decrease protection f< 47.5Hz 100 ms UFon Switching conditions * Not enabled in as delivered condition UFR1001E 12420-0701-26 Page 26 / 38 www.ziehl.de...

  • Page 27: Adjustment Values Table Vde-Ar-N 4105:2018-11, Low Voltage 6. Table 2, Pr 2

    50,0 – 65,0 Hz f> 51,5 Hz 5,4 s Frequency increase protection 45,0 – 50,0 Hz f< 47,5 Hz Frequency decrease protection 400 ms UFon Switching conditions * Not enabled in as delivered condition UFR1001E 12420-0701-26 Page 27 / 38 www.ziehl.de...

  • Page 28: Adjustment Values Vde-Ar-N 4110:2018-11, Medium Voltage Unit Protection Pr 13+14

    Switching conditions 19 Disposal Disposal should be carried out properly and in an environmentally friendly manner in accordance with legal provisions. ZIEHL is registered with the EAR Foundation under WEEE no.: DE 49 698 543. UFR1001E 12420-0701-26 Page 28 / 38...

  • Page 29: Default Settings Of The Programs

    1. 0 0 1. 0 0 1. 0 0 1. 0 0 81.S2 Hysteresis [Hz] 0. 1 0 0. 1 0 0. 1 0 0. 1 0 0. 1 0 81<S2 response time off-Delay UFR1001E 12420-0701-26 Page 29 / 38 www.ziehl.de...
  • Page 30 Parameter can be changed without unlocking code lock (Pr2 only) Program Pr2 is pre-set at the factory (Code lock is active) → Display of the program: 8Info8 8Pr88 (or when switching on) → Display of the firmware version: 8Info8 8fnr8 UFR1001E 12420-0701-26 Page 30 / 38 www.ziehl.de...

  • Page 31: Vde-Ar-N 4110:2018-11 + Vde-Ar-N 4120:2018-11

    Underfrequency [Hz] 2. 4 0 2. 4 0 2. 4 0 2. 4 0 81.S2 Hysteresis [Hz] 0. 1 0 0. 1 0 0. 1 0 0. 1 0 81<S2 response time off-Delay UFR1001E 12420-0701-26 Page 31 / 38 www.ziehl.de...
  • Page 32 Firmware version Serial number operating hours Error Counter Program Autohysteresis 50,10 Hz Autohysteresis 49,90 Hz → Display of the program: 8Info8 8Pr88 (or when switching on) → Display of the firmware version: 8Info8 8fnr8 UFR1001E 12420-0701-26 Page 32 / 38 www.ziehl.de...

  • Page 33: Tor Erzeuger Typ A,B,C,D + Na/Eea-Ne7 Ch 2020 + C10/C11 + G98(G83/2)+G99(G59/3)

    1. 0 0 1. 0 0 81.S2 Hysteresis [Hz] 0. 1 0 0. 1 0 0. 0 5 0. 5 0 0. 5 0 0. 5 0 0. 5 0 81<S2 response time off-Delay UFR1001E 12420-0701-26 Page 33 / 38 www.ziehl.de...
  • Page 34 8Pr108 the ÖVE / ÖNORM E 8001-4-712 can be parameterized by adapting the parameters → Display of the program: 8Info8 8Pr88 (or when switching on) → Display of the firmware version: 8Info8 8fnr8 UFR1001E 12420-0701-26 Page 34 / 38 www.ziehl.de...

  • Page 35: Sfs-En50549-1+2:2019 + En50549-1 2-Stage + Nen-En50549-1:2019 + Vde 0126 Vfr2019

    1. 0 0 1. 0 0 1. 0 0 81.S2 Hysteresis [Hz] 0. 2 0 0. 2 0 0. 5 0 0. 5 0 0. 1 0 0. 1 0 81<S2 response time off-Delay UFR1001E 12420-0701-26 Page 35 / 38 www.ziehl.de...
  • Page 36 0-17 0-17 0-17 0-17 0-17 Firmware version Serial number operating hours Error Counter Program → Display of the program: 8Info8 8Pr88 (or when switching on) → Display of the firmware version: 8Info8 8fnr8 UFR1001E 12420-0701-26 Page 36 / 38 www.ziehl.de...

  • Page 37: Nrs097 + As4777,2

    47. 5 0 47. 0 0 Underfrequency [Hz] 1. 0 0 1. 0 0 1. 5 0 81.S2 Hysteresis [Hz] 0. 1 0 0. 1 0 1. 8 0 81<S2 response time off-Delay UFR1001E 12420-0701-26 Page 37 / 38 www.ziehl.de...
  • Page 38 0-37 InFo 0-17 0-17 0-17 Firmware version Serial number operating hours Error Counter Program → Display of the program: 8Info8 8Pr88 (or when switching on) → Display of the firmware version: 8Info8 8fnr8 UFR1001E 12420-0701-26 Page 38 / 38 www.ziehl.de...
