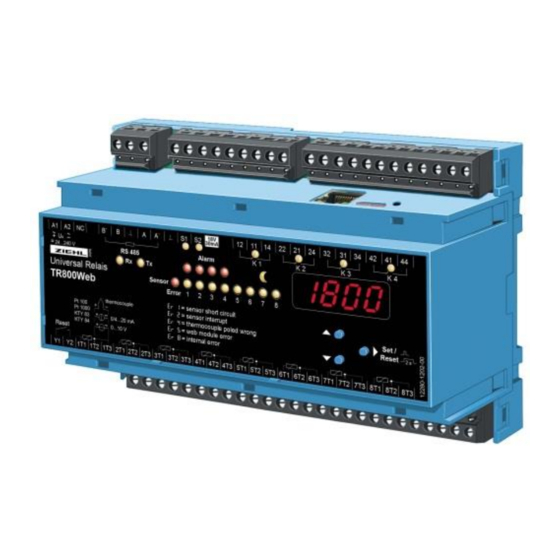

ZIEHL TR800Web Quick Manual

Quick Guide TR800Web
- Universal Relay
Detailed operating manual see:

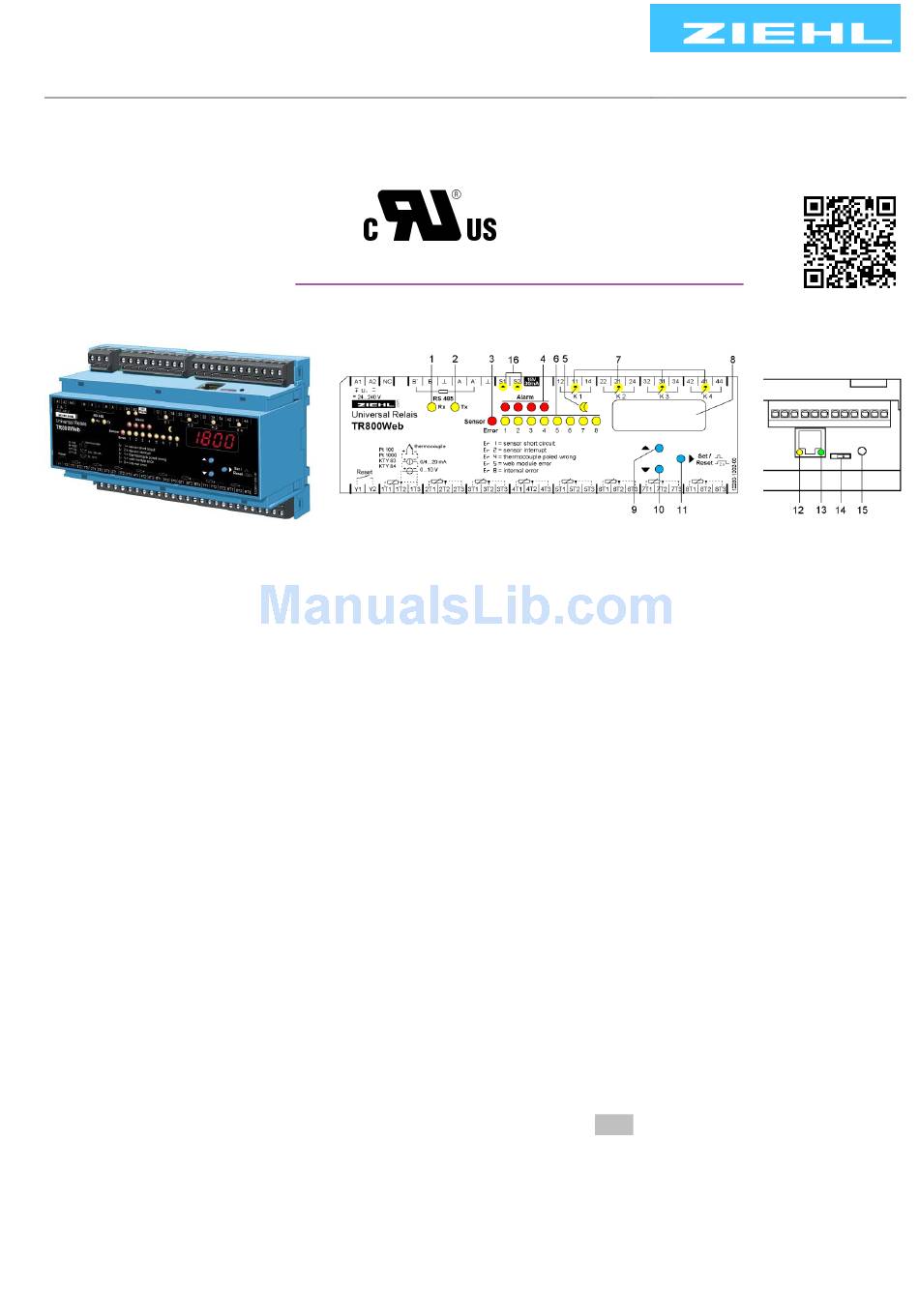

1 Display and controls
1, 2 LEDs (yellow) RS485 interface

Rx flashes briefly:

Tx flashes briefly:

Rx and Tx flash/illuminate during firmware update
3 LED (red) Sensor error

Illuminated:
4 LEDs (red) alarm

Illuminated:

Flashes briefly (1:4):

Flashes long (4:1):

Flashes uniformly (1:1):
5 LED (yellow) Night

Illuminated: Limits for "Night" (can be set via browser) are active
6 LEDs (yellow) sensors

Illuminated:

Flashes:
7 LEDs (yellow) relay state

Illuminated:

Off:
8 Digital display (4 digits)

Display of sensor value, error codes

Display of menu and configuration mode
9, 10 Up button / Down button

Change into the menu mode (see Operating instructions Point 8.3)
11 Set/Reset button

Press briefly:

Press for 10 s:
12 LED (yellow) Displays Ethernet transmission speed

Off: 10 Mbps
13 LED (green) Displays Ethernet data traffic

Flashes during active data transmission
TR800Web 12280-0755-01
http://www.ziehl.com/de/produkte/?view=detail&detail=38
Unit is receiving data via the RS485 interface
Unit is transmitting data via the RS485 interface
Fault in a sensor circuit
Alarm (1-4) has occurred
Response delay is running
Backshift delay is running
Ready for reset, reset with key
Press "SET/RESET" ≥ 2s or ext. Reset Y1/Y2
Displays the sensor value belonging to the LED in the digital display
Sensor error in the corresponding sensor circuit
The relay belonging to the LED is picked up
The relay belonging to the LED is released
Displays the next sensor (sensor LED illuminates)
Displays the software version (e.g. 0-00)
On: 100 Mbps
Seite 1 / 8
ZIEHL industrie – elektronik GmbH + Co KG
Daimlerstr.13, 74523 Schwäbisch Hall, Germany
+ 49 791 504-0, info@ziehl.de,
updated: 2016-10-06/Fz
from Firmware: 2.0.3
Hardware Version -HW1
