Models:
DIGIT SE R
DIGIT SE L
DIGIT SE VKL R
DIGIT SE VKL L
DIGIT
ELECTRONIC CONTROLLER
WITH LCD DISPLAY

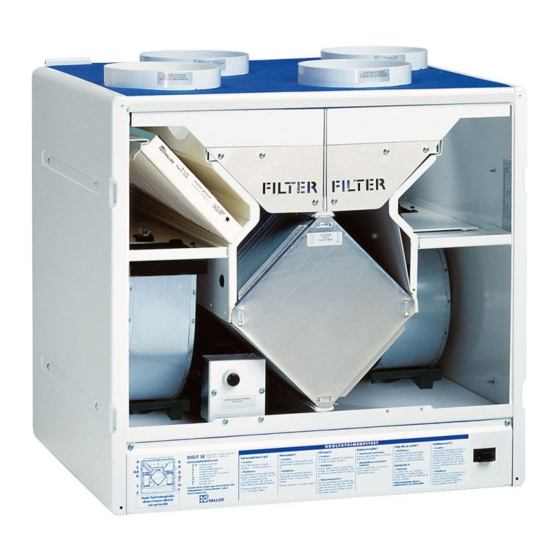

DIGIT SE VKL R
(water radiator model)
The figure shows the R model. In the L model, the duct connections are in reverse order. (See page 2.)
Technical details
• Power supply: 230V, 50Hz, 1.35kW, 5.9A, VKL model 0.35 kW, 1.5 A
(with external preheating max 2kW, in total 3.35kW, 14.7A).
Class of protection IP 34.
• Weight 58 kg
• Capacity regulation in eight steps, base and maximum speeds to be set
• Post-heating ON/OFF button, and post-heating setpoint selection on the
control panel
• Fireplace switch function at the control panel
• Timing of fan speeds and post-heating control at the control panel
• Week clock control at the control panel
• Ability to control from several places (max. 3 control panels)
• LON remote monitoring control
• Remote monitoring control for fan speeds (0...20mA or 0...10VDC)
• Maintenance reminder notifies of the need for service
• Automatic heat recovery cell (HRC) bypass
• Condensing water piping can be hidden
• Automatic defrosting of the cell
• VKL models incorporate automatic defrosting of the water radiator
• Heat recovery efficiency over 60%
• In case of a failure, the display of the control panel shows a message
indicating the reason for the failure.
• Fault signalling relay with potential free points (for remote control)
• Automated features enable the connection of the following:
- CO
control
2
- Humidity control
- Filter guard for both the extract and supply air sides
- Fireplace / booster switch
- External preheating control (factory installed)
- Optional silencer and distribution boxes
SED
DIGIT SE R
(electric radiator model)
• 1.09.61E
• 28.8.2008
© VALLOX
Code B 3500 SE
Advertisement
Related Manuals for Vallox DIGIT SE Series
Summary of Contents for Vallox DIGIT SE Series
- Page 1 - Filter guard for both the extract and supply air sides - Fireplace / booster switch - External preheating control (factory installed) - Optional silencer and distribution boxes © VALLOX • We reserve the right to make changes without prior notification.
- Page 2 Outdoor and extract air prefilter EU3 Humidity sensor (optional) Summer/winter damper LON converter (optional) Duct connections, duct inside ø 160mm Self-actuated one-way + extension joints dampers (only in the VKL model) © VALLOX • We reserve the right to make changes without prior notification.
- Page 3 (10 m sound absorption) ADJUSTMENT POSITION / AIR FLOWS (supply / extract) VALLOX DIGIT SE 33/37 l/s 58/62 l/s 80/87 l/s 98/113 l/s , dB(A) © VALLOX • We reserve the right to make changes without prior notification.
-
Page 4: Control Panel
CONTROL PANEL Control VALLOX DIGIT SE can be controlled with the control panel coming with the unit (3 at most) and with optional CO (5 at most) and %RH sensors (2 at most). Fan speeds of the unit can be controlled via remote monitoring with a voltage or current signal. - Page 5 SLAVE UNIT TERMINAL BLOCK connected to a slave unit. NOTE! + wire must not be connected to a SLAVE UNIT. SLAVE UNIT must not have a 6K8 resistor in place. © VALLOX • We reserve the right to make changes without prior notification.
- Page 6 6 (18 l/s) 7 (21 l/s) 8 (24 l/s) 10 m sound speed (volume flow rate to the room) absorption DIGIT SE / 130 E + VALLOX SILENCER UNIT © VALLOX • We reserve the right to make changes without prior notification.
- Page 7 /s/PRESSURE Pa 36/24 47/49 56/42 75/49 85/73 93/95 108/126 Medium frequency of the octave band, Hz 1000 2000 4000 8000 , dB, total , dB (A), total © VALLOX • We reserve the right to make changes without prior notification.
- Page 8 VALLOX DIGIT SE / VKL INTERNAL ELECTRICAL DIAGRAM © VALLOX • We reserve the right to make changes without prior notification.
-
Page 9: External Wiring Diagram
VALLOX DIGIT SE / VKL EXTERNAL WIRING DIAGRAM © VALLOX • We reserve the right to make changes without prior notification. - Page 10 Curve 4 A 1000 W post-heating radiator can heat e.g. 100 l/s air by circa 8 °C at most. °C Temperature of outdoor air coming to the unit © VALLOX • We reserve the right to make changes without prior notification.
- Page 11 2000W at most. The VALLOX 1000 supply air heater has to be installed in accordance with the instructions printed on the cover of the heater. If, for instance, handedness is changed, it has to be noted that the filter has to be located before the radiator in the air flow.
- Page 12 VALLOX DIGIT SE / VKL CONTROL DIAGRAM DIGIT SE, electric radiator © VALLOX • We reserve the right to make changes without prior notification.
- Page 13 (LP1) on the basis of the measurement data supplied by the temperature sensors TE1 and TE3. The © VALLOX • We reserve the right to make changes without prior notification.
- Page 14 VALLOX DIGIT SE / VKL CONTROL DIAGRAM DIGIT SE VKL EU 1 EU 3 EU 3 EU 7 © VALLOX • We reserve the right to make changes without prior notification.
- Page 15 3.75...4.25 7.5...8.5 extract air fan for 15 minutes and produces overpressure in the ventilation zone. 4.75...5.25 9.5...10.5 LON remote monitoring control can be implemented with the VALLOX LON converter. 5.75...6.25 11.5...12.5 VALLOX DIGIT SE VKL part list 6.75...7.25 13.5...14.5 7.75...8.25 15.5..16.5...
- Page 16 Vallox Oy 32200 Loimaa Puhelin (02) 763 6300 Telefax (02) 763 1539 www.vallox.com © VALLOX • We reserve the right to make changes without prior notification.
