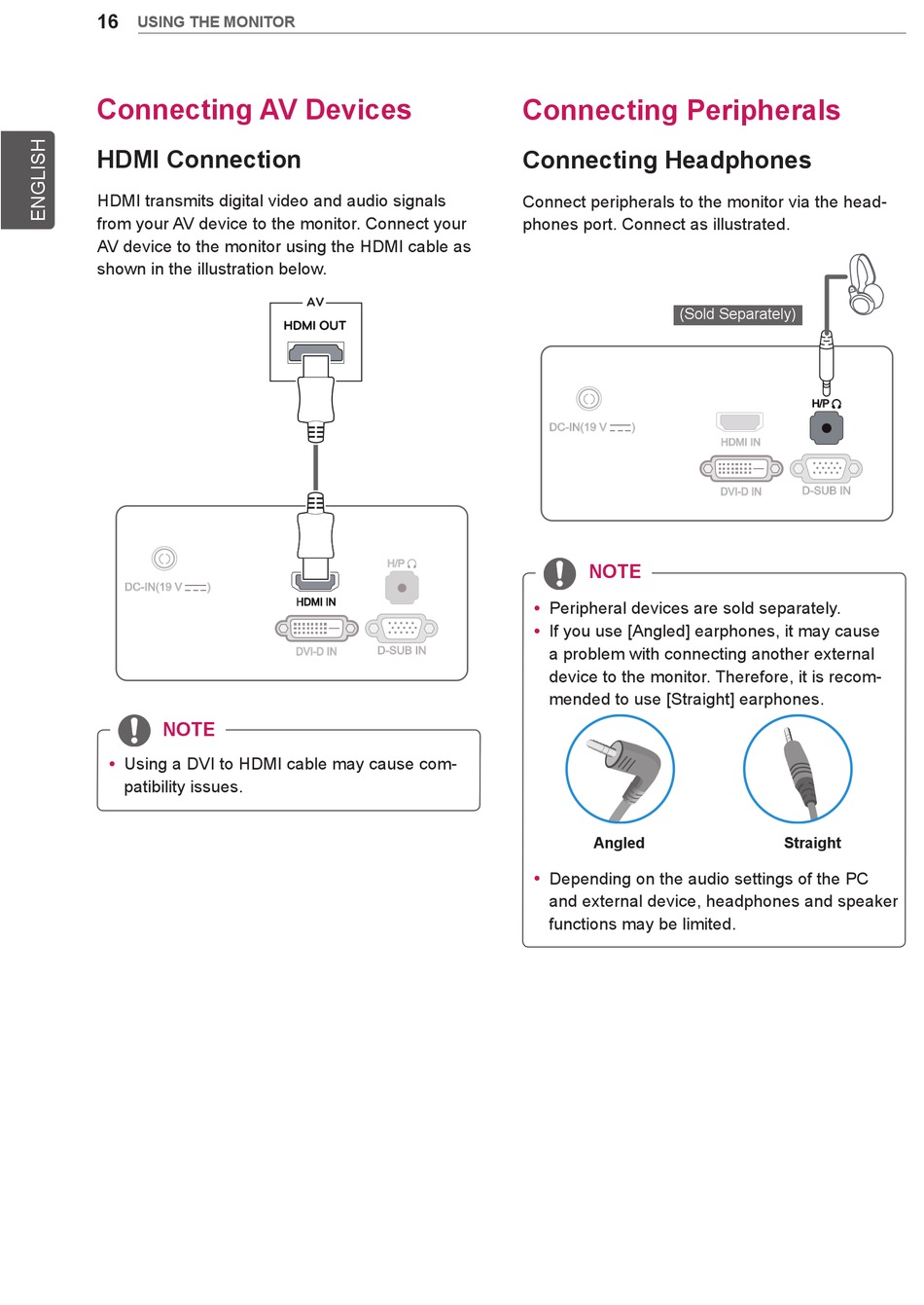

UsInG THe MonIToR
Connecting aV Devices
HDMI Connection
HDMI transmits digital video and audio signals
from your AV device to the monitor. Connect your
AV device to the monitor using the HDMI cable as
shown in the illustration below.
DC-IN(19 V
noTe
y
Using a DVI to HDMI cable may cause com-
patibility issues.
H/P
N
D-SUB IN
N
AUDIO OUT
DVI-I(D) OUT
PC
DC-IN(19 V
)
HDMI IN
DVI-D IN
H/P
)
HDMI IN
D-SUB IN
DVI-D IN
H/P
Connecting Peripherals
D-SUB IN
Connecting Headphones
Connect peripherals to the monitor via the head-
phones port. Connect as illustrated.
DC-IN(19 V
)
noTe
y
Peripheral devices are sold separately.
y
If you use [Angled] earphones, it may cause
a problem with connecting another external
device to the monitor. Therefore, it is recom-
mended to use [Straight] earphones.
angled
y
Depending on the audio settings of the PC
and external device, headphones and speaker
functions may be limited.
(Sold Separately)
H/P
HDMI IN
D-SUB IN
DVI-D IN
straight
DC-IN(19 V
)
