Model name
Width (mm)
Height (mm)
length (mm)
Weight (kg)
W/Packing Weight(kg)
Max Tensile load(kg)
Vesa standard
Required screws
y
VESA (A x B)
LSW240B
(Sold Separately)
281
234
14
1.5
2.2
40
200 X 200
4

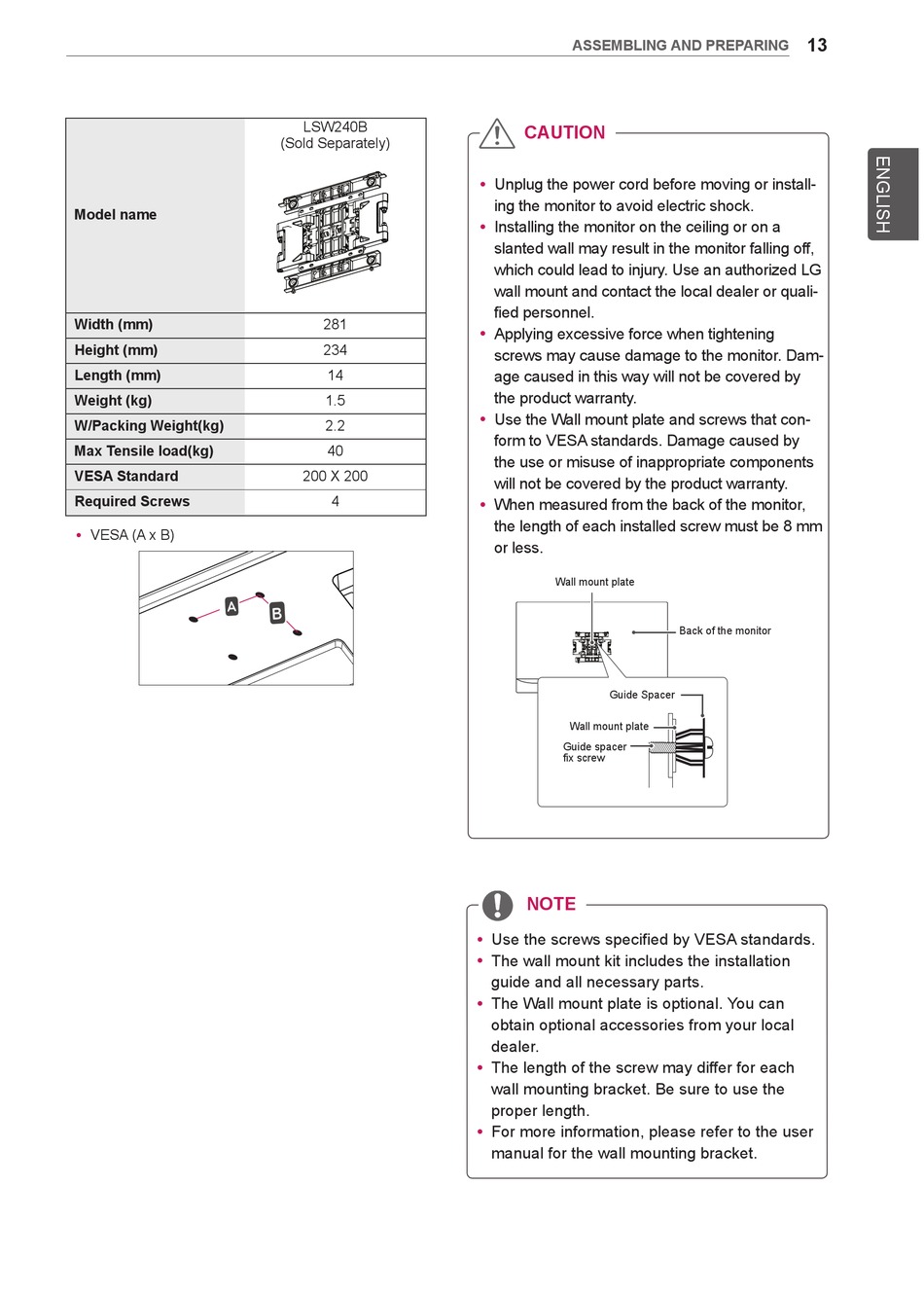

asseMblInG anD PRePaRInG
CaUTIon
v
y
Unplug the power cord before moving or install-
ing the monitor to avoid electric shock.
y
Installing the monitor on the ceiling or on a
slanted wall may result in the monitor falling off,
which could lead to injury. Use an authorized LG
wall mount and contact the local dealer or quali-
fied personnel.
y
Applying excessive force when tightening
screws may cause damage to the monitor. Dam-
age caused in this way will not be covered by
the product warranty.
y
Use the Wall mount plate and screws that con-
form to VESA standards. Damage caused by
the use or misuse of inappropriate components
will not be covered by the product warranty.
y
When measured from the back of the monitor,
the length of each installed screw must be 8 mm
or less.
Wall mount plate
Guide Spacer
Wall mount plate
Guide spacer
fix screw
noTe
y
Use the screws specified by VESA standards.
y
The wall mount kit includes the installation
guide and all necessary parts.
y
The Wall mount plate is optional. You can
obtain optional accessories from your local
dealer.
y
The length of the screw may differ for each
wall mounting bracket. Be sure to use the
proper length.
y
For more information, please refer to the user
manual for the wall mounting bracket.
13
Back of the monitor
