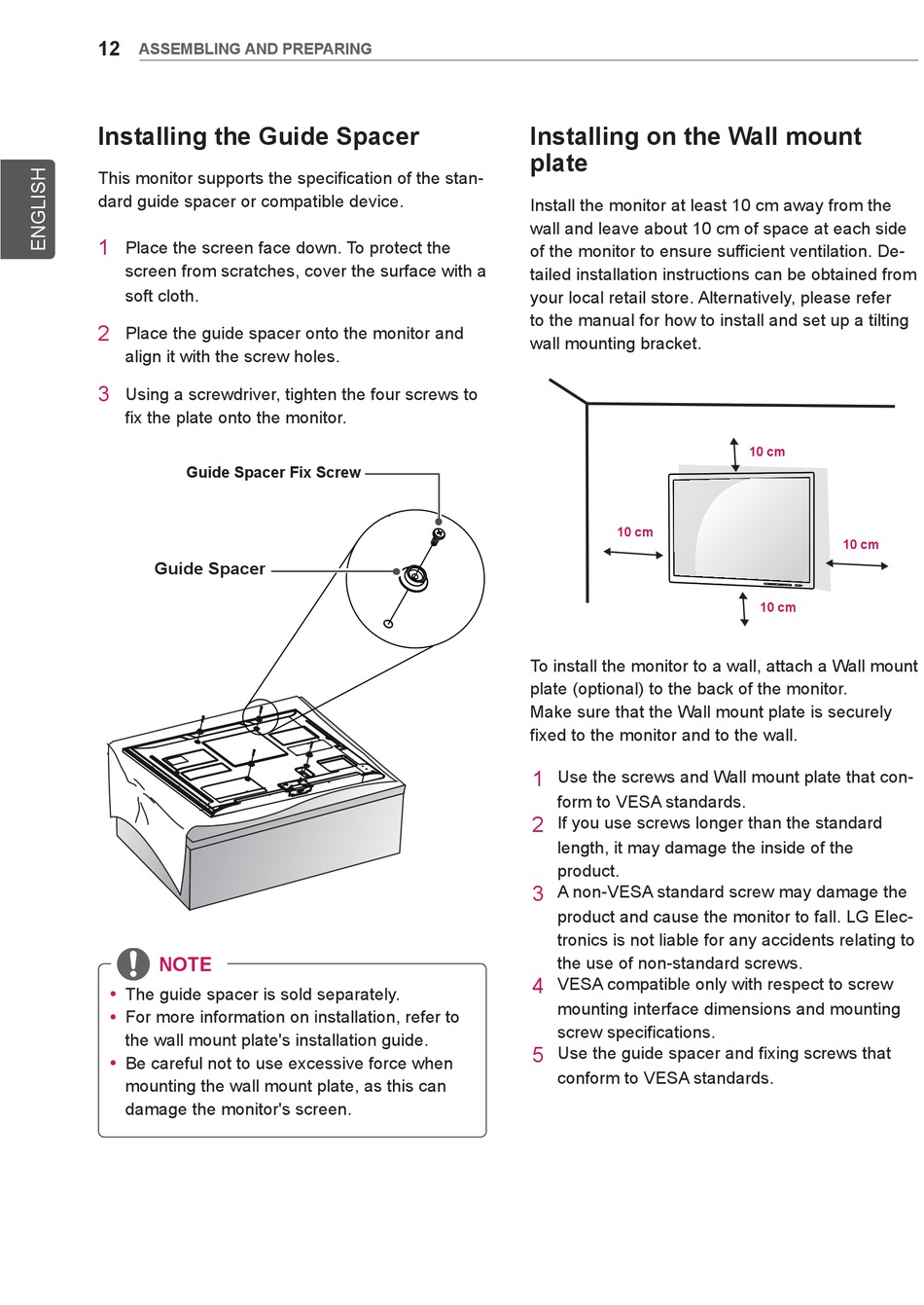

asseMblInG anD PRePaRInG

Installing the Guide spacer

This monitor supports the specification of the stan-
dard guide spacer or compatible device.
1
Place the screen face down. To protect the
screen from scratches, cover the surface with a
soft cloth.
2
Place the guide spacer onto the monitor and
align it with the screw holes.
3
Using a screwdriver, tighten the four screws to
fix the plate onto the monitor.
Guide spacer fix screw
Guide spacer
noTe
The guide spacer is sold separately.
y
y
For more information on installation, refer to
y
y
the wall mount plate's installation guide.
Be careful not to use excessive force when
y
y
mounting the wall mount plate, as this can
damage the monitor's screen.
Installing on the Wall mount
plate
Install the monitor at least 10 cm away from the
wall and leave about 10 cm of space at each side
of the monitor to ensure sufficient ventilation. De-
tailed installation instructions can be obtained from
your local retail store. Alternatively, please refer
to the manual for how to install and set up a tilting
wall mounting bracket.
10 cm
To install the monitor to a wall, attach a Wall mount
plate (optional) to the back of the monitor.
Make sure that the Wall mount plate is securely
fixed to the monitor and to the wall.
1
Use the screws and Wall mount plate that con-
form to VESA standards.
2
If you use screws longer than the standard
length, it may damage the inside of the
product.
3
A non-VESA standard screw may damage the
product and cause the monitor to fall. LG Elec-
tronics is not liable for any accidents relating to
the use of non-standard screws.
4
VESA compatible only with respect to screw
mounting interface dimensions and mounting
screw specifications.
5
Use the guide spacer and fixing screws that
conform to VESA standards.
10 cm
10 cm
10 cm
