Page 1: Installation Instructions

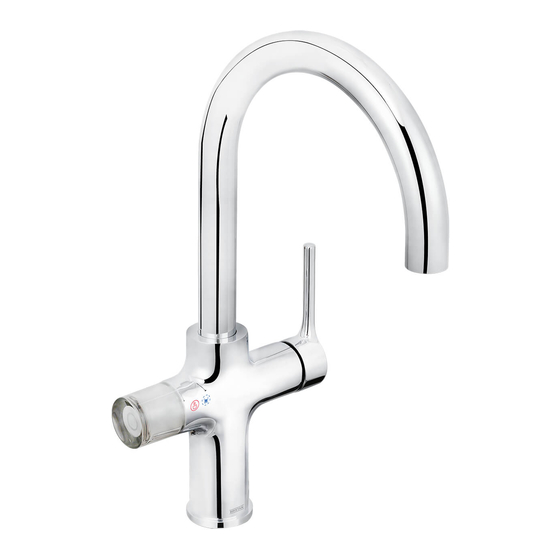

Installation Instructions and User Guide Gallery Rapid Boiling 4-in-1 Sink Mixer Chrome Models Covered: GLL RAPSNK4 C Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user. -
Page 2: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading tap and shower expert. We have designed this product to be easy to install and use. It has also been assessed to all of the relevant British Standards, and conforms to CE Regulations. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. • If you are in any doubt about your ability to install this product safely you must employ the services of an experienced qualified plumber/electrician. -
Page 4: Important Safety Information
Important Safety Information • The filter supplied has to be replaced every six months for protection of your Boiling Water Tank. Failure to do so will invalidate your guarantee. • To protect against electric shock, do not place the cord, plugs or Boiling Water Tank near or in water/other liquids. -
Page 5: Specification
Commercial CE Regulations Prior to Installation Pack Contents All products manufactured and supplied by Bristan are safe to use Not Required provided they are installed, operated correctly and receive regular maintenance in accordance with these instructions. This product has been designed to comply with the Water Supply (Water Fittings) Regulations 1999 and current bylaws. -
Page 6: Installation Requirements
Installation Requirements Positioning the Boiling Water Tank Place the tank in a suitable, well ventilated location that will not fall below 0°C. Ensure that the tank is installed vertically on Also ensure that the a level surface with adequate space around the Filter is in an easily tank. -
Page 7: Installation Requirements
Installation Requirements Connection Diagram Household Pipework Isolation Valves (not supplied) T-Piece (not supplied) Hot Supply Cold Supply Pressure Reducing Valve Electric Filter In Connection Boiling Water Supply Filter Out IMPORTANT The PRV, filter and isolation valves, are required for optimum performance and maintenance of your product. -
Page 8: Installation
Installation Feed the pipes Secure the tap through the sink in place using hole and place the fixing kit. the tap body. Position the Boiling Water Tank in a suitable location. (See Installation Requirements). IMPORTANT Do not tamper with the PRV as Fix the filter this will affect the mounting bracket... -
Page 9: Preparation For Use
Installation Connect the tap connections to the domestic water supplies. Cold Connect the Filter connections Filter In to the Boiling Water Tank. IMPORTANT Preparation for Use Ensure the plastic shroud covers the silicon hose connector. This is a safety feature to prevent accidental scalding. -
Page 10: Operation
Operation Touch Sensitive Ring: Touch and Tap to select through 4 different temperature settings. Temperature Setting Bars No Bars Lit Temperature Range Nominal Temperature 75-80°C 80°C 81-86°C 86°C 87-92°C 92°C 93-98°C 98°C Start-Up/Change Temperature Tap the Touch Sensitive Ring to select Plug in the Power Supply. -
Page 11: General Cleaning
Operation Optimum Temperatures Nominal Suitable For Temperature 80°C Green Tea Instant Coffee, 86°C Oolong Tea Oolong Tea, 92°C Brewing Coffee Filtered Water 98°C Black Tea, Herbal Tea illuminates blue (Press For Filtered/Boiling Water On/Off) Boiling Water illuminates red (Press and Hold) Set up the Boiling Water Tank temperature (see pg10). -
Page 12: Maintenance
Maintenance Cleaning Outlet Using a suitable solution, scrub and wash Put the IMPORTANT the aerator aerator Isolate the until fully together water supply de-scaled. before starting! and screw Rinse in place. Remove the thoroughly. aerator. Emptying the Boiling Water Tank Press Isolate the water supply and draw off all... -
Page 13: Maintenance
Place a small bowl the QR Code or visit filter and replace with underneath the filter www.bristan.com and the new filter. sump and remove it. search for your product. Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. -
Page 14: Troubleshooting
Troubleshooting Symptom Cause Remedy Boiling Water Tank is empty at Follow the Preparation for Use section. first switch-on. No flow from the Boiling Water Function. Boiling Water Tank isn’t Check connections for any leaks. holding water. Contact Customer Services. Turn the Instant Hot Water Tap handle and release the water. -
Page 15: Notes
Notes Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. - Page 16 Email: enquire@bristan.com A Masco Company At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind.
