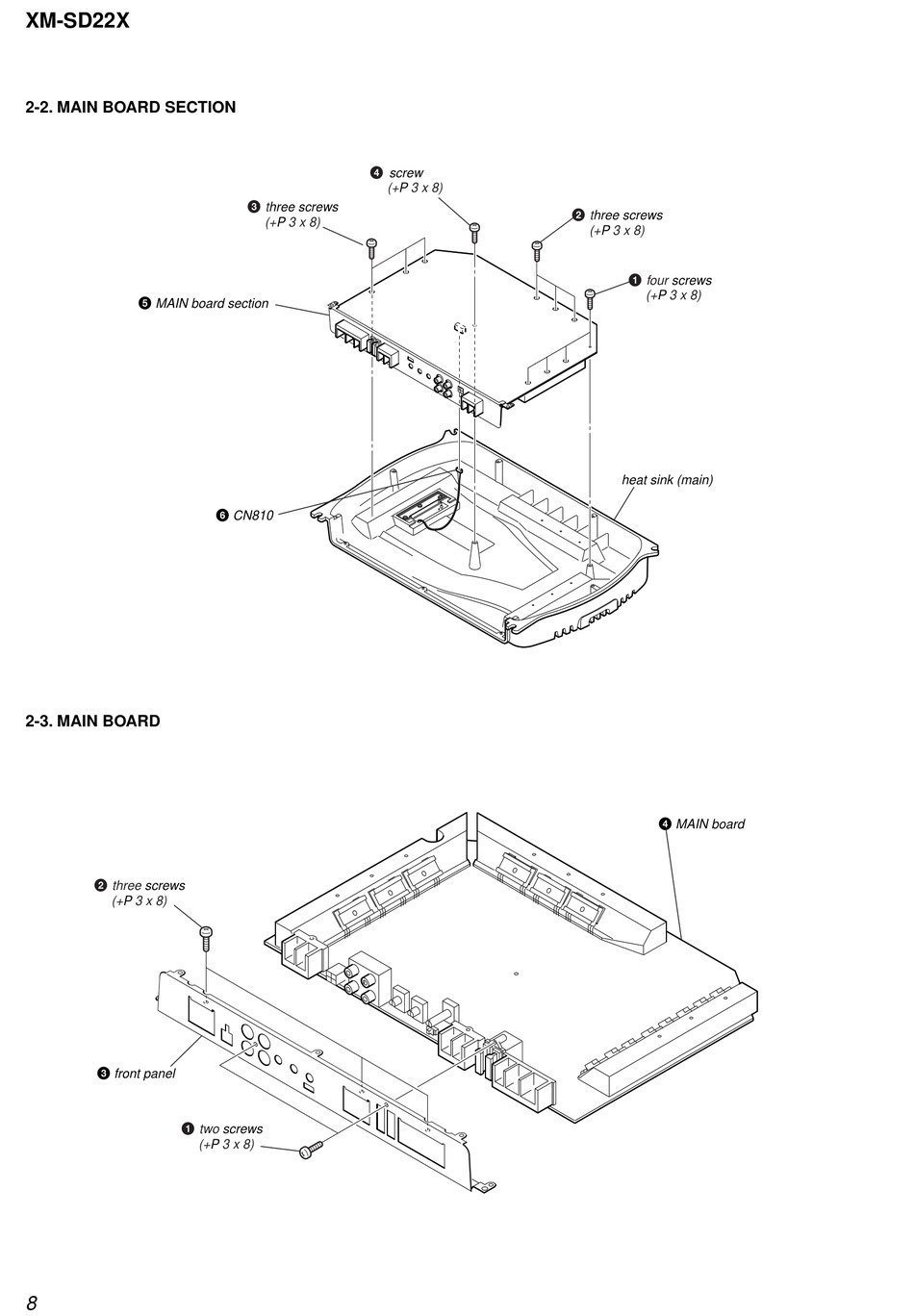

2-2. MAIN BOARD SECTION
5 MAIN board section
2-3. MAIN BOARD
2 three screws
(+ P 3 x 8)
3 front panel
1 two
(+
8
4
3 three screws
(+ P 3 x 8)
6 CN810
screws
P 3 x 8)
screw
(+ P 3 x 8)
three screws
2
(+ P 3 x 8)
1 four screws
(+ P 3 x 8)
heat sink (main)
4 MAIN board
