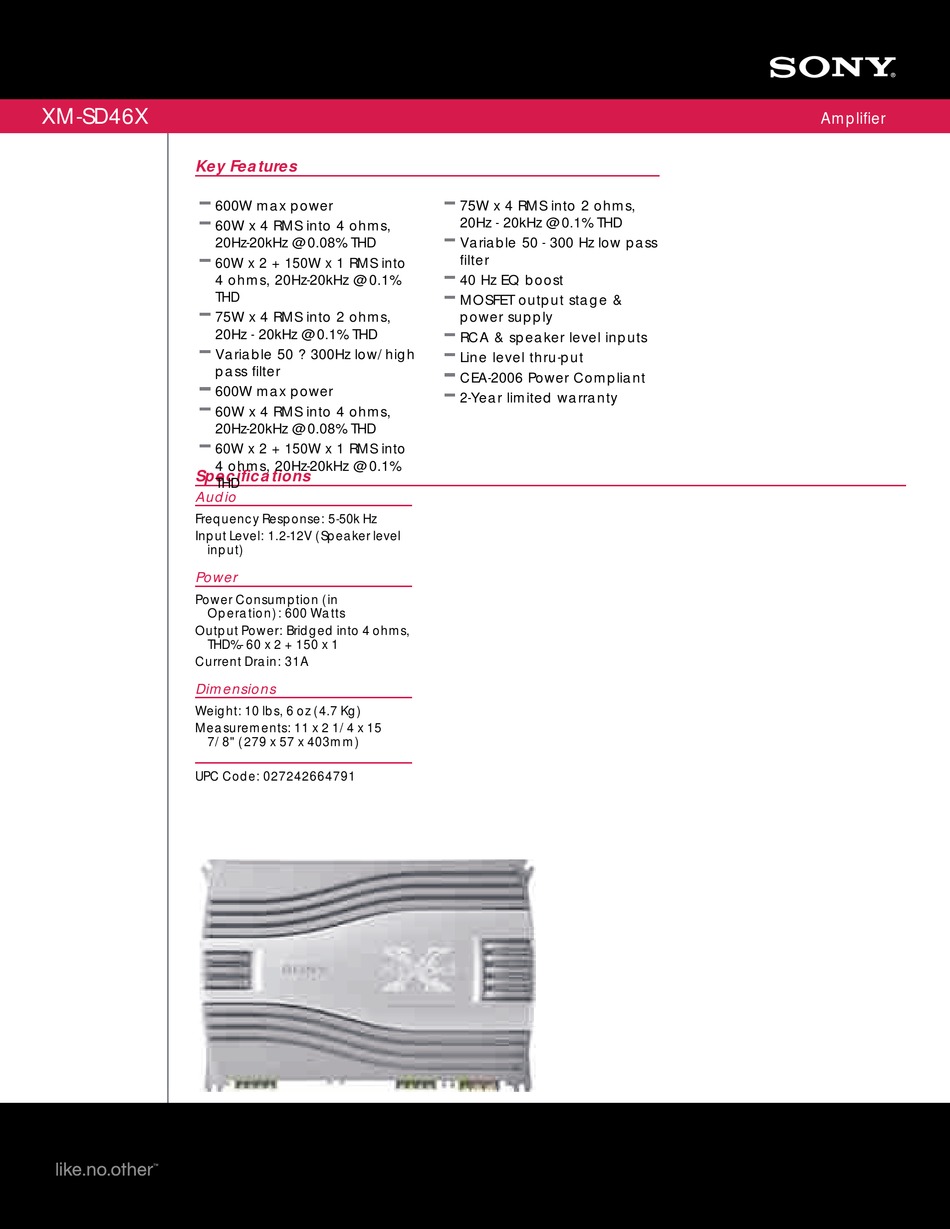

Sony XM-SD46X Marketing Specifications

XM-SD46X
Key Features
600W max power
60W x 4 RMS into 4 ohms,
20Hz-20kHz @ 0.08% THD
60W x 2 + 150W x 1 RMS into
4 ohms, 20Hz-20kHz @ 0.1%
THD
75W x 4 RMS into 2 ohms,
20Hz - 20kHz @ 0.1% THD
Variable 50 ? 300Hz low/high
pass filter
600W max power
60W x 4 RMS into 4 ohms,
20Hz-20kHz @ 0.08% THD
60W x 2 + 150W x 1 RMS into
4 ohms, 20Hz-20kHz @ 0.1%
Specifications
THD
Audio
Frequency Response: 5-50k Hz
Input Level: 1.2-12V (Speaker level
input)
Power
Power Consumption (in
Operation): 600 Watts
Output Power: Bridged into 4 ohms,
THD%- 60 x 2 + 150 x 1
Current Drain: 31A
Dimensions
Weight: 10 lbs, 6 oz (4.7 Kg)
Measurements: 11 x 2 1/4 x 15
7/8" (279 x 57 x 403mm)
UPC Code: 027242664791
75W x 4 RMS into 2 ohms,
20Hz - 20kHz @ 0.1% THD
Variable 50 - 300 Hz low pass
filter
40 Hz EQ boost
MOSFET output stage &
power supply
RCA & speaker level inputs
Line level thru-put
CEA-2006 Power Compliant
2-Year limited warranty
Amplifier
