SERVICE MANUAL
Ver. 1.0 2004.12
AUDIO POWER SPECIFICATIONS (US MODEL)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
200 watts per channel minimum continuous average power into
4 ohms, both channels driven from 20 Hz to 20 kHz with no more
than 0.1% total harmonic distortion per Car Audio Ad Hoc
Committee standards.
Other Specifications
Circuit system
Inputs
Outputs
Suitable speaker impedance
Maximum outputs
Rated outputs (supply voltage at 14.4 V)
SN Ratio
Frequency response
9-879-367-01
2004L04-1
© 2004.12
Get user manuals:
See SafeManuals.com
OTL (output transformerless) circuit
Pulse power supply
RCA pin jacks
High level input connector
Speaker terminals
Through out pin jacks
2 – 8 Ω (stereo)
4 – 8 Ω (when used as a bridging amplifier)
400 W × 2 (at 4 Ω)
600 W × 2 (at 2 Ω)
1,200 W (BTL, at 4 Ω)
200 W RMS × 2 (20 Hz – 20 kHz,
0.1% THD + N, at 4 Ω)
250 W RMS × 2 (20 Hz – 20 kHz,
0.15% THD + N, at 2 Ω)
500 W RMS (BTL) (20 Hz – 20 kHz,
0.15% THD + N, at 4 Ω)
93 dBA (Reference 1W into 4 Ω)
+0
5 Hz – 50 kHz (
dB)
–3
Sony Corporation
e Vehicle Company
Published by Sony Engineering Corporation

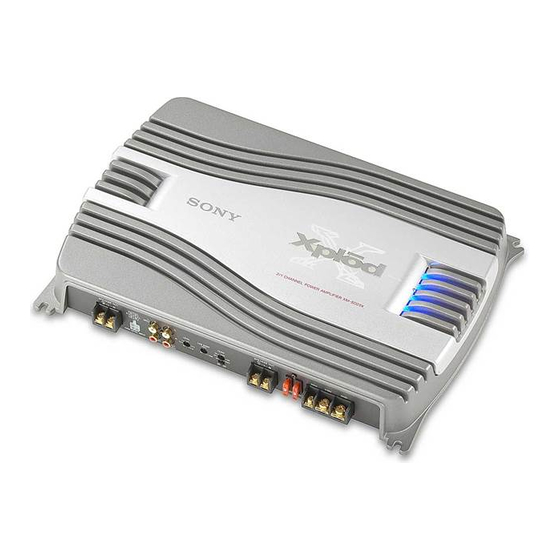

XM-SD22X
SPECIFICATIONS
Input level adjustment range
Low-pass filter
Low boost
Power requirements
Power supply voltage
Current drain
Dimensions
Mass
Supplied accessories
Design and specifications are subject to change without
notice.
STEREO POWER AMPLIFIER
US Model
Canadian Model
AEP Model
UK Model
E Model
0.3 – 6.0 V (RCA pin jacks)
1.2 – 12.0 V (High level input)
50 – 300 Hz, –12 dB/oct
0 – 10 dB (40 Hz)
12 V DC car battery
(negative ground)
10.5 – 16 V
at rated output : 48 A (at 4 Ω)
Remote input : 1 mA
Approx. 403 × 55 × 277 mm
× 2
× 11 in.)
(15
7/8
1/4
(w/h/d) not incl. projecting parts and controls
Approx. 5 kg (11 lb. 1 oz.) not incl. accessories
Mounting screws (4)
High level input cord (1)
Protection cap (1)
1
