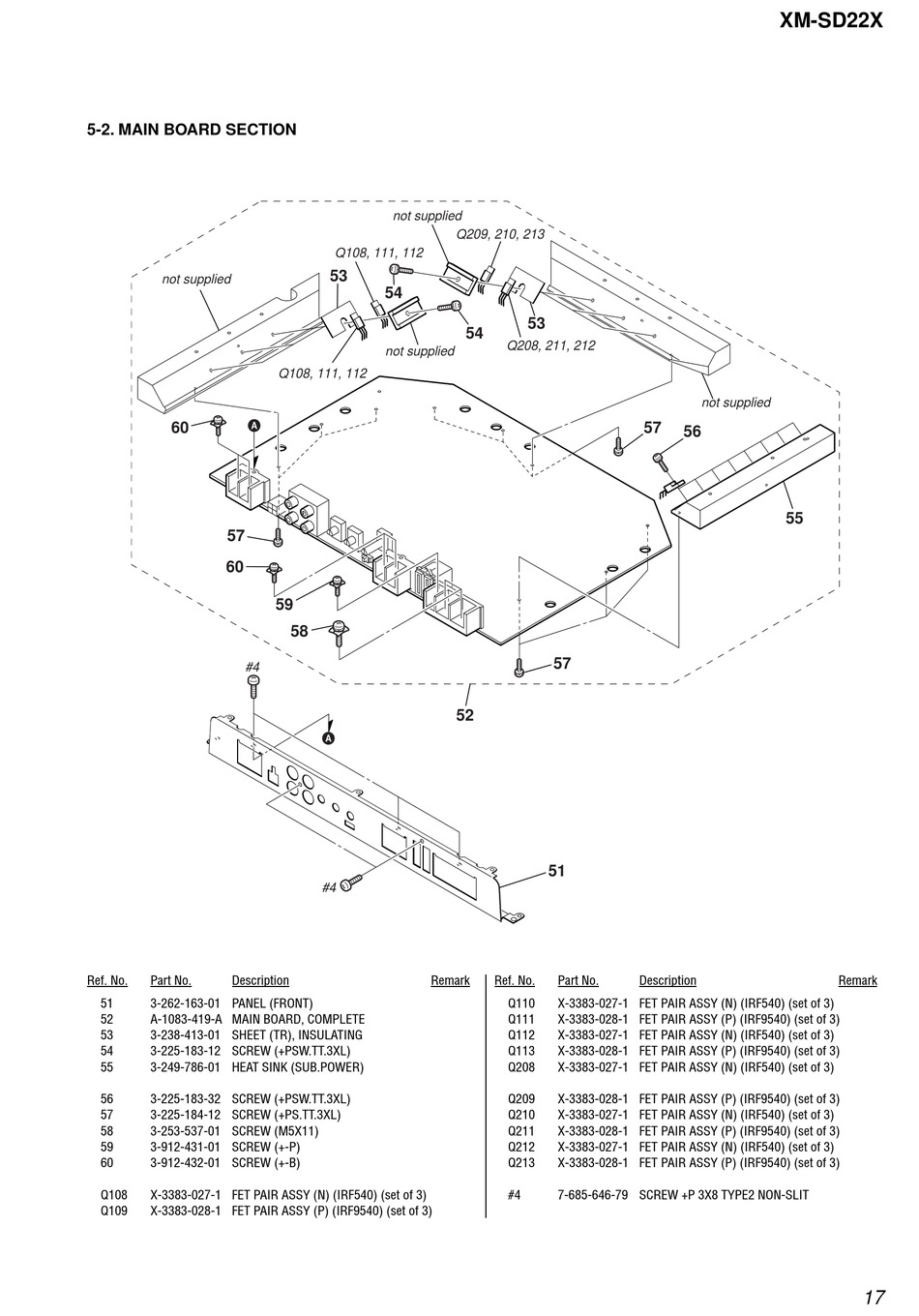

5-2. MAIN BOARD SECTION

not supplied
A
60
57
60
#4
Ref. No.
Part No.
Description
51
3-262-163-01 PANEL (FRONT)
52
A-1083-419-A MAIN BOARD, COMPLETE
53
3-238-413-01 SHEET (TR), INSULATING
54
3-225-183-12 SCREW (+PSW.TT.3XL)
55
3-249-786-01 HEAT SINK (SUB.POWER)
56
3-225-183-32 SCREW (+PSW.TT.3XL)
57
3-225-184-12 SCREW (+PS.TT.3XL)
58
3-253-537-01 SCREW (M5X11)
59
3-912-431-01 SCREW (+-P)
60
3-912-432-01 SCREW (+-B)
Q108
X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q109
X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
not supplied
Q108, 111, 112
53
54
not supplied
Q108, 111, 112
59
58
A
#4
Remark
Q209, 210, 213
53
54
Q208, 211, 212
57
52
51
Ref. No.
Part No.
Q110
X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q111
X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
Q112
X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q113
X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
Q208
X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q209
X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
Q210
X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q211
X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
Q212
X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q213
X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
#4
7-685-646-79 SCREW +P 3X8 TYPE2 NON-SLIT
XM-SD22X
not supplied
57
56
55
Description
Remark
17
