Sony XM SD22X Service Manual page 22

XM-SD22X
MAIN LED
Ref. No. Part No. Description
R943 1-216-009-11 RES-CHIP
R944 1-216-009-11 RES-CHIP
< VARIABLE RESISTOR >
RV101 1-227-558-11 RES, VAR, CARBON 5KX2 (LEVEL)
RV102 1-227-558-11 RES, VAR, CARBON 5KX2 (LOW BOOST (40Hz))
RV301 1-227-557-11 RES, VAR, CARBON 20KX2 (FILTER)
< CERMET RESISTOR >
RV103 1-241-764-11 RES, ADJ, CERMET 10K
RV203 1-241-764-11 RES, ADJ, CERMET 10K
< SWITCH >
S801 1-692-990-21 SWITCH, SLIDE (FILTER)
< TRANSFORMER >
T901 1-439-635-21 TRANSFORMER, DC-DC CONVERTER
< THERMISTOR (NEGATIVE) >
TH801 1-804-301-11 THERMISTOR, CHIP (NEGATIVE)
TH803 1-804-301-11 THERMISTOR, CHIP (NEGATIVE)
TH808 1-804-301-11 THERMISTOR, CHIP (NEGATIVE)
*************************************************************
LED BOARD
**********
< DIODE >
D850 6-501-118-01 LED SEL6E10C-STP5 (POWER)
D851 6-501-118-01 LED SEL6E10C-STP5 (POWER)
D852 6-501-118-01 LED SEL6E10C-STP5 (POWER)
D853 6-501-118-01 LED SEL6E10C-STP5 (POWER)
D854 6-501-117-01 LED SEL2110W-TP3 (PROTECTOR)
< JUMPER RESISTOR >
JR800 1-216-296-11 SHORT CHIP
< RESISTOR >
R850 1-216-815-11 METAL CHIP
R851 1-216-815-11 METAL CHIP
R853 1-216-815-11 METAL CHIP
R854 1-216-815-11 METAL CHIP
R856 1-216-815-11 METAL CHIP
R857 1-216-815-11 METAL CHIP
*************************************************************
22
Remark Ref. No.
22 5% 1/10W
22 5% 1/10W
*************************************************************
0
330 5% 1/10W
330 5% 1/10W
330 5% 1/10W
330 5% 1/10W
330 5% 1/10W
330 5% 1/10W
Part No. Description
ACCESSORIES
************
2-514-765-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH)
2-514-765-21 MANUAL, INSTRUCTION (GERMAN,ITALIAN)
2-514-765-31 MANUAL, INSTRUCTION (SPANISH,
2-514-765-41 MANUAL, INSTRUCTION
2-514-765-51 MANUAL, INSTRUCTION (SWEDISH,POLISH)
2-514-765-61 MANUAL, INSTRUCTION (GREEK,RUSSIAN)

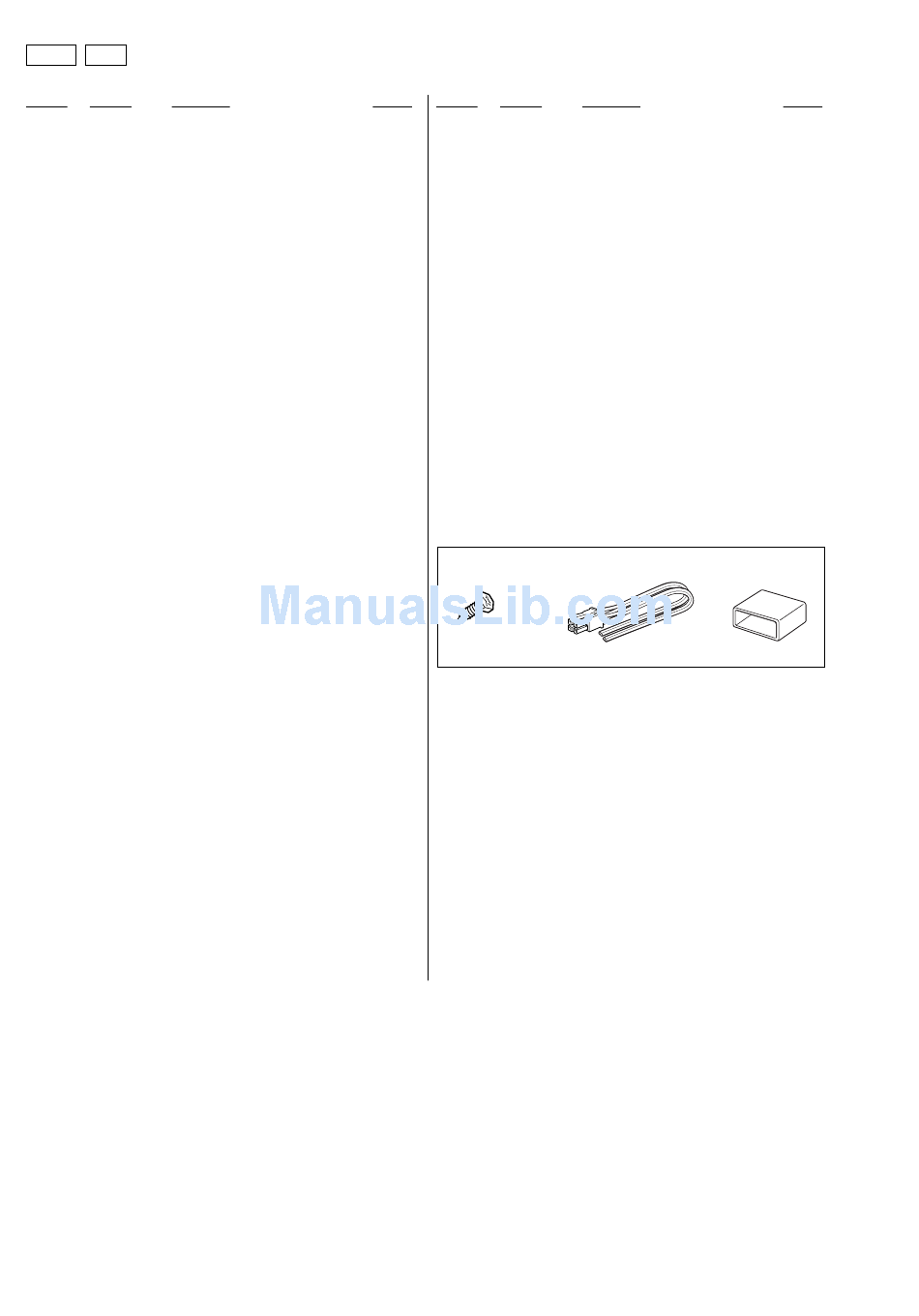

PARTS FOR INSTALLATION AND CONNECTIONS
***************************************
101 3-367-410-11 SCREW (DIA. 5X15), TAPPING
102 1-690-779-31 CORD (WITH CONNECTOR) (0.2m)
103 3-249-791-01 COVER (POWER)
101 102
φ 5 × 15
(× 4)
Remark
(AEP,UK,E)
TRADITIONAL CHINESE)
(AEP,UK,E)
(DUTCH,PORTUGUESE)
(AEP,UK,E)
(AEP,UK,E)
(AEP,UK,E)
(MOUNTING SCREW)
103
0.2 m
