IP Bridge V3/V3+
IP Bridge V3/V3+
The IP Bridge is an RS-232 to TCP/IP programmable converter which allows multiple
configurations. The IP Bridge is mostly used to control via devices such as: slots
readers (bar code and magnetic), proximity readers, bells, etc. It allows the connection
of 1 or 2 Bar Code (Wiegand) readers and the connection of one biometric reader. The
IP Bridge has inputs and outputs that can be used in several ways. Amongst other
things, the inputs can inform the administrator on the state of opening or closing of a
door. The outputs can be used in association with a LED or a buzzer to indicate the door
status to the user
.
The communication with the computer is done with an Ethernet 100BaseT
connection. The IP Bridge must be configured according to your communication
parameters with BoardConfig software (free download).
The IP Bridge is available in two versions, the V3 and the V3+ version.

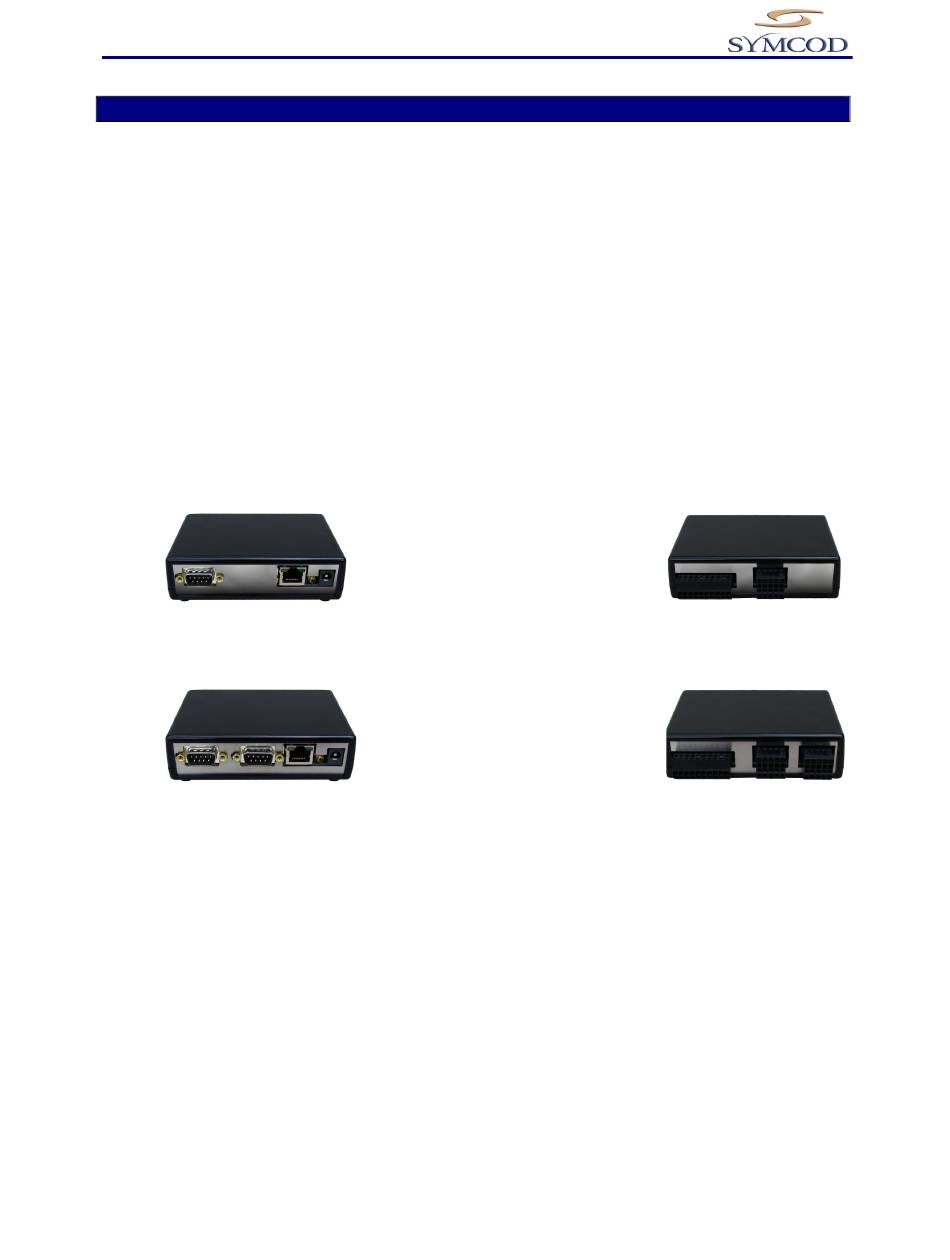

V3 version
front view
V3+ version
front view
Version V3 and V3+ both have two relays to enable devices (bells, lights, etc). They
have inputs (one or two depending on the version) that can receive a maximum of 5
pulses/sec in normal mode, or 500 pulses/sec in counter mode (counter mode available
on entry # 1 only).
The relay and logic input # 1 can be activated through commands sent via RS-232
and/or TCP and/or UDP (BROADCAST). The IP Bridge redirects unconditionally all
characters sent to the TCP link on RS-232 and vice versa.
WWW.SYMCOD.COM
V3
This version includes :
- 1 RS-232 serial port
- 1 input port
- 1 Wiegand input
- 1 buzzer output
- 2 relay outputs
(Connectors shown not included)
V3+
This version includes:
- 2 RS-232 serial ports
- 2 input ports
- 2 Wiegand inputs
- 2 buzzer outputs
- 2 relay outputs
(Connectors shown not included)
V3 version
rear view
V3+ version
rear view
