JS3 and JS4 logical outputs
All logical outputs are open collector type and are remote controllable by software.
The four outputs are available on both connectors JS3 and JS4.
Three of these outputs are specially made for LEDs (red, yellow and green) and they
are normally opened (OFF). The last output is made for a buzzer alarm and is normally
opened (OFF) and closed (ON) momentarily when a good read occur on reading a card.
The 4 outputs are normally open (OFF). The LED outputs 1 and 2 show activation of
related relay 1 and2.
DEL1 OUT: Relay #1 state indicator, 100ma open collector.
DEL2 OUT: Relay #2 state indicator, 100ma open collector.
Buzzer1 OUT: 100ma open collector.
Buzzer2 OUT: 100ma open collector.

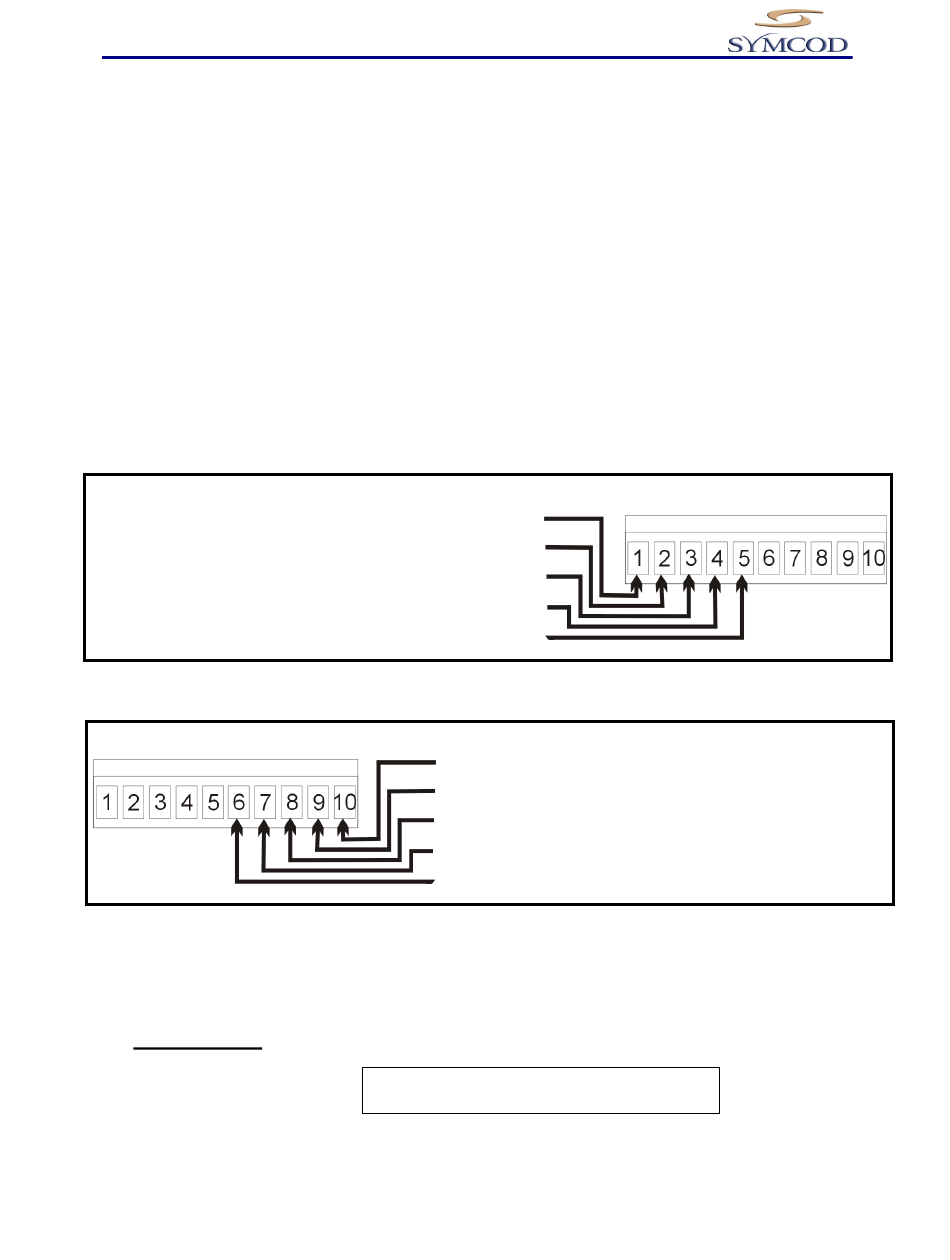

Relay output connector #1 JP1
Relay power input, CC Positive /CA line -1
Relay power input, CC Gnd /CA Neutral -2
Relay common output, CC Gnd /CA Neutral -3
Relay output normally close, CC Positive /CA line -4
Relay output normally open, CC Positive -5
Relay output connector #2 JP1
The output relays (JP1 connector) offer a dry contact either normally closed or
normally opened. The relay allows the activation or de-activation of a door strike or a
door magnet but it does not provide power to either the door strike nor to the door
magnet. The input voltage should never exceed 32 volts AC or DC.
Spécifications
Relay # 1 dry contact
Relay # 2 dry contact
WWW.SYMCOD.COM
10- Relay output normally open, CC Positive /CA
9- Relay output normally close, CC Positive /CA Line
8- Relay common output, CC Gnd /CA Neutral
7- Relay power input, CC Gnd /CA Neutral
6- Relay power input, CC Positive /CA line
Specifications for contact relay
- Maximum: 32 Volts 4 Amps resistive.
